Swivel Foot, PA / ST - BDH - Ball Joint 15
Product number:
9D080KB16150M
Product information "Swivel Foot, PA / ST - BDH - Ball Joint 15"
Color:
Base: Black
Delivery Countries:
Worldwide
Description:

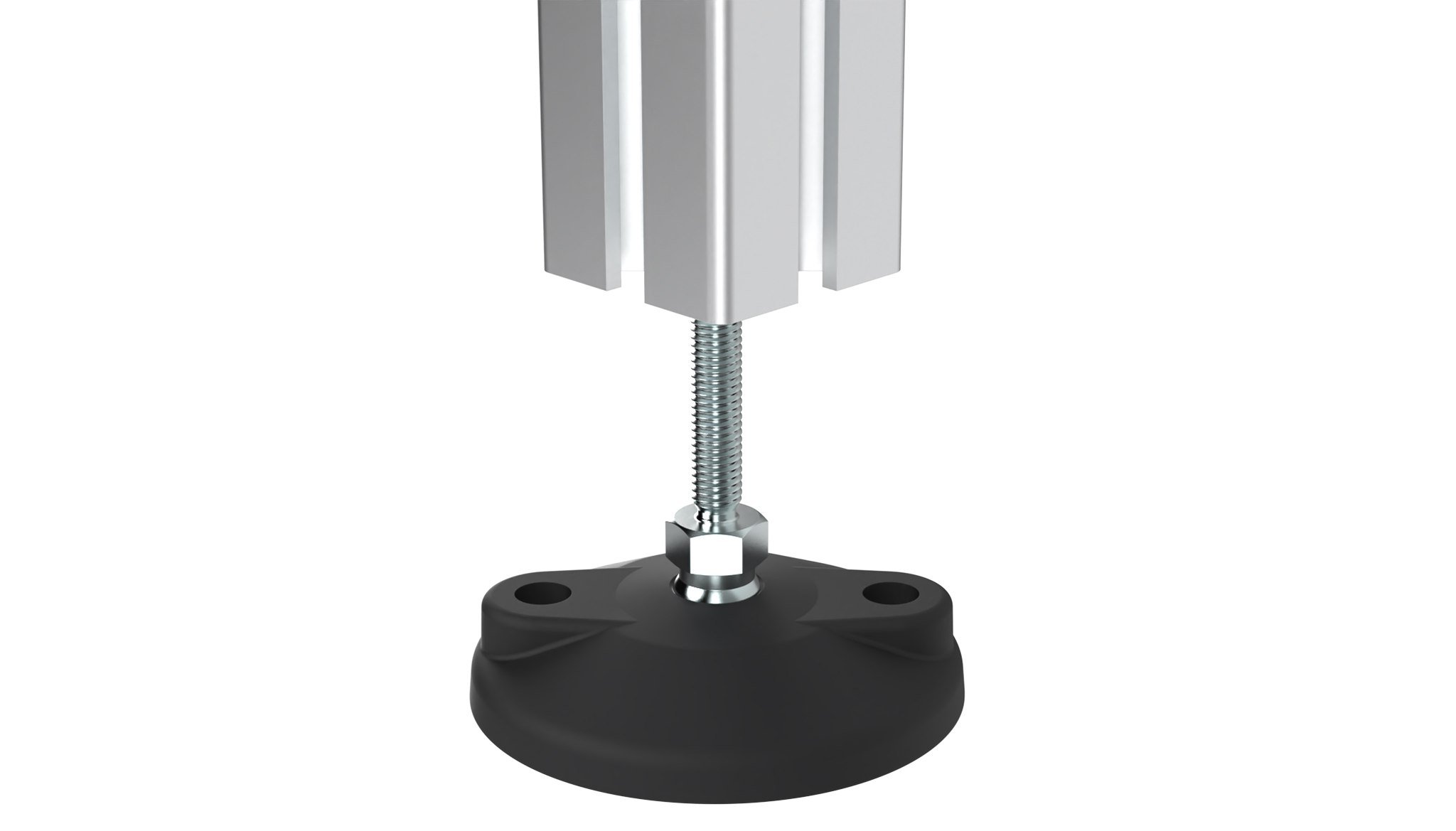

A swiveling leveling foot which can be fixed to the floor
Material:
Base: Plastic PA, glass ball reinforced
Threaded rod: Steel
Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request
Surface:
Threaded rod: Zinc plated
Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq., * Bolt-down holes closed
Zolltarifnummer:
73269098900
Base: Black
Delivery Countries:
Worldwide
Description:
A swiveling leveling foot which can be fixed to the floor
Material:
Base: Plastic PA, glass ball reinforced
Threaded rod: Steel
Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request
Surface:
Threaded rod: Zinc plated
Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq., * Bolt-down holes closed
Zolltarifnummer:
73269098900
| Ball Joint: | Swiveling range ±20° |
|---|---|
| Model: | Plastic PA / Steel, with bolt-down holes |
| Pack Quantity: | 1 piece |
| Weight (g): | 268.0 |
Variants

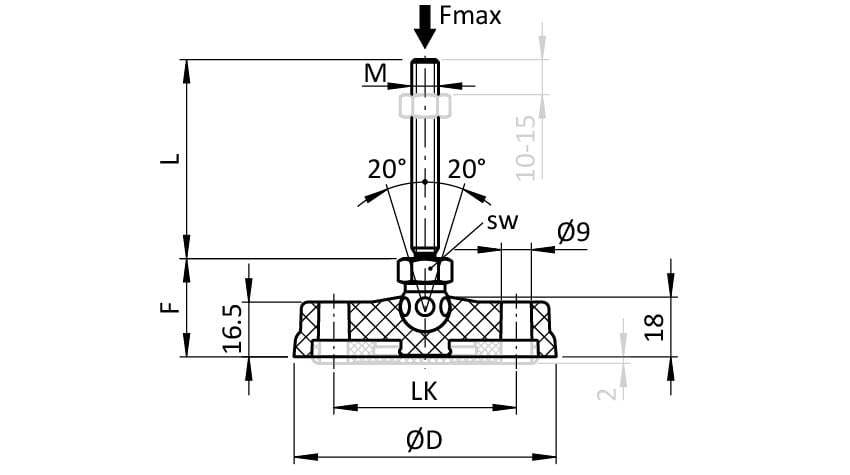

| Product ID | F (mm) | Version | D (mm) | LK (mm) | Base | SW (mm) | Fmax (N) | M x L (mm) |
|---|---|---|---|---|---|---|---|---|
| 9D080KB08080M | 29.5 | without anti-slip plate | 79 | 55 | 80 | 14 | 3430 | M8 x 80 |
| 9D080KB10070M | 29.5 | without anti-slip plate | 79 | 55 | 80 | 14 | 4600 | M10 x 70 |
| 9D080KB12066M | 29.5 | without anti-slip plate | 79 | 55 | 80 | 14 | 7550 | M12 x 66 |
| 9D080KB12100M | 29.5 | without anti-slip plate | 79 | 55 | 80 | 14 | 7550 | M12 x 100 |
| 9D080KB12125M | 29.5 | without anti-slip plate | 79 | 55 | 80 | 14 | 7550 | M12 x 125 |
| 9D080KB16066M | 29.5 | without anti-slip plate | 79 | 55 | 80 | 17 | 8800 | M16 x 66 |
| 9D080KB16100M | 29.5 | without anti-slip plate | 79 | 55 | 80 | 17 | 8800 | M16 x 100 |
| 9D080KB16150M | 29.5 | without anti-slip plate | 79 | 55 | 80 | 17 | 8800 | M16 x 150 |
| 9D080KB16200M | 29.5 | without anti-slip plate | 79 | 55 | 80 | 17 | 8800 | M16 x 200 |
| 9D080KB20200M | 32.5 | without anti-slip plate | 79 | 55 | 80 | 22 | 8800 | M20 x 200 |
| 9D080KB20250M | 32.5 | without anti-slip plate | 79 | 55 | 80 | 22 | 8800 | M20 x 250 |
| 9D080KBZ12066M | 29.5 | without anti-slip plate | 79 | 55 | *80 | 14 | 7550 | M12 x 66 |
| 9D080KBZ12150M | 29.5 | without anti-slip plate | 79 | 55 | *80 | 14 | 7550 | M12 x 150 |
| 9D080KBZ14100M | 29.5 | without anti-slip plate | 79 | 55 | *80 | 14 | 8800 | M14 x 100 |
| 9D080KBZ16066M | 29.5 | without anti-slip plate | 79 | 55 | *80 | 17 | 8800 | M16 x 66 |
| 9D080KBZ16125M | 29.5 | without anti-slip plate | 79 | 55 | *80 | 17 | 8800 | M16 x 125 |
| 9D100KB16125M | 29.5 | without anti-slip plate | 99 | 74 | 100 | 17 | 8800 | M16 x 125 |
| 9D100KB16150M | 29.5 | without anti-slip plate | 99 | 74 | 100 | 17 | 8800 | M16 x 150 |
| 9D100KBZ12125M | 29.5 | without anti-slip plate | 99 | 74 | *100 | 14 | 7550 | M12 x 125 |
| 9D100KBZ16150M | 29.5 | without anti-slip plate | 99 | 74 | *100 | 17 | 8800 | M16 x 150 |
| 9D100KBZ20200M | 32.5 | without anti-slip plate | 99 | 74 | *100 | 22 | 8800 | M20 x 200 |
