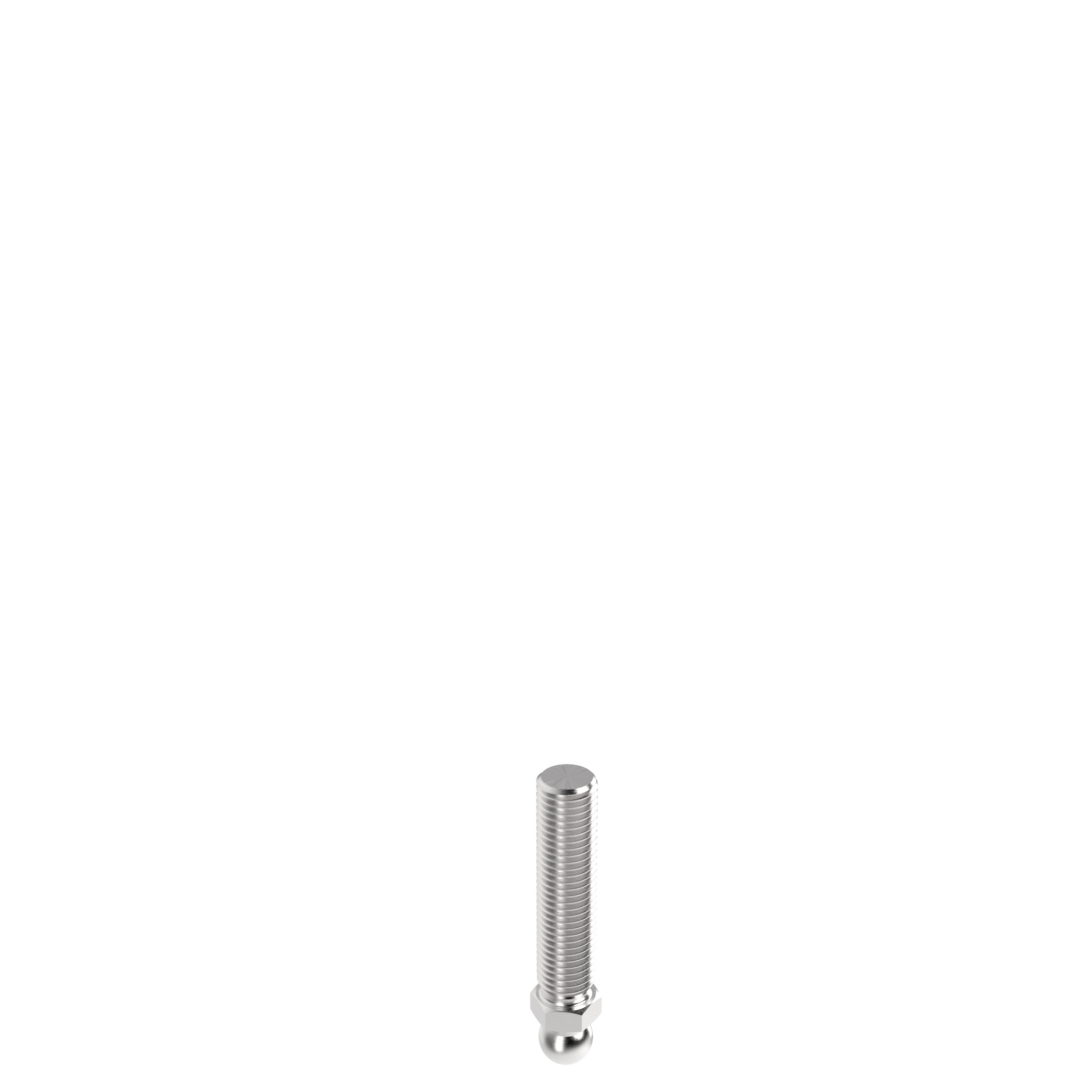

Threaded Rod SS Metric for Swivel Feet, Ball Joint 15

Product information "Threaded Rod SS Metric for Swivel Feet, Ball Joint 15"

Delivery Countries:
Worldwide

Description:
Threaded rod for swiveling leveling feet

Material:
Stainless steel SS304

Specials:
Other lengths and sizes on request

Surface:
Plain
Pack Quantity: 10 pieces
Ball Joint: Swiveling range ±20°
Model: Stainless steel
Weight (g): 112.0
ERP Number: 104211

Variants

Part # Fmax (N) SW (mm) M x L (mm) Material CAD
3430 14 M8 x 25 Stainless steel
3430 14 M8 x 40 Stainless steel
3430 14 M8 x 80 Stainless steel
4600 14 M10 x 45 Stainless steel
4600 14 M10 x 70 Stainless steel
4600 14 M10 x 90 Stainless steel
4600 14 M10 x 125 Stainless steel
4600 14 M10 x 150 Stainless steel
7550 14 M12 x 45 Stainless steel
7550 14 M12 x 66 Stainless steel
7550 14 M12 x 100 Stainless steel
7550 14 M12 x 125 Stainless steel
7550 14 M12 x 150 Stainless steel
10880 14 M14 x 66 Stainless steel
10880 14 M14 x 100 Stainless steel
10880 14 M14 x 125 Stainless steel
10880 14 M14 x 150 Stainless steel
14200 17 M16 x 66 Stainless steel
14200 17 M16 x 100 Stainless steel
14200 17 M16 x 125 Stainless steel
14200 17 M16 x 150 Stainless steel
14200 17 M16 x 200 Stainless steel
23800 22 M20 x 85 Stainless steel
23800 22 M20 x 100 Stainless steel
23800 22 M20 x 125 Stainless steel
23800 22 M20 x 150 Stainless steel
23800 22 M20 x 200 Stainless steel
23800 22 M20 x 250 Stainless steel
35400 24 M24 x 85 Stainless steel
35400 24 M24 x 100 Stainless steel
35400 24 M24 x 125 Stainless steel
35400 24 M24 x 150 Stainless steel
35400 24 M24 x 200 Stainless steel
35400 24 M24 x 250 Stainless steel

CAD Downloads

Classifications

ECLASS 6.0
90900103
ECLASS 7.0
90900103
ECLASS 8.0
90900103
ECLASS 9.0
90900103
ECLASS 10.0
90900103
ECLASS 11.0
90900103
ECLASS 12.0
90900103
ECLASS 13.0
90900103
ECLASS 14.0
90900103
ECLASS 15.0
90900103
ECLASS 16.0
23010705
Zolltarifnummer
73181575900
Customs Tariff Number Export
73181575

Certificates

Tags

Profile Type Profile Type B, Profile Type I
Product Feature ESD, Stainless
Profile Form T-slot Profiles
Application Area Machinery & Plant Engineering
