Threaded Rod SS UNC for Pivot Feet

Product information "Threaded Rod SS UNC for Pivot Feet"

Delivery Countries:
Worldwide

Description:

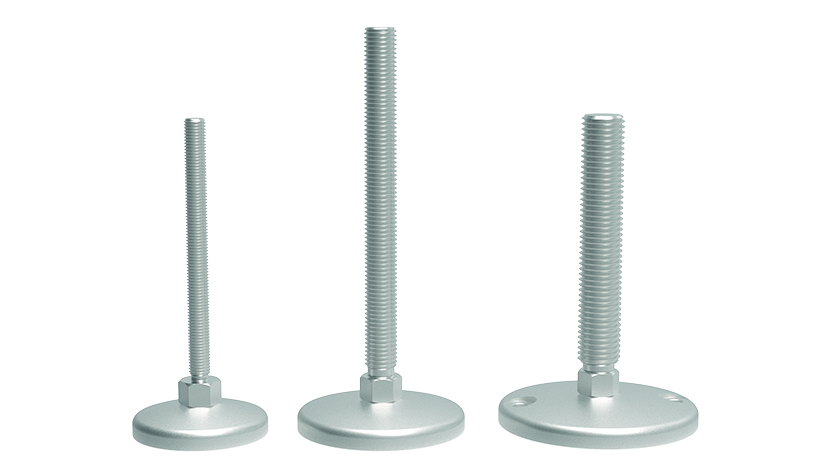

Threaded rod for pivot leveling feet

Material:
Stainless steel SS303

Specials:
Other lengths and sizes on request

Surface:
Plain

Tip:

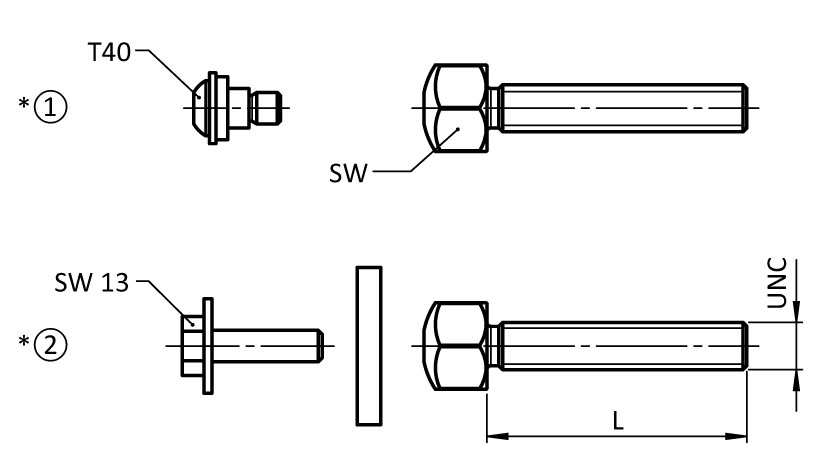

*2. For pivot feet: Assembly set 098XAES03 included
*2. For heavy-duty pivot feet: Assembly set 098XAUE included
Customs Tariff Number Export: 73181575
Model: Stainless steel
Pack Quantity: 10 pieces
Screw Joint: Swiveling range ±4°
Weight (g): 342.0
Zolltarifnummer: 73181575900
pA Number: 103677

Variants

Product ID SW (mm) Material Fmax (N) UNC x L (in)
098AU1-4E 22 (7/8") Stainless steel 35400 1-8 UNC x 4"
098AU1-6E 22 (7/8") Stainless steel 35400 1-8 UNC x 6"
098AU1-8E 22 (7/8") Stainless steel 35400 1-8 UNC x 8"
098AU1/2-3E 22 (7/8") Stainless steel 7550
098AU1/2-4E 22 (7/8") Stainless steel 7550
098AU1/2-5E 22 (7/8") Stainless steel 7550
098AU1/2-6E 22 (7/8") Stainless steel 7550
098AU11/4-4E 22 (7/8") Stainless steel 56600 1 1/4-7 UNC x 4"
098AU11/4-6E 22 (7/8") Stainless steel 56600 1 1/4-7 UNC x 6"
098AU11/4-8E 22 (7/8") Stainless steel 56600 1 1/4-7 UNC x 8"
098AU3/4-4E 22 (7/8") Stainless steel 23800 3/4-10 UNC x 4"
098AU3/4-5E 22 (7/8") Stainless steel 23800 3/4-10 UNC x 5"
098AU3/4-6E 22 (7/8") Stainless steel 23800 3/4-10 UNC x 6"
098AU3/4-8E 22 (7/8") Stainless steel 23800 3/4-10 UNC x 8"
098AU5/8-3E 22 (7/8") Stainless steel 14200
098AU5/8-4E 22 (7/8") Stainless steel 14200
098AU5/8-5E 22 (7/8") Stainless steel 14200
098AU5/8-6E 22 (7/8") Stainless steel 14200
098AU5/8-8E 22 (7/8") Stainless steel 14200
