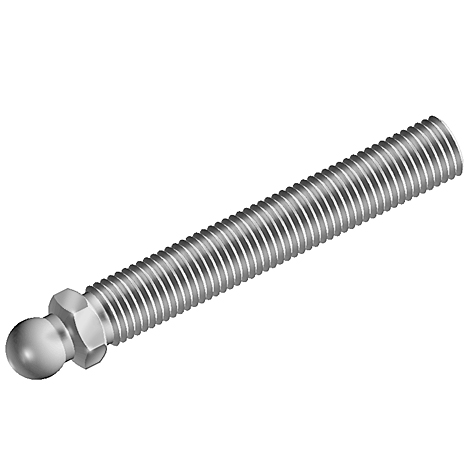

Threaded Rod SS UNC for Swivel Feet, Ball Joint 15

Product information "Threaded Rod SS UNC for Swivel Feet, Ball Joint 15"

Delivery Countries:
Worldwide

Description:

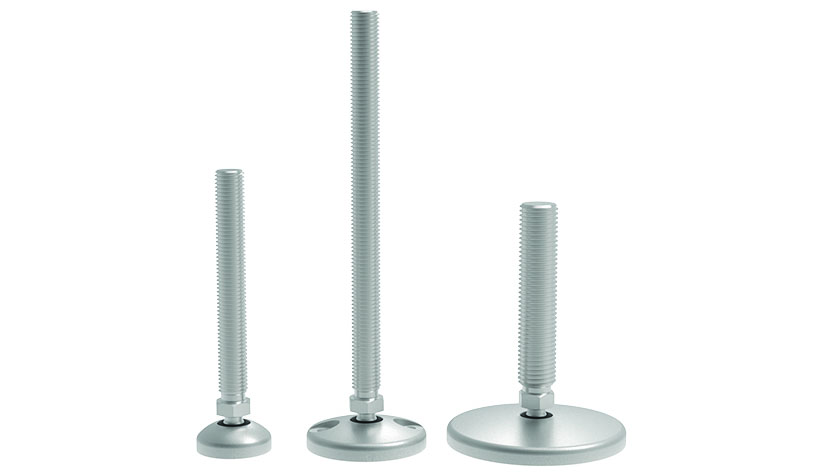

Threaded rod for swiveling leveling feet

Material:
Stainless steel SS304

Specials:
Other lengths and sizes on request

Surface:
Plain

Model:	Stainless steel
Pack Quantity:	10 pieces
Customs Tariff Number Export:	73181575
Weight (g):	37.0
Ball Joint:	Swiveling range ±20°
ECLASS 6.0:	90900103
ECLASS 7.0:	90900103
ECLASS 8.0:	90900103
ECLASS 9.0:	90900103
ECLASS 10.0:	90900103
ECLASS 11.0:	90900103
ECLASS 12.0:	90900103
ECLASS 13.0:	90900103
ECLASS 14.0:	90900103
ECLASS 15.0:	90900103
ECLASS 16.0:	23010705
ERP Number:	104454
Zolltarifnummer:	73181575900

Variants

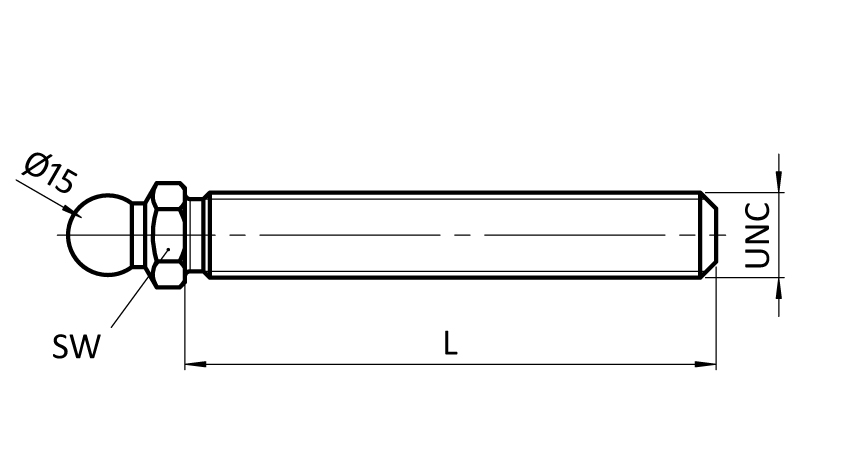

Part #	Fmax (N)	Material	SW (mm)	UNC x L (in)
098DU1-4E	35400	Stainless steel	22 (7/8")	1-8 UNC x 4"
098DU1-5E	35400	Stainless steel	22 (7/8")	1-8 UNC x 5"
098DU1-6E	35400	Stainless steel	22 (7/8")	1-8 UNC x 6"
098DU1-8E	35400	Stainless steel	22 (7/8")	1-8 UNC x 8"
098DU1/2-1,5E	7550	Stainless steel	14 (9/16”)	-
098DU1/2-2,5E	7550	Stainless steel	14 (9/16”)	-
098DU1/2-2E	7550	Stainless steel	14 (9/16”)	-
098DU1/2-3,5E	7550	Stainless steel	14 (9/16”)	-
098DU1/2-3E	7550	Stainless steel	14 (9/16”)	-
098DU1/2-4E	7550	Stainless steel	14 (9/16”)	-
098DU1/2-5E	7550	Stainless steel	14 (9/16”)	-
098DU1/2-6,5E	7550	Stainless steel	14 (9/16”)	-
098DU1/2-6E	7550	Stainless steel	14 (9/16”)	-
098DU1/4-1,5E	2060	Stainless steel	14 (9/16”)	-
098DU3/4-3E	23800	Stainless steel	22 (7/8")	3/4-10 UNC x 3"
098DU3/4-4E	23800	Stainless steel	22 (7/8")	3/4-10 UNC x 4"
098DU3/4-5E	23800	Stainless steel	22 (7/8")	3/4-10 UNC x 5"
098DU3/4-6,5E	23800	Stainless steel	22 (7/8")	3/4-10 UNC x 6.5"
098DU3/4-6E	23800	Stainless steel	22 (7/8")	3/4-10 UNC x 6"
098DU3/4-8E	23800	Stainless steel	22 (7/8")	3/4-10 UNC x 8"
098DU3/4-9,5E	23800	Stainless steel	22 (7/8")	3/4-10 UNC x 9.5"
098DU3/8-1,5E	4600	Stainless steel	14 (9/16”)	3/8-16 UNC x 1.5"
098DU3/8-2,5E	4600	Stainless steel	14 (9/16”)	3/8-16 UNC x 2.5"
098DU3/8-2E	4600	Stainless steel	14 (9/16”)	3/8-16 UNC x 2"
098DU3/8-3E	4600	Stainless steel	14 (9/16”)	3/8-16 UNC x 3"
098DU3/8-4E	4600	Stainless steel	14 (9/16”)	3/8-16 UNC x 4"
098DU3/8-5E	4600	Stainless steel	14 (9/16”)	3/8-16 UNC x 5"
098DU3/8-6E	4600	Stainless steel	14 (9/16”)	3/8-16 UNC x 6"
098DU5/16-1,5E	3430	Stainless steel	14 (9/16”)	5/16-18 UNC x 1.5"
098DU5/16-2,5E	3430	Stainless steel	14 (9/16”)	5/16-18 UNC x 2.5"
098DU5/16-3,5E	3430	Stainless steel	14 (9/16”)	5/16-18 UNC x 3.5"
098DU5/8-2,5E	14200	Stainless steel	22 (7/8")	5/8-11 UNC x 2.5"
098DU5/8-3E	14200	Stainless steel	22 (7/8")	-
098DU5/8-4E	14200	Stainless steel	22 (7/8")	-
098DU5/8-5E	14200	Stainless steel	22 (7/8")	-
098DU5/8-6,5E	14200	Stainless steel	22 (7/8")	-
098DU5/8-6E	14200	Stainless steel	22 (7/8")	-
098DU5/8-8E	14200	Stainless steel	22 (7/8")	-
