Threaded Rod ST Metric for Pivot Feet

Product information "Threaded Rod ST Metric for Pivot Feet"

Delivery Countries:
Worldwide

Description:

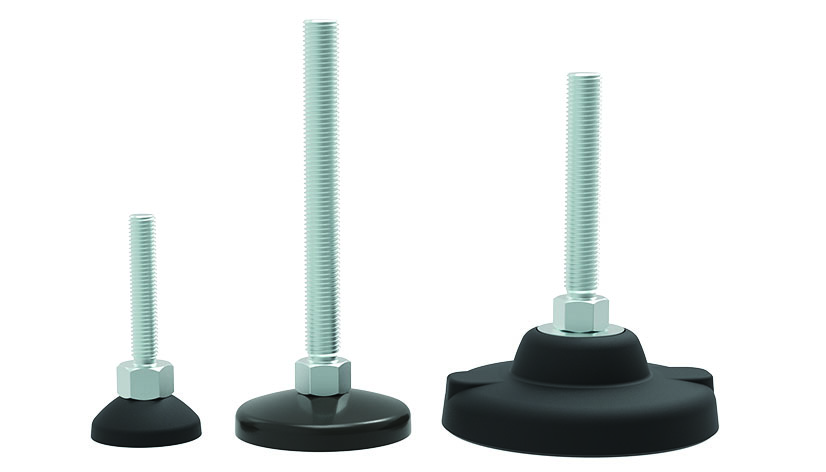

Threaded rod for pivot leveling feet

Material:
Steel

Specials:
Other lengths and sizes on request

Surface:
Zinc plated

Tip:

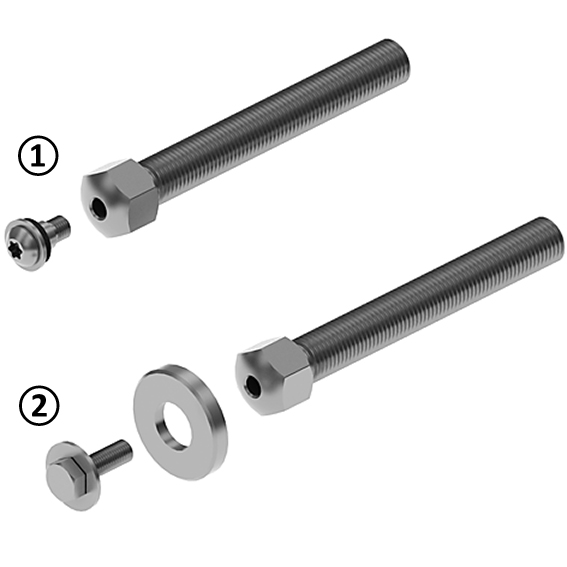

*1. For pivot feet: Assembly set 098XAMS03 included
*2. For heavy-duty pivot feet: Assembly set 098XAKM included

Pack Quantity:	10 pieces
Model:	Steel
Weight (g):	477.0
Screw Joint:	Swiveling range ±4°
ERP Number:	103607

Variants

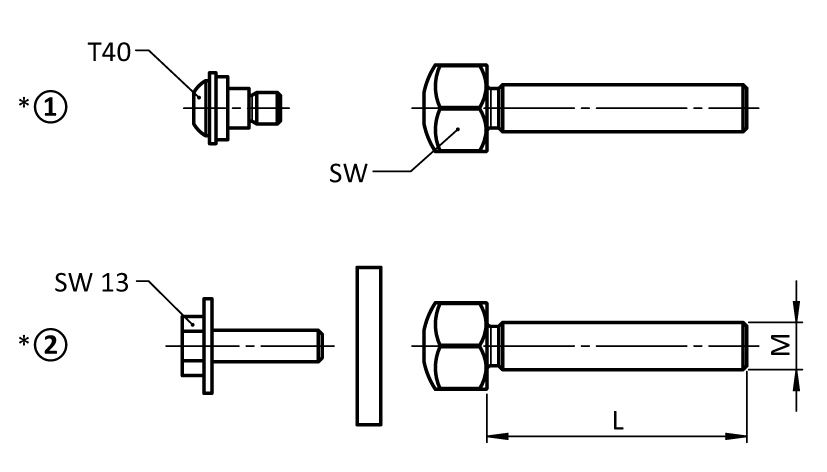

Part #	Fmax (N)	SW (mm)	M x L (mm)	Material
098AM12066M	7550	22	M12 x 66	Steel
098AM12100M	7550	22	M12 x 100	Steel
098AM12125M	7550	22	M12 x 125	Steel
098AM12150M	7550	22	M12 x 150	Steel
098AM16066M	14200	22	M16 x 66	Steel
098AM16100M	14200	22	M16 x 100	Steel
098AM16125M	14200	22	M16 x 125	Steel
098AM16150M	14200	22	M16 x 150	Steel
098AM16200M	14200	22	M16 x 200	Steel
098AM16250M	14200	22	M16 x 250	Steel
098AM20100M	23800	22	M20 x 100	Steel
098AM20125M	23800	22	M20 x 125	Steel
098AM20150M	23800	22	M20 x 150	Steel
098AM20200M	23800	22	M20 x 200	Steel
098AM20250M	23800	22	M20 x 250	Steel
098AM24100M	35400	24	M24 x 100	Steel
098AM24150M	35400	24	M24 x 150	Steel
098AM24200M	35400	24	M24 x 200	Steel
098AM24300M	35400	24	M24 x 300	Steel
098AM30100M	56600	24	M30 x 100	Steel
098AM30150M	56600	24	M30 x 150	Steel
098AM30200M	56600	24	M30 x 200	Steel
