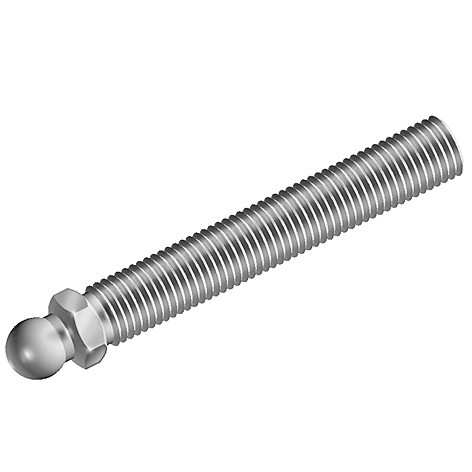

Threaded Rod ST Metric for Swivel Feet, Ball Joint 15

Product information "Threaded Rod ST Metric for Swivel Feet, Ball Joint 15"

Delivery Countries:
Worldwide

Description:

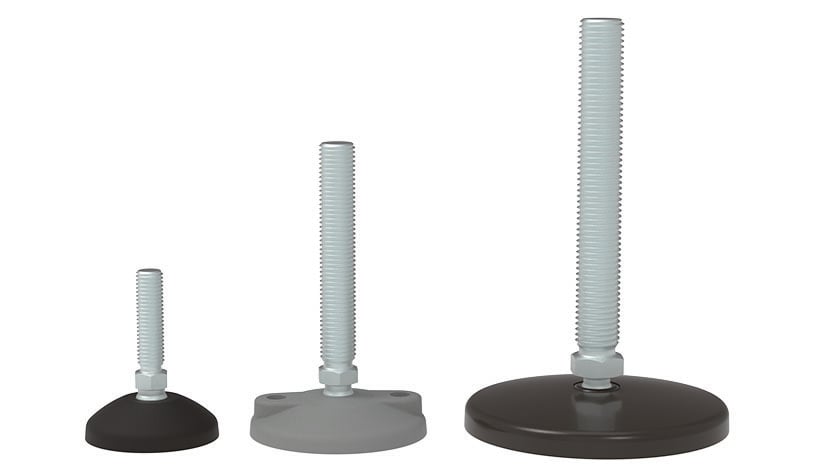

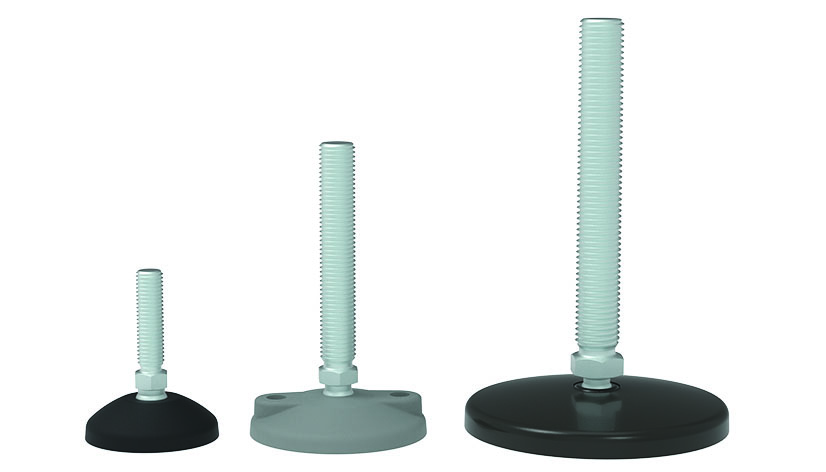

Threaded rod for swiveling leveling feet

Material:
Steel

Specials:
Other lengths and sizes on request

Surface:
Zinc plated

Ball Joint:	Swiveling range ±20°, V_Swiveling range ±20°
Customs Tariff Number Export:	73181582
ERP Number:	104340
Model:	Steel
Pack Quantity:	10 pieces
Weight (g):	783.0
Zolltarifnummer:	73181582900

Variants

Product ID	Material	Fmax (N)	SW (mm)	M x L (mm)
098DM08025M	Steel	3430	14	M8 x 25
098DM08040M	Steel	3430	14
098DM08080M	Steel	3430	14
098DM10045M	Steel	4600	14	M10 x 45
098DM10070M	Steel	4600	14
098DM10090M	Steel	4600	14	M10 x 90
098DM10125M	Steel	4600	14	M10 x 125
098DM10150M	Steel	4600	14	M10 x 150
098DM12045M	Steel	7550	14	M12 x 45
098DM12066M	Steel	7550	14	M12 x 66
098DM12100M	Steel	7550	14	M12 x 100
098DM12125M	Steel	7550	14	M12 x 125
098DM12150M	Steel	7550	14	M12 x 150
098DM14066M	Steel	10880	14	M14 x 66
098DM14100M	Steel	10880	14	M14 x 100
098DM14125M	Steel	10880	14	M14 x 125
098DM14150M	Steel	10880	14	M14 x 150
098DM16066M	Steel	14200	17	M16 x 66
098DM16100M	Steel	14200	17	M16 x 100
098DM16125M	Steel	14200	17	M16 x 125
098DM16150M	Steel	14200	17
098DM16200M	Steel	14200	17
098DM20085M	Steel	23800	22	M20 x 85
098DM20100M	Steel	23800	22
098DM20125M	Steel	23800	22	M20 x 125
098DM20150M	Steel	23800	22	M20 x 150
098DM20200M	Steel	23800	22	M20 x 200
098DM20250M	Steel	23800	22	M20 x 250
098DM24085M	Steel	35400	24	M24 x 85
098DM24100M	Steel	35400	24	M24 x 100
098DM24125M	Steel	35400	24	M24 x 125
098DM24150M	Steel	35400	24	M24 x 150
098DM24200M	Steel	35400	24	M24 x 200
098DM24250M	Steel	35400	24	M24 x 250
