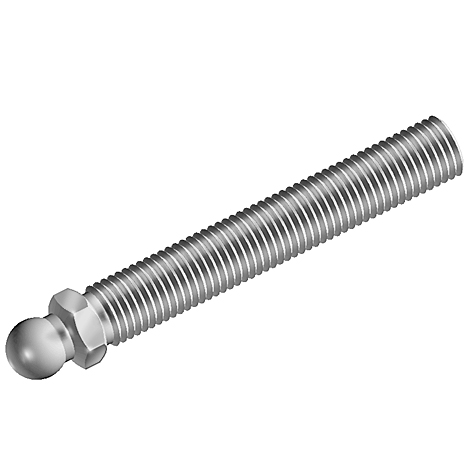

Threaded Rod ST UNC for Swivel Feet, Ball Joint 15

Product information "Threaded Rod ST UNC for Swivel Feet, Ball Joint 15"

Delivery Countries:
Worldwide

Description:

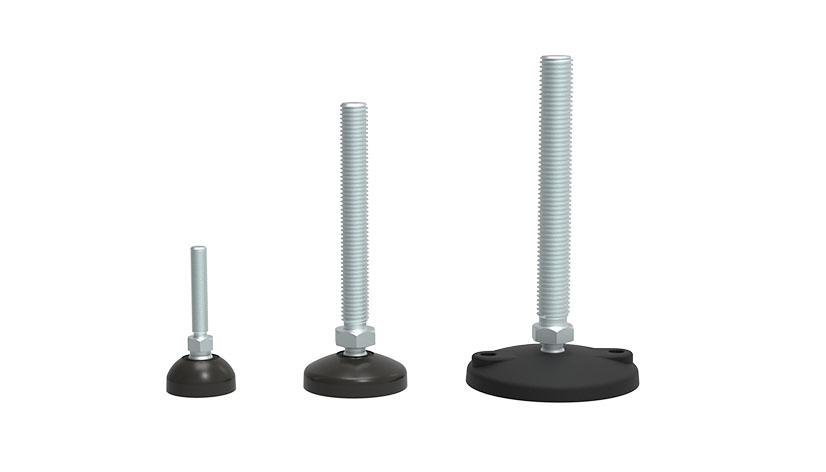

Threaded rod for swiveling leveling feet

Material:
Steel

Specials:
Other lengths and sizes on request

Surface:
Zinc plated

Model:	Steel
Pack Quantity:	10 pieces
Customs Tariff Number Export:	73181582
Weight (g):	97.0
(ECLASS 6.0):	90900103
(ECLASS 7.0):	90900103
(ECLASS 8.0):	90900103
(ECLASS 9.0):	90900103
(ECLASS 10.0):	90900103
(ECLASS 11.0):	90900103
(ECLASS 12.0):	90900103
(ECLASS 13.0):	90900103
(ECLASS 14.0):	90900103
(ECLASS 15.0):	90900103
(ECLASS 16.0):	23010705
Ball Joint:	Swiveling range ±20°
ERP Number:	104384
Zolltarifnummer:	73181582900

Variants

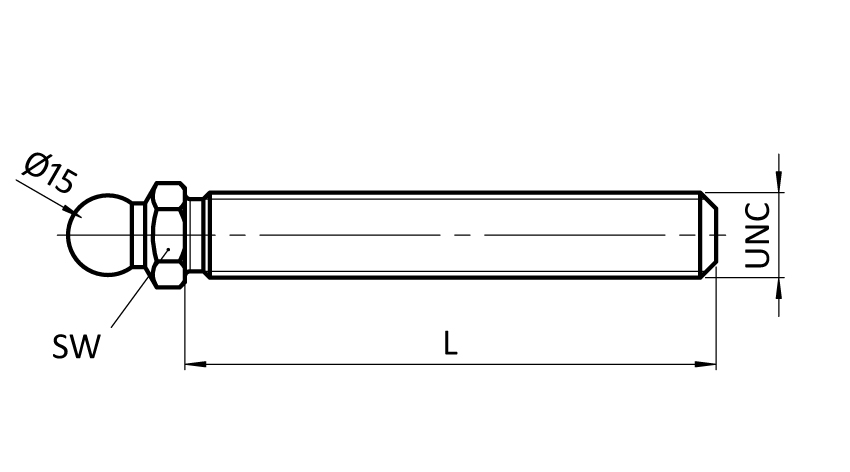

Part #	Fmax (N)	Material	SW (mm)	UNC x L (in)
098DU1-4M	35400	Steel	22 (7/8")	1-8 UNC x 4"
098DU1-5M	35400	Steel	22 (7/8")	1-8 UNC x 5"
098DU1-6M	35400	Steel	22 (7/8")	1-8 UNC x 6"
098DU1-8M	35400	Steel	22 (7/8")	1-8 UNC x 8"
098DU1/2-1,5M	7550	Steel	14 (9/16”)	-
098DU1/2-2,5M	7550	Steel	14 (9/16”)	-
098DU1/2-2M	7550	Steel	14 (9/16”)	-
098DU1/2-3,5M	7550	Steel	14 (9/16”)	-
098DU1/2-3M	7550	Steel	14 (9/16”)	-
098DU1/2-4M	7550	Steel	14 (9/16”)	-
098DU1/2-5M	7550	Steel	14 (9/16”)	-
098DU1/2-6,5M	7550	Steel	14 (9/16”)	-
098DU1/2-6M	7550	Steel	14 (9/16”)	-
098DU1/4-1,5M	2060	Steel	14 (9/16”)	-
098DU3/4-3M	23800	Steel	22 (7/8")	3/4-10 UNC x 3"
098DU3/4-4M	23800	Steel	22 (7/8")	3/4-10 UNC x 4"
098DU3/4-5M	23800	Steel	22 (7/8")	3/4-10 UNC x 5"
098DU3/4-6,5M	23800	Steel	22 (7/8")	3/4-10 UNC x 6.5"
098DU3/4-6M	23800	Steel	22 (7/8")	3/4-10 UNC x 6"
098DU3/4-8M	23800	Steel	22 (7/8")	3/4-10 UNC x 8"
098DU3/4-9,5M	23800	Steel	22 (7/8")	3/4-10 UNC x 9.5"
098DU3/8-1,5M	4600	Steel	14 (9/16”)	3/8-16 UNC x 1.5"
098DU3/8-2,5M	4600	Steel	14 (9/16”)	3/8-16 UNC x 2.5"
098DU3/8-2M	4600	Steel	14 (9/16”)	3/8-16 UNC x 2"
098DU3/8-3M	4600	Steel	14 (9/16”)	3/8-16 UNC x 3"
098DU3/8-4M	4600	Steel	14 (9/16”)	3/8-16 UNC x 4"
098DU3/8-5M	4600	Steel	14 (9/16”)	3/8-16 UNC x 5"
098DU3/8-6M	4600	Steel	14 (9/16”)	3/8-16 UNC x 6"
098DU5/16-1,5M	3430	Steel	14 (9/16”)	5/16-18 UNC x 1.5"
098DU5/16-2,5M	3430	Steel	14 (9/16”)	5/16-18 UNC x 2.5"
098DU5/16-3,5M	3430	Steel	14 (9/16”)	5/16-18 UNC x 3.5"
098DU5/8-2,5M	14200	Steel	22 (7/8")	5/8-11 UNC x 2.5"
098DU5/8-3M	14200	Steel	22 (7/8")	-
098DU5/8-4M	14200	Steel	22 (7/8")	-
098DU5/8-5M	14200	Steel	22 (7/8")	-
098DU5/8-6,5M	14200	Steel	22 (7/8")	-
098DU5/8-6M	14200	Steel	22 (7/8")	-
098DU5/8-8M	14200	Steel	22 (7/8")	-
