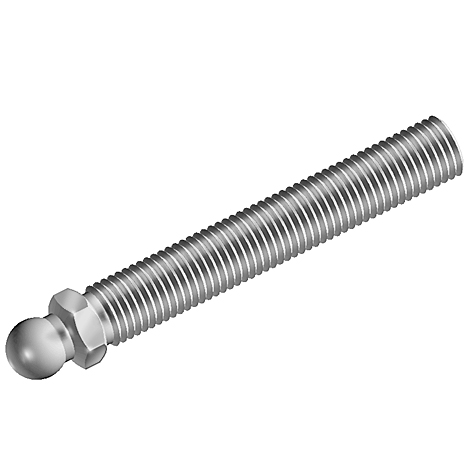

Threaded Rod ST UNC for Swivel Feet, Ball Joint 15

Product information "Threaded Rod ST UNC for Swivel Feet, Ball Joint 15"

Delivery Countries:
Worldwide

Description:

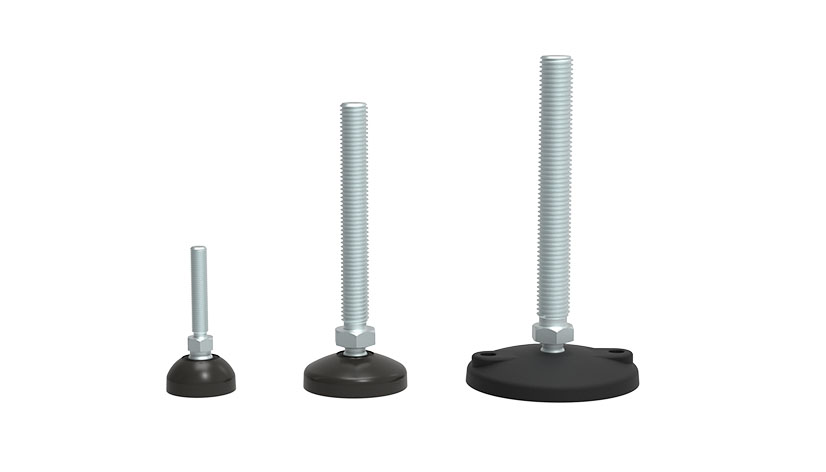

Threaded rod for swiveling leveling feet

Material:
Steel

Specials:
Other lengths and sizes on request

Surface:
Zinc plated

Ball Joint:	Swiveling range ±20°
Customs Tariff Number Export:	73181582
Model:	Steel
Pack Quantity:	10 pieces
Weight (g):	87.0
Zolltarifnummer:	73181582900
pA Number:	104386

Variants

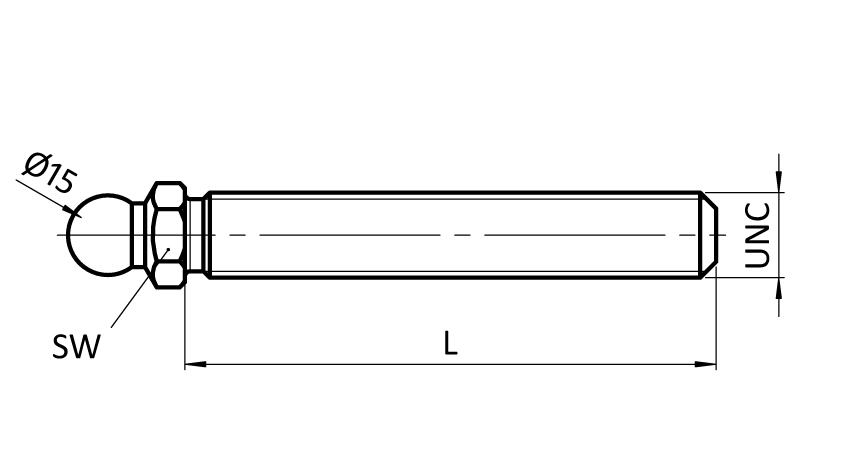

Product ID	Material	SW (mm)	Fmax (N)	UNC x L (in)
098DU1-4M	Steel	22 (7/8")	35400	1-8 UNC x 4"
098DU1-5M	Steel	22 (7/8")	35400	1-8 UNC x 5"
098DU1-6M	Steel	22 (7/8")	35400	1-8 UNC x 6"
098DU1-8M	Steel	22 (7/8")	35400	1-8 UNC x 8"
098DU1/2-1,5M	Steel	14 (9/16”)	7550
098DU1/2-2,5M	Steel	14 (9/16”)	7550
098DU1/2-2M	Steel	14 (9/16”)	7550
098DU1/2-3,5M	Steel	14 (9/16”)	7550
098DU1/2-3M	Steel	14 (9/16”)	7550
098DU1/2-4M	Steel	14 (9/16”)	7550
098DU1/2-5M	Steel	14 (9/16”)	7550
098DU1/2-6,5M	Steel	14 (9/16”)	7550
098DU1/2-6M	Steel	14 (9/16”)	7550
098DU1/4-1,5M	Steel	14 (9/16”)	2060
098DU3/4-3M	Steel	22 (7/8")	23800	3/4-10 UNC x 3"
098DU3/4-4M	Steel	22 (7/8")	23800	3/4-10 UNC x 4"
098DU3/4-5M	Steel	22 (7/8")	23800	3/4-10 UNC x 5"
098DU3/4-6,5M	Steel	22 (7/8")	23800	3/4-10 UNC x 6.5"
098DU3/4-6M	Steel	22 (7/8")	23800	3/4-10 UNC x 6"
098DU3/4-8M	Steel	22 (7/8")	23800	3/4-10 UNC x 8"
098DU3/4-9,5M	Steel	22 (7/8")	23800	3/4-10 UNC x 9.5"
098DU3/8-1,5M	Steel	14 (9/16”)	4600	3/8-16 UNC x 1.5"
098DU3/8-2,5M	Steel	14 (9/16”)	4600	3/8-16 UNC x 2.5"
098DU3/8-2M	Steel	14 (9/16”)	4600	3/8-16 UNC x 2"
098DU3/8-3M	Steel	14 (9/16”)	4600	3/8-16 UNC x 3"
098DU3/8-4M	Steel	14 (9/16”)	4600	3/8-16 UNC x 4"
098DU3/8-5M	Steel	14 (9/16”)	4600	3/8-16 UNC x 5"
098DU3/8-6M	Steel	14 (9/16”)	4600	3/8-16 UNC x 6"
098DU5/16-1,5M	Steel	14 (9/16”)	3430	5/16-18 UNC x 1.5"
098DU5/16-2,5M	Steel	14 (9/16”)	3430	5/16-18 UNC x 2.5"
098DU5/16-3,5M	Steel	14 (9/16”)	3430	5/16-18 UNC x 3.5"
098DU5/8-2,5M	Steel	22 (7/8")	14200	5/8-11 UNC x 2.5"
098DU5/8-3M	Steel	22 (7/8")	14200
098DU5/8-4M	Steel	22 (7/8")	14200
098DU5/8-5M	Steel	22 (7/8")	14200
098DU5/8-6,5M	Steel	22 (7/8")	14200
098DU5/8-6M	Steel	22 (7/8")	14200
098DU5/8-8M	Steel	22 (7/8")	14200
