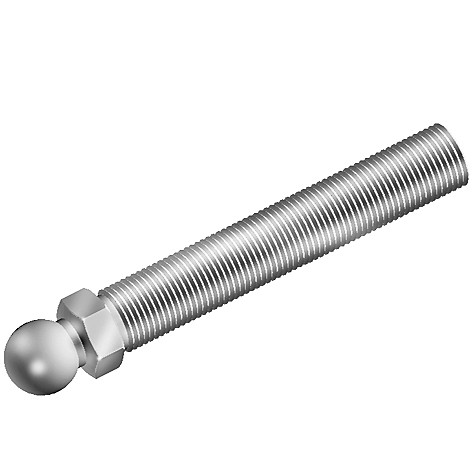

Threaded Rod ST for Swivel Feet, Ball Joint 22

Product information "Threaded Rod ST for Swivel Feet, Ball Joint 22"

Delivery Countries:
Worldwide

Description:

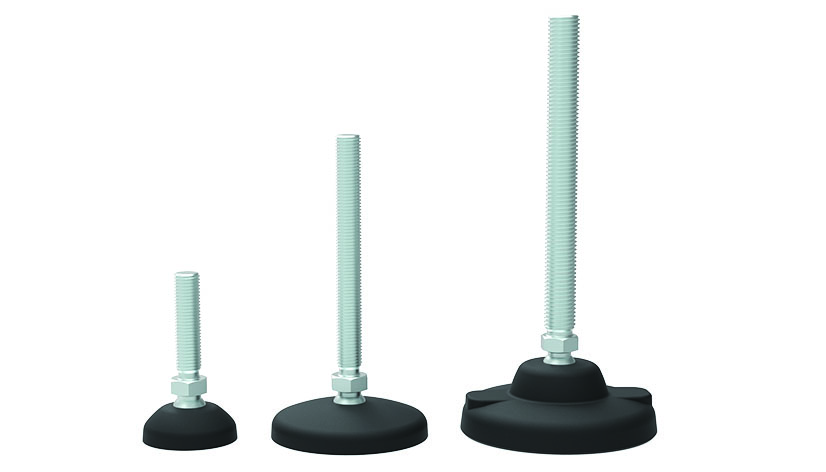

Threaded rod for swiveling leveling feet,
ball joint 22

Material:
Steel

Specials:
Other lengths and sizes on request

Surface:
Zinc plated

Zolltarifnummer:
73181582900
Ball Joint: Swiveling range ±20°
Model: Steel
Pack Quantity: 10 pieces
Weight (g): 156.0

Variants

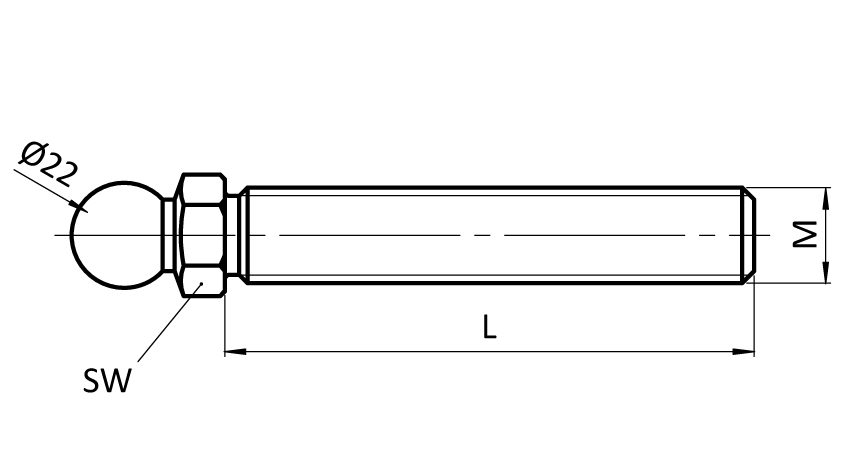

Product ID Material SW (mm) Fmax (N) M x L (mm)
098CM16066M Steel 22 14200 M16 x 66

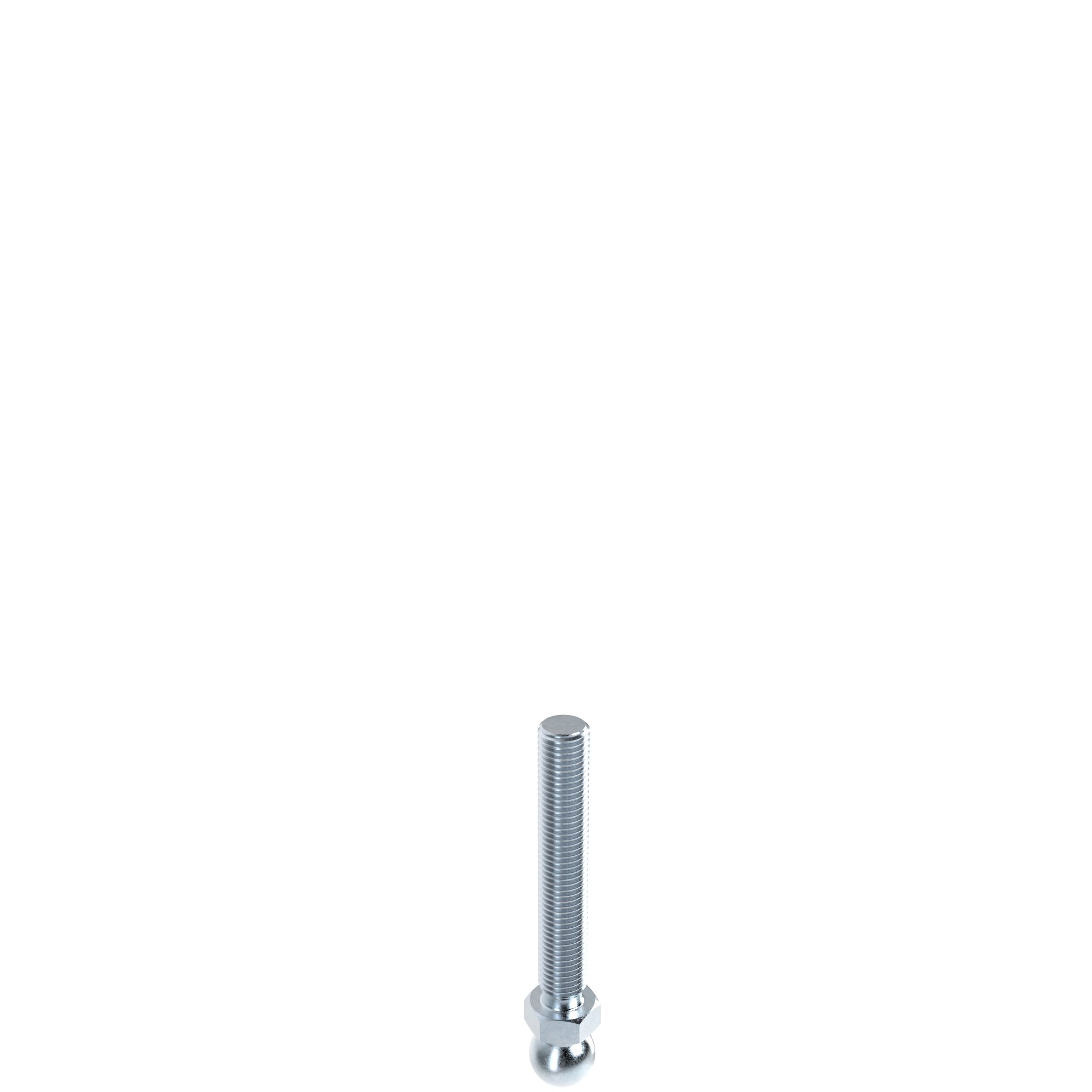

098CM16100M Steel 22 14200 M16 x 100
098CM16125M Steel 22 14200 M16 x 125
098CM16150M Steel 22 14200
098CM16200M Steel 22 14200
098CM20100M Steel 22 23800
098CM20125M Steel 22 23800 M20 x 125
098CM20150M Steel 22 23800 M20 x 150
098CM20200M Steel 22 23800 M20 x 200
098CM24100M Steel 24 35400 M24 x 100
098CM24150M Steel 24 35400 M24 x 150
098CM30100M Steel 24 56600 M30 x 100
098CM30150M Steel 24 56600 M30 x 150
098CM30200M Steel 24 56600 M30 x 200
098CM30250M Steel 24 56600 M30 x 250
