Threaded Rod ST for Swivel Feet, Ball Joint 22

Product information "Threaded Rod ST for Swivel Feet, Ball Joint 22"

Delivery Countries:
Worldwide

Description:

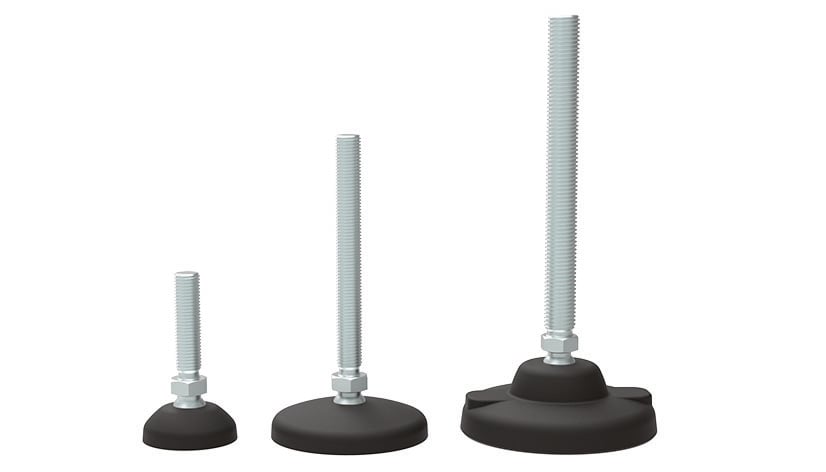

Threaded rod for swiveling leveling feet,
ball joint 22

Material:
Steel

Specials:
Other lengths and sizes on request

Surface:
Zinc plated
Model: Steel
Pack Quantity: 10 pieces
Customs Tariff Number Export: 73181582
Weight (g): 483.0
(ECLASS 6.0): 90900103
(ECLASS 7.0): 90900103
(ECLASS 8.0): 90900103
(ECLASS 9.0): 90900103
(ECLASS 10.0): 90900103
(ECLASS 11.0): 90900103
(ECLASS 12.0): 90900103
(ECLASS 13.0): 90900103
(ECLASS 14.0): 90900103
(ECLASS 15.0): 90900103
(ECLASS 16.0): 23010705
Ball Joint: Swiveling range ±20°
ERP Number: 103815
Zolltarifnummer: 73181582900

Variants

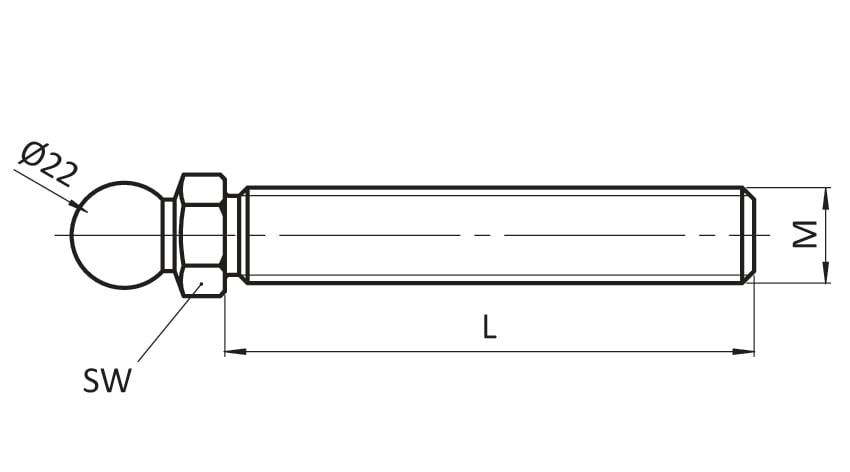

Part # Fmax (N) M x L (mm) Material SW (mm)
098CM16066M 14200 M16 x 66 Steel 22
098CM16100M 14200 M16 x 100 Steel 22
098CM16125M 14200 M16 x 125 Steel 22
098CM16150M 14200 - Steel 22
098CM16200M 14200 - Steel 22
098CM20100M 23800 - Steel 22
098CM20125M 23800 M20 x 125 Steel 22
098CM20150M 23800 M20 x 150 Steel 22
098CM20200M 23800 M20 x 200 Steel 22
098CM24100M 35400 M24 x 100 Steel 24
098CM24150M 35400 M24 x 150 Steel 24
098CM30100M 56600 M30 x 100 Steel 24
098CM30150M 56600 M30 x 150 Steel 24
098CM30200M 56600 M30 x 200 Steel 24
098CM30250M 56600 M30 x 250 Steel 24
