Tool Quiver FX D50 for Square Holes 9 x 9 (8.7 x 8.7)

New

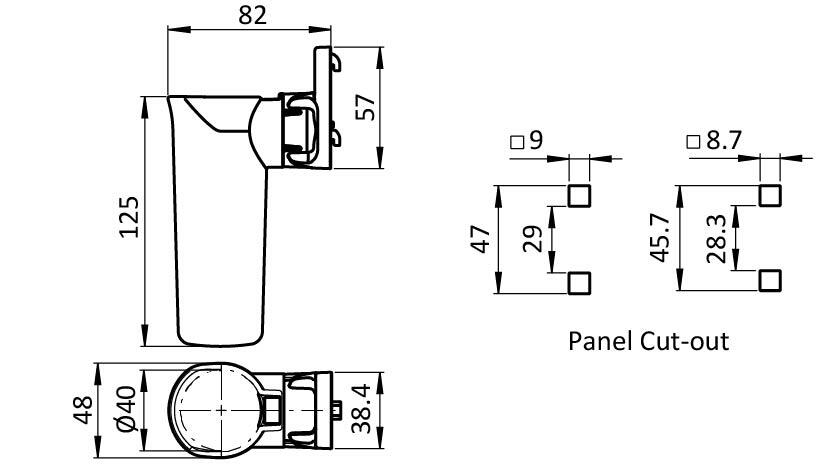

Tool Quiver FX D50 for Square Holes 9 x 9 (8.7 x 8.7) – technical drawing

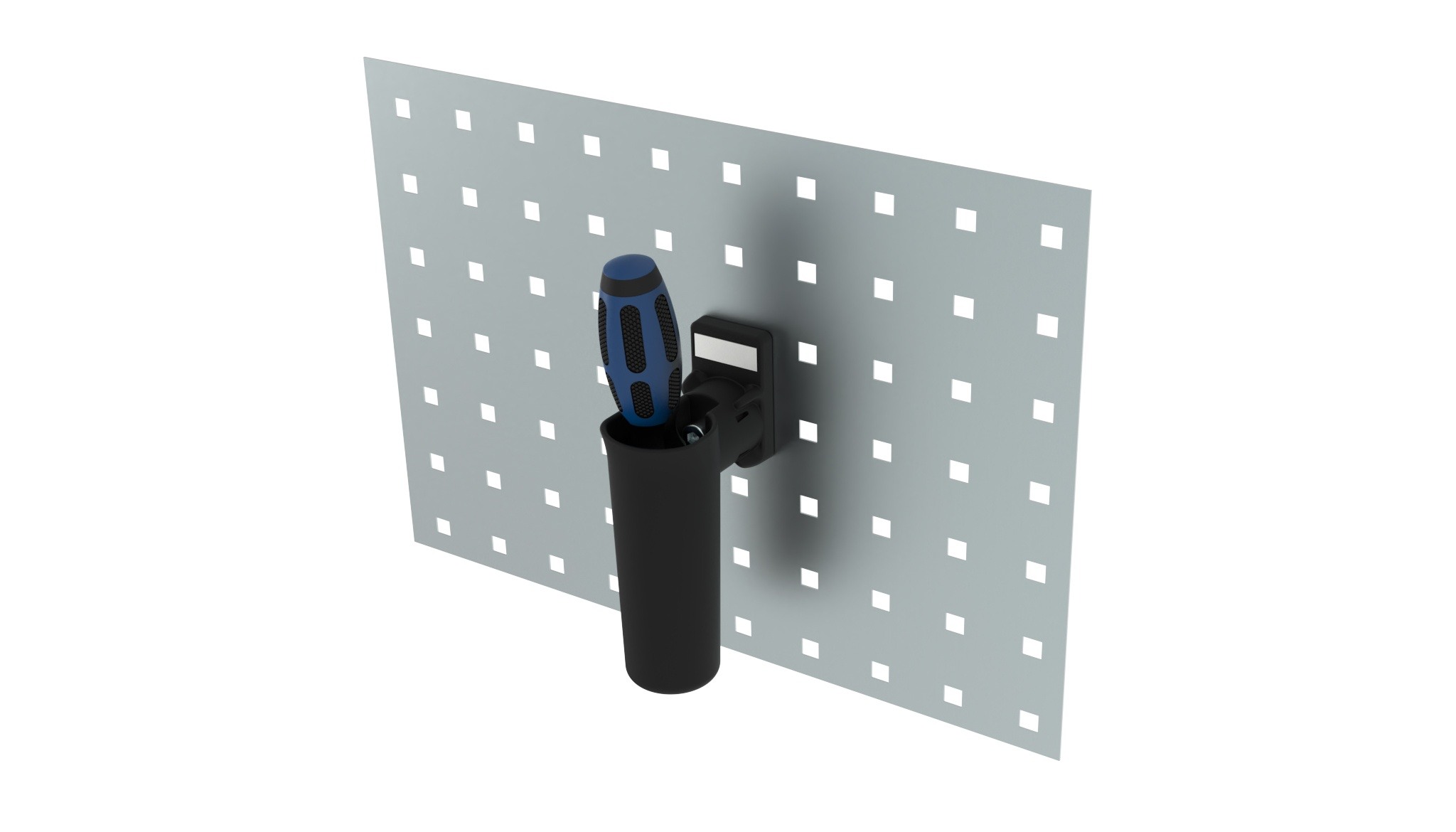

Tool Quiver FX D50 for Square Holes 9 x 9 (8.7 x 8.7) – application example

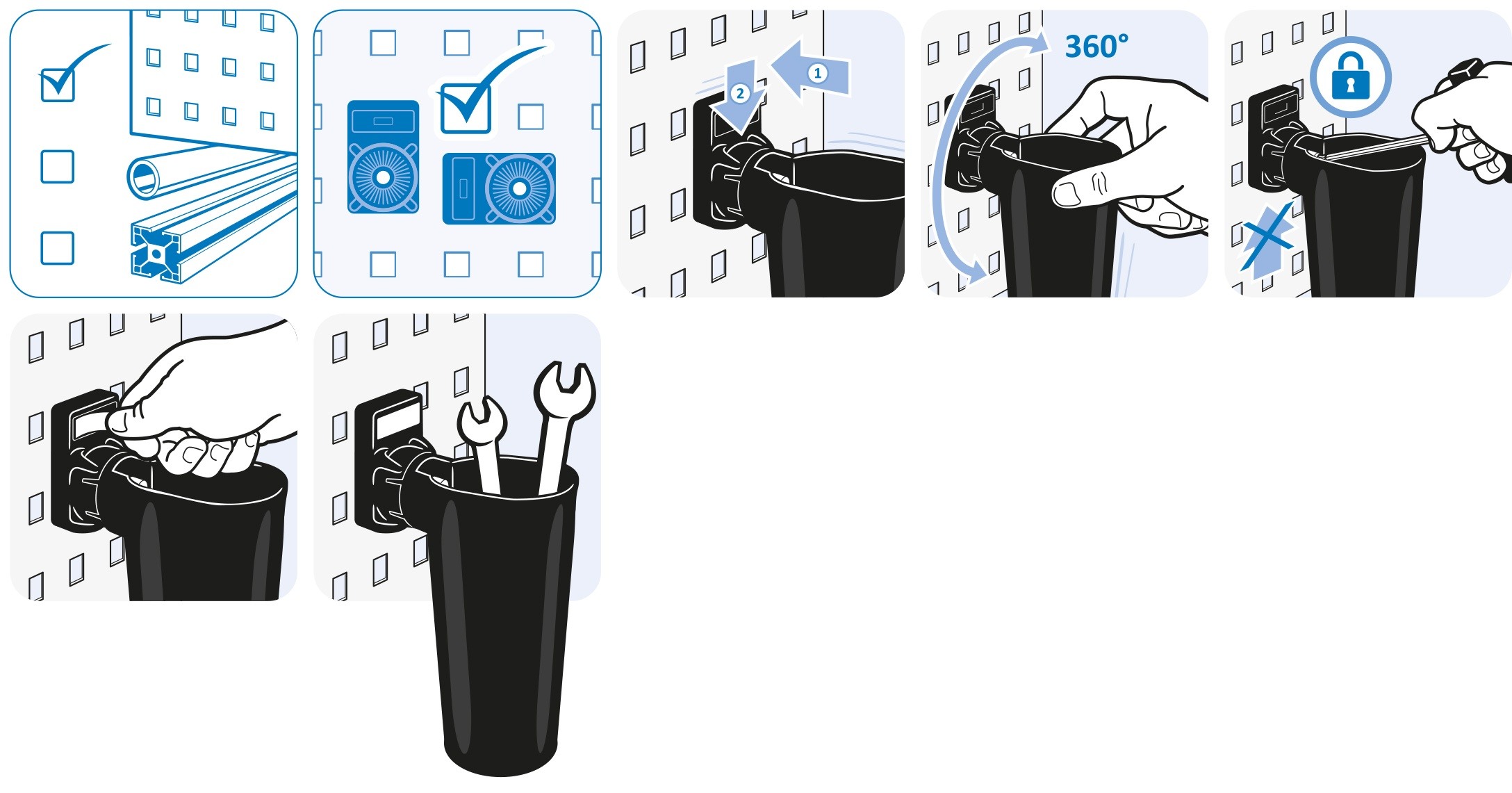

Tool Quiver FX D50 for Square Holes 9 x 9 (8.7 x 8.7) – assembly graphic

€0.00

ESD

ESD electrostatical discharging

Color

Black

Part #: 6TP38Q5040ESDS01

Pack Quantity: 1 piece

Product information "Tool Quiver FX D50 for Square Holes 9 x 9 (8.7 x 8.7)"

Color:
Holder: Black
Quiver: Black

Delivery Countries:
Worldwide

Description:
Ready to use tool quiver, outer diameter Ø 50 mm, 360° turnable, for perforated metals up to 1.4 mm thick;
To organize work stations, with labeling area for standard labels

Material:
Holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced
Quiver ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced
Spring: Spring steel SS313
Screw: Steel
Nut: Steel

Specials:
Other colors on request,
For other sheet metal thicknesses on request

Surface:
Screw: Zinc plated
Nut: Zinc plated

Tip:
For profiles 40 / 45, slot 8 / 10 see 6T40Q5040ESDS01
For round tubes D28 / D30 see 6TD283Q5040ESDS01
