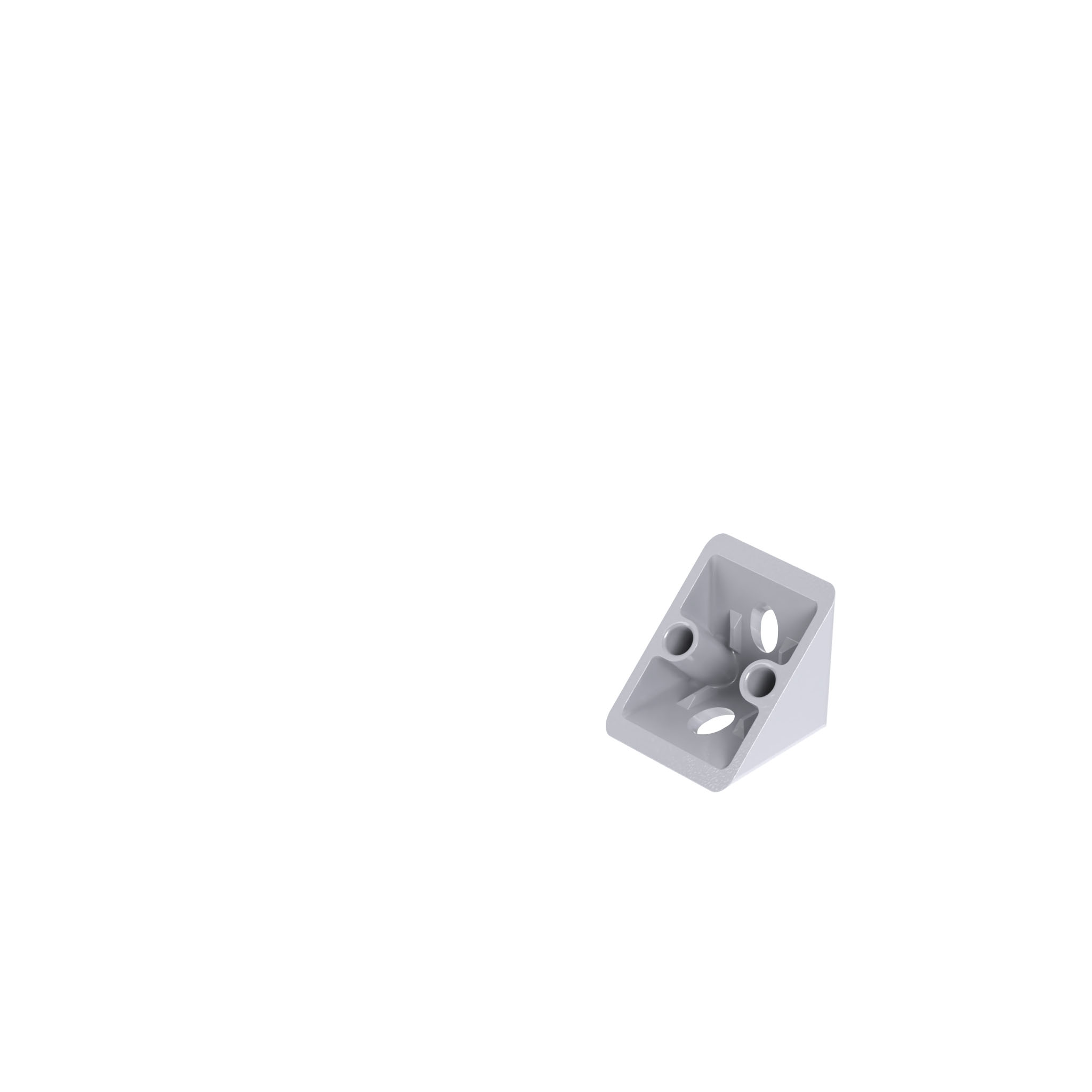

Zinc Connection Angle I 40
Regular price:
€0.00
Part #:
093W407N08
Pack Quantity:
10 pieces
Description:
To connect two aluminum profiles or panels at right angles, the connection angle can be closed with the cover cap
To connect two aluminum profiles or panels at right angles, the connection angle can be closed with the cover cap
Material:
Angle: Zinc die-cast
Cover cap: Plastic PA, glass fiber reinforced
Assembly set: Steel
Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated
Color:
Cover cap: Black
Assembly Set:
1 cover cap - plastic PA - black,
2 T-slot nuts - slot 8 - M8,
2 screws DIN EN DIN EN ISO 7380 (DIN 34805) - M8 x 16,
1 washer DIN 988
Tip:
Other surfaces, other colors on request
Delivery Countries:
Worldwide
Angle: Zinc die-cast
Cover cap: Plastic PA, glass fiber reinforced
Assembly set: Steel
Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated
Color:
Cover cap: Black
Assembly Set:
1 cover cap - plastic PA - black,
2 T-slot nuts - slot 8 - M8,
2 screws DIN EN DIN EN ISO 7380 (DIN 34805) - M8 x 16,
1 washer DIN 988
Tip:
Other surfaces, other colors on request
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Zinc die-cast |
| Weight (g): | 103.9 |
| ERP Number: | 143488 |
Classifications
- ECLASS 6.0
- 23360290
- ECLASS 7.0
- 23360290
- ECLASS 8.0
- 23360290
- ECLASS 9.0
- 23360290
- ECLASS 10.0
- 23360290
- ECLASS 11.0
- 23360290
- ECLASS 12.0
- 23360290
- ECLASS 13.0
- 23360290
- Zolltarifnummer
- 79070000900
- Customs Tariff Number Export
- 79070000
Certificates
