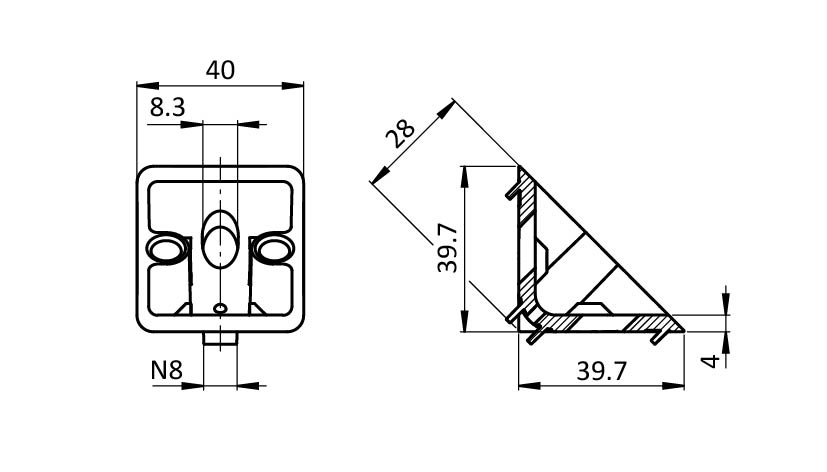

Zinc Connection Angle I 40

Product information "Zinc Connection Angle I 40"

Assembly Set:
1 cover cap - plastic PA - black,
2 T-slot nuts - slot 8 - M8,
2 screws DIN EN ISO 7380 - M8 x 16,
1 washer DIN EN ISO 4759-3 (DIN 988)

Color:
Cover cap: Black

Delivery Countries:
Worldwide

Description:

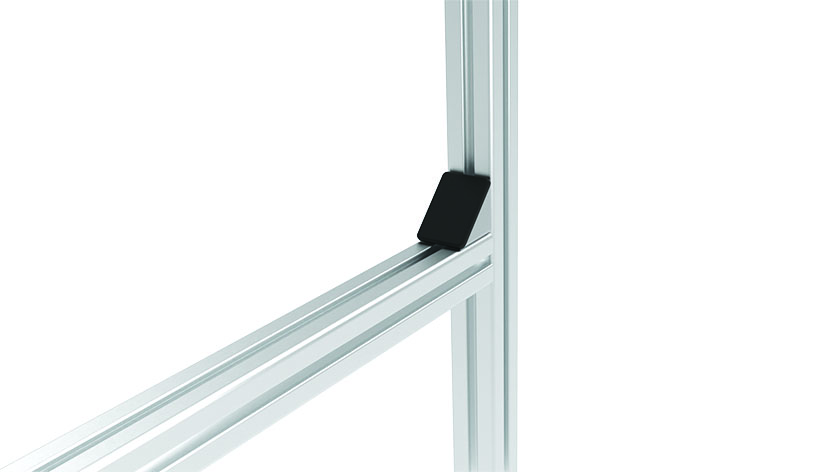

To connect two aluminum profiles or panels at right angles, the connection angle can be closed with the cover cap

Material:
Angle: Zinc die-cast
Cover cap: Plastic PA, glass fiber reinforced
Assembly set: Steel

Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated

Tip:
Other surfaces, other colors on request

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Zinc die-cast
Pack Quantity: 10 pieces
Weight (g): 129.5

Variants

Product ID Color Slot N (mm) Surface Version Profile
093W407N08 Alu color 8 Powder coated
093W407N08R 8 Plain
093W407N08S01 Alu color 8 Powder coated incl. assembly set I
