COMPONENTES DE INGENIERÍA


Con la amplia variedad de FATH Engineering Components, puede realizar casi cualquier diseño basado en perfiles de aluminio. Incluso combinar diferentes sistemas de perfiles no es ningún problema con nuestra versátil cartera.

Todos los productos en formato CAD

Más información

Descarga CAD de productos FATH

PARTcommunity CADENASIcon-link-extern.svg?ts=1745831337

Descarga CAD de productos FATH

TracePartsIcon-link-extern.svg?ts=1745831337

Biblioteca de componentes FATH

Plugin 3DfinditIcon-link-extern.svg?ts=1745831337

NUEVOS PRODUCTOS

VER TODOS

Produktgalerie überspringen

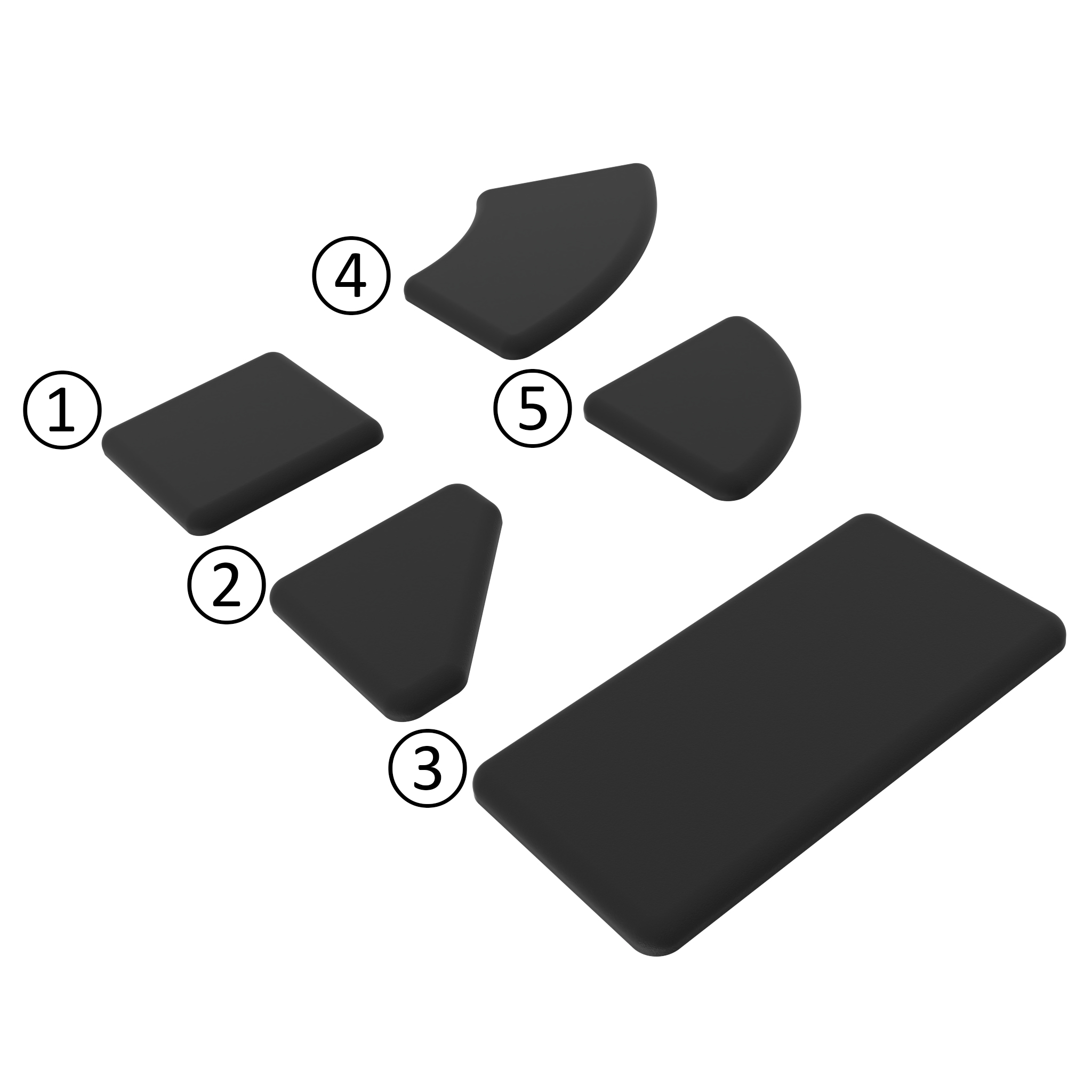

Cover Cap for 40 mm Modular Dimension
Cover Cap for 40 mm Modular Dimension
Color: Negro | Dimensions A x B (mm): 40 x 40 R40 - 90° | Feature: 1 cross | Profile: I | R (mm): 2.5 | Ranura N (mm): 8 | T (mm): 4.0 | ØD (mm): 7.2 (6.8)
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the end of the profileMaterial:Plastic PA, glass fiber reinforced, * glass ball reinforcedEspeciales:Descarga electrostática ESD, otros tamaños, otros colores bajo pedido

0,00 €*

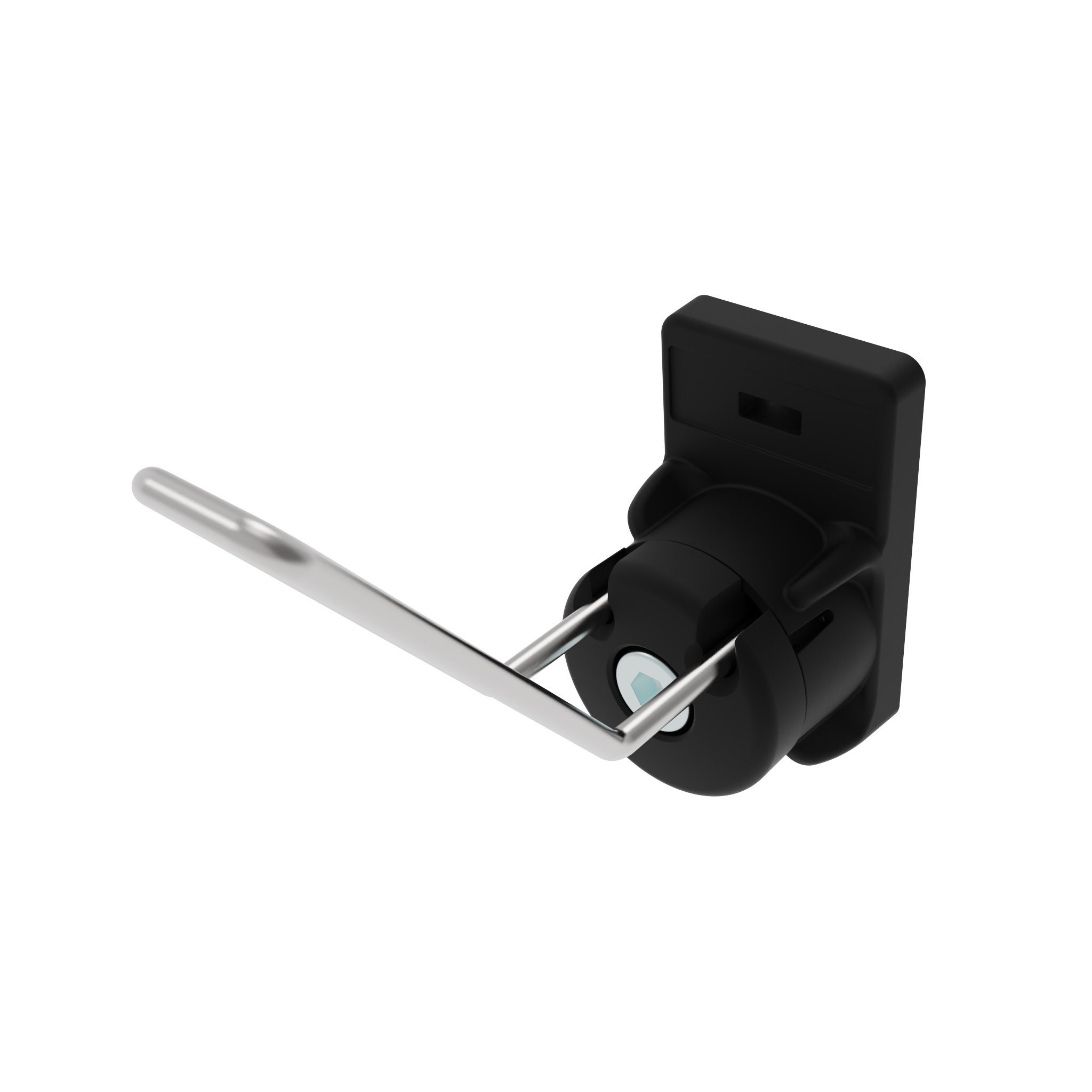

Tool Hook FX 17/57 - 24 for Square Holes 9 x 9 (8.7 x 8.7)
Tool Hook FX 17/57 - 24 for Square Holes 9 x 9 (8.7 x 8.7)
Color: Negro | ESD: Descarga electrostática ESD
Color:Rear mounting holder: Black Front locking holder: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use tool hook, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fibre reinforced Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TH240NA4060S01 For round tubes D28 / D30 see 6TH2D283A4060ESDS01

0,00 €*
Sliding Door Guide Set 30
Sliding Door Guide Set 30
B (mm): 30 | Conjunto: Conjunto 2 | Profile: I | Ranura N (mm): 8
Color:Roller: Black Spacer: NaturalPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles and to guide lift or sliding doors in the slot of an aluminum profile, with ball bearing; spacers can be changed: for a 2 mm distance between door and fixed profile or a 2 or 4 mm distance between two doorsMaterial:Casing: Aluminum die-cast Roller: Plastic PA, glass ball reinforced Spacer: Plastic PASet 1:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN 7991 (ISO 10642) - M6 x 22 (for profile) 3 spacersSet 2:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN 7991 (ISO 10642) - M8 x 20 (for profile) 3 spacersSurface:Casing: Plain

0,00 €*
RIBE® Aluform Bolt
RIBE® Aluform Bolt
Size M x L (mm): M4 x 16 | TX: T20 | h (mm): 3.1 | ØD (mm): 8.0
Países de Entrega:En todo el mundoDescription:For the material-matched connection of aluminum componentsand for electrical contact screw connections; Corrosion-resistant, easy to recycle, approx. 2/3 weight saving compared to similar steel screws; Reduced electrical contact resistanceMaterial:AluminioSurface:With dry film lubrication

0,00 €*
Cover Profile Slot 8 - 2.2
Cover Profile Slot 8 - 2.2
Color: Amarillo ≈ RAL 1018 | ESD: - | Profile: B | Ranura N (mm): 8
Color:Negro, amarillo, rojo, azul, gris, natural, color aluminioPaíses de Entrega:En todo el mundoDescription:To cover T-Slots with 8 width and a 2.2 mm profile webMaterial:Plástico PPEspeciales:Otros colores bajo pedidoTip:ESD electrostatical discharging version: Notch at the bottom side

0,00 €*

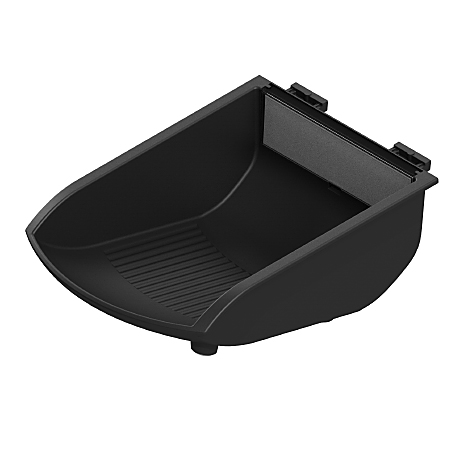

Grab Tray 105 x 130 x 50 for Profil Slot (Set)
Grab Tray 105 x 130 x 50 for Profil Slot (Set)
Color: Negro | ESD: - | Ranura N (mm): 8
Color:Grab tray: Black, yellow, red, blue, green, gray Label window: TransparentPaíses de Entrega:En todo el mundoDescription:To provide hardware and small parts on sorting area for selective grabbing of smallest components; simple assembly by swiveling into the profile slot; the clearly visible label area enables secure part identificationMaterial:Grab tray standard version: Plastic PA, glass fiber reinforced Grab tray ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Label window: Plastic PC Label: Carton 250 g/m² Bumper: Plastic PU, ≈ 65-70 Shore ASet:1 grab tray, 1 label window, 1 label, 4 bumper, self-adhesiveEspeciales:Otros colores bajo pedido

0,00 €*

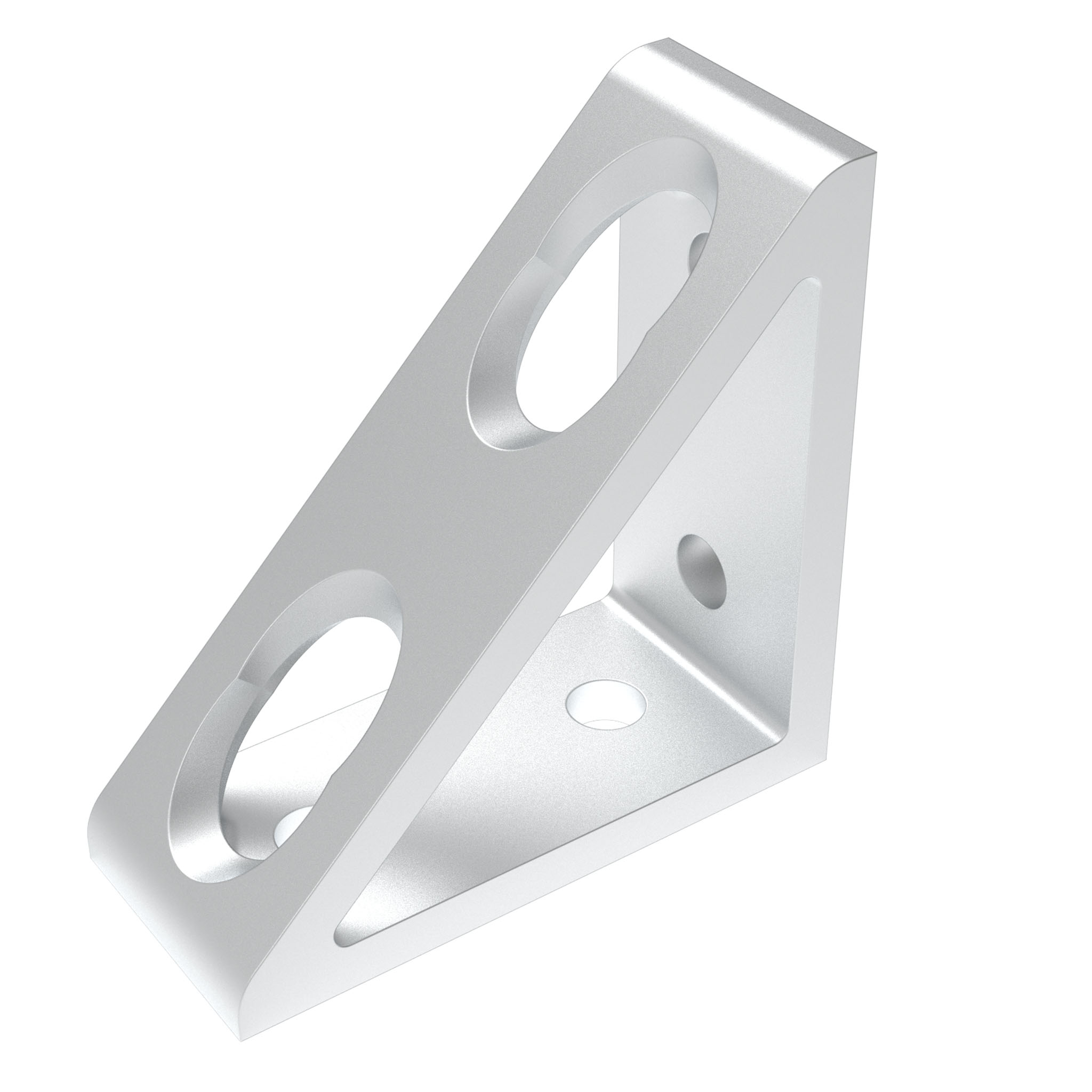

Gusseted Connection Angle AL 4 Hole, 1 Slot Version
Gusseted Connection Angle AL 4 Hole, 1 Slot Version
A (mm): 90.0 | B (mm): 90.0 | C (mm): 6.0 | Color: Negro | Cuadrícula: 45 | D (mm): 20.5 | E (mm): 20.0 | F (mm): 41.0 | G (mm): 22.5 | H (mm): 45.0 | J (mm): 9.0
Color:Color aluminio, negroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:Anodizado

0,00 €*

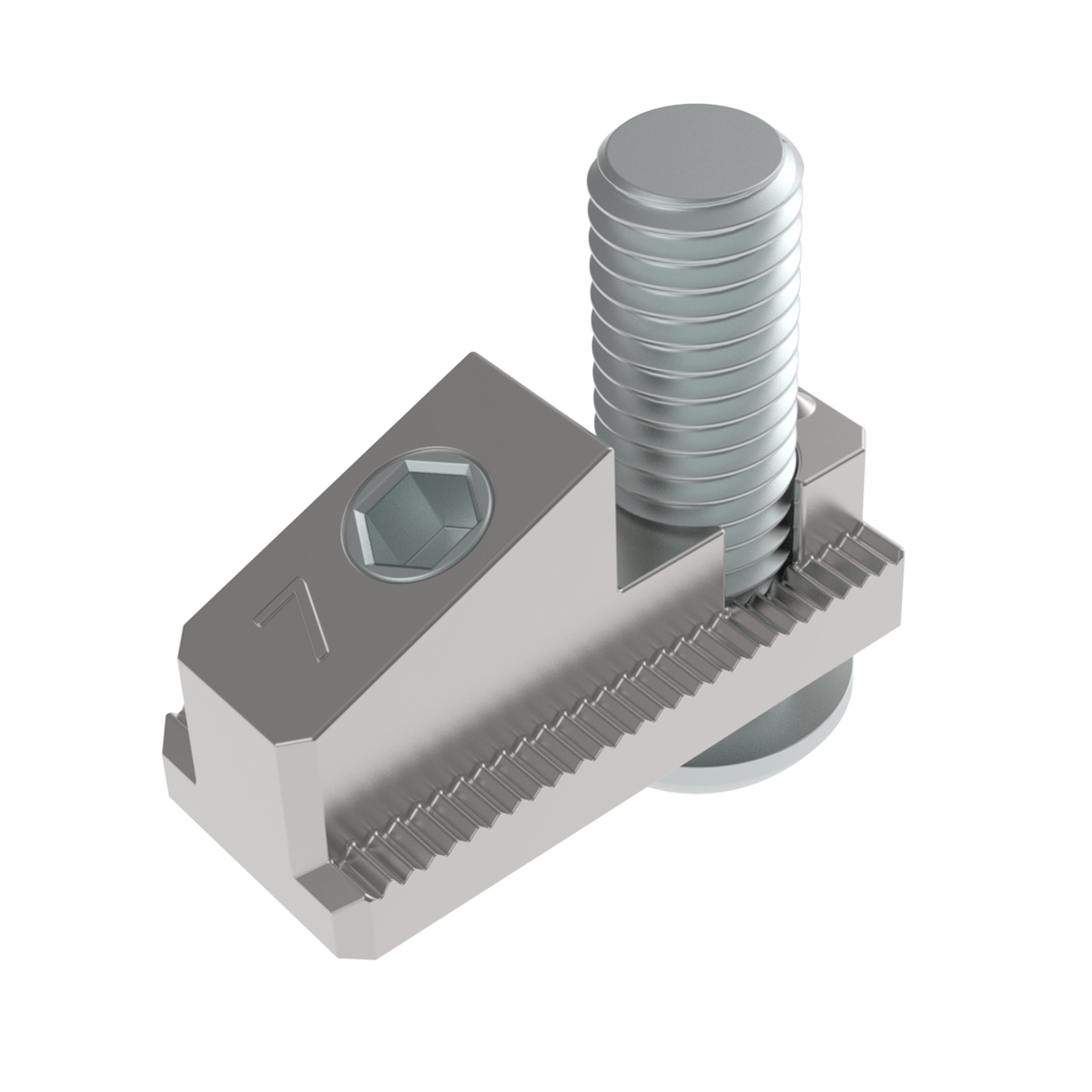

Profile Connector 90° M45 / N45, Slot 8 (Set)
Profile Connector 90° M45 / N45, Slot 8 (Set)
Conjunto: Conjunto 1
Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AceroSet 1:1 profile connector 90° M45 / N45 1 screw M8 x 25Set 2:1 profile connector 90° M45 / N45 1 self-forming screw S8 x 25Superficie:Galvanizado

0,00 €*

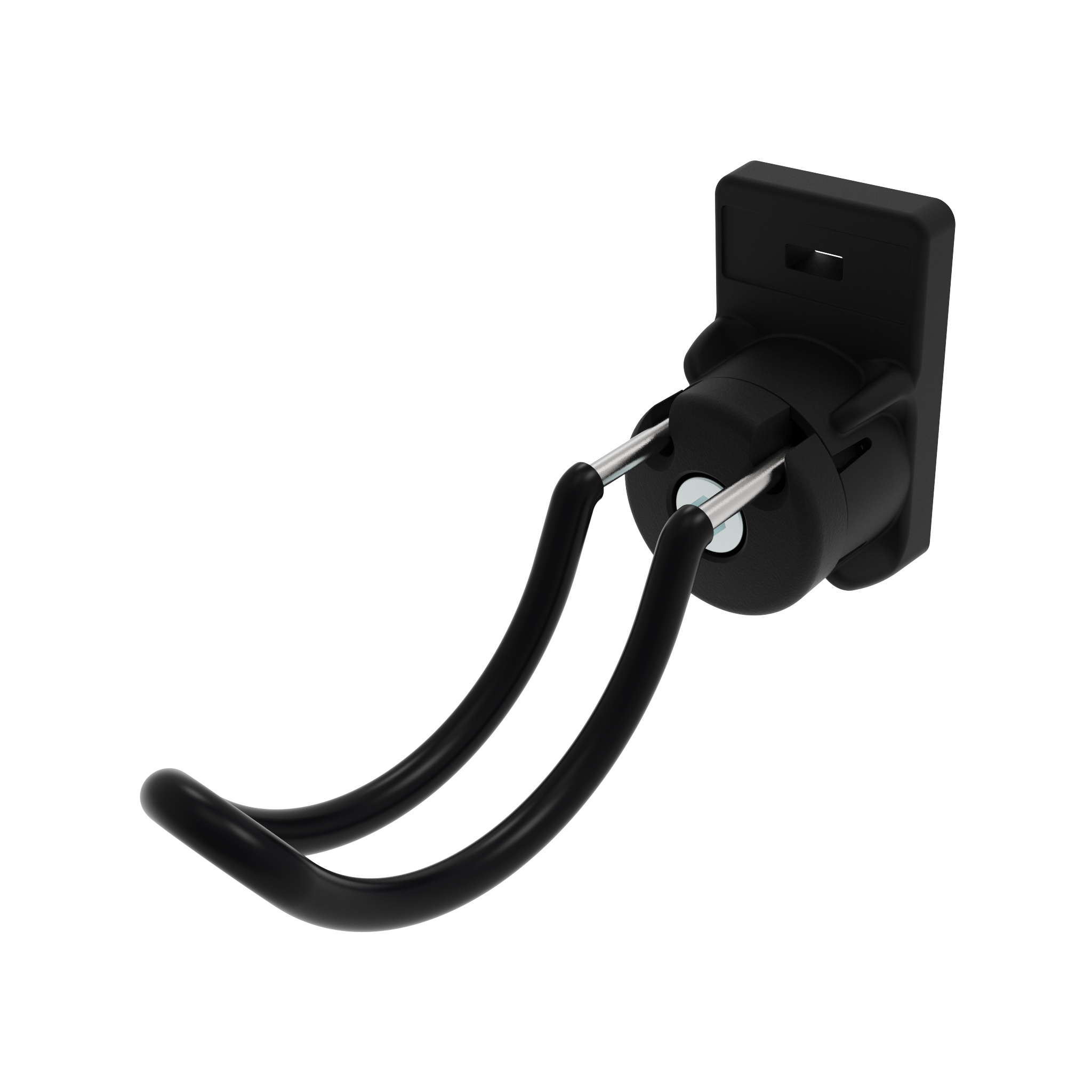

Tool Hook FX R35 - 27, Rubberized for Square Holes 9 x 9 (8.7 x 8.7)
Tool Hook FX R35 - 27, Rubberized for Square Holes 9 x 9 (8.7 x 8.7)
Color: Negro
Color:Wire: Black coated Rear mounting holder: Black Front locking holder: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use tool hook, 360° turnable, for perforated metals up to 1.4 mm thick; Rubber coated wire to prevent tools from slipping; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder: Plastic PA, carbon fibre reinforced Front locking holder: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Wire: PVC coated Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TH240NR4091S01 For round tubes D28 / D30 see 6TH2D283R4091S01

0,00 €*

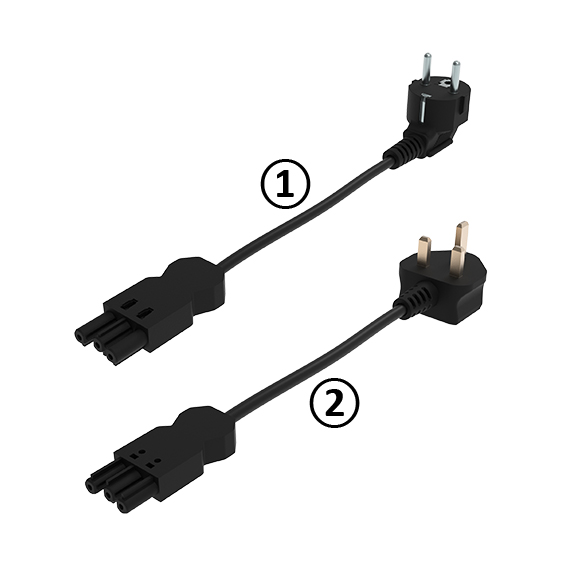

Main Power Cable GST18i3 for Module F Line
Main Power Cable GST18i3 for Module F Line
Fig.: ① | L (mm): 2000.0 | Tipo de hueco: Typ E + Typ F: CEE 7/4
Color:NegroPaíses de Entrega:En todo el mundoDescription:3 wire cable for power supply of LED lamps and power strips Module F LineMaterial:Cable insulation: Plastic PVC Plugs: Plastic PATip:Compatible power strip see 6SBGB24I.370 Compatible LED lamp see 6SL0040I.953Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

0,00 €*

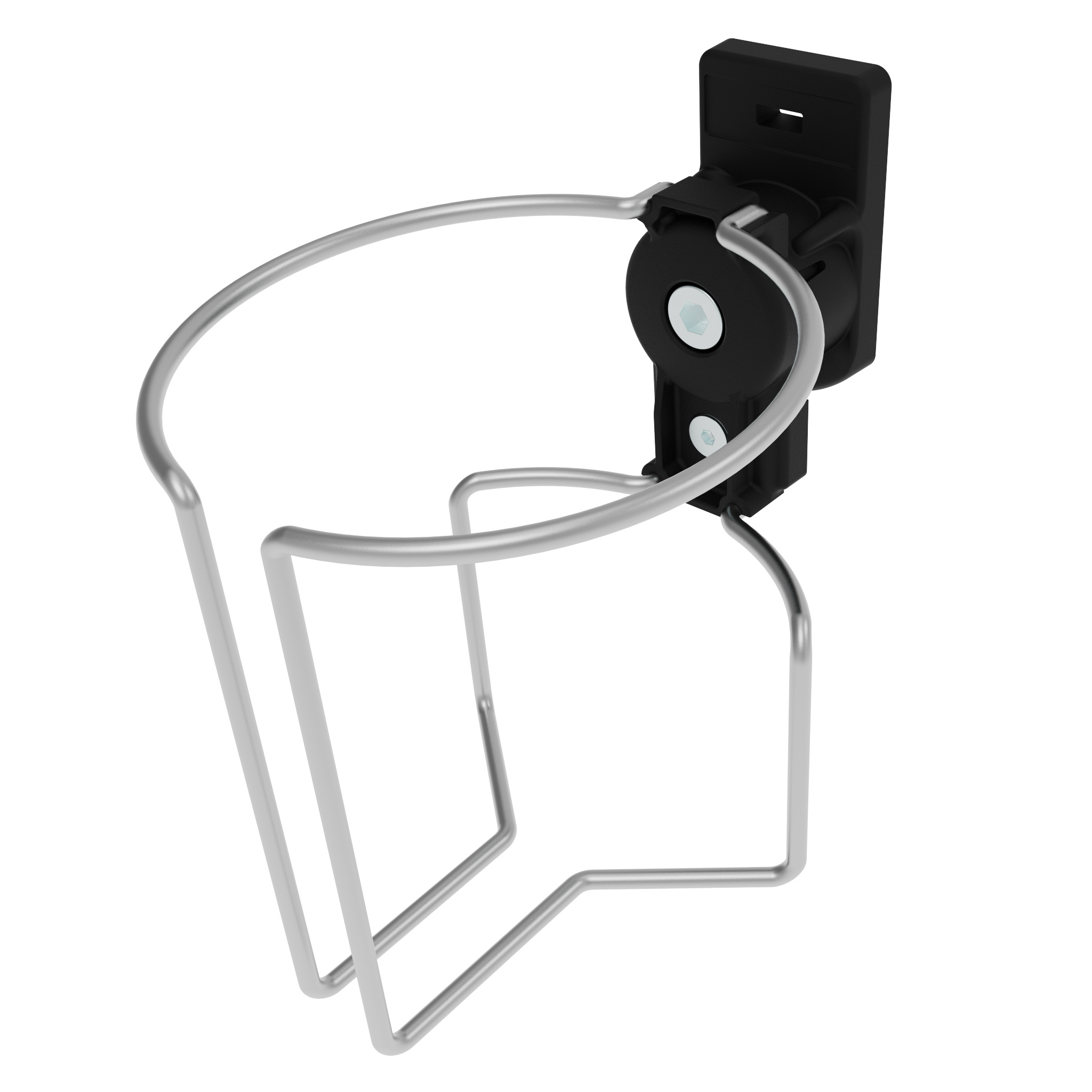

Bottle Holder FX for Square Holes 9 x 9 (8.7 x 8.7)
Bottle Holder FX for Square Holes 9 x 9 (8.7 x 8.7)
Color: Negro
Color:Rear mounting holder: Black Front locking holder: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use bottle holder, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder: Plastic PA, carbon fibre reinforced Front locking holder: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840ND100S01 For round tubes D28 / D30 see 6TM8D283D100S01

0,00 €*
Alu Connection Angle 20
Alu Connection Angle 20
B (mm): 5.3 | Color: - | Profile: - | Ranura N (mm): 5 | Superficie: Liso | Version: -
Assembly Set:2 hammer nuts - slot 6 - M4, 2 screws DIN 7984 - M4 x 8Color:Angle: Alu colorPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelEspeciales:Otras superficies, otros colores bajo pedidoSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA203

0,00 €*

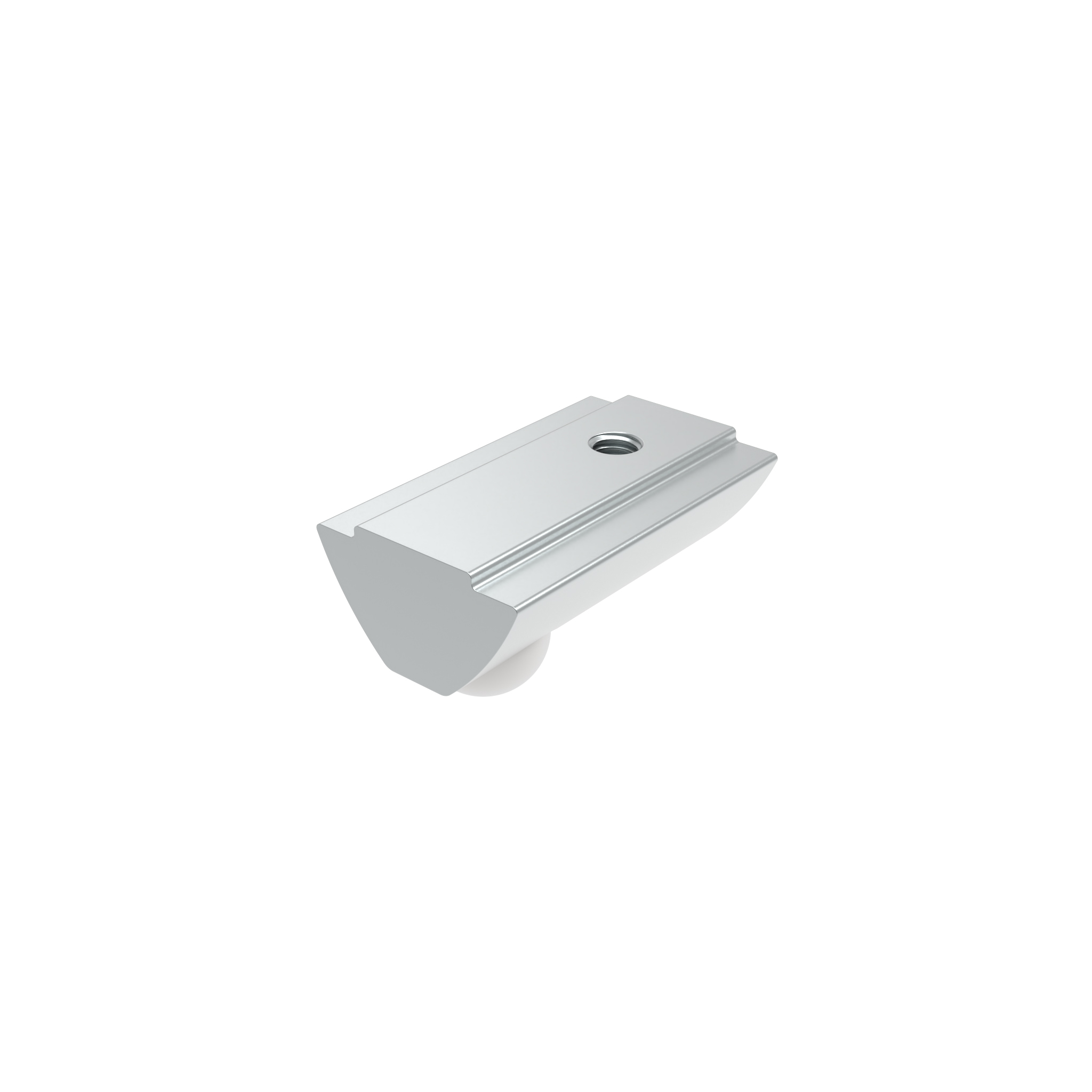

Roll-in T-slot Nut 13.4 x 7.6 mm with Large Spring Loaded Ball
Roll-in T-slot Nut 13.4 x 7.6 mm with Large Spring Loaded Ball
M: M4
Países de Entrega:En todo el mundoDescription:Self-aligning roll-in T-slot nut with spring loaded ballMaterial:AceroEspeciales:Descarga electrostática ESD, diferentes longitudes con roscas múltiples en diferentes tamaños disponibles bajo pedidoSuperficie:Galvanizado

0,00 €*

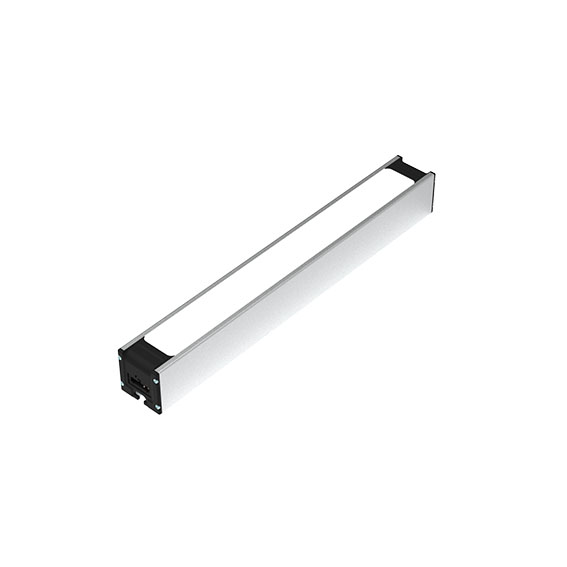

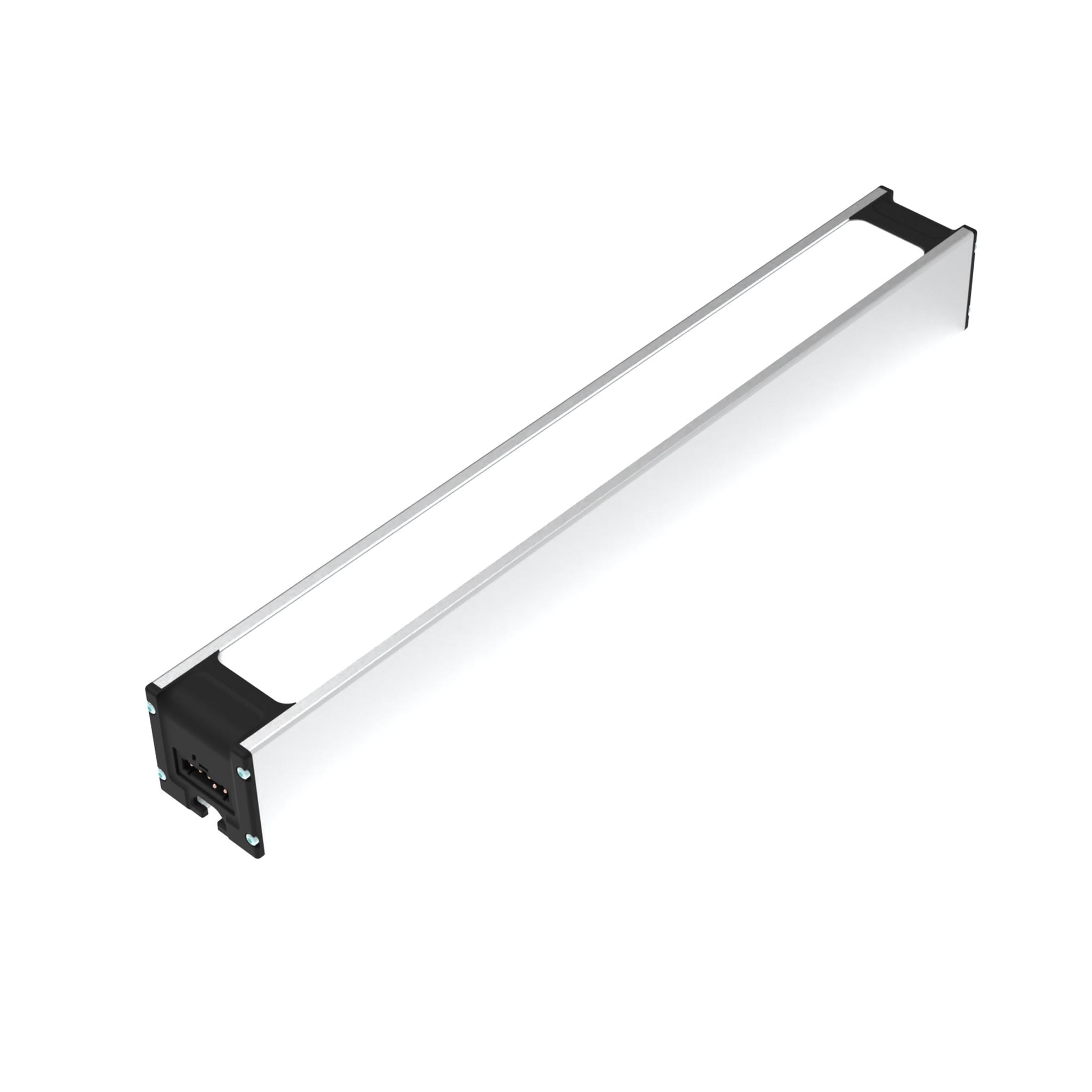

LED Lamp Module F Line 476 Dimmable, for Series Connection
LED Lamp Module F Line 476 Dimmable, for Series Connection
Profile: I | Ranura N (mm): 8
Color:Housing: - End caps: Black Diffusing screen: TransparentPaíses de Entrega:En todo el mundoDescription:Remotely dimmable LED Lamp for power and light supply at work stations On the backside with slot 8 for mounting on aluminum profiles Can be dimmed in series if the upstream Power Strip or LED Lamp for Series Connection has a dimmer switchMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: PolycarbonateEspeciales:Otras longitudes, otros colores bajo pedidoSurface:Housing standard version: AnodizedTip:Compatible LED Lamp Module F Line 476 Dimmable, with Button, for Series Connection see 6SL1040RDI.476 Compatible Power Strip Module F Line 370 4xEU with Switch and Dimmer Button, for Series Connection see 6SBEU24DI.370 Compatible Connection Cable GST15i5 for 5-pole output connector see 6SACP5J516B.2000 Compatible Connection Coupling GST15i5 for 5-pole output connector see 6SAKP5J516BS01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

0,00 €*
Ball Unit
Ball Unit
ESD: - | Version: Stainless steel ball
Color:Jaula: NegroPaíses de Entrega:En todo el mundoDescription:A preassembled ball unit for roller track profiles AL, with low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locksMaterial:Ball: Steel, stainless steel Ball chassis: Steel Cage: Plastic PA, carbon fiber reinforcedEspeciales:Otros materiales, otras superficies bajo pedidoSurface:Ball steel: Chrome plated / Ball stainless steel: Plain Ball housing: Chrome plated Housing Attachment Clip: Zinc platedTip:Brush unit consisting of: – Ball insert, see 062AQ; – Cage for ball insert, see 062ACD2491ESD.50; Compatible Slide Rail AL see 062AS91ESD.2000;

0,00 €*
Packing Tape Hand Dispenser Holder FX for Square Holes 9 x 9 (8.7 x 8.7)
Packing Tape Hand Dispenser Holder FX for Square Holes 9 x 9 (8.7 x 8.7)
Color: Negro | Fig.: ①
Color:Holder: Black, gray Packing Tape Hand Dispenser: Black, grayPaíses de Entrega:En todo el mundoDescription:Ready to use tool Holder for Packing Tape Hand Dispenser, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Holder black version: Plastic PA, carbon fibre reinforced Holder gray version: Plastic PA, glass fibre reinforced Packing Tape Hand Dispenser: Plastic PA, glass fibre reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NPT91 For round tubes D28 / D30 see 6TD283PT91

0,00 €*

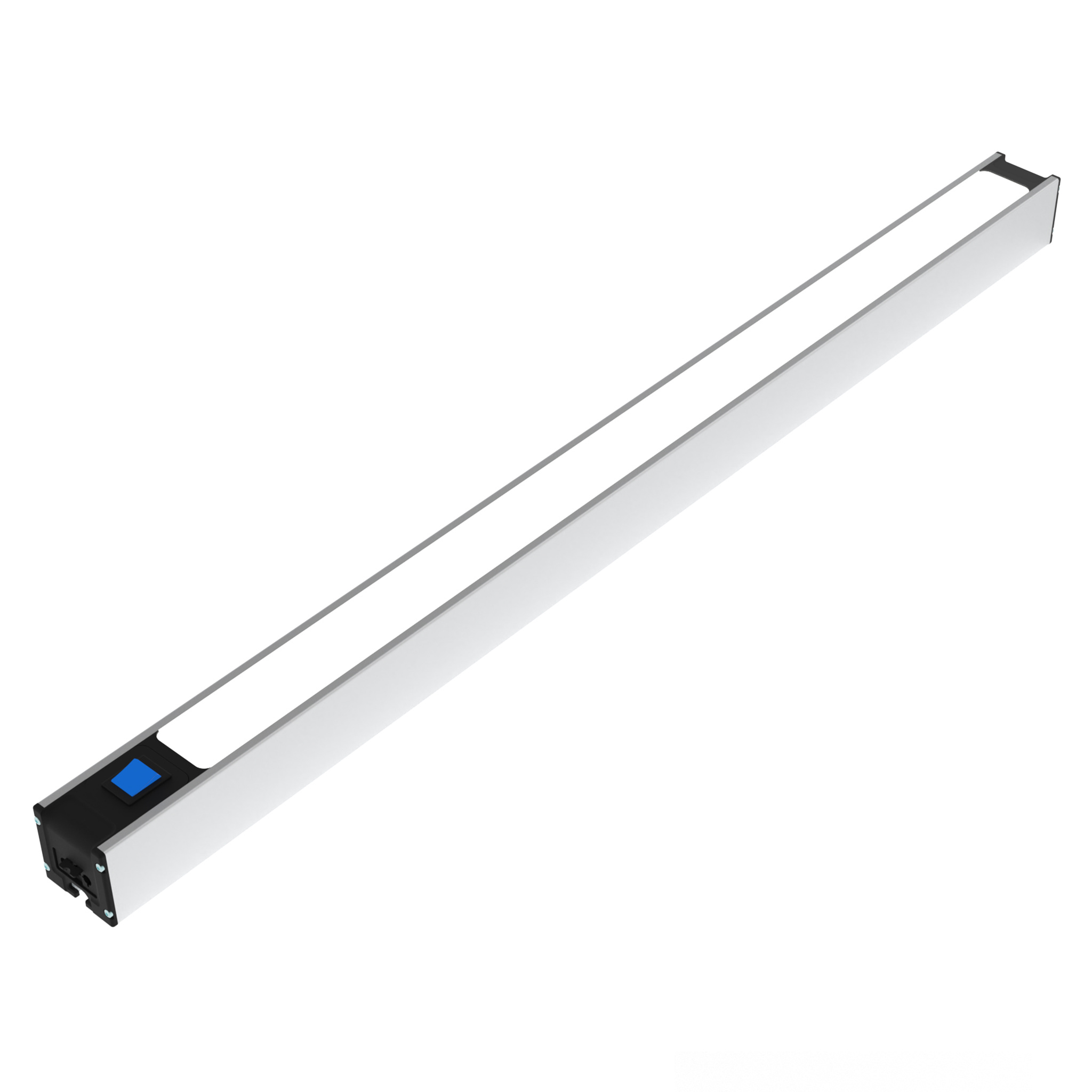

LED Lamp Module F Line 953 Dimmable, with Button, for Series Connection
LED Lamp Module F Line 953 Dimmable, with Button, for Series Connection
Profile: I | Ranura N (mm): 8
Color:Housing standard version: - End caps: Black Diffusing screen: Transparent Dimmer button standard version: BluePaíses de Entrega:En todo el mundoDescription:LED Lamp with dimmer button for power and light supply at work stations On the backside with slot 8 for mounting on aluminum profiles Can be dimmed in series if the downstream LED Lamp for Series Connection is dimmableMaterial:Housing: Aluminum End caps: Plastic PA, carbon fibre reinforced Diffusing screen: Polycarbonate Dimmer button: Plastic ABS/PAEspeciales:Otras longitudes, otros colores bajo pedidoSurface:Housing standard version: AnodizedTip:Compatible LED Lamp Module F Line 953 Dimmable, for Series Connection see 6SL0040RI.953 Compatible Power Strip Module F Line 264 4xEU see 6SBEU04I.264 Compatible Main Power Cable GST18i3 for 3-pole input connector see 6SAME4J316B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Connection Cable GST15i5 for 5-pole output connector see 6SACP5J516B.2000 Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01 Compatible Connection Coupling GST15i5 for 5-pole output connector see 6SAKP5J516BS01 Compatible Direct Connector I, slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

0,00 €*
Monitor Support 4-axis, Height Adjustable (Set)
Monitor Support 4-axis, Height Adjustable (Set)
Fmax (N): - | Version: 8 - 20 kg
Color:Mounting plate VESA, removable: Alu color / black Monitor mount: Alu color Cable management cover: Black Bearing shims and bushes: Black Mounting flange: Alu color Mounting adapter: alu colorPaíses de Entrega:En todo el mundoDescription:For removable mounting of monitors with 2 - 10 kg or 8 - 20 kg, mounting plate VESA MIS-D 75/100 compatible; Adjustable viewing angle and height, screen rotatable by 90°; 360° mounting flange for horizontal and vertical attachment with mounting adapterMaterial:Mounting plate VESA, removable: Steel / Plastic Monitor mount: Die-cast aluminum Cable management cover: Plastic Bearing shims and bushes: Plastic Mounting flange: Die-cast aluminum Mounting adapter: Die-cast aluminum Screws: SteelSet:1 mounting plate VESA with 4 screws – M4 × 12, Phillips 1 monitor support 4-axis with cable management cover 1 mounting flange 1 mounting screw DIN 6912 – M8 × 25 1 mounting adapter 2 mounting screws DIN 6912 – M8 × 16 1 hexagon key, AF 3 1 hexagon key, AF 4Surface:Mounting plate VESA, removable: Lacquered Monitor mount: Lacquered Mounting flange: Lacquered Mounting adapter: Lacquered Screws: Zinc plated

0,00 €*
Cloth Clip FX for Square Holes 9 x 9 (8.7 x 8.7)
Cloth Clip FX for Square Holes 9 x 9 (8.7 x 8.7)
Color: Negro | ESD: Descarga electrostática ESD
Color:Rear mounting holder: Black Front locking holder: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use cloth clip, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fibre reinforced Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TH240NG5050S01 For round tubes D28 / D30 see 6TH2D283G5050ESDS01

0,00 €*

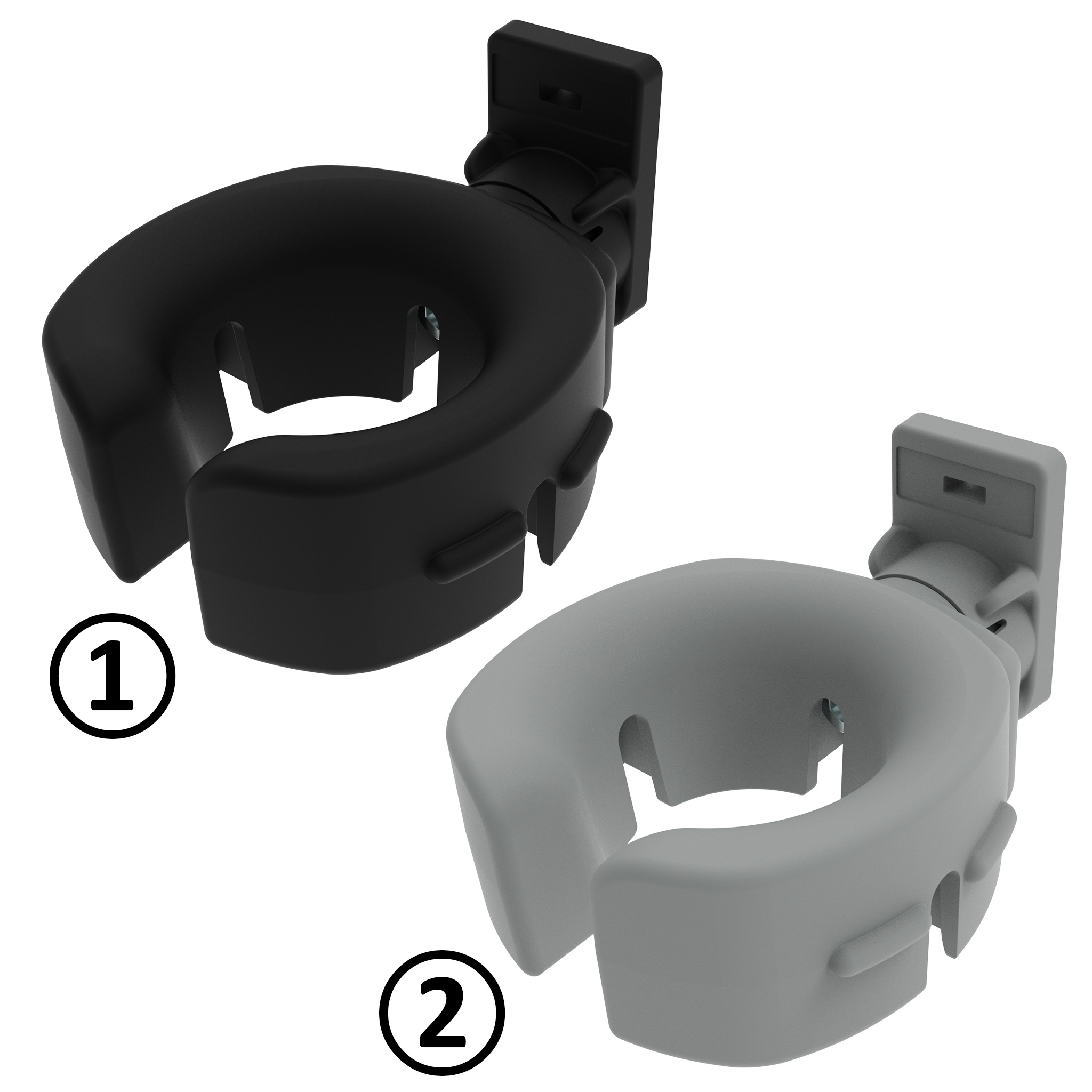

Drill / Driver Holder FX D50 for Square Holes 9 x 9 (8.7 x 8.7)
Drill / Driver Holder FX D50 for Square Holes 9 x 9 (8.7 x 8.7)
Color: Negro | Fig.: ①
Color:Rear mounting holder: Black, gray Front locking adapter: Black, gray Drill / driver holder: Black, grayPaíses de Entrega:En todo el mundoDescription:Ready to use tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder black version: Plastic PA, carbon fibre reinforced Rear mounting holder gray version: Plastic PA, glass fibre reinforced Front locking adapter: Plastic PA, glass ball reinforced Drill / driver holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NL12591S01 For round tubes D28 / D30 see 6TM8D283L12591S01

0,00 €*

CATALOGUE COMPOSANTS D'INGÉNIERIE

Flip PDF Descargar PDF

EN | icon-download-white.svg?ts=1738761470 113 MB | 2024-02

GEOMETRÍA DE LOS PERFILES DE ALUMINIO

Para facilitarle la orientación, hemos especificado en su caso la geometría del perfil de aluminio compatible correspondiente. Además, en la tabla encontrará las dimensiones y tolerancias detalladas de las formas de perfil más importantes.

Como hasta ahora: FATH no ofrecerá un sistema de perfiles propio.

Descargar EN | PDF

CONSULTA INDIVIDUAL

Para más información y asesoramiento sobre la compatibilidad de su perfil de aluminio, póngase en contacto con nuestro equipo de ventas.
