Alu Connection Angle 40 x 80

Product information "Alu Connection Angle 40 x 80"

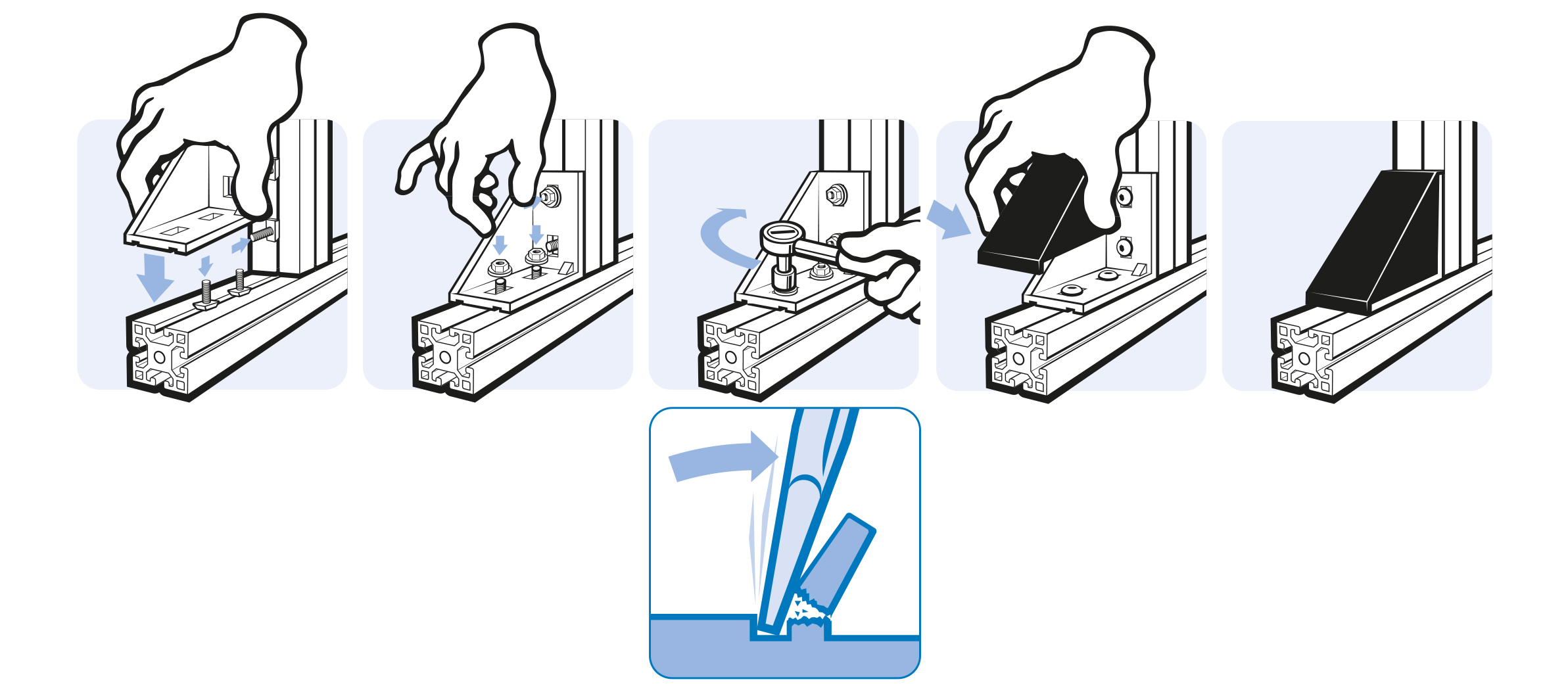

Assembly Set:
4 hammer head screws - slot 10 - M8 x 25,
4 flange nuts M8

Color:
Alu color

Delivery Countries:
Worldwide

Description:

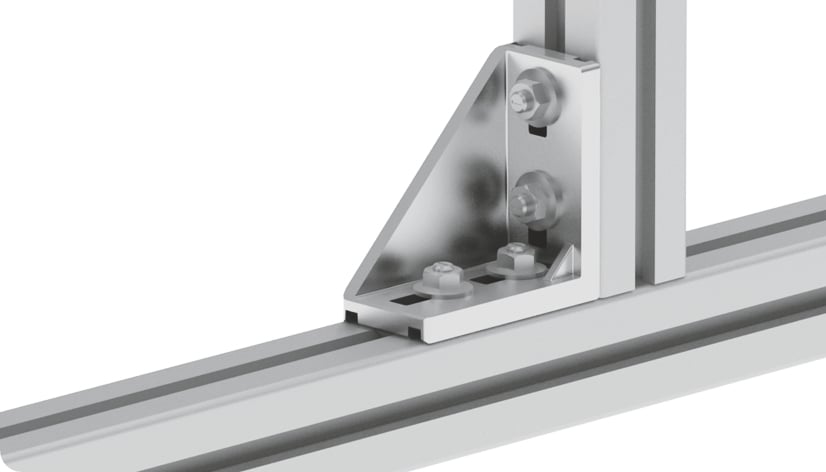

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap

Material:
Angle: Aluminum die-cast
Assembly set: Steel

Specials:
Other surfaces, other colors on request

Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated

Tip:
Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
Compatible Cover Cap see 093WA403

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290

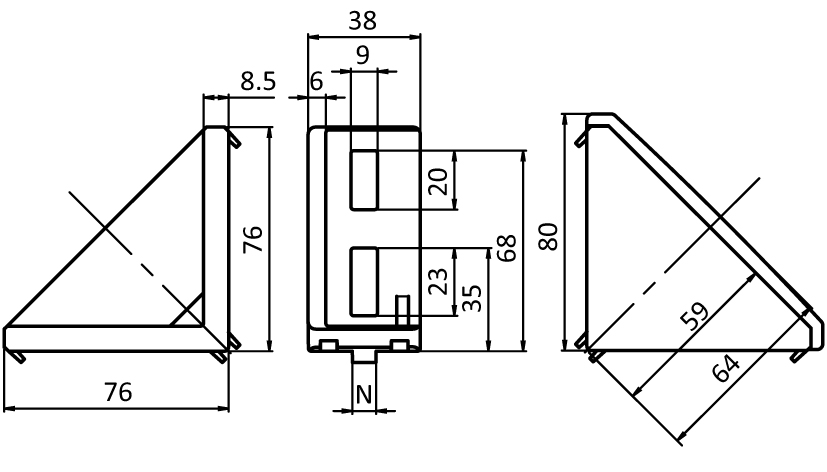

Model: Aluminum die-cast, profile 40 and up
Pack Quantity: 10 pieces / 10 set
Weight (g): 120.0

Variants

Product ID Surface Color Profile Slot N (mm)
093W403 Plain
093W403N08 Plain 8
093W403N10 Plain 10
093W403N10S01 Plain B 10
093W403N10S03 Powder coated Alu color 10
093W403N10S04 Powder coated Alu color B 10
