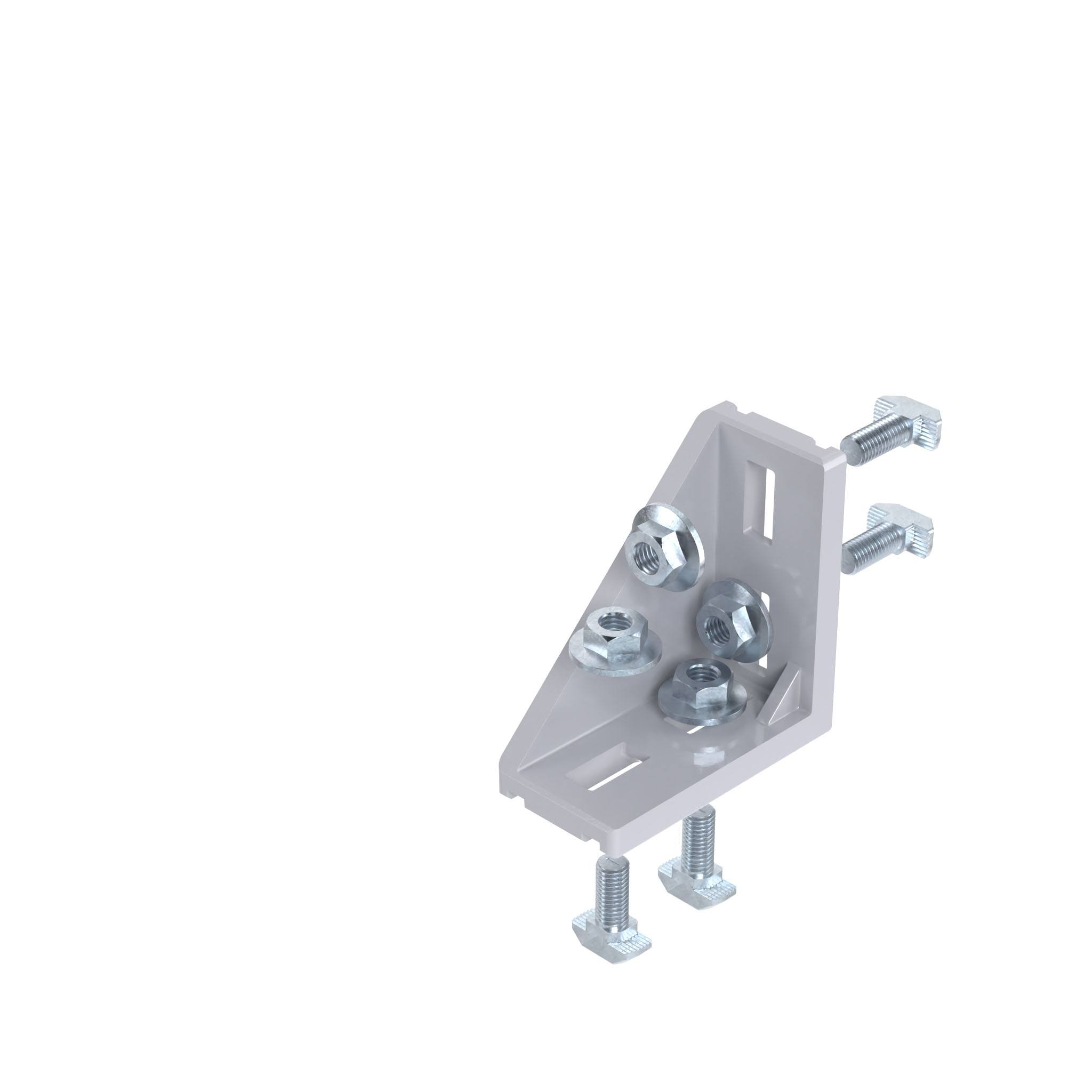

Alu Connection Angle 40 x 80
Part #:
093W403N10S04
Product information "Alu Connection Angle 40 x 80"
Assembly Set:
4 hammer head screws - slot 10 - M8 x 25,
4 flange nuts M8
Color:
Alu color
Delivery Countries:
Worldwide
Description:
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Assembly set: Steel
Specials:
Other surfaces, other colors on request
Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated
Tip:
Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
Compatible Cover Cap see 093WA403
4 hammer head screws - slot 10 - M8 x 25,
4 flange nuts M8
Color:
Alu color
Delivery Countries:
Worldwide
Description:
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Assembly set: Steel
Specials:
Other surfaces, other colors on request
Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated
Tip:
Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
Compatible Cover Cap see 093WA403
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Customs Tariff Number Export: | 76169910 |
| ERP Number: | 127742 |
| Model: | Aluminum die-cast, profile 40 and up |
| Pack Quantity: | 10 pieces / 10 set |
| Weight (g): | 123.0 |
| Zolltarifnummer: | 76169910990 |
