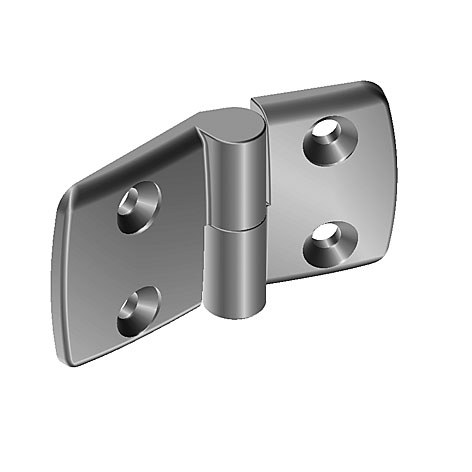

Aluminum Die-cast Combi Hinge 50, Detachable, Alu Color

Product information "Aluminum Die-cast Combi Hinge 50, Detachable, Alu Color"

Color:
Wing: Alu color

Delivery Countries:
Worldwide

Description:

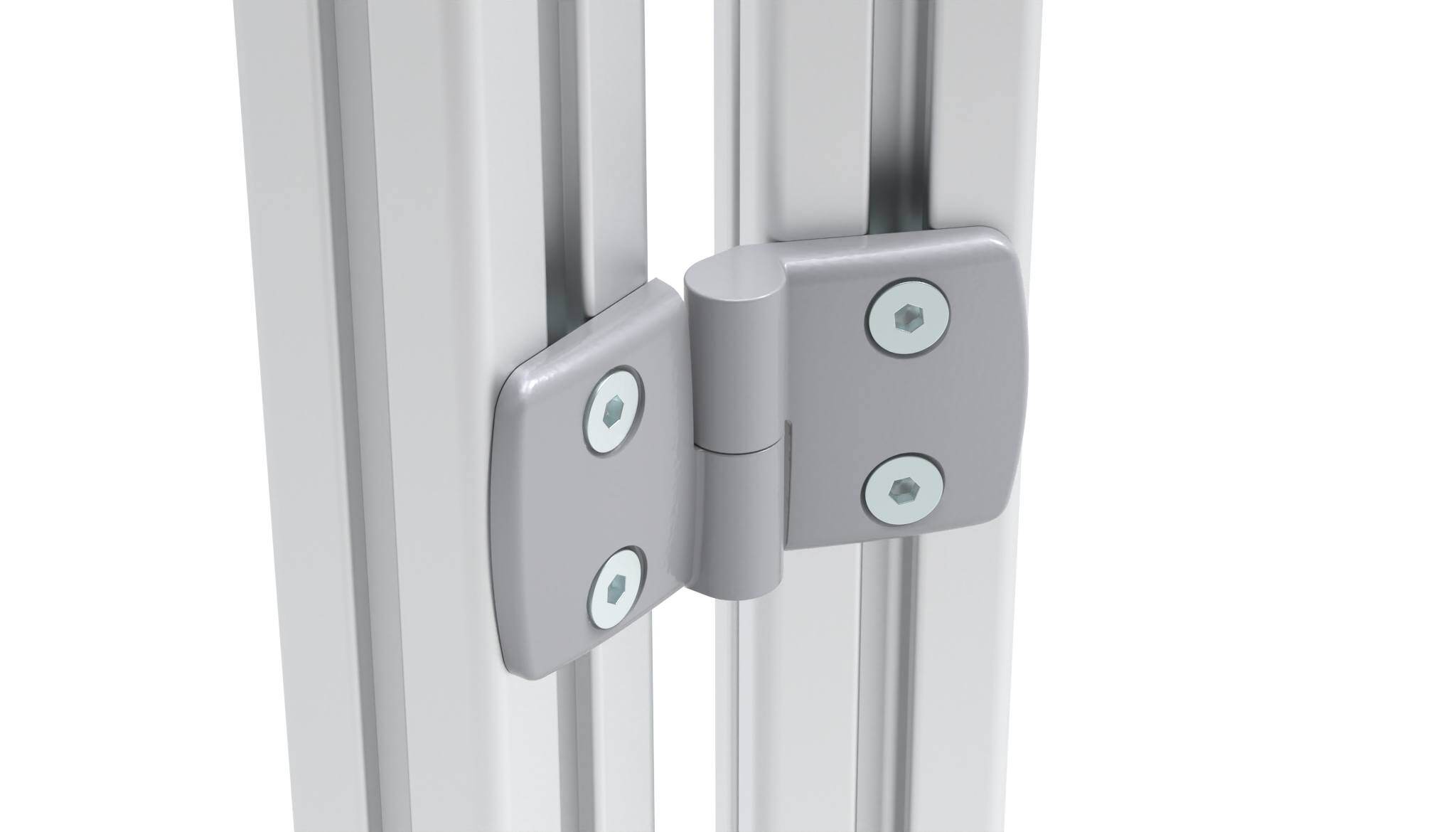

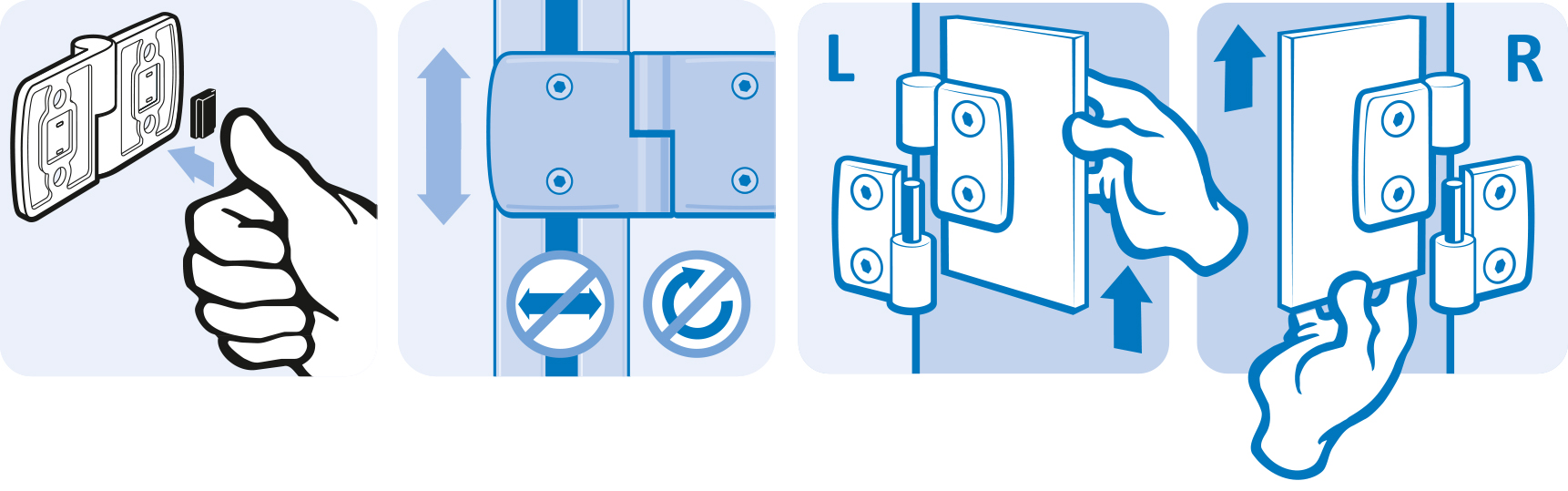

To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin

Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE

Surface:
Wings: Powder coated
Pin: Plain

Tip:
Compatible Central Bolts see 095AN05

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws
Model: Detachable
Pack Quantity: 10 pieces
Weight (g): 71.0

Variants

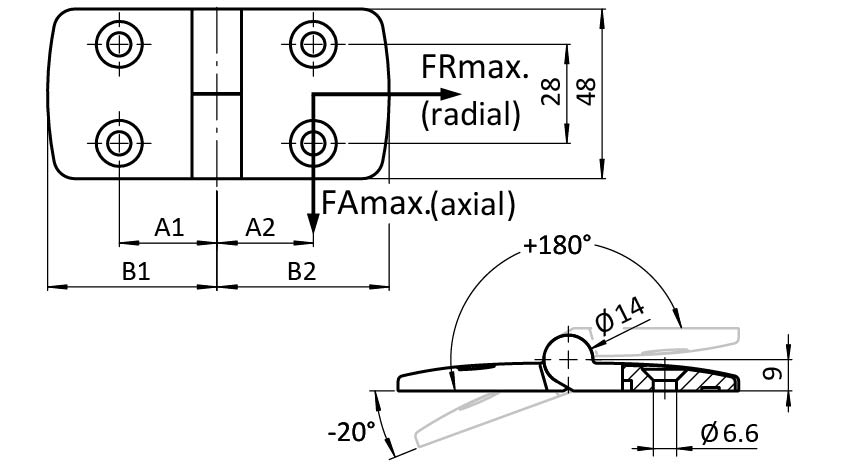

Product ID B1 (mm) Version A1 (mm) Combination B2 (mm) A2 (mm) FAmax (N) FRmax (N)
095A5025L 48.5 L: Left 27.5 50 / 25 26.0 15.0 250 410
095A5025R 26.0 R: Right 15.0 50 / 25 48.5 27.5 250 410
095A5030L 48.5 L: Left 27.5 50 / 30 29.5 17.5 280 450
095A5030R 29.5 R: Right 17.5 50 / 30 48.5 27.5 250 410
095A5035L 48.5 L: Left 27.5 50 / 35 36.0 20.0 250
095A5035R 36.0 R: Right 20.0 50 / 35 48.5 27.5 250
095A5040L 48.5 L: Left 27.5 50 / 40 38.5 22.5 550
095A5040R 38.5 R: Right 22.5 50 / 40 48.5 27.5 550
095A5045L 48.5 L: Left 27.5 50 / 45 43.5 25.0 550
095A5045R 43.5 R: Right 25.0 50 / 45 48.5 27.5 550
095A5050L 48.5 L: Left 27.5 50 / 50 48.5 27.5 175 550
095A5050R 48.5 R: Right 27.5 50 / 50 48.5 27.5 175
