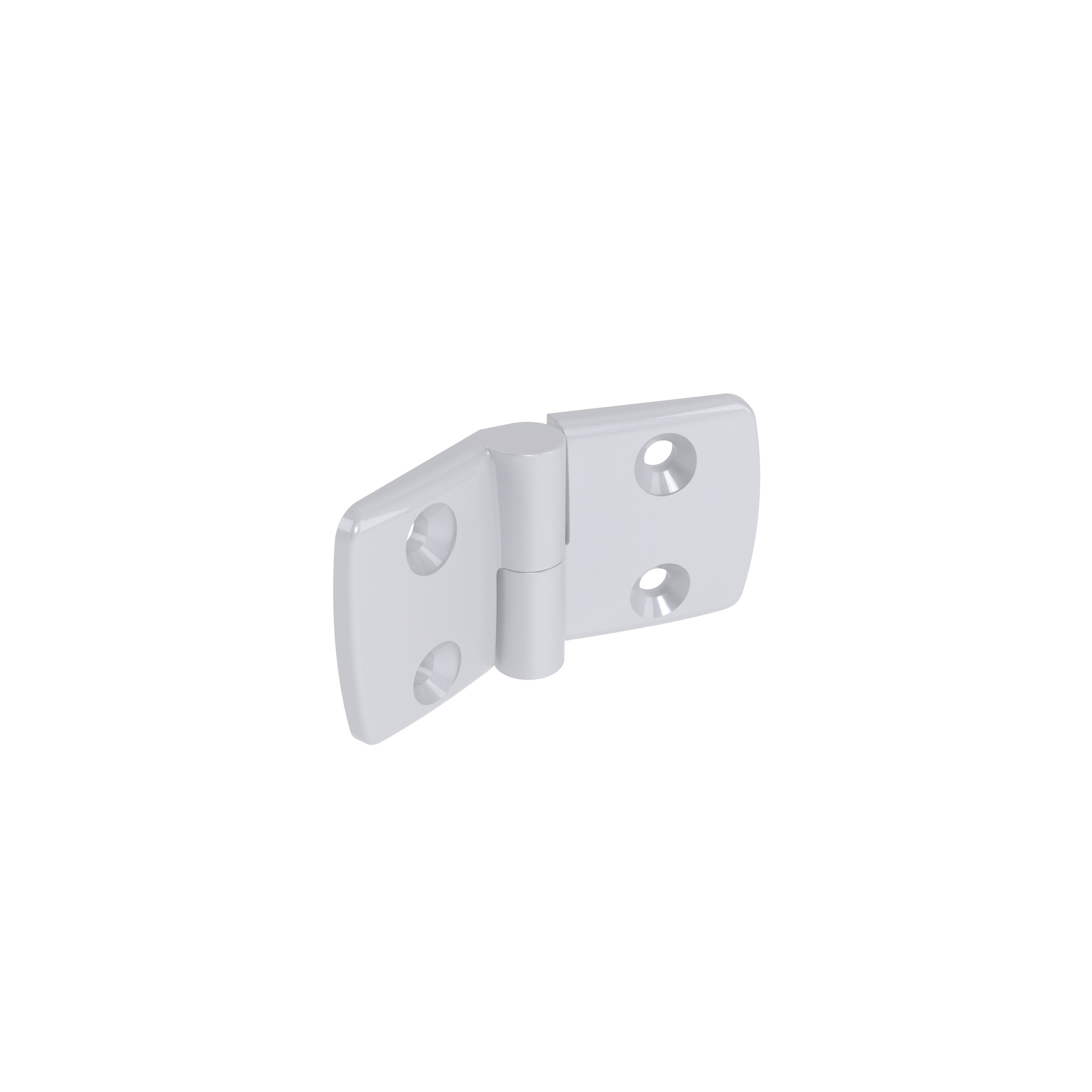

Aluminum Die-cast Combi Hinge 50, Detachable, Alu Color

Product information "Aluminum Die-cast Combi Hinge 50, Detachable, Alu Color"

Color:
Wing: Alu color

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin

Fastening:
From the front, using M6 countersunk screws

Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE

Surface:
Wings: Powder coated
Pin: Plain

Tip:
Compatible Central Bolts see 095AN05

Pack Quantity:	10 pieces
Model:	Detachable
Weight (g):	75.0
ERP Number:	137514

Variants

Part #	Version	B1 (mm)	B2 (mm)	Combination	FAmax (N)	FRmax (N)	A1 (mm)	A2 (mm)
095A5050L	L: Left	48.5	48.5	50 / 50	175	550	27.5	27.5
095A5025L	L: Left	48.5	26.0	50 / 25	250	410	27.5	15.0
095A5030L	L: Left	48.5	29.5	50 / 30	280	450	27.5	17.5
095A5035L	L: Left	48.5	36.0	50 / 35	250	500	27.5	20.0
095A5040L	L: Left	48.5	38.5	50 / 40	200	550	27.5	22.5
095A5045L	L: Left	48.5	43.5	50 / 45	200	550	27.5	25.0
095A5050R	R: Right	48.5	48.5	50 / 50	175	500	27.5	27.5
095A5025R	R: Right	26.0	48.5	50 / 25	250	410	15.0	27.5
095A5030R	R: Right	29.5	48.5	50 / 30	250	410	17.5	27.5
095A5035R	R: Right	36.0	48.5	50 / 35	250	500	20.0	27.5
095A5040R	R: Right	38.5	48.5	50 / 40	200	550	22.5	27.5
095A5045R	R: Right	43.5	48.5	50 / 45	200	550	25.0	27.5

CAD Downloads

Classifications

ECLASS 6.0: 23219090
ECLASS 7.0: 23219090
ECLASS 8.0: 23219090
ECLASS 9.0: 23219090
ECLASS 10.0: 23219090
ECLASS 11.0: 23219090
ECLASS 12.0: 23219090
ECLASS 13.0: 23219090
Zolltarifnummer: 83021000900
Customs Tariff Number Export: 83021000

Certificates

Tags

Profile Type	Profile Type B, Profile Type I
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering

Matching accessories

Centering Bolt for Aluminum Die-Cast Combi Hinge

Slot N (mm): 5
