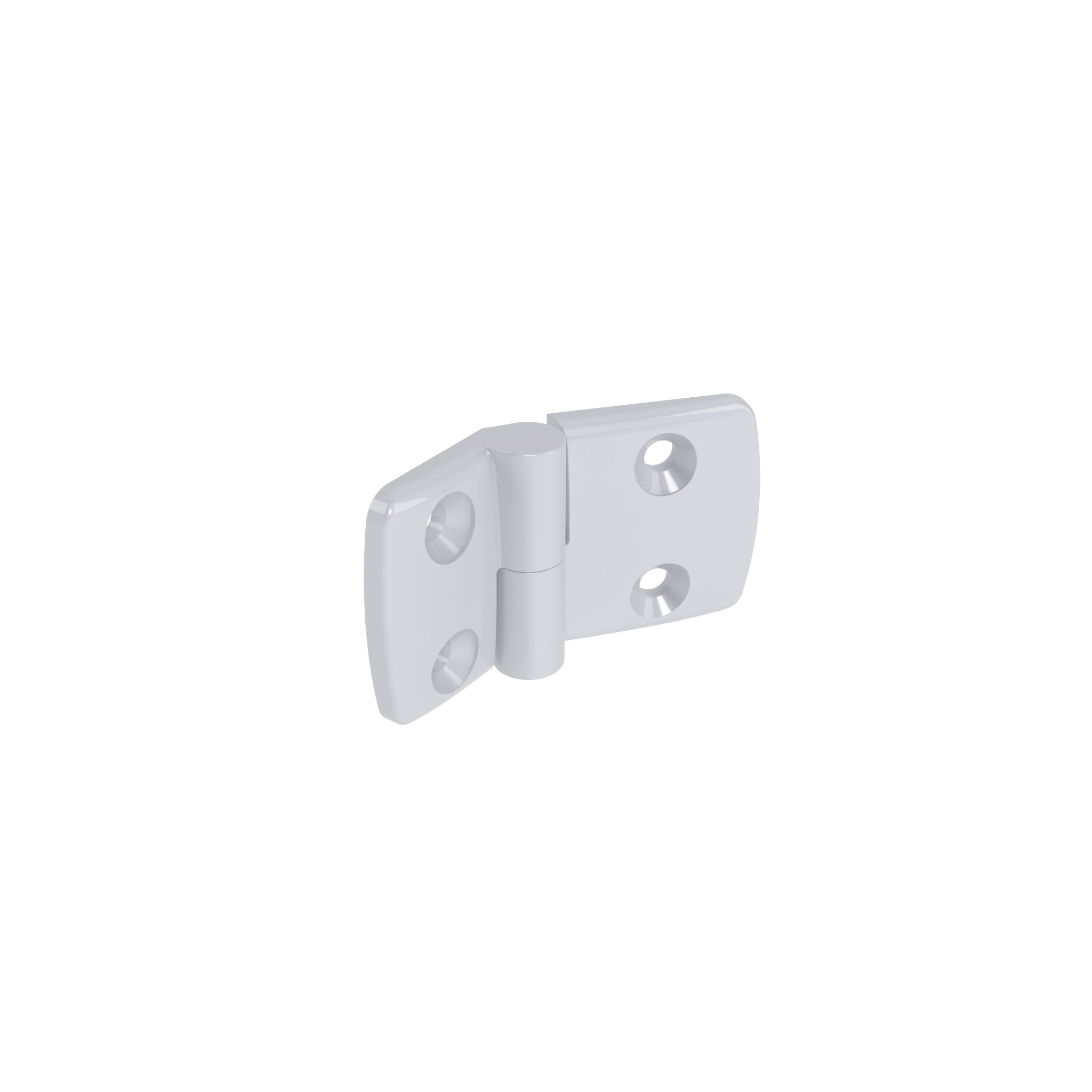

Aluminum Die-cast Combi Hinge 50, Detachable, Alu Color

Product information "Aluminum Die-cast Combi Hinge 50, Detachable, Alu Color"

Color:
Wing: Alu color

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pin

Fastening:
From the front, using M6 countersunk screws

Material:
Wings: Die-cast aluminum
Pin: Stainless steel
Bearings: PTFE

Surface:
Wings: Powder coated
Pin: Plain

Tip:
Compatible Central Bolts see 095AN05

Model:	Detachable
Pack Quantity:	10 pieces
Customs Tariff Number Export:	83021000
Weight (g):	75.0
(ECLASS 6.0):	23219090
(ECLASS 7.0):	23219090
(ECLASS 8.0):	23219090
(ECLASS 9.0):	23219090
(ECLASS 10.0):	23219090
(ECLASS 11.0):	23219090
(ECLASS 12.0):	23219090
(ECLASS 13.0):	23219090
ERP Number:	137486
Zolltarifnummer:	83021000900

Variants

Part #	Version	Combination	FAmax (N)	FRmax (N)	A1 (mm)	A2 (mm)	B1 (mm)	B2 (mm)
095A5025L	L: Left	50 / 25	250	410	27.5	15.0	48.5	26.0
095A5025R	R: Right	50 / 25	250	410	15.0	27.5	26.0	48.5
095A5030L	L: Left	50 / 30	280	450	27.5	17.5	48.5	29.5
095A5030R	R: Right	50 / 30	250	410	17.5	27.5	29.5	48.5
095A5035L	L: Left	50 / 35	250	-	27.5	20.0	48.5	36.0
095A5035R	R: Right	50 / 35	250	-	20.0	27.5	36.0	48.5
095A5040L	L: Left	50 / 40	-	550	27.5	22.5	48.5	38.5
095A5040R	R: Right	50 / 40	-	550	22.5	27.5	38.5	48.5
095A5045L	L: Left	50 / 45	-	550	27.5	25.0	48.5	43.5
095A5045R	R: Right	50 / 45	-	550	25.0	27.5	43.5	48.5
095A5050L	L: Left	50 / 50	175	550	27.5	27.5	48.5	48.5
095A5050R	R: Right	50 / 50	175	-	27.5	27.5	48.5	48.5
