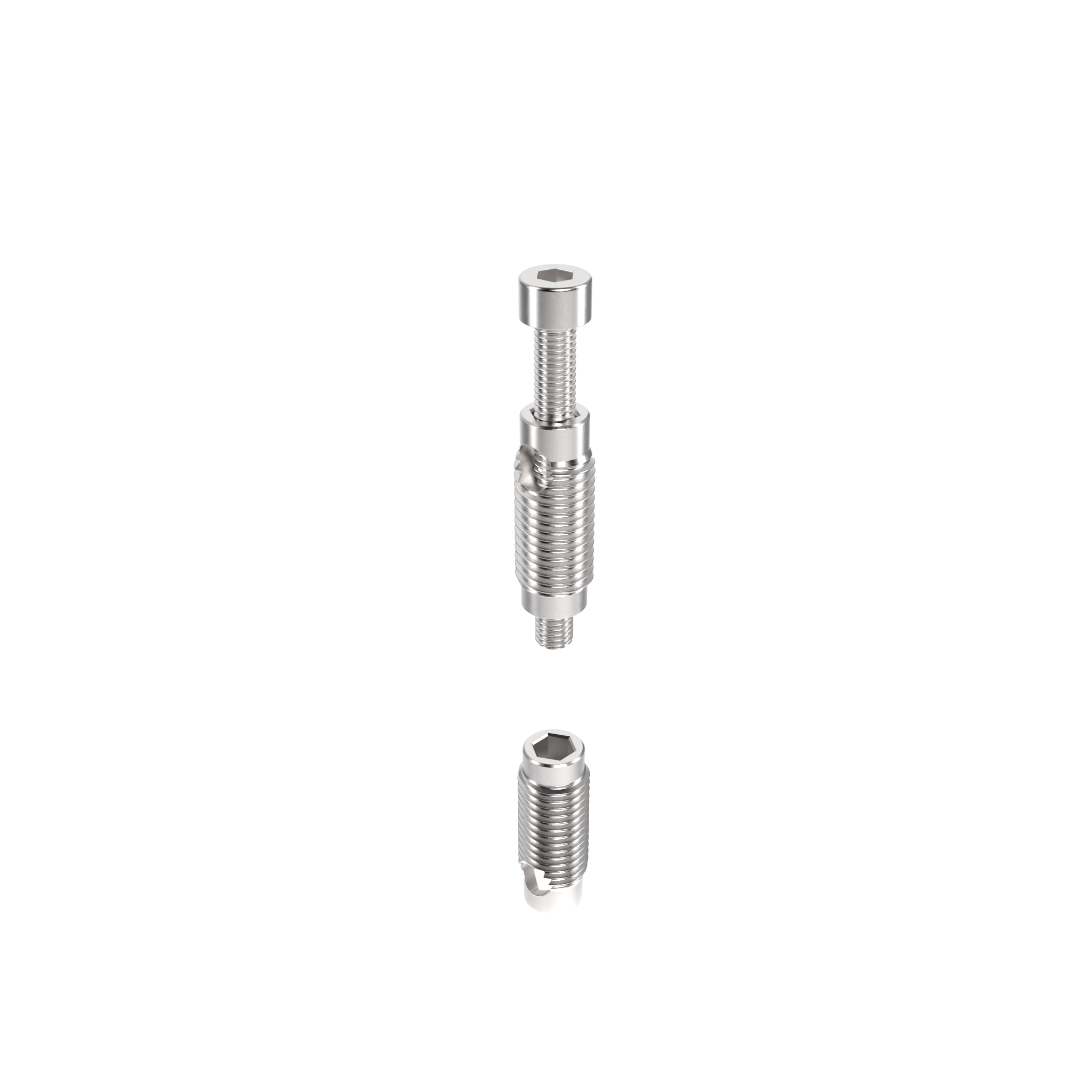

Automatic Butt Connector Stainless Steel

Product information "Automatic Butt Connector Stainless Steel"

Delivery Countries:
Worldwide

Description:

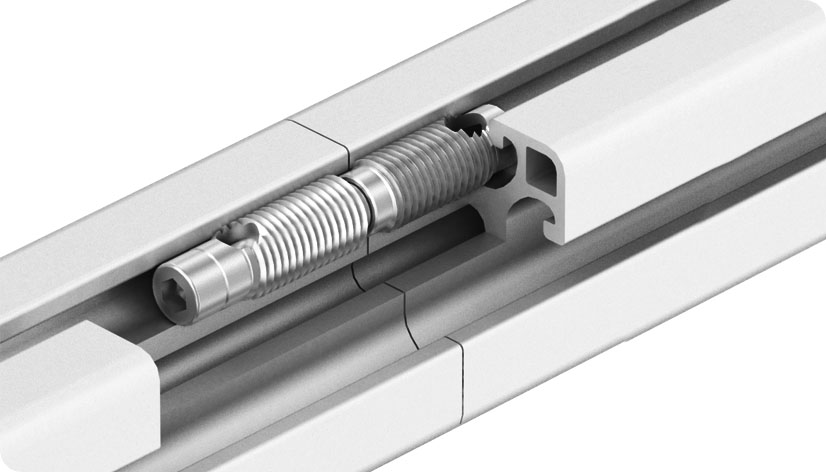

To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting thread

Material:
Stainless steel

Surface:
Plain

Tip:
*Compatible Cover Cap see 099GA081K

Pack Quantity:	10 pieces
Model:	Stainless steel
Weight (g):	24.0
ERP Number:	135557

Global keywords / tags:

Profile Type	Profile Type I
Slot Size	Slot 6
Product Feature	ESD, Stainless
Profile Form	T-slot Profiles

Variants

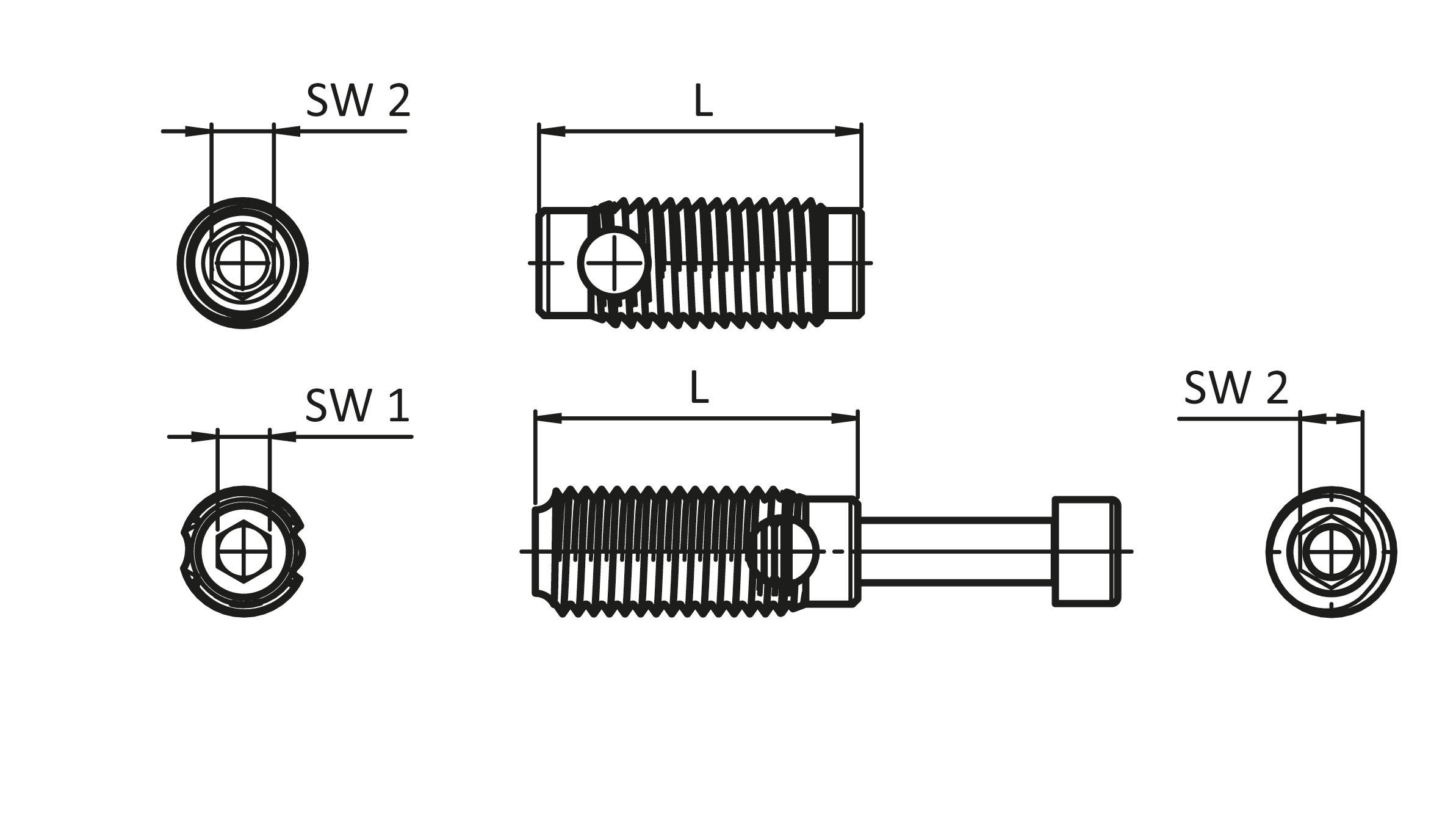

Part #	D (mm)	Version	Profile	L (mm)	ESD	Slot N (mm)	Profile Width	SW 1	SW 2	Tip	Screw	Pack Quantity
099G061M5E	10.0	With assembly set, incl. screw and threaded cutting sleeve	I	27.0	ESD electrostatical discharging	6	30	4	5	-	M5 x 45	10 pieces
099G081M6E	12.0	With assembly set, incl. screw and threaded cutting sleeve	I	31.0	ESD electrostatical discharging	8	40	5	6	*	M6 x 50	10 pieces
099GS061M5E	10.0	Threaded cutting sleeve	I	27.0	ESD electrostatical discharging	6	30	-	5	-	-	100 pieces
099GS081M6E	12.0	Threaded cutting sleeve	I	31.0	ESD electrostatical discharging	8	40	-	6	*	-	100 pieces

CAD Downloads

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Customs Tariff Number Export: 73181900

Certificates

RoHS Certificate

REACH Certificate

POP Certificate

Conflict Minerals Certificate
