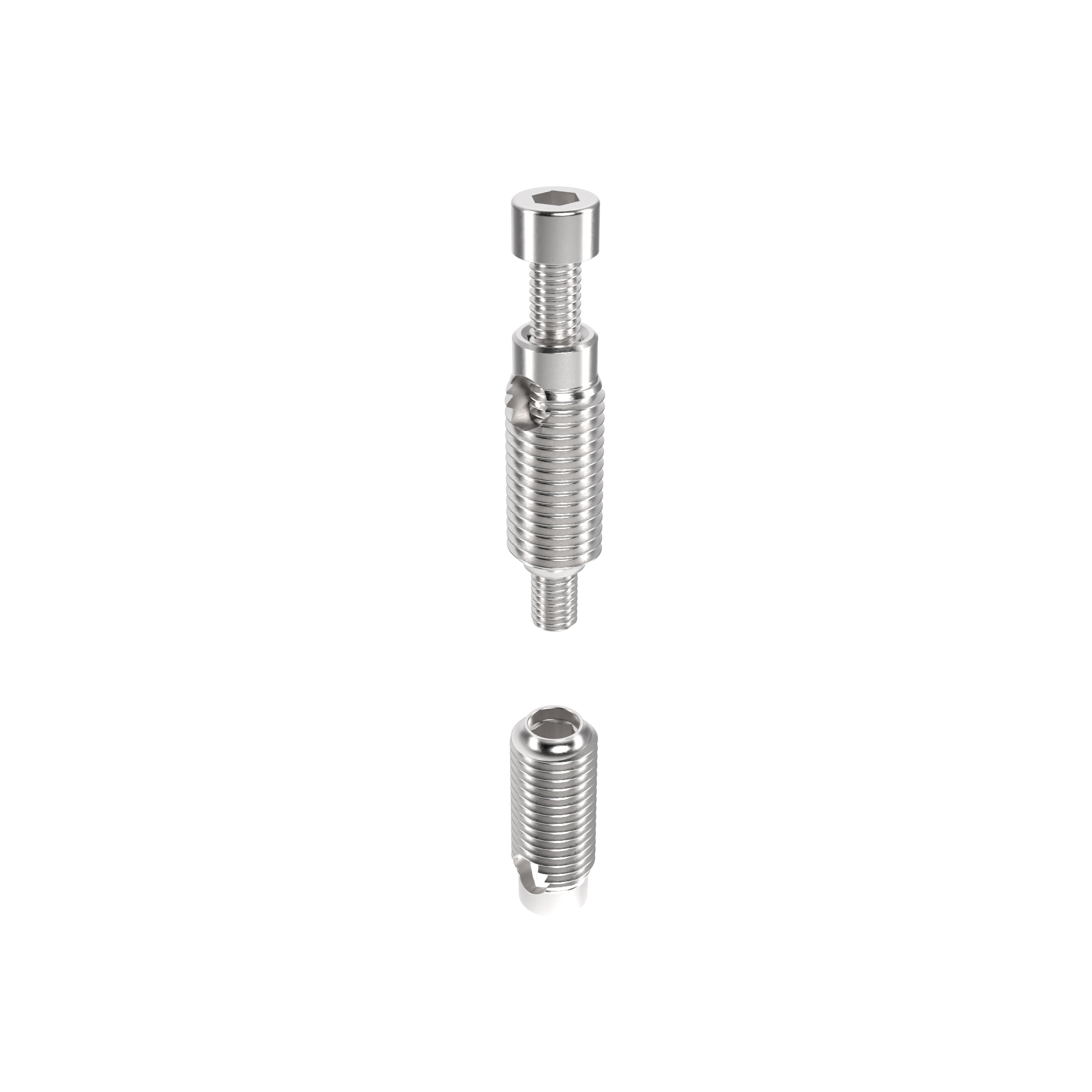

Automatic Butt Connector Stainless Steel

Product information "Automatic Butt Connector Stainless Steel"

Delivery Countries:
Worldwide

Description:
To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting thread

Material:
Stainless steel

Surface:
Plain

Tip:
*Compatible Cover Cap see 099GA081K
Model: Stainless steel
Pack Quantity: 100 pieces
Customs Tariff Number Export: 73181900
Weight (g): 43.0
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
ERP Number: 133366

Variants

Part # Version ESD D (mm) L (mm) Screw Slot N (mm) SW 1 SW 2 Profile Profile Width
099G061M5E With assembly set, incl. screw andthreaded cutting sleeve ESD electrostatical discharging 10.0 27.0 M5 x 45 6 4 5 I 30
099G081M6E With assembly set, incl. screw andthreaded cutting sleeve ESD electrostatical discharging 12.0 31.0 M6 x 50 8 5 6 I 40
099GS061M5E Threaded cutting sleeve ESD electrostatical discharging 10.0 27.0 - 6 - 5 I 30
099GS081M6E Threaded cutting sleeve ESD electrostatical discharging 12.0 31.0 - 8 - 6 I 40
