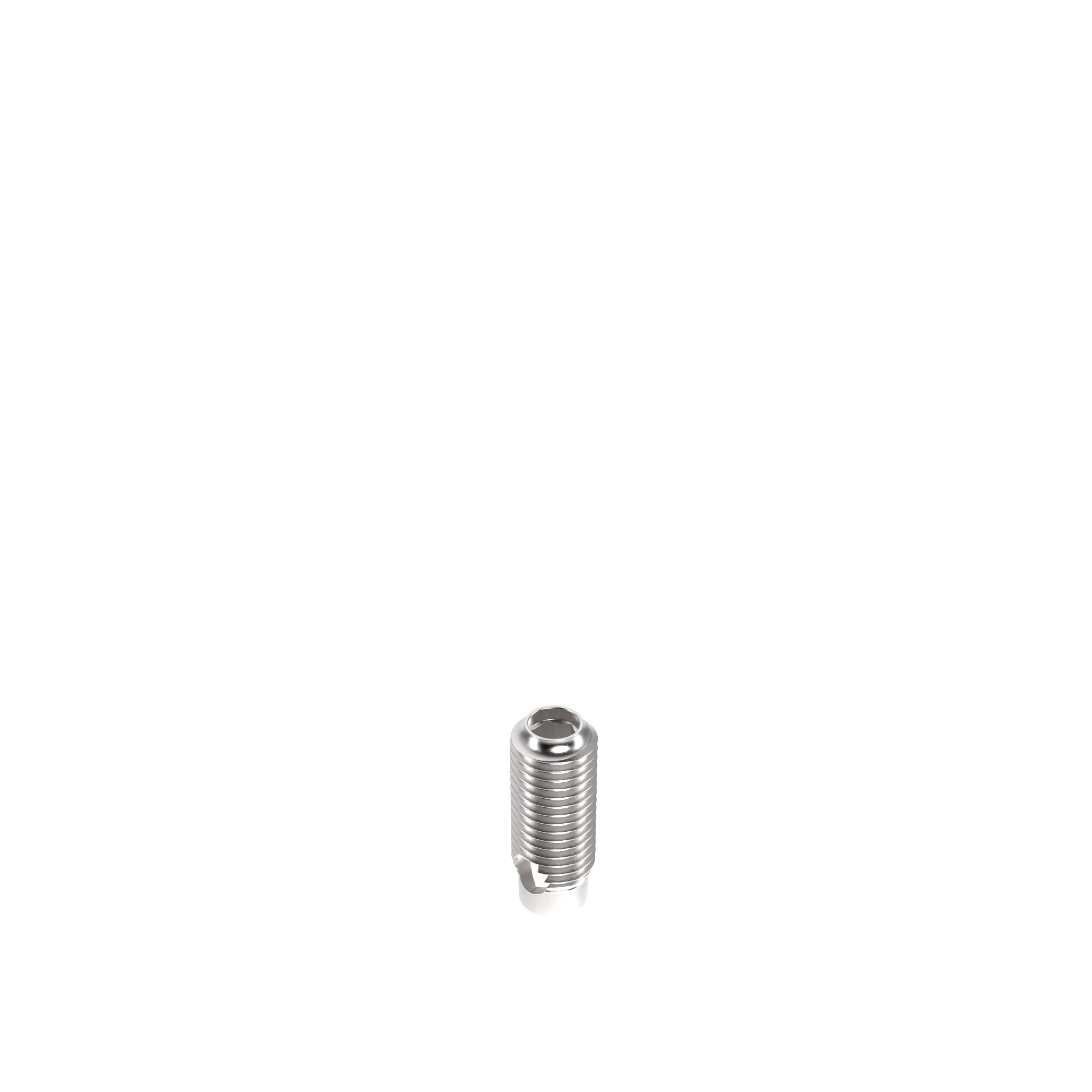

Automatic Butt Connector Stainless Steel

Product information "Automatic Butt Connector Stainless Steel"

Delivery Countries:
Worldwide

Description:
To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting thread

Material:
Stainless steel

Surface:
Plain

Tip:
*Compatible Cover Cap see 099GA081K

Pack Quantity:	100 pieces
Model:	Stainless steel
Weight (g):	13.0
ECLASS 6.0:	23360290
ECLASS 7.0:	23360290
ECLASS 8.0:	23360290
ECLASS 9.0:	23360290
ECLASS 10.0:	23360290
ECLASS 11.0:	23360290
ECLASS 12.0:	23360290
ECLASS 13.0:	23360290
Customs Tariff Number Export:	73181499
ERP Number:	133322

Variants

Part #	D (mm)	Version	Profile	L (mm)	ESD	Slot N (mm)	Profile Width	SW 1	SW 2	Screw
099G061M5E	10.0	With assembly set, incl. screw and threaded cutting sleeve	I	27.0	ESD electrostatical discharging	6	30	4	5	M5 x 45
099G081M6E	12.0	With assembly set, incl. screw and threaded cutting sleeve	I	31.0	ESD electrostatical discharging	8	40	5	6	M6 x 50
099GS061M5E	10.0	Threaded cutting sleeve	I	27.0	ESD electrostatical discharging	6	30	-	5	-
099GS081M6E	12.0	Threaded cutting sleeve	I	31.0	ESD electrostatical discharging	8	40	-	6	-
