Base PA BDH for Pivot Feet

Product information "Base PA BDH for Pivot Feet"

Color:
Black

Delivery Countries:
Worldwide

Description:

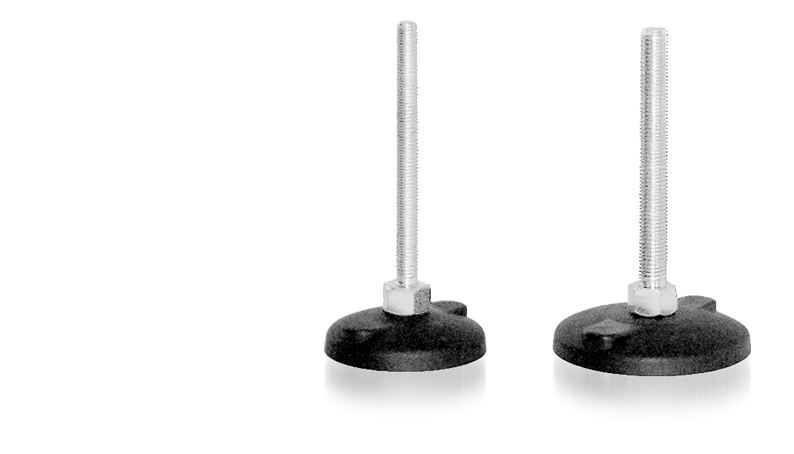

A leveling foot which can be fixed to the floor

Material:
Plastic PA, glass ball reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;

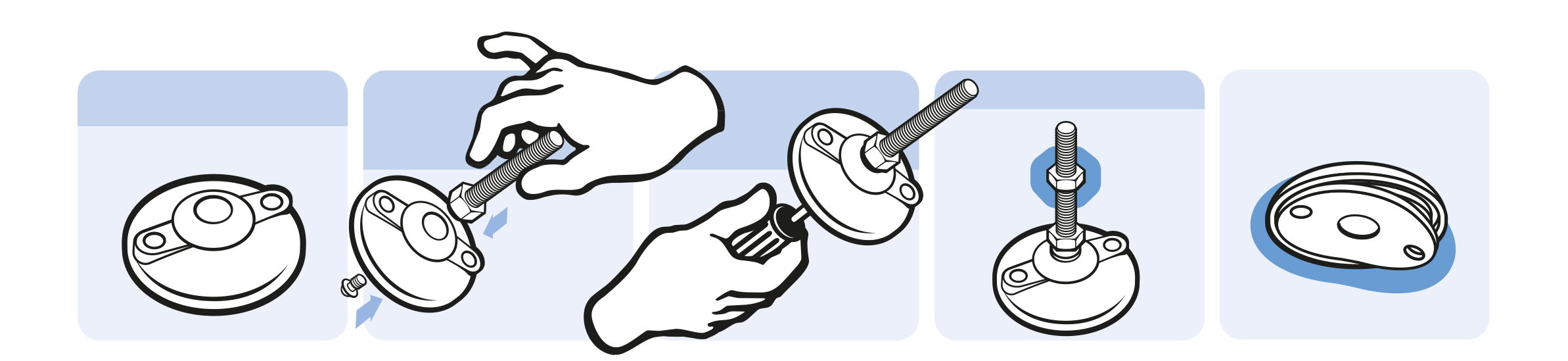

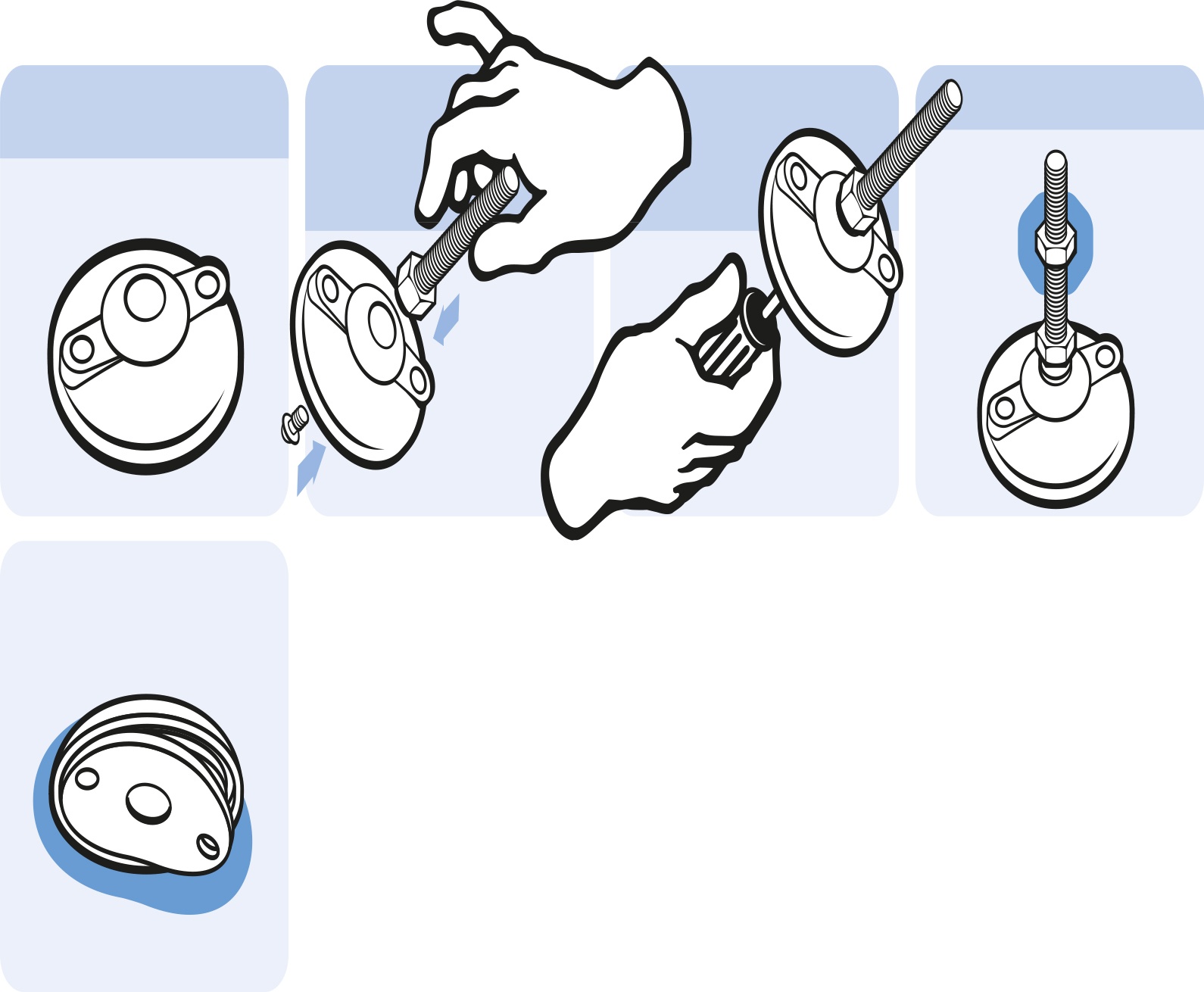

as factory assembled leveling foot on request

Tip:
Compatible Threaded Rod see 098AM12066M,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-Slip Plate 098AG050;
* Bolt-down holes closed

Zolltarifnummer:
39269097900
Model: Plastic PA, with bolt-down holes
Pack Quantity: 10 pieces
Weight (g): 85.0

Variants

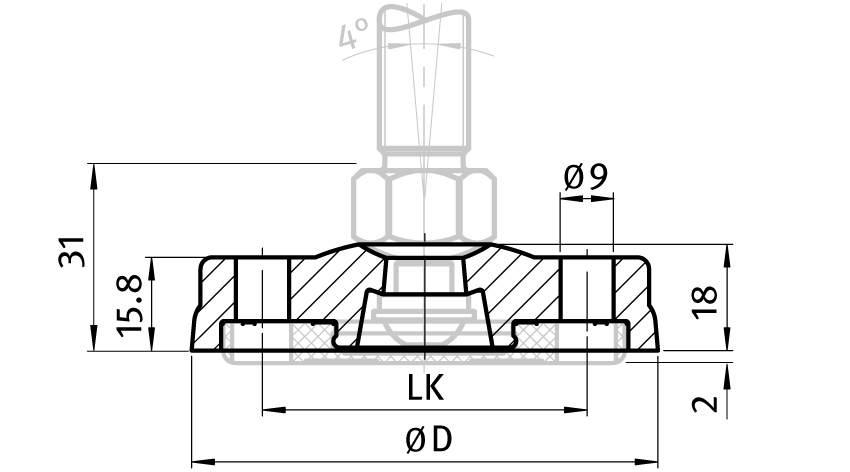

Product ID Fmax (N) Version D (mm) LK (mm) Base
098A080KB 11770 without anti-slip plate 79 55 80
098A080KBG 11770 with anti-slip plate 79 55 80
098A080KBZ 11770 without anti-slip plate 79 55 *80
098A080KBZG 11770 with anti-slip plate 79 55 *80
098A100KB 11770 without anti-slip plate 99 74 100
098A100KBG 11770 with anti-slip plate 99 74 100
098A100KBZ 11770 without anti-slip plate 99 74 *100
098A100KBZG 11770 with anti-slip plate 99 74 *100
