Base PA for Pivot Feet

Product information "Base PA for Pivot Feet"

Color:
Black

Delivery Countries:
Worldwide

Description:

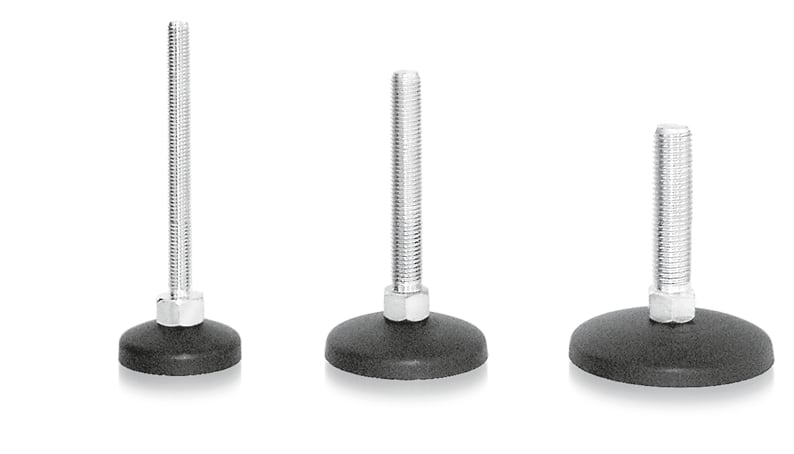

A leveling foot for strong positioning on slightly uneven floors

Material:
Plastic PA, glass ball reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;

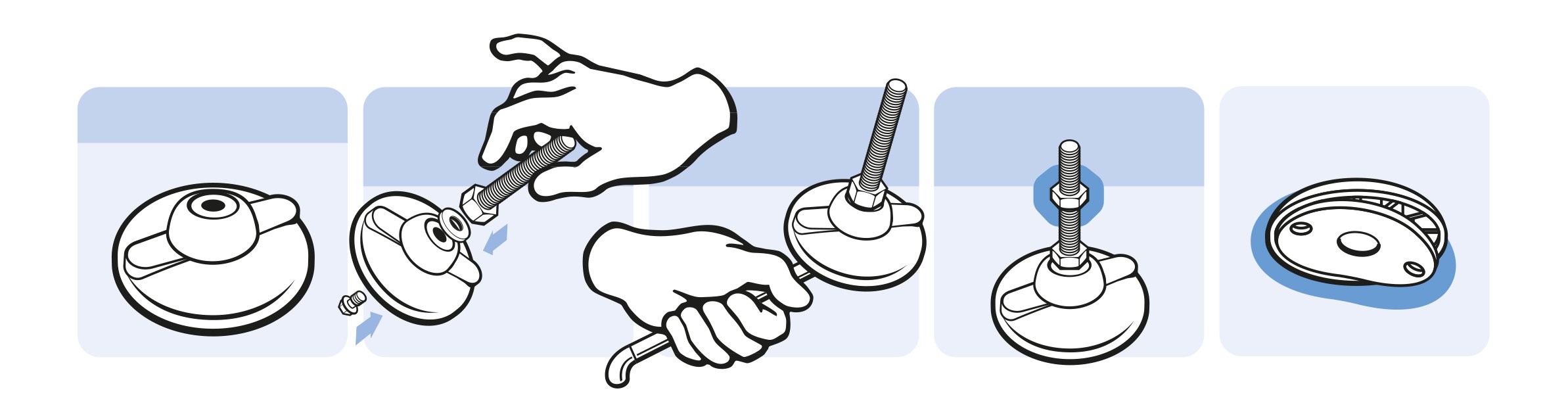

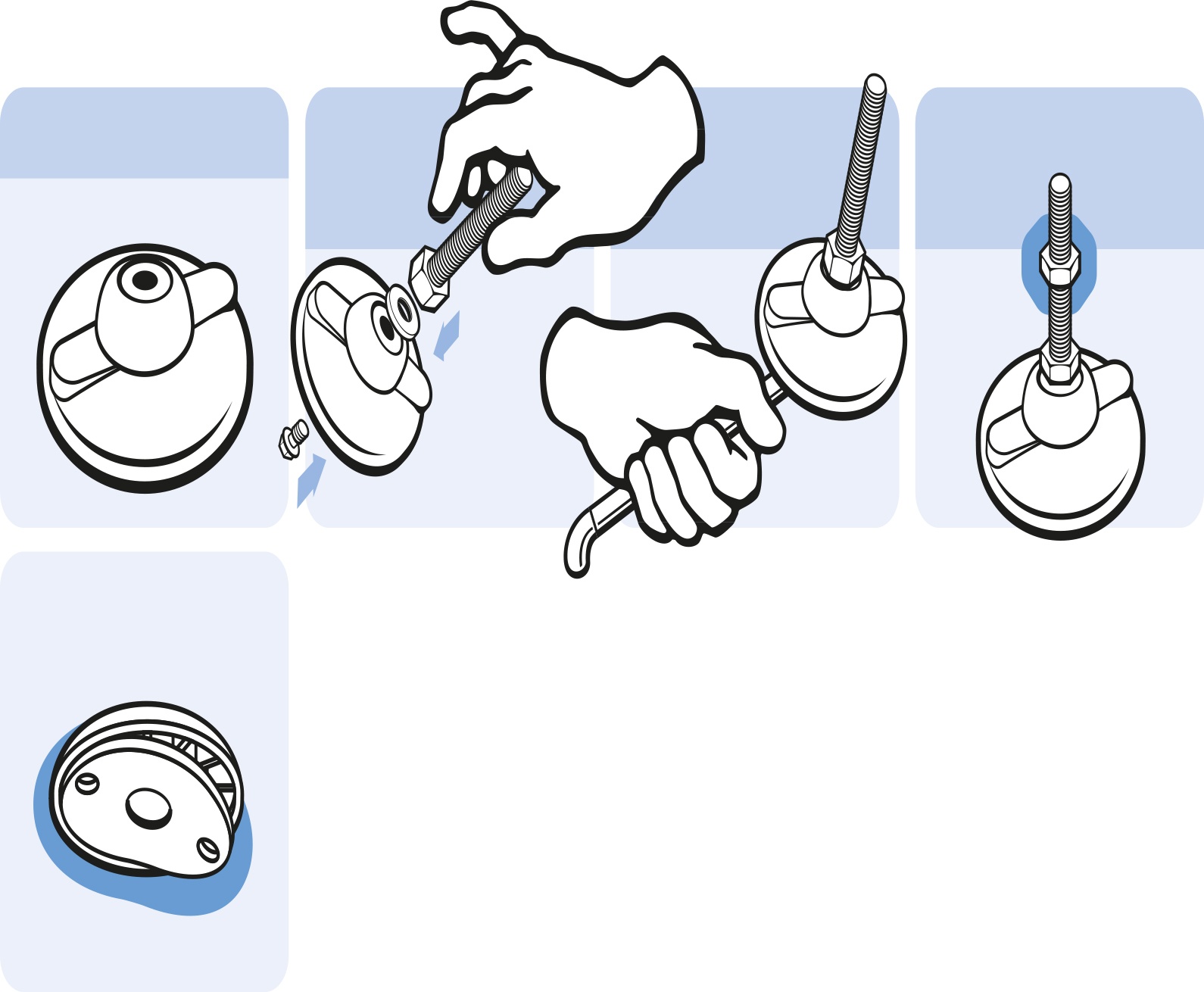

as factory assembled leveling foot on request

Tip:
Compatible Threaded Rod see 098AM12066M,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-Slip Plate 098AG050
Customs Tariff Number Export: 39269097
Model: Plastic PA, without bolt-down holes
Pack Quantity: 10 pieces
Weight (g): 121.0
Zolltarifnummer: 39269097900
pA Number: 103423

Variants

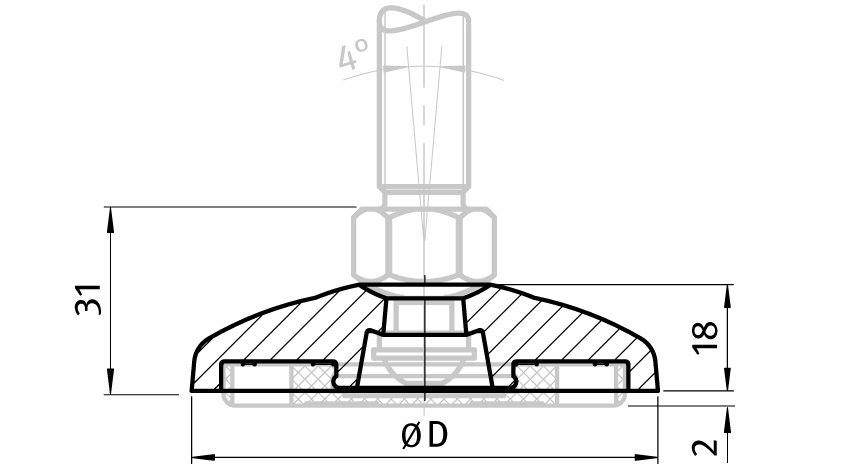

Product ID Fmax (N) Version D (mm) Base
098A050K 11770 without anti-slip plate 49 50
098A050KG 11770 with anti-slip plate 49 50
098A060K 11770 without anti-slip plate 59 60
098A060KG 11770 with anti-slip plate 59 60
098A080K 11770 without anti-slip plate 79 80
098A080KG 11770 with anti-slip plate 79 80
098A100K 11770 without anti-slip plate 99 100
098A100KG 11770 with anti-slip plate 99 100
