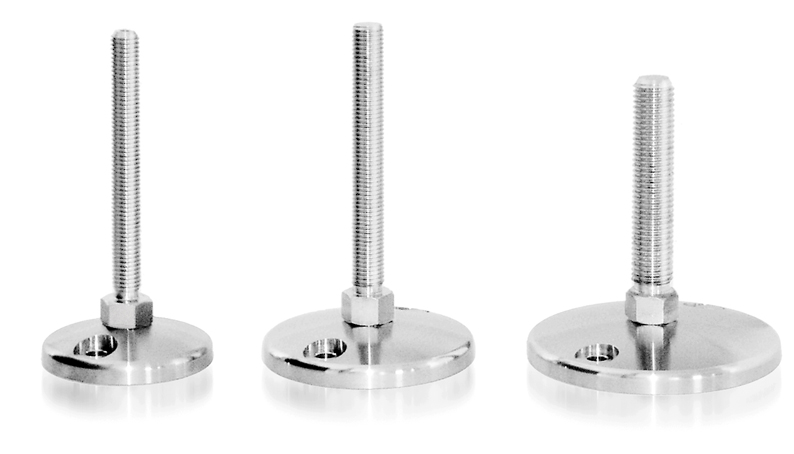

Base SS BDH for Pivot Feet

Product information "Base SS BDH for Pivot Feet"

Delivery Countries:
Worldwide

Description:
A leveling foot which can be fixed to the floor

Material:
Stainless steel SS303

Specials:
Other sizes, glued anti-slip plate on request;

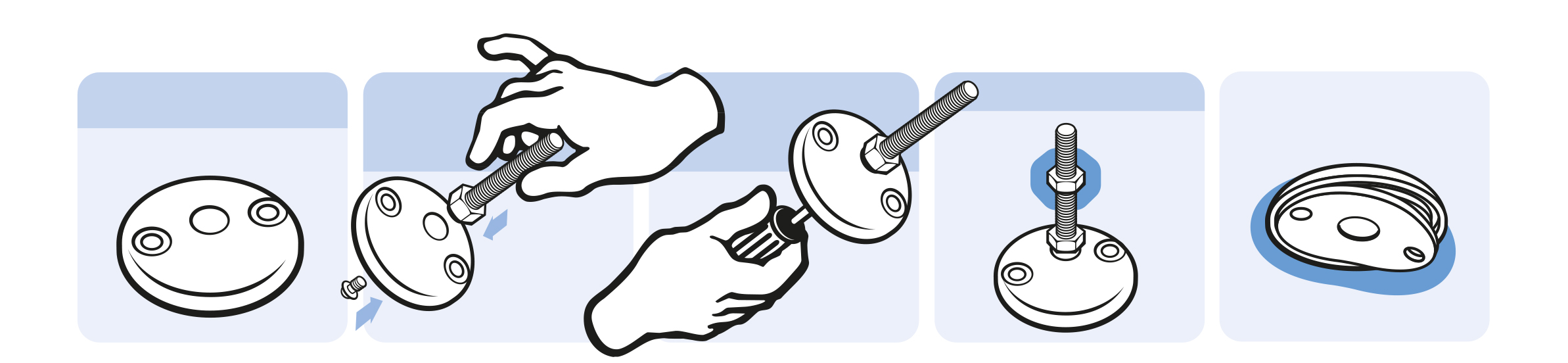

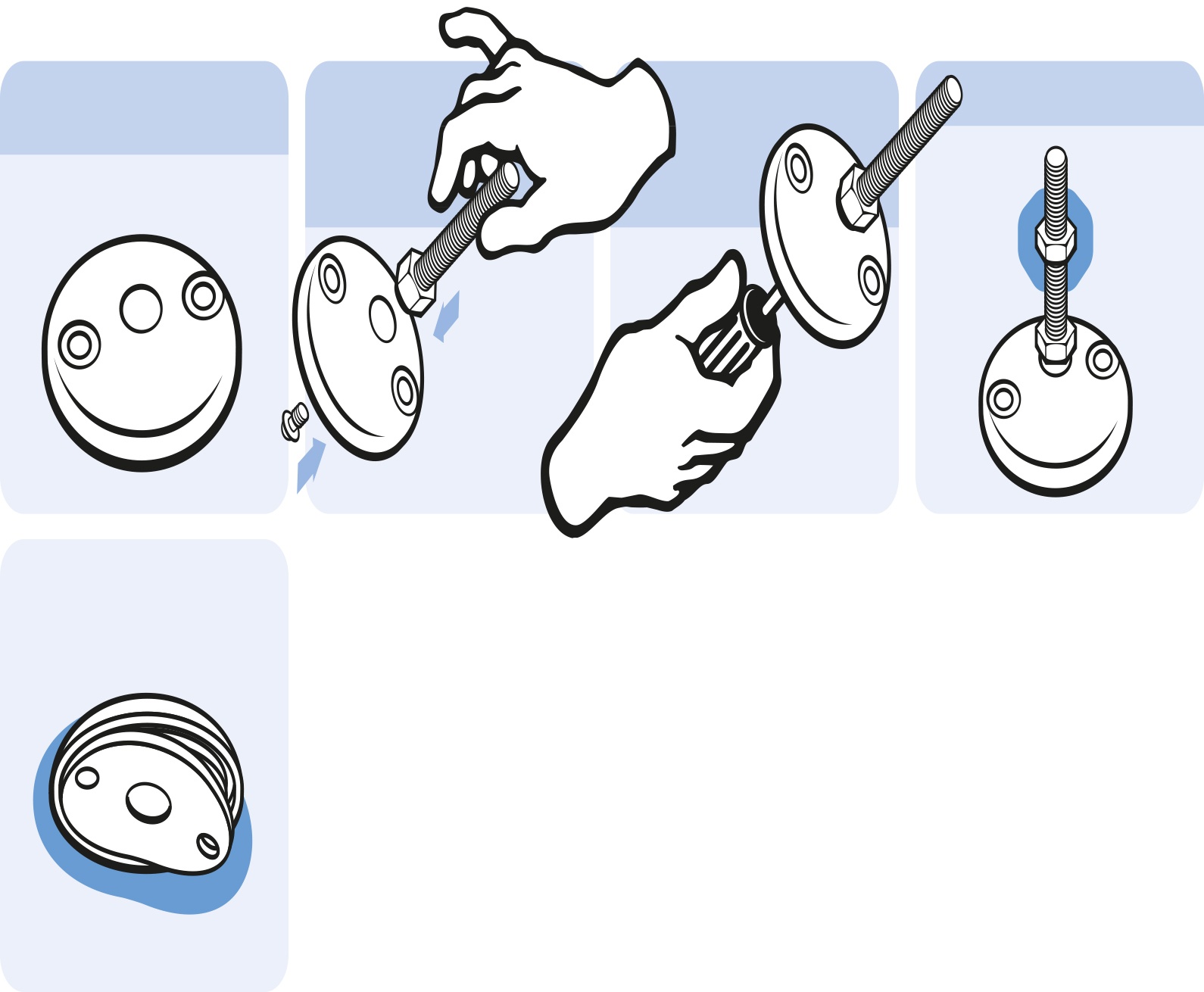

As factory assembled leveling foot on request

Surface:
Plain

Tip:
Compatible Threaded Rod see 098AM12066E,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate 098AG050

Zolltarifnummer:
73269098900
Model: Stainless steel, with bolt-down holes
Pack Quantity: 10 pieces
Weight (g): 900.0

Variants

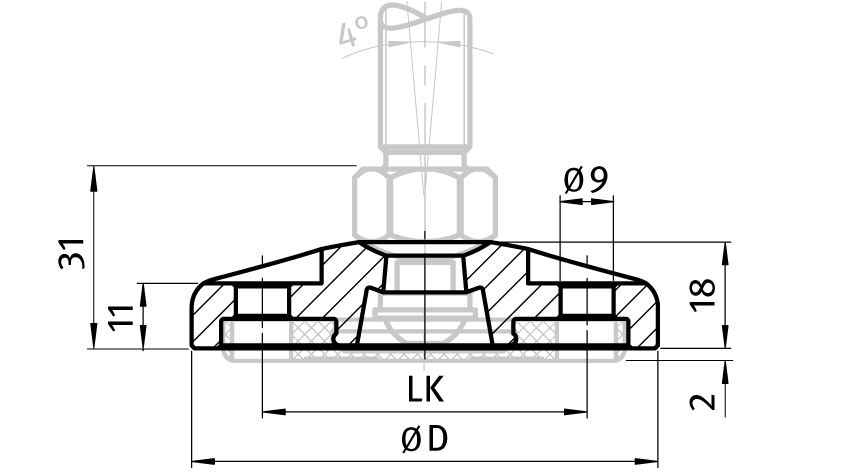

Product ID Version D (mm) LK (mm) Fmax (N) Base
098A080EB without anti-slip plate 79 55 29400 80
098A080EBG with anti-slip plate 79 55 29400 80
098A100EB without anti-slip plate 99 74 34300 100
098A100EBG with anti-slip plate 99 74 34300 100
098A120EB without anti-slip plate 119 94 34300 120
098A120EBG with anti-slip plate 119 94 34300 120
