Base SS for Pivot Feet

Product information "Base SS for Pivot Feet"

Delivery Countries:
Worldwide

Description:

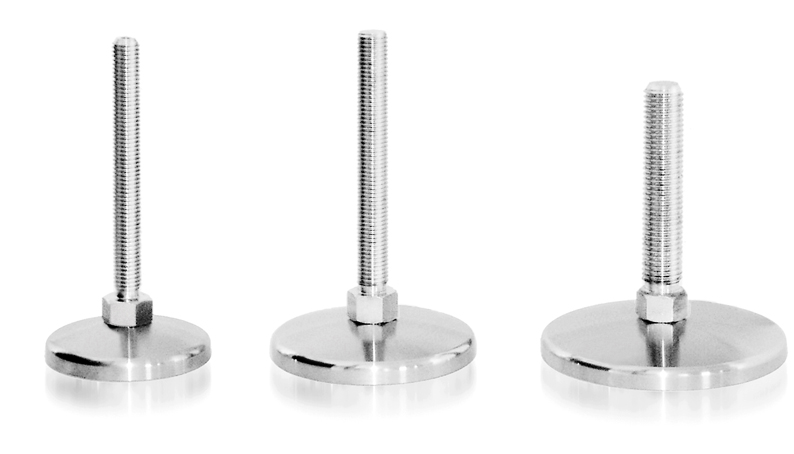

A leveling foot for strong positioning on slightly uneven floors

Material:
Stainless steel SS303

Specials:
Other sizes, glued anti-slip plate on request;
As factory assembled leveling foot on request

Surface:
Plain

Tip:
Compatible Threaded Rod see 098AM12066E,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate 098AG050

Zolltarifnummer:
73269098900
Model: Stainless steel, without bolt-down holes
Pack Quantity: 10 pieces
Pack Quantity (1): 1
Weight (g): 850.0

Variants

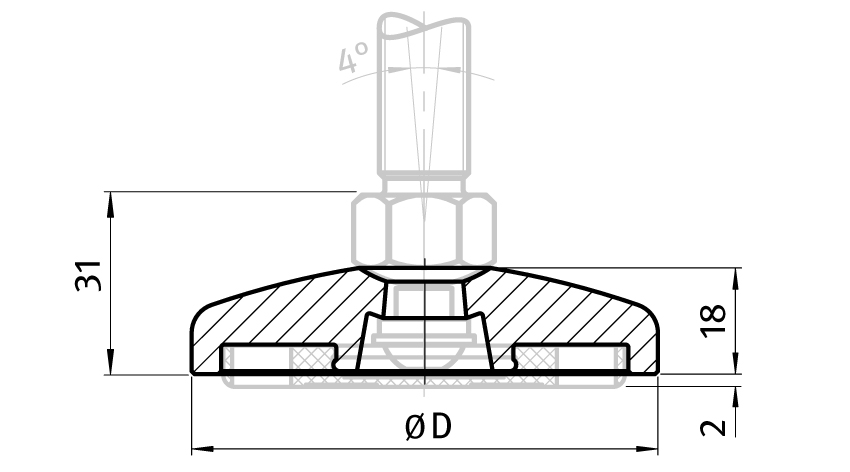

Product ID Version Fmax (N) Base D (mm)
098A060E without anti-slip plate 44100 60 59
098A060EG with anti-slip plate 44100 60 59
098A080E without anti-slip plate 44100 80 79
098A080EG with anti-slip plate 44100 80 79
098A100E without anti-slip plate 44100 100 99
098A100EG with anti-slip plate 44100 100 99
098A120E without anti-slip plate 44100 120 119
098A120EG with anti-slip plate 44100 120 119
