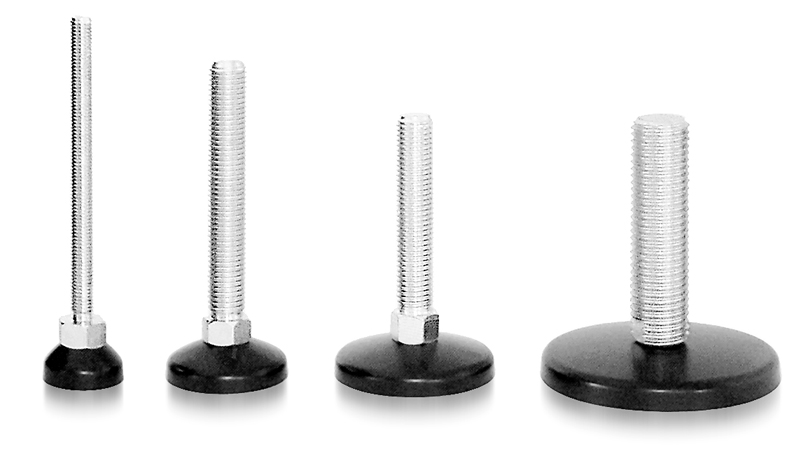

Base ZN for Pivot Feet

Product information "Base ZN for Pivot Feet"

Color:
Black

Delivery Countries:
Worldwide

Description:
A leveling foot for strong positioning on slightly uneven floors

Material:
Zinc die-cast

Specials:
Other surfaces, other sizes, other colors, bolt-on or glued anti-slip plate on request;
As factory assembled leveling foot on request

Surface:
Powder coated

Tip:
Compatible Threaded Rod see 098AM12066M,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-Slip Plate 098AG050
Customs Tariff Number Export: 79070000
Model: Zinc die-cast, without bolt-down holes
Pack Quantity: 10 pieces
Pack Quantity (1): 10
Weight (g): 323.0
Zolltarifnummer: 79070000900
pA Number: 103413

Variants

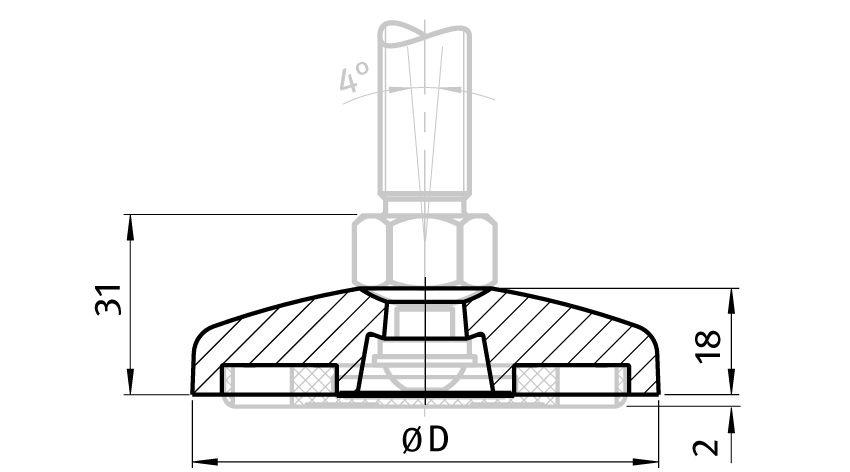

Product ID Version Base D (mm) Fmax (N)
098A040ZS without anti-slip plate 40 39 19600
098A045ZS without anti-slip plate 45 44 24500
098A050ZS without anti-slip plate 50 49 24500
098A060ZS without anti-slip plate 60 59 34300
098A060ZSG with anti-slip plate 60 59 34300
098A080ZS without anti-slip plate 80 79 34300
098A080ZSG with anti-slip plate 80 79 34300
098A100ZS without anti-slip plate 100 99 34300
098A100ZSG with anti-slip plate 100 99 34300
098A120ZS without anti-slip plate 120 119 34300
098A120ZSG with anti-slip plate 120 119 34300
