ECO Foot, SS / SS
Product number:
9E040E08070E
Product information "ECO Foot, SS / SS"
Delivery Countries:
Worldwide
Description:
Economical leveling foot for strong positioning on slightly uneven floors
Material:
Base: Stainless steel
Threaded rod: Stainless steel
Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request
Surface:
Base: Plain
Threaded rod: Plain
Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098EG030 et sq.
Zolltarifnummer:
73269098900
Worldwide
Description:
Economical leveling foot for strong positioning on slightly uneven floors
Material:
Base: Stainless steel
Threaded rod: Stainless steel
Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request
Surface:
Base: Plain
Threaded rod: Plain
Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098EG030 et sq.
Zolltarifnummer:
73269098900
Model: | Stainless steel / stainless steel |
---|---|
Pack Quantity: | 1 piece |
Screw Joint: | Swiveling range ±5° |
Weight (g): | 66.6 |
Variants

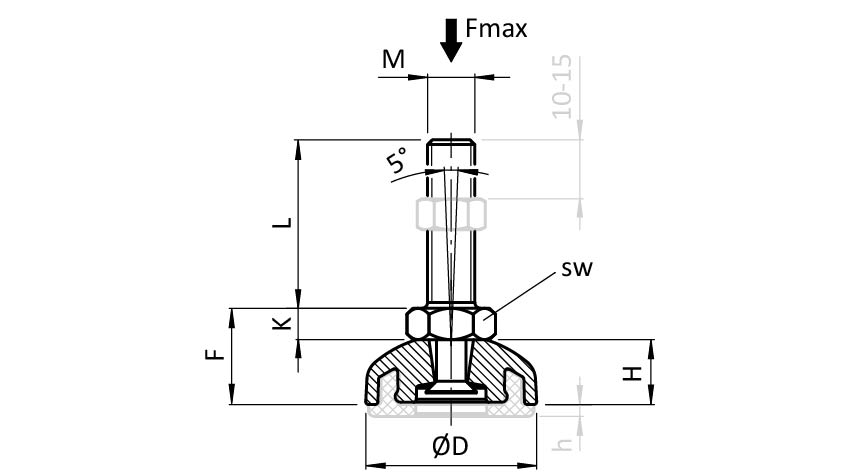

Product ID | Fmax (N) | SW (mm) | Version | K (mm) | D (mm) | H (mm) | M x L (mm) | h (mm) | Base | F (mm) |
---|---|---|---|---|---|---|---|---|---|---|
9E030E08040E | 3430 | 13 | without anti-slip plate | 5.3 | 29 | 11.5 | M8 x 40 | 2.0 | 30 | 16.0 |
9E030E10050E | 4600 | 17 | without anti-slip plate | 6.4 | 29 | 11.5 | M10 x 50 | 2.0 | 30 | 16.5 |
9E040E08040E | 3430 | 13 | without anti-slip plate | 5.3 | 39 | 12.0 | M8 x 40 | 2.5 | 40 | 16.5 |
9E040E08050E | 3430 | 13 | without anti-slip plate | 5.3 | 39 | 12.0 | M8 x 50 | 2.5 | 40 | 16.5 |
9E040E08070E | 3430 | 13 | without anti-slip plate | 5.3 | 39 | 12.0 | M8 x 70 | 2.5 | 40 | 16.5 |
9E040E08100E | 3430 | 13 | without anti-slip plate | 5.3 | 39 | 12.0 | M8 x 100 | 2.5 | 40 | 16.5 |
9E040E10070E | 4600 | 17 | without anti-slip plate | 6.4 | 39 | 12.0 | M10 x 70 | 2.5 | 40 | 17.0 |
9E040E10080E | 4600 | 17 | without anti-slip plate | 6.4 | 39 | 12.0 | M10 x 80 | 3.0 | 40 | 17.0 |
9E050E10080E | 4600 | 17 | without anti-slip plate | 6.4 | 50 | 15.3 | M10 x 80 | 3.0 | 50 | 20.3 |
9E050E16070E | 14200 | 24 | without anti-slip plate | 10.0 | 50 | 15.3 | M16 x 70 | 3.0 | 50 | 23.8 |
9E050E16100E | 14200 | 24 | without anti-slip plate | 10.0 | 50 | 15.3 | M16 x 100 | 3.0 | 50 | 23.8 |
