Pivot Foot, PA / ST - BDH

Product information "Pivot Foot, PA / ST - BDH"

Color:
Base: Black

Delivery Countries:
Worldwide

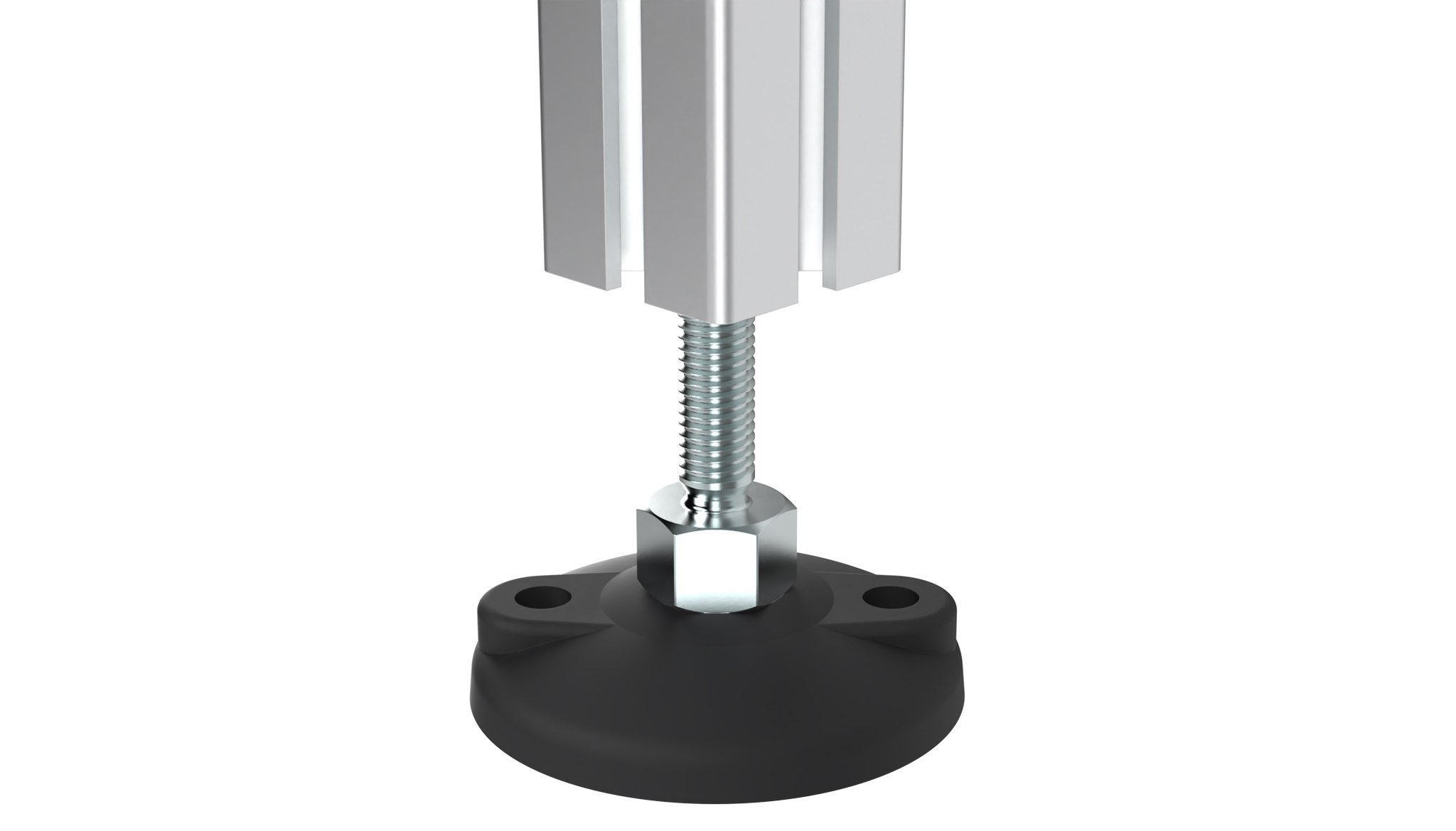

Description:
A leveling foot which can be fixed to the floor

Material:
Base: Plastic PA, glass ball reinforced
Threaded rod: Steel

Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Stainless steel, other lengths and other sizes on request

Surface:
Threaded rod: Zinc plated

Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098AG050 et sq., * Bolt-down holes closed

Zolltarifnummer:
73269098900
Model: Plastic PA / Steel, with bolt-down holes
Pack Quantity: 1 piece
Screw Joint: Swiveling range ±4°
Weight (g): 196.8

Variants

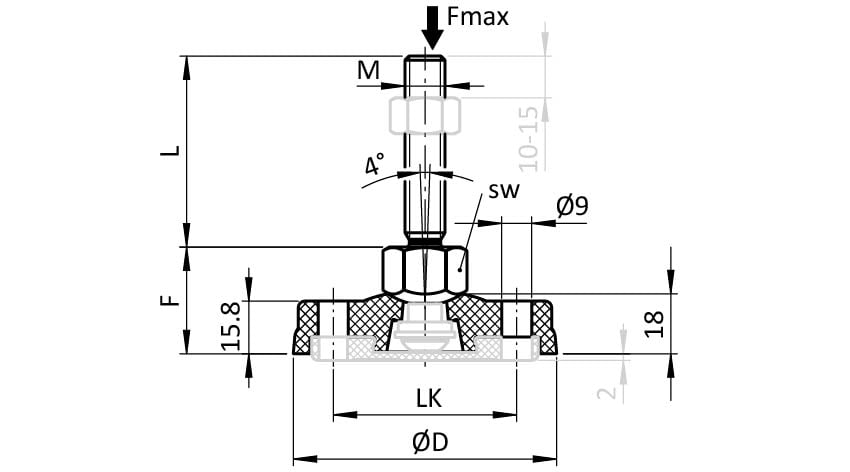

Product ID Fmax (N) Version D (mm) LK (mm) F (mm) SW (mm) Base M x L (mm)
9A080KB12066M 7550 without anti-slip plate 79 55 31 22 80 M12 x 66
9A080KB12100M 7550 without anti-slip plate 79 55 31 22 80 M12 x 100
9A080KB12150M 7550 without anti-slip plate 79 55 31 22 80 M12 x 150
9A080KB16100M 11770 without anti-slip plate 79 55 31 22 80 M16 x 100
9A080KBZ12066M 7550 without anti-slip plate 79 55 31 22 *80 M12 x 66
9A080KBZ12150M 7550 without anti-slip plate 79 55 31 22 *80 M12 x 150
9A080KBZ16100M 11770 without anti-slip plate 79 55 31 22 *80 M16 x 100
9A080KBZ16150M 11770 without anti-slip plate 79 55 31 22 *80 M16 x 150
9A080KBZ16200M 11770 without anti-slip plate 79 55 31 22 *80 M16 x 200
9A080KBZ20250M 11770 without anti-slip plate 79 55 31 22 *80 M20 x 250
9A100KB16100M 11770 without anti-slip plate 99 74 31 22 100 M16 x 100
9A100KBZ16150M 11770 without anti-slip plate 99 74 31 22 *100 M16 x 150
9A100KBZ20150M 11770 without anti-slip plate 99 74 31 22 *100 M20 x 150
