Components for Roller Tracks AL
Axle for AL Roller Tracks
Delivery Countries:WorldwideDescription:To insert roller R28, roller H26, or roller R9 into the suitable cages for roller tracks ALMaterial:SteelSpecials:Other materials, other surfaces on requestSurface:Zinc platedTip:Compatible Rollers see 062RR2891, 062RH2691, 062RR991; Compatible Cages see 062ACR2891.50, 062ACH2691.50, 062ACR991.50;

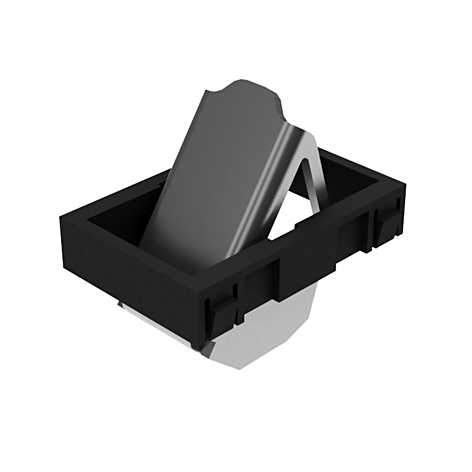

Backstop Unit AL
Color:Cage: BlackDelivery Countries:WorldwideDescription:A preassembled backstop unit for roller track profiles AL, prevents goods from moving backwards onthe AL roller track profileMaterial:Backstop: Steel Axle: Steel Cage: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other surfaces, other colors on requestSurface:Backstop: Zinc plated Axle: Zinc plated

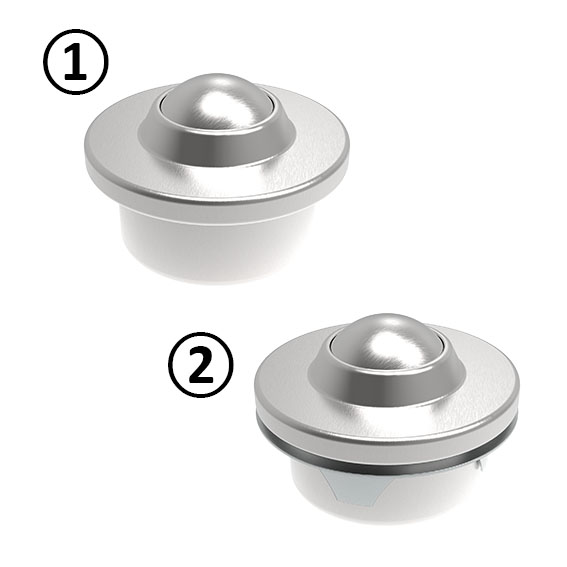

Ball Insert D24
Delivery Countries:WorldwideDescription:Low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locks; for roller tracks AL, can also be used in panels, e.g. on table tops; version with attachement clip prevents rotation of the ball housingMaterial:Ball: Steel, stainless steel Ball housing: Steel Housing Attachment Clip: SteelSpecials:Other materials, other surfaces on requestSurface:Ball steel: Chrome plated / Ball stainless steel: Plain Ball housing: Chrome plated Housing Attachment Clip: Zinc platedTip:Compatible Cage for Ball / Bush Insert D24 see 062ACD2491ESD.50;
Ball Unit
Color:Cage: BlackDelivery Countries:WorldwideDescription:A preassembled ball unit for roller track profiles AL, with low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locksMaterial:Ball: Steel, stainless steel Ball chassis: Steel Cage: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other surfaces on requestSurface:Ball steel: Chrome plated / Ball stainless steel: Plain Ball housing: Chrome plated Housing Attachment Clip: Zinc platedTip:Brush unit consisting of: – Ball insert, see 062AQ; – Cage for ball insert, see 062ACD2491ESD.50; Compatible Slide Rail AL see 062AS91ESD.2000

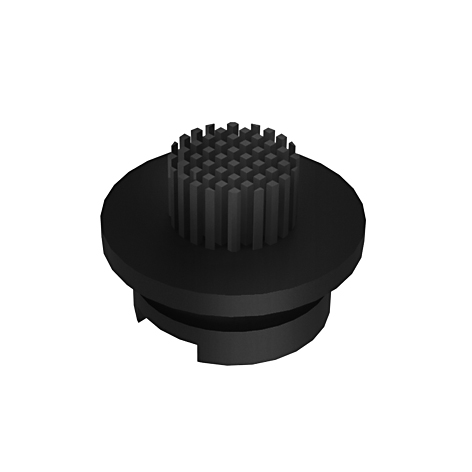

Brush Insert D24
Color:Fibers: Black Brush head: BlackDelivery Countries:WorldwideDescription:With elastic brush fibers, allowing a gentle, material-protective sliding of scratch sensitive goods in two directions; for roller tracks AL, can also be used in panels, e.g. on table surfacesMaterial:Fibers: Plastic PA, ESD electrostatical discharging Brush head: Plastic PP, ESD electrostatical dischargingSpecials:Other materials, other fiber heights on requestTip:Compatible Cage for Ball / Bush Insert D24 see 062ACD2491ESD.50;

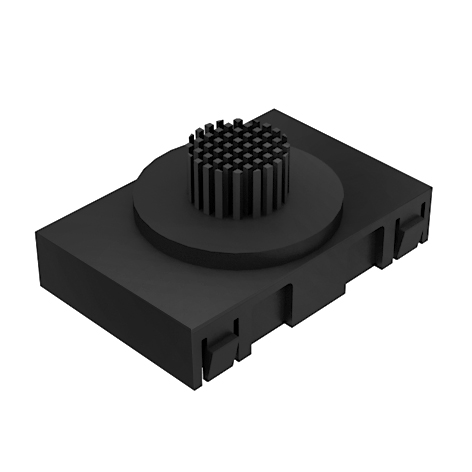

Brush Unit
Color:BlackDelivery Countries:WorldwideDescription:A preassembled brush unit for roller track profiles AL, with elastic brush fibers, allowing a gentle, material-protective sliding of scratch sensitive goods in two directionsMaterial:Fibers: Plastic PA, ESD electrostatical discharging Brush head: Plastic PP, ESD electrostatical discharging Cage: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other fiber heights on requestTip:Brush unit consisting of: – Ball insert, see 062ABKESD; – Cage for ball insert, see 062ACD2491ESD.50; Compatible Slide Rail AL see 062AS91ESD.2000

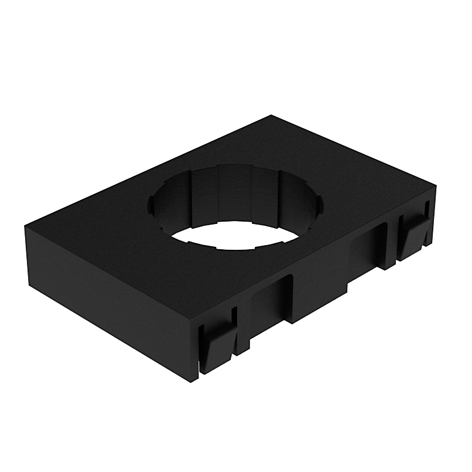

Cage for Ball / Brush Insert D24
Color:BlackDelivery Countries:WorldwideDescription:A sturdy cage for roller track profiles AL, to support a D24 ball or brush insertMaterial:Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Ball Insert see 062AQ; Compatible Brush Insert see 062ABKESD;

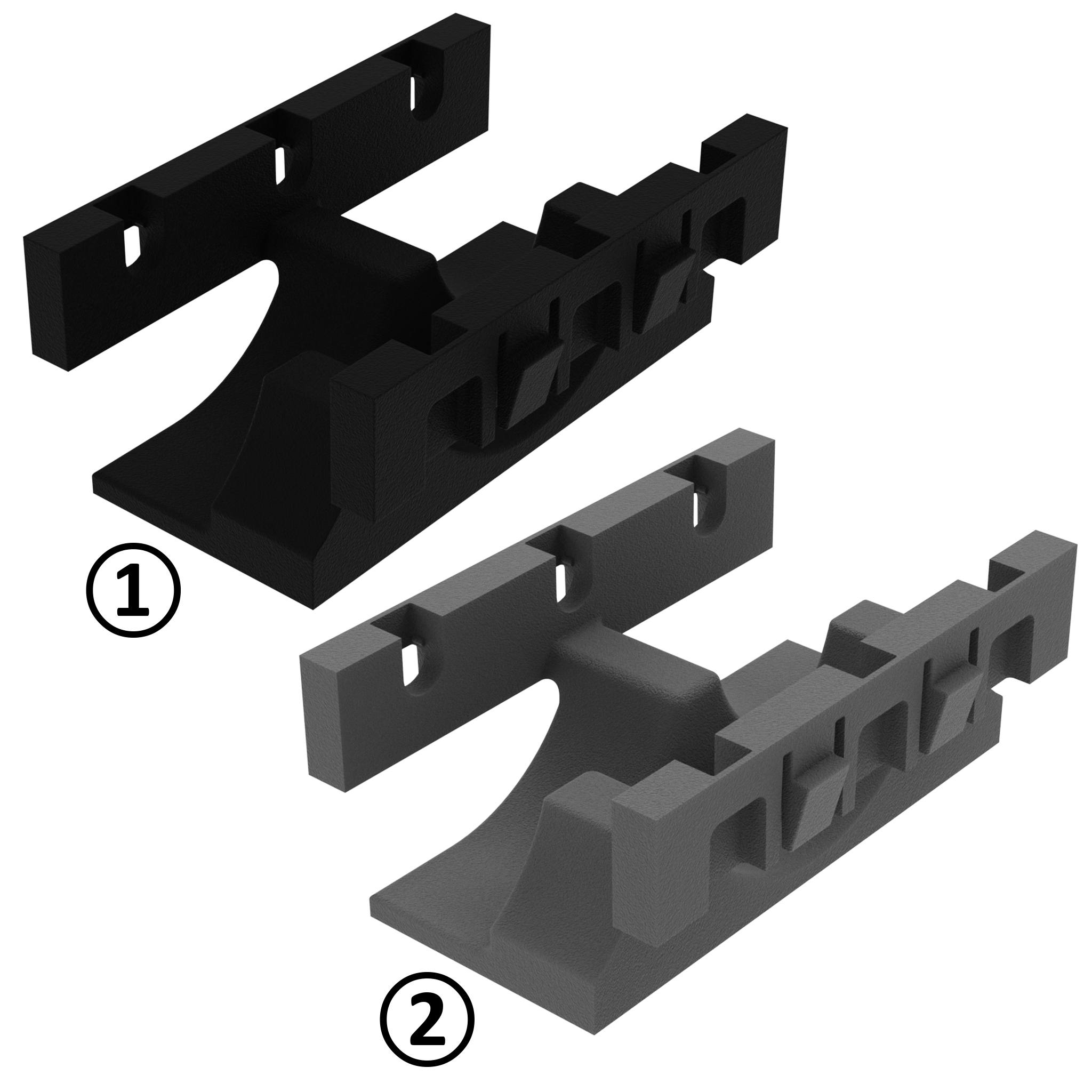

Cage for Rollers H26
Color:Black, grayDelivery Countries:WorldwideDescription:A sturdy cage for roller track profiles AL, to support 3 rollers H26 by means of axles;Material:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Rollers H26 see 062RH2691; Compatible Axle see 062AXM; Compatible End Piece see 062ACEH2691.10
Cage for Rollers R28
Color:Black, grayDelivery Countries:WorldwideDescription:A sturdy cage for roller track profiles AL, to support a roller R28 by means of an axle cage L50 also suitable for roller R28 with flangeMaterial:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Rollers see 062RR2891; Compatible Axle see 062AXM;

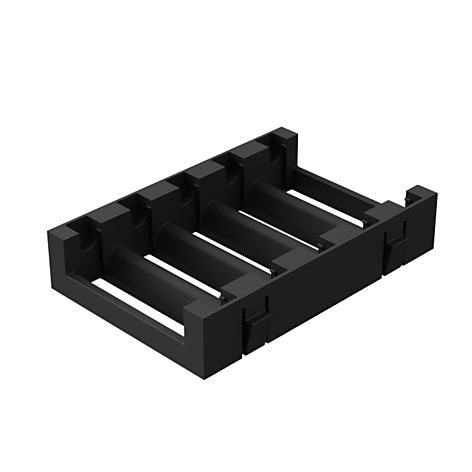

Cage for Rollers R9
Color:Black, grayDelivery Countries:WorldwideDescription:A sturdy cage for roller track profiles AL, tosupport 5 rollers R9 by means of axlesMaterial:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Rollers see 062RR991; Compatible Axle see 062AXM;

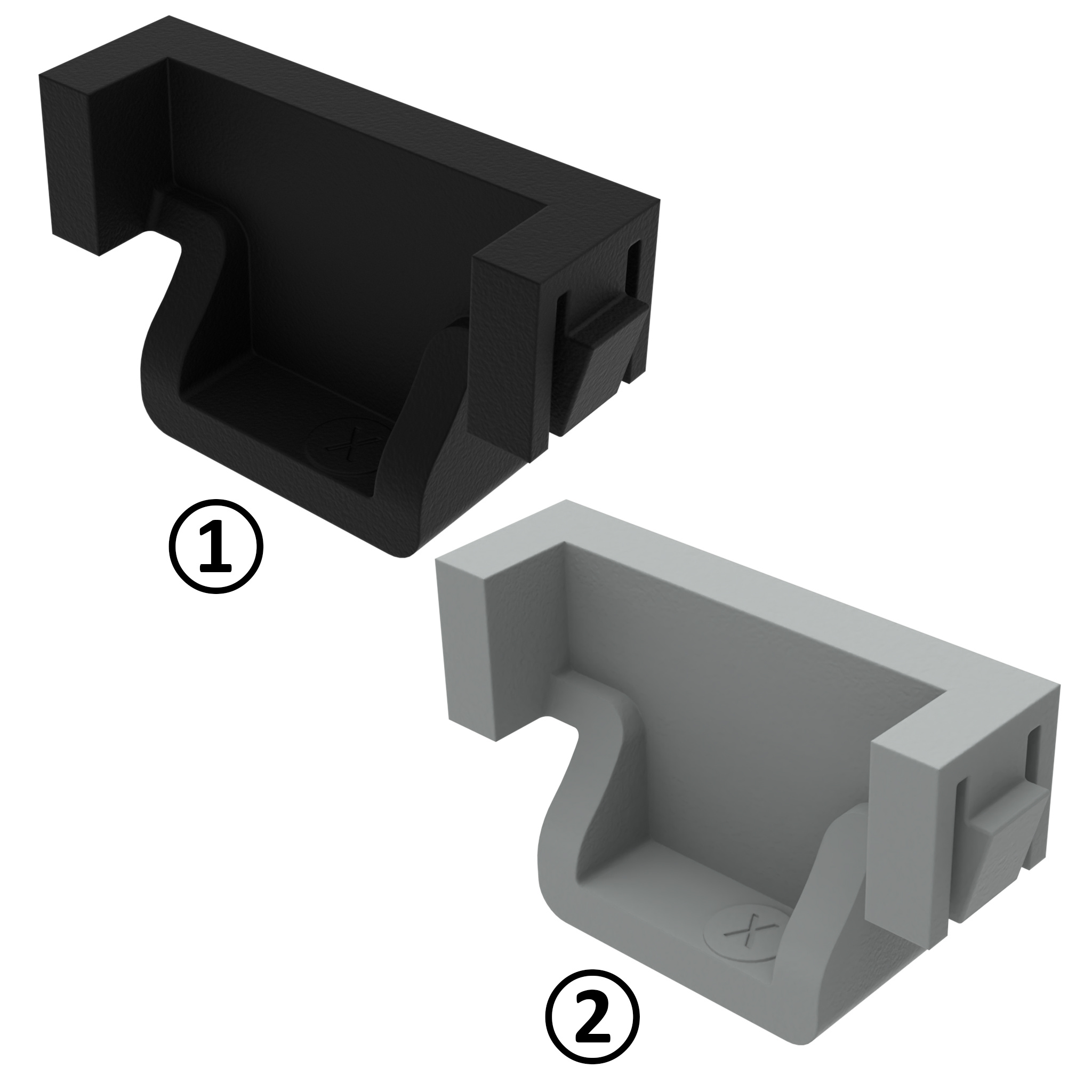

End Piece for Cage-Rollers H26
Color:Black, grayDelivery Countries:WorldwideDescription:Provides a neat finish at the end of the profileMaterial:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Cage for Rollers H26 see 062ACH2691.50 Compatible Roller Unit H26 see 062AEH2691.50
Roller H26
Color:Black, yellow, red, green, grayDelivery Countries:WorldwideDescription:A resilient and smooth running half roller for roller tracks AL, short center distancedue to staggered roller layout, quickly replaceableMaterial:Standard version: Plastic PA, glass ball reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Axle see 062AXM; Compatible Cage see 062ACH2691.50; Compatible Brake see 062RBH26E;
Roller R28 for Roller Units
Color:Black, yellow, red, green, grayDelivery Countries:WorldwideDescription:A resilient and smooth running roller forAL roller tracks, optionally without or withflange as lateral guiding, quickly replaceableMaterial:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Axle see 062AXM; Compatible Cage see 062ACR2891.50; Compatible Brake R 28 see 062RBR28E;
Roller R9 for Roller Units
Color:Black, yellow, red, green, grayDelivery Countries:WorldwideDescription:A compact roller for roller tracks AL, very small center distance and maximum number of axles for minimum vibrations and reduced point load on the goods, quickly replaceableMaterial:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other colors on requestTip:Compatible Axle see 062AXM; Compatible Cage see 062ACR991.50;

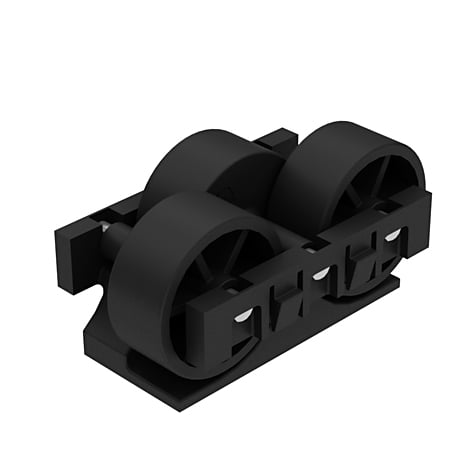

Roller Unit H26
Color:Roller: Black, yellow, red, green, gray Cage: Black, grayDelivery Countries:WorldwideDescription:A resilient and smooth roller unit R28 for roller tracks AL, short center distance due to staggered roller layout, completely preassembled;Material:Standard roller: Plastic PA, glass reinforced Standard cage: Plastic PA, glass fiber reinforced Electrostatical discharging roller and cage: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Colored rollers in gray cage, other materials, other colors on requestSurface:Axle: Zinc platedTip:Compatible Rollers H26 see 062RH2691; Compatible Axle see 062AXM; Compatible End Piece see 062ACEH2691.10
Roller Unit L33 R28
Color:Roller: Black, yellow, red, green, gray Cage: Black, grayDelivery Countries:WorldwideDescription:A resilient and smooth roller unit R28 for roller tracks AL, reduced center distance due to cage L33, completely preassembledMaterial:Standard roller: Plastic PA, glass reinforced Standard cage: Plastic PA, glass fiber reinforced Electrostatical discharging roller and cage: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Colored rollers in gray cage, other materials, other colors on requestSurface:Axle: Zinc platedTip:Roller unit L33 R28 consisting of: – Roller R28, see 062RR2891; – Axle AL, see 062AXM; – Cage L33 for rollers R28, see 062ACR2891.33
Roller Unit L50 R28
Color:Roller: Black, yellow, red, green, gray Cage: Black, grayDelivery Countries:WorldwideDescription:A resilient and smooth roller unit R28 for roller tracks AL, optionally withoutor with flange as lateral guiding, completely preassembledMaterial:Standard roller: Plastic PA, glass reinforced Standard cage: Plastic PA, glass fiber reinforced Electrostatical discharging roller and cage: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Colored rollers in gray cage, other materials, other colors on requestSurface:Axle: Zinc platedTip:Roller unit L50 R28 consisting of: - Roller R28, see 062RR2891: - Axle AL, see 62AXM; - Cage L50 for rollers R28, see 062ACR2891.50; - Compatible Brake R28 see 062RBR28E;

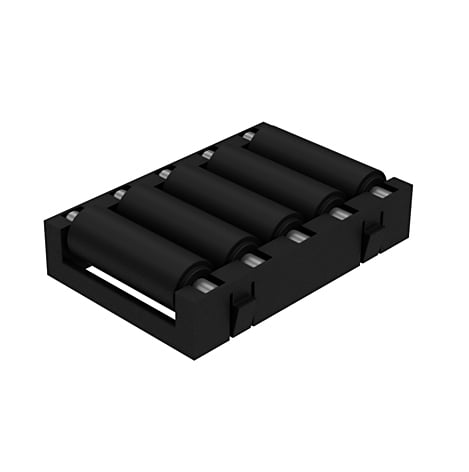

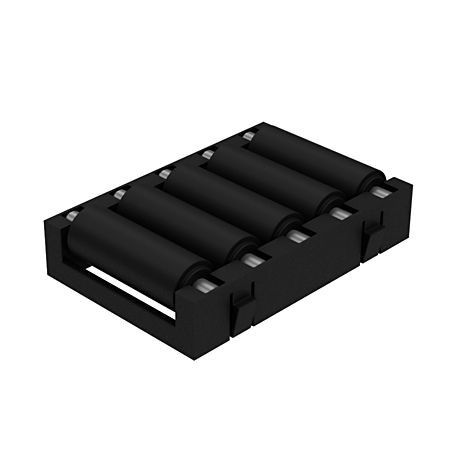

Roller Unit R9
Color:Roller: Black, yellow, red, green, gray Cage: Black, grayDelivery Countries:WorldwideDescription:A compact roller unit R9 for roller tracks AL, very small center distance and maximum number of axles for minimum vibrations and reduced point load on the goods; completely preassembledMaterial:Standard roller: Plastic PA, glass reinforced Standard cage: Plastic PA, glass fiber reinforced Electrostatical discharging roller and cage: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Colored rollers in gray cage, other materials, other colors on requestSurface:Axle: Zinc platedTip:Roller unit R9 consisting of: - Rollers R9, see 062RR991; - Axle AL, see 062AXM: - Cage for rollers R9, see 062ACR991.50

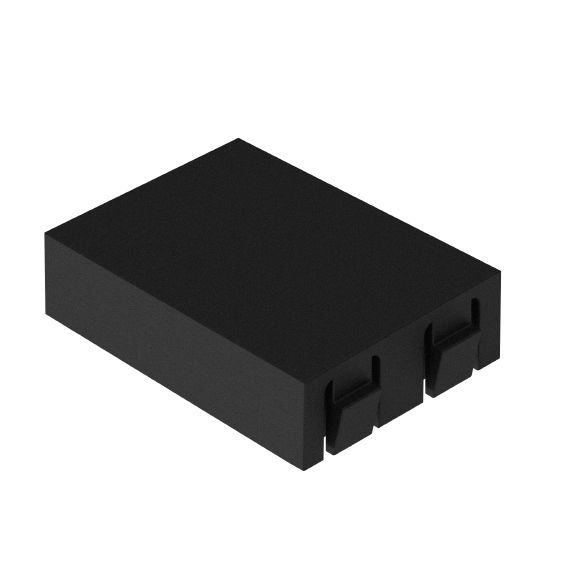

Spacer L25 for Roller Cage AL
Color:BlackDelivery Countries:WorldwideDescription:As spacer between roller, brush or ball units for example to build staggered formations; as well as to fill gaps, in case the length of the roller track profile AL does not match with a multiple of the length of the roller cages / elementsMaterial:Plastic PA, glass ball reinforcedSpecials:Other materials, other colors on request
