Lift Casters

Lift Casters

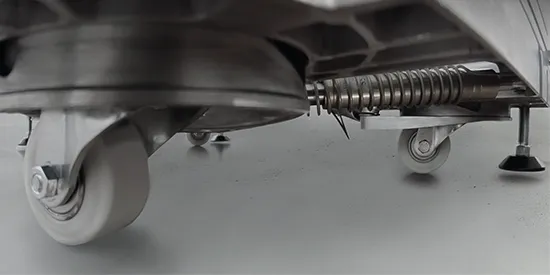

Flexibility is one of the important features of modern manufacturing facilities. Setting up and leveling a machine or installation into a relatively permanent position for years to come is not necessarily common practice any longer. It is with this scenario in mind that FATH Components has developed its Lift Caster unit as a “Plug-and-Work” solution which has been conceptualized as a mounting for machinery and facilities with a maximum lifting load of 500 kg per unit.

To Product Portrait

Filter products

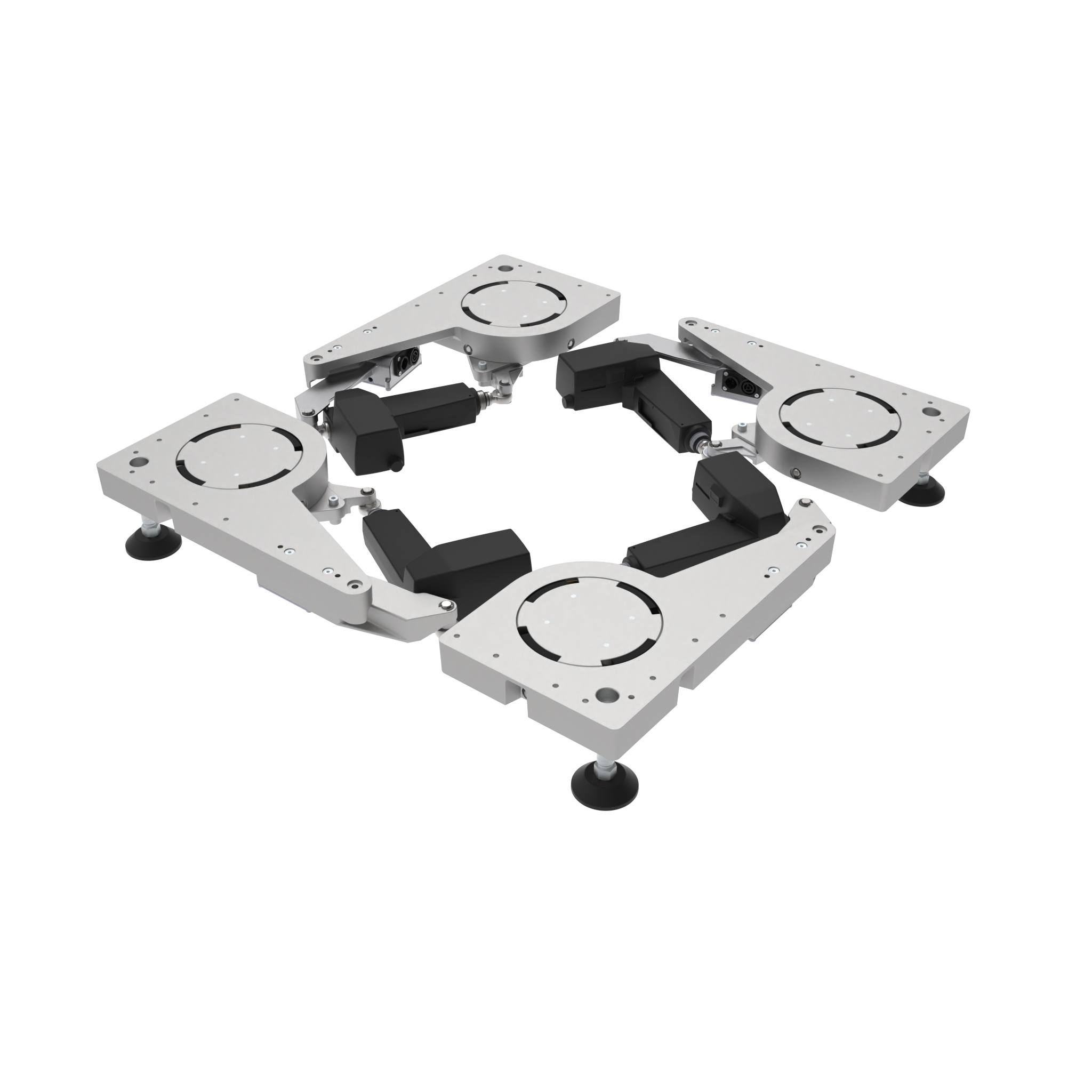

Electric Lift Caster
Electric Lift Caster
Fmax (N): *4900 | Max. Load per Lifting Unit (kg): - | Profile: I / B | Version: -
Delivery Countries:WorldwideDescription:Lift castor system for a fast and flexible placing of plants or assembls tables; with electrical drive - 24 V, electrical connection plug Neutrik NAC3FX W TOP + NAC3MX W TOPMaterial:Housing: Aluminum die-cast with PTFE bearing Roller: Plastic PA with ball bearing Roller housing: Zinc plated steelSet:4 lifting units with electrical drivesTip:* Positioned centeredZolltarifnummer:84254900000

€0.00*

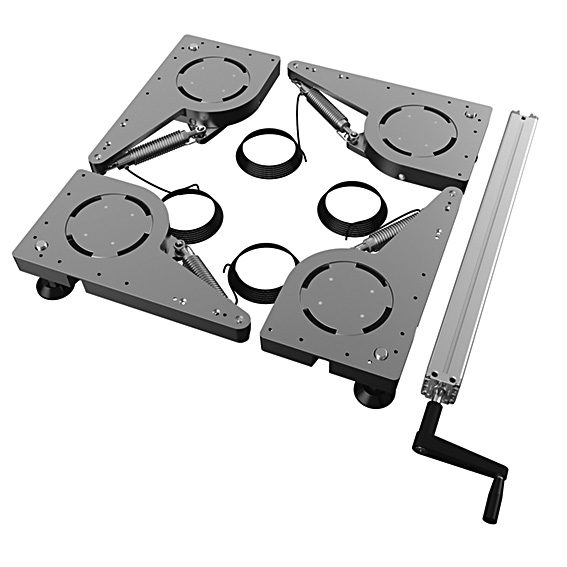

Hydraulic Lift Caster (Set)
Hydraulic Lift Caster (Set)
Fmax (N): *19600 | Max. Load per Lifting Unit (kg): 500 | Profile: I / B
Delivery Countries:WorldwideDescription:Lift castor system for a fast and flexible placing of plants or assembling tables; gear transmission ratio: 10:1Material:Housing: Aluminum die-cast with PTFE bearing Roller: Plastic PA with ball bearing Roller housing: Zinc plated steelSet:4 lifting units 1 hydraulic drive unit 4 hydraulic pipes at each 3 m, pre-filledSpecials:Other sets on requestTip:* Positioned centeredZolltarifnummer:84254200000

€0.00*
