Ball Catches

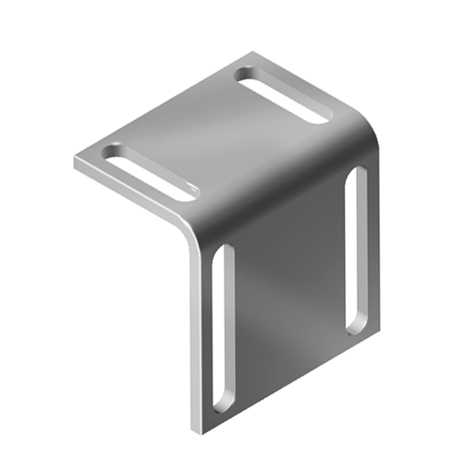

Angle Bracket for Ball Catch 30
€0.00*
Dimensions (mm):
50 x 50 x 35
Delivery Countries:WorldwideDescription:To position the ball catchMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

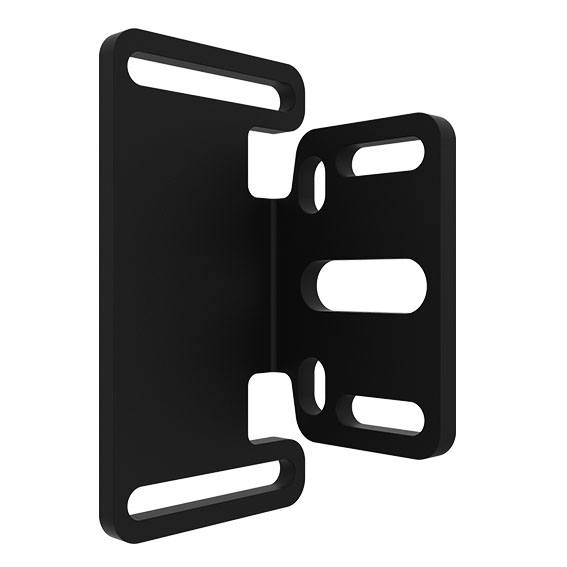

Angle Bracket for Ball Catch 30 / Safety Switch AZ 16
€0.00*
Profile:
I
Color:BlackDelivery Countries:WorldwideDescription:To flexibly position the housing or ball pin of the ball catch 30 or a safety switch Schmersal AZ 16Material:SteelSpecials:Other sizes, other surfaces on requestSurface:Powder coatedTip:Compatible Ball Catch 093043, 093043S02, 093045, 093045S03
Ball Catch 30
€0.00*
Color:
Black
|
Counter Screw:
Stainless steel
|
Locking Force:
~ 40 N
|
Version:
Light
Color:Black, grayCounter Screw:M8 x 12, zinc plated steel / stainless steel SS 304Delivery Countries:WorldwideDescription:A quick locking device for doors, adaptable to the thickness of the panel unitsMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on request

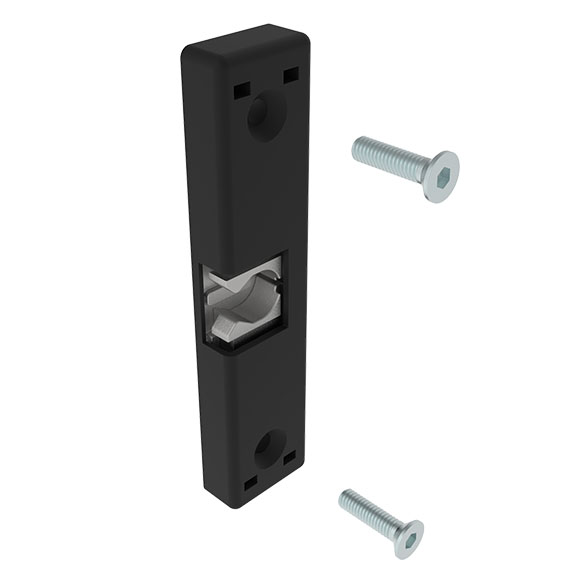

Door Latch (Set)
€0.00*
Locking Force:
≈ 50 N
Color:BlackCounter Screw:(not included in delivery) 1 cylinder head screw DIN EN ISO 4762 (DIN 912) - M6 - thread lengh depending on gap distance and slot depth, screw head dives competely into the door latchDelivery Countries:WorldwideDescription:Quick fastener for swing doors, to be mountend in a min. 12 mm gap between door and postMaterial:Door latch: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced 2 countersunk screws M4: SteelSet:1 door latch, 2 screws DIN EN ISO 10642 (DIN 7991) - M4 x 16Specials:Other materials, other colors on requestSurface:Door latch: Plain 2 countersunk screws M4: Zinc plated

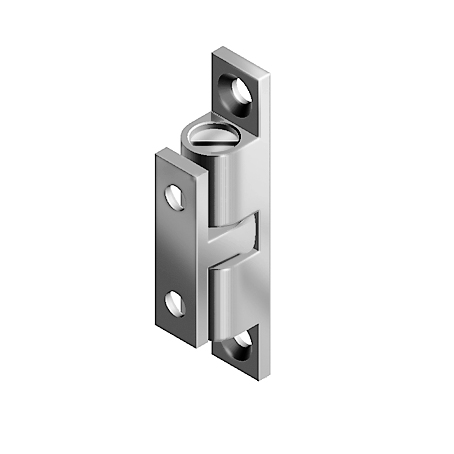

Double Ball Catch MS
€0.00*
A1 (mm):
49.0
|
A2 (mm):
29.5
|
B1 (mm):
8.8
|
B2 (mm):
7.9
|
C1 (mm):
40.0
|
C2 (mm):
20.0
|
D1 (mm):
13.0
|
D2 (mm):
10.8
|
Screw:
M3
Color:ChromeDelivery Countries:WorldwideDescription:Quick catch for doors, adjustable clamping force, 2 possible positions (sideways / from the front)Material:Body: Brass Threaded pin: Steel Spring: Stainless steel Ball: Stainless steelSurface:Chrome plated

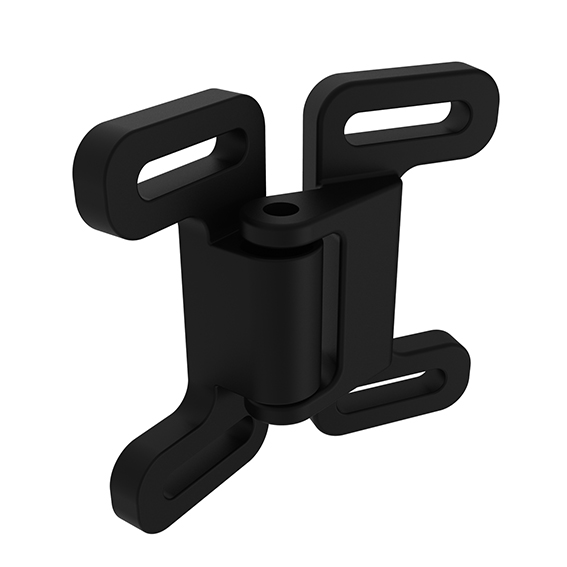

Double Ball Catch PA
€0.00*
Color:
Gray ≈ RAL 7004
|
ESD:
-
|
Locking Force (N):
25
Color:Black, grayDelivery Countries:WorldwideDescription:A quick locking device for doors and flaps with and without frameMaterial:Housing standard version: Plastic PA, glass fibre reinforced Housing ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Ball: Stainless steel Bushing: Steel, zinc platedSpecials:Other colors on request

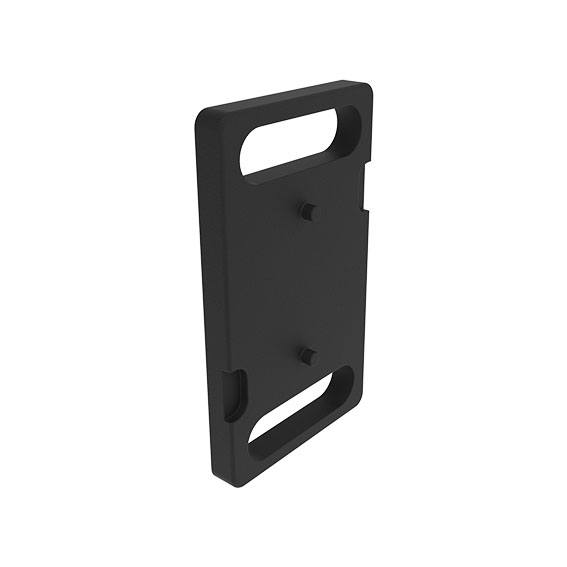

Spacer for Ball Catch 30
€0.00*
H (mm):
4.0
Color:BlackDelivery Countries:WorldwideDescription:To increase the distance to the aluminum profileMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on request
