product portraits
Standard components and complex product groups in detail
In our product portraits we compile all information about complex product groups, Components, Shopfloor & Intralogistics and Industrial Hardware product families for you – clear and compact! You will find our advantages, application opportunities, mounting information as well as links to the products, CAD data and more.
ENGINEERING COMPONENTS

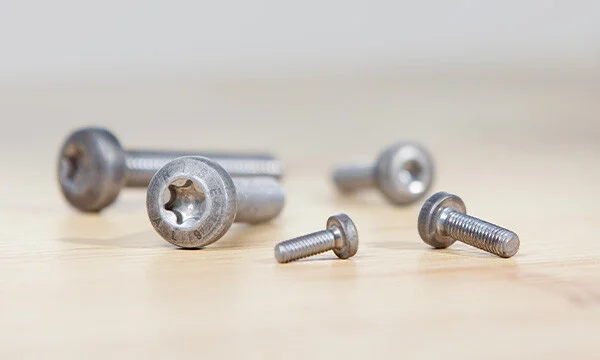

RIBE® Aluform Bolt
With the new Aluform bolts, you benefit from the advantages of aluminum as a material: they are particularly light, adapt optimally to light metal environments, reduce losses of preload force and offer high electrical conductivity – perfect for lightweight construction with aluminum.

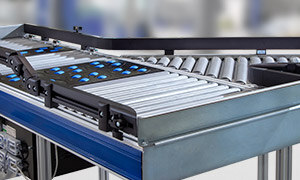

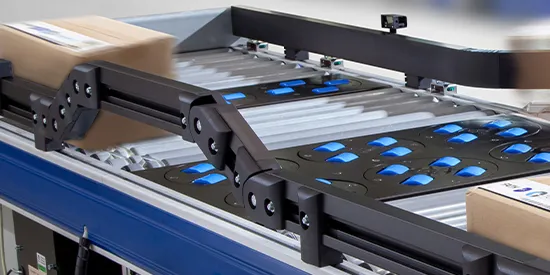

FLOWGUIDE lateral guide components
Optimize your intralogistics - with our FLOWGUIDE lateral guidance components for roller conveyors, you can transport goods safely and efficiently.
Swivel and Fixed Casters
In cooperation with market leader Blickle, FATH has designed these swivel and fixed casters especially for use with aluminum profile systems. All housings and adapter plates are alu color powder coated and match perfectly with anodized aluminum profiles.

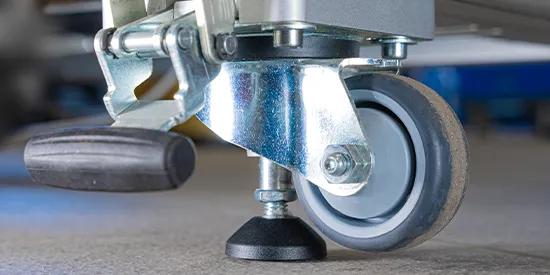

Swivel and Fixed Caster with Lifting Foot
The Lifting Foot is an ingenious combination of a FATH leveling foot with a Blickle swivel caster. Permanently mounted, it facilitates the frequent relocation of machines and devices on industrial floors, without any need for additional handling equipment, and without tools or assembly.

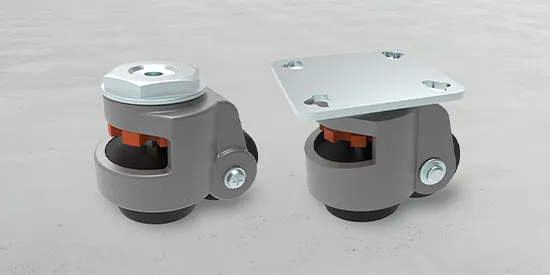

Leveling Casters
The FATH leveling casters impress with their simple and robust design. Different types of leveling casters guarantee use in many scenarios.

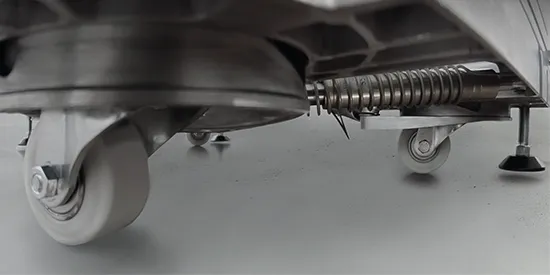

Lift Casters
Flexibility is one of the important features of modern manufacturing facilities. Setting up and leveling a machine or installation into a relatively permanent position for years to come is not necessarily common practice any longer. It is with this scenario in mind that FATH Components has developed its Lift Caster unit as a “Plug-and-Work” solution which has been conceptualized as a mounting for machinery and facilities with a maximum lifting load of 500 kg per unit.
Combi Hinges
FATH Combi hinges, made from plastics, stainless steel, and die-cast aluminum, form a visually homogeneous family within which you can freely combine all the different hinge leaves 25, 30, 35, 40, 45, 50 and 60, to your application.

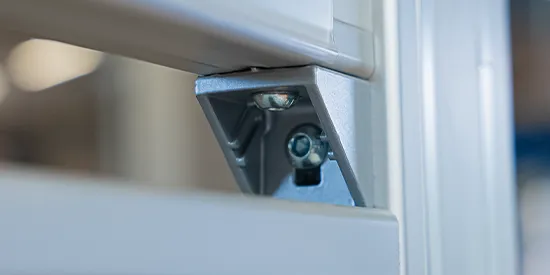

Alu Connection Angle M (Set)
It doesn’t get any faster than this! Simply attach FATH Alu Connection Angles M with pre-installed magnetic rhombus screws to the Profiles with slot 8, tighten the nuts, and you’re done! The aluminum profiles are now stably connected.

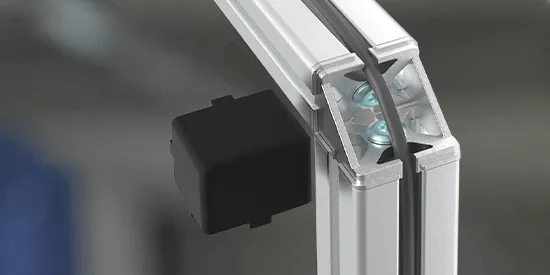

Corner Connectors with Cable Passage
The patented FATH Corner Connectors with Cable Passage for aluminum profiles enable orderly and secure cable routing directly through the profile connection. With this clever component you can implement a power supply directly in the slot.
To Product Portrait

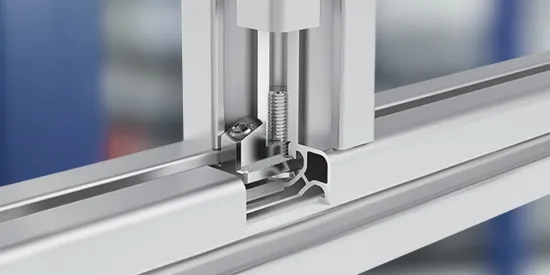

Profile Connector 90° (Set)
With the self-forming version, the profile connector can be mounted without prior processing to the profile. It is ideally suited to light to medium-sized connections as well as profile designs with panel material. Profiles can be connected with slot 8 or slot 10 – with the slot 10 profile connector, the necessary M12 or S12 reducing bushes for screwing into the core hole are included.

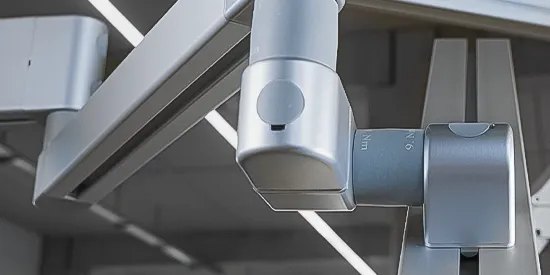

Friction Joints for System Arm
The axis of the FATH friction joints can be positioned both vertically and horizontally. This offers a wide range of new possibilities for providing tools and materials in an ergonomic and organized way.

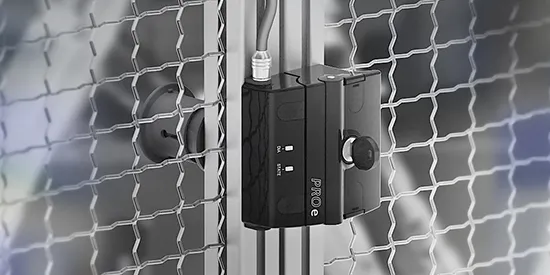

Slam Latch Compact + Slam Latch PRO
FATH Slam Latches are multifunctional door handles for protecting safety guards such as doors and flaps on machines and installations. The compact and symmetrical design permits simple mounting on profile rails and allows use on either left or right hinged doors.

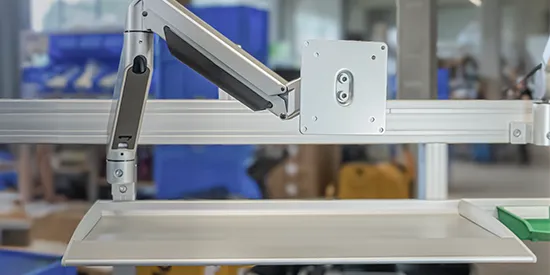

Monitor Work Station SIT / STAND
Lean Production: The space-saving monitor work station SIT / STAND offers optimum ergonomics and can be adapted to a wide range of different requirements in the production process - all in one go!

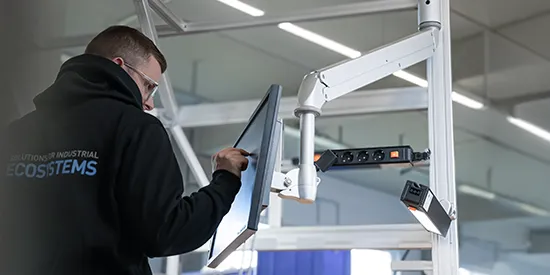

Monitor Suspension Arm SKY
The FATH Monitor Suspension Arm SKY combines the effective provision of information with ergonomic working and lean use of space. A perfect solution for the optimization of production processes in industrial manufacturing!

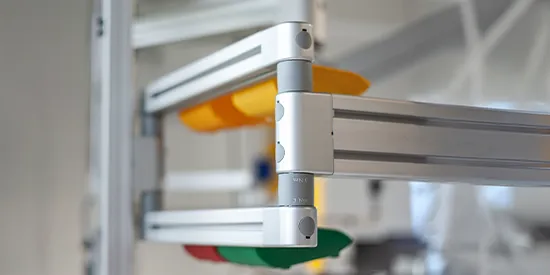

System Arms
All system arms consist of friction joints with a fixed friction torque, each joint being available in six different versions. In this way the moveability can be adapted to every need. Completely assembled, delivered for direct use on the worktable.

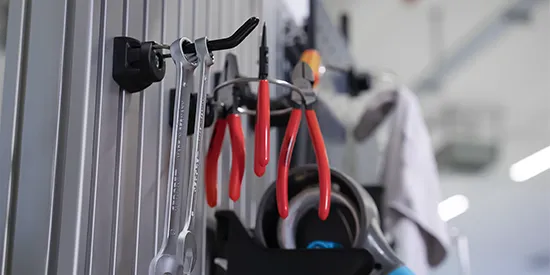

Tool Holders FX
The FATH Tool Holders FX can be rotated 360° and can be attached to the aluminum profile, round tube or perforated plate. The various functional modules can be combined with all adaptations. This makes it easy to implement effective and ergonomic tool provision.

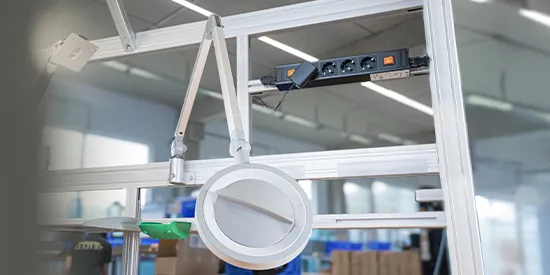

Magnifying Lamp D160
The FATH magnifying lamp D160 with jointed arm provides optimum visibility at the assembly workstation and thus enables fatigue-free and ergonomic working. The error rate is minimized and productivity increases.

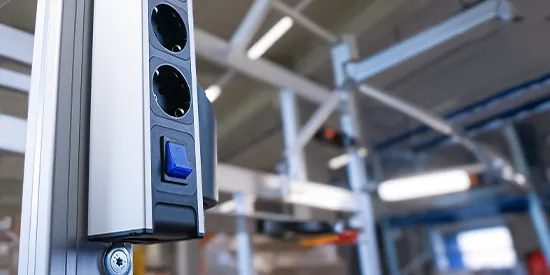

LED Lamps and Power Strips F Line
Good light at the workplace promotes concentration, helps avoid mistakes and prevents premature fatigue. FATH brings professional LED lighting to workstations and assembly stations, with a particularly natural spectrum if required.
Bearing Units
With the FATH Bearing Units for C-rail profiles, it is easy to design slide units and sliding doors yourself. The different designs are very robust and can also be installed offset by 180° - maximum flexibility for individual applications.

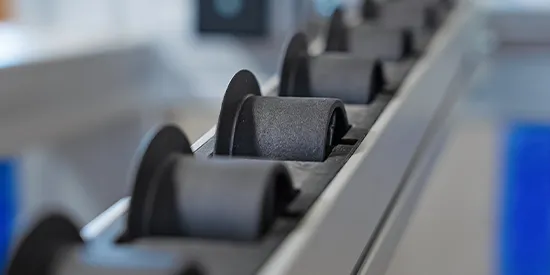

Roller Tracks
FATH offers a collection of different transport units and accessories for aluminum as well as steel roller track profiles. Assembly of the units in the aluminum profile can be done easily from above and without tools. You have the choice between different rollers, ball rollers and brush units, and slide rails. All units can be freely combined.
Cable Fixations
The blocks are used in combination with cable ties or hook-and-loop tapes to optimize cable routing. For perfect order without cable ties and hook-and-loop tapes, clip cable binders and snap-cable-binding from FATH would be for you.
Connectors for Aluminum Tubular Frame Profiles D28 and D30
After only a short period of time the aluminum round tube systems D28 and D30 has proved successful for the construction of custom structures for workplaces, material shuttles, shelves, and flow racks. Planning and assembly are easy, due to the need for only a few standard parts and the built-in implantation of the Poka-Yoke principle.

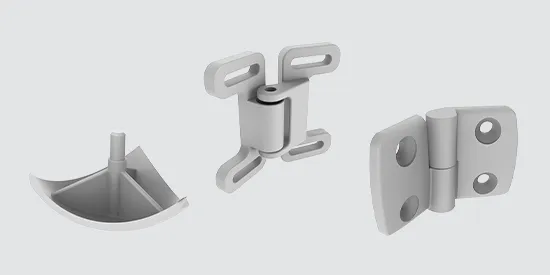

Gray and Alu Colored Components
The main components of FATH are available in gray plastic or with an alu colored coating. Gray and alu colored components give the frame a high-quality and harmonious appearance due to the soft contrast to the profile.
SHOPFLOOR AND INTRALOGISTICS

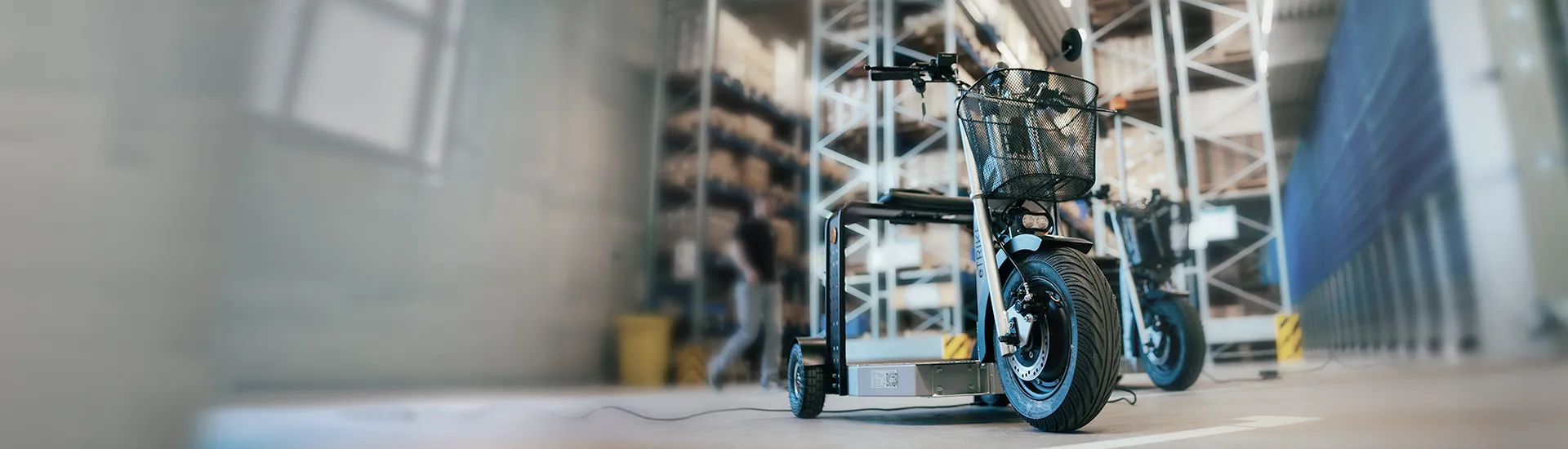

eTRIKE Platform Scooter
Nimble and maneuverable or well-packed - with the eTRIKE Platform Scooter you can effortlessly cover long distances in the factory, warehouse or production area.
Adapter Pallet for Dollies
Even floor rollers sometimes want to reach high - with our tailor-made adapter pallet, every floor roller makes it safely even to the high-bay warehouse.

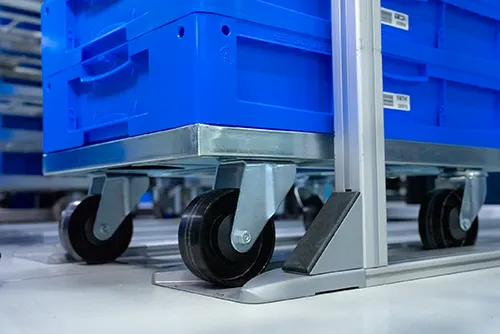

Dollies
The FATH Dollies are a perfect fit for all small load carriers/Euro containers and offer maximum flexibility for in-house material transport.

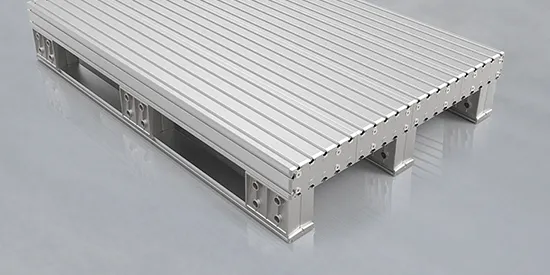

Extrusion Profile Plate I8
Are you looking for an extremely stable aluminum level provided with slots that is available for customers in any desired size up to a maximum of 5,000 mm x 3340 mm?

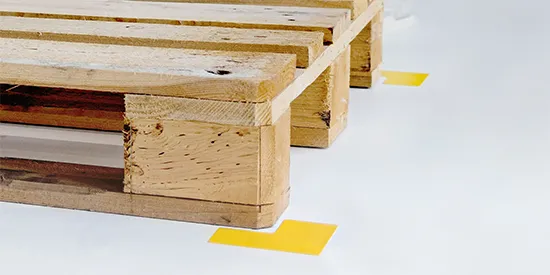

Floor Marking Shapes and Floor Windows
Easy to attach, provide secure and effective storage space labeling in production and storage locations. After the labels are attached, the floor shapes can be walked and driven on immediately.

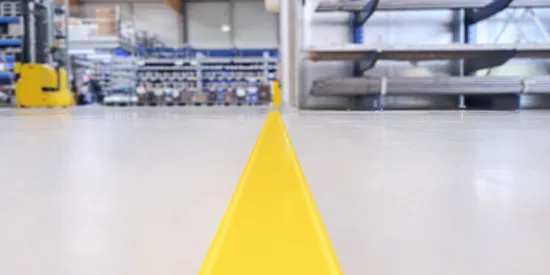

Floor Marking Tapes
The self-adhesive, sturdy FATH floor marking tapes are custom-made and can easily be adhered to industrial floors. Vehicles can drive over them immediately and they are easy to clean.

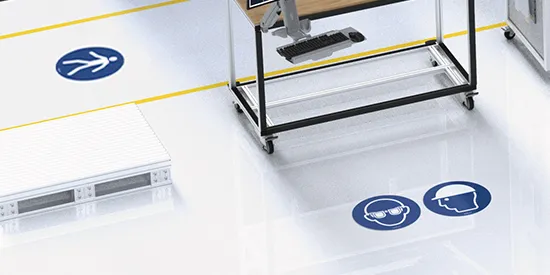

Floor Signs
Self-adhesive, dimensionally stable FATH Floor Signs are easily affixed to the floor, can be driven over immediately and are easy to clean. They are suitable for virtually all industrial floors and surfaces.

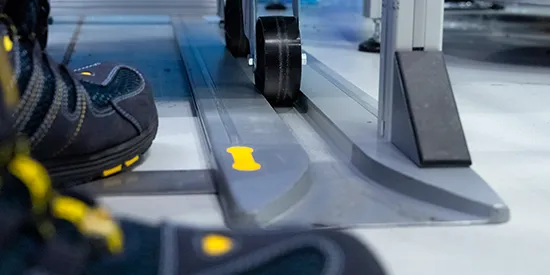

Guiding Rails FIFO (Set)
Thanks to a modular design concept, FIFO stations can be adapted precisely to your requirements and extended at any time.
Inserting Systems
The FATH inserting systems for document sizes DIN A4 (8.3" x 11.7"), DIN A5 (5.8" x 8.3") and 1/3 DIN A4 (8.3" x 11.7") are a simple tool for implementing the Kanban principle in accordance with lean production.
KANBAN Label Holders and Envelopes
The FATH KANBAN label holders with a proportion of recycling material are available in the following versions: self-adhesive, magnetic and overhanging - each in different formats.

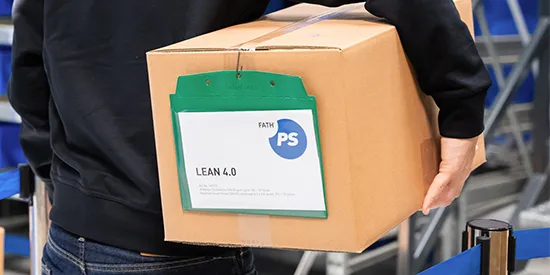

Visual Pockets
The FATH visual pockets are made of durable plastic with a reinforced head piece and are available in the following versions: self-adhesive (multi-use), magnetic and attachable - each in four colors and three formats.

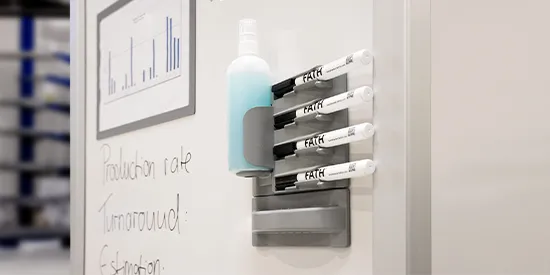

Organizer Utensilo
The board markers are stored in fixed slots in the UTENSILO and the board marker caps remain in the UTENSILO during use. The ergonomic board eraser and self-adhesive eraser felts make it easy to wipe the whiteboard dry. For right-handed and left-handed users.

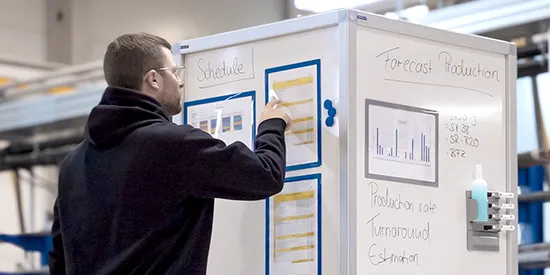

Magnetic Document Windows
You can use these magnetic document windows to attach required information and data to any metal board or surface using their simple, variable, clearly arranged format.
Parking Rails
Lean your production processes in a simple way with FATH´s parking rails. The parking rails mark the exact parking positions for dollies or in-house trolleys.

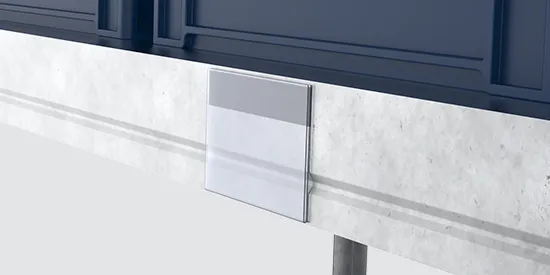

Shelf Labelings
The shelf label holders are available as reusable (multi-use) self-adhesive or magnetic, either with or without color index and in numerous formats for labeling all standard rack cross beams.
Sign Frames
The PVC-free FATH Message Frames are usable on both sides and can be attached without tools. The versatile attachment options make them a multifunctional tool for labeling in production, warehouse and logistics. For very high requirements, the stable and valuable variant - the FATH Sign Holders with aluminum base body - is the ideal solution.
Visual Boards
The surfaces on all FATH visual boards are made of enamel, making them a premium product. These surfaces can be cleaned residue-free and then simply wiped dry.
Flowsort
Flowsort delivers modular, high-quality sorting systems designed for maximum flexibility and seamless integration. Its open interface architecture ensures compatibility with any vendor’s technology, allowing system integrators to easily develop customized intralogistics solutions.
Industrial Hardware
Slam Latch Compact + Slam Latch PRO
FATH Slam Latches are multifunctional door handles for protecting safety guards such as doors and flaps on machines and installations. The compact and symmetrical design permits simple mounting on profile rails and allows use on either left or right hinged doors.
