Accessories for Visual Boards

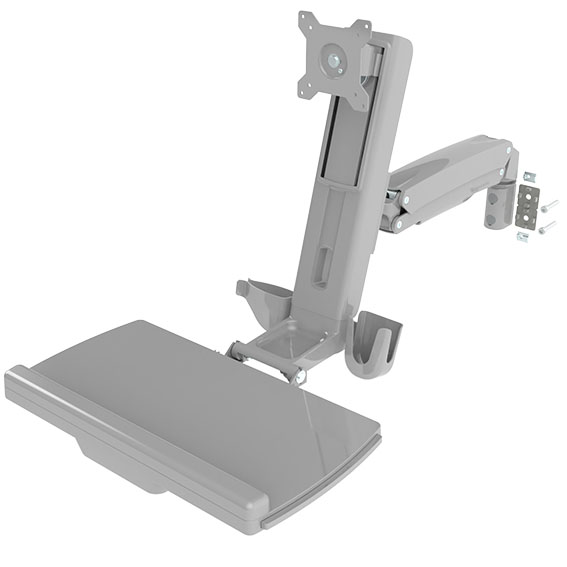

Monitor Work Station SIT / STAND 4-axis, Profile Attachment (Set)
Description:For mounting of monitors with 2 - 8 kg, mounting plate VESA MIS-D 75/100 compatible, adjustable viewing angle and height; Fold-up holder with wrist rest for keyboard up to 2.5 kg, incl. left or right pull-out shelf for mouse, as well as holders for hand scanner and mouse; 360° mounting flange can be attached lateral, transverse, or on the face of the profile, if attached on the front face, the core hole of the respective profile must be M8 threadedMaterial:Monitor Work Station: Steel / aluminum / plastic Cable management cover: Plastic Mounting flange: Aluminum die-cast Screws: SteelSurface:Monitor Work Station: Powder coated Mounting flange: Powder coated Screws: Zinc platedColor:Monitor Work Station: Gray Cable management cover: Gray Mounting flange: Alu colorSet:1 monitor work station incl. keyboard holder and cable management cover 1 mounting flange incl. bolt and cover cap 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates - slot 8 2 centering plats - slot 10 2 T-slot nuts - slot 8 - M8 2 T-slot nuts - slot 10 - M8Delivery Countries:Worldwide

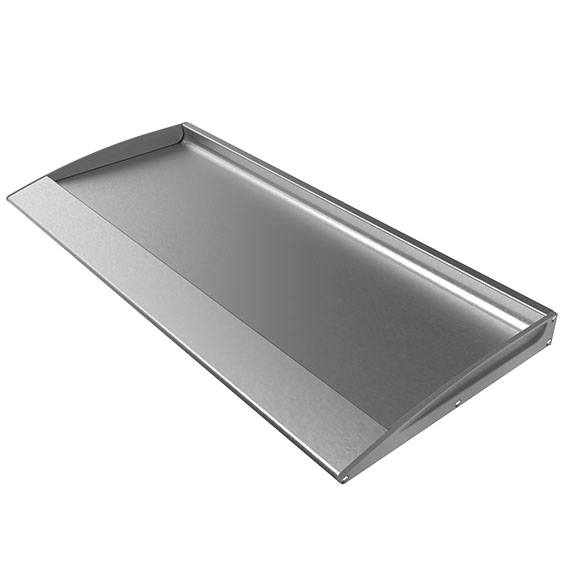

Keyboard Holder AL, Slot 8 (Set)
Description:For placing the keyboard and mouse, with wrist restMaterial:Keyboard holder: Aluminum, anodized Cover Caps: Plastic PA, glass ball reinforced Screws: Steel, zinc platedSurface:Keyboard holder: Anodized Screws: Zinc platedColor:Cover Caps: GraySet:1 keyboard holder, 2 cover caps, 8 screws 3.9 x 16Tip:Compatible Direct Connectors see 099DC084040N08 and 099DC084045N10Delivery Countries:Worldwide

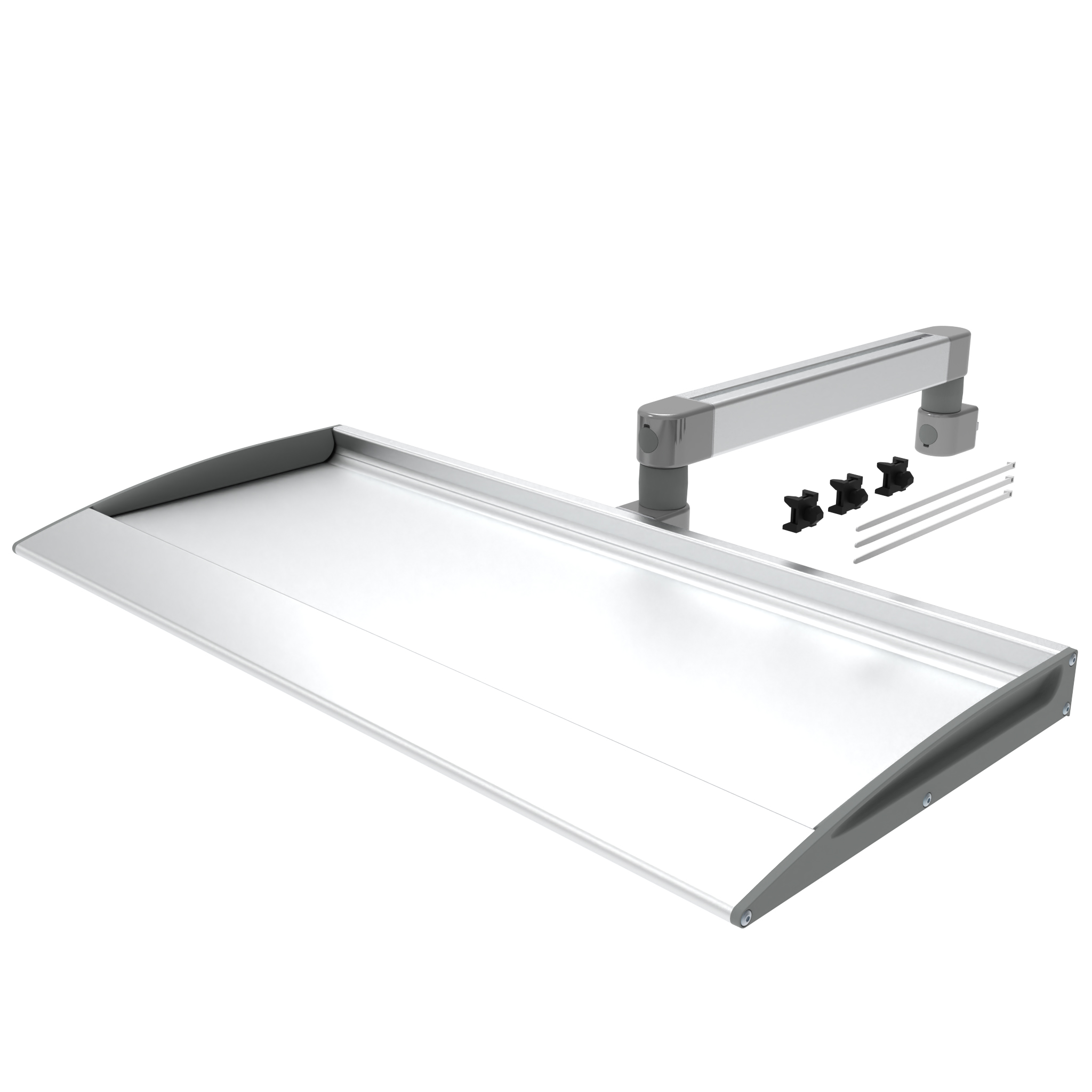

Keyboard Arm I40L 370 (Set)
Description:Stable keyboard arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled For placing the keyboard and mouse, with wrist rest Keyboard arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Keyboard holder: Aluminum Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps keyboard holder: Plastic PA, glass ball reinforced Cover caps arm: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: Steel Cable binding blocks: Plastic PA, glass fiber reinforcedSurface:Keyboard holder: Anodized Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc platedColor:Keyboard holder: Alu color Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu color Cable binding blocks: BlackSet:1 system arm I40L 370 (Set) with friction joint, 1 keyboard holder AL, slot 8, 3 cross cable binder blocks, slot 8 3 cable binder T40RDelivery Countries:Worldwide

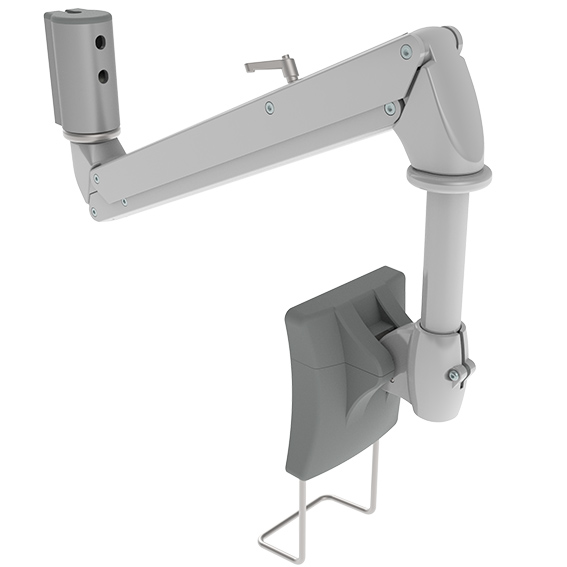

Monitor Suspension Arm SKY 600, Height Adjustable with Locking (Set)
Description:For mounting of heavy monitors with 6 - 12 kg, mounting plate VESA MIS-D 75/100 compatible, adjustable viewing angle and height; 360° mounting flange can be attached lateral or transverse to the profileMaterial:Monitor suspension arm: Steel / aluminum / plastic Cable management cover: Plastic Mounting flange: Aluminum die-cast Screws: SteelSurface:Monitor suspension arm: Lacquered Mounting flange: Lacquered Screws: Zinc platedColor:Monitor suspension arm: Gray Cable management cover: Gray Mounting flange: Alu colorSet:1 monitor suspension arm incl. cable management cover 1 mounting flange incl. bolt and cover cap 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 30 (for T-slot nut) 2 centering plates - slot 8 2 centering plates - slot 10 2 anti-loss washers for screws M8 2 T-slot nuts - slot 8 - M8 2 T-slot nuts - slot 10 - M8 1 connecting ring 1 washer 4 screws DIN 799 - M4 x 16Delivery Countries:Worldwide
Monitor Support 4-axis, Height Adjustable (Set)
Description:For removable mounting of monitors with 2 - 10 kg or 8 - 20 kg, mounting plate VESA MIS-D 75/100 compatible; Adjustable viewing angle and height, screen rotatable by 90°; 360° mounting flange for horizontal and vertical attachment with mounting adapterMaterial:Mounting plate VESA, removable: Steel / Plastic Monitor mount: Die-cast aluminum Cable management cover: Plastic Bearing shims and bushes: Plastic Mounting flange: Die-cast aluminum Mounting adapter: Die-cast aluminum Screws: SteelSurface:Mounting plate VESA, removable: Lacquered Monitor mount: Lacquered Mounting flange: Lacquered Mounting adapter: Lacquered Screws: Zinc platedColor:Mounting plate VESA, removable: Alu color / black Monitor mount: Alu color Cable management cover: Black Bearing shims and bushes: Black Mounting flange: Alu color Mounting adapter: Alu colorSet:1 mounting plate VESA with 4 screws – M4 × 12, Phillips 1 monitor support 4-axis with cable management cover 1 mounting flange 1 mounting screw DIN 6912 – M8 × 25 1 mounting adapter 2 mounting screws DIN 6912 – M8 × 16 1 hexagon key, AF 3 1 hexagon key, AF 4Delivery Countries:Worldwide

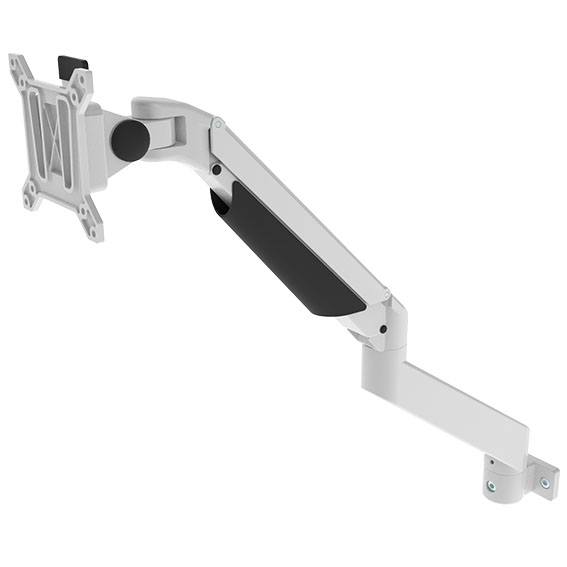

Monitor Support 5-axis, Height Adjustable (Set)
Description:For removable mounting of monitors with 2 - 10 kg or 8 - 20 kg, mounting plate VESA MIS-D 75/100 compatible; Adjustable viewing angle and height, screen rotatable by 90°; 360° mounting flange for horizontal and vertical attachment with mounting adapterMaterial:Mounting plate VESA, removable: Steel / Plastic Monitor mount: Die-cast aluminum Cable management cover: Plastic Bearing shims and bushes: Plastic Mounting flange: Die-cast aluminum Mounting adapter: Die-cast aluminum Screws: SteelSurface:Mounting plate VESA, removable: Lacquered Monitor mount: Lacquered Mounting flange: Lacquered Mounting adapter: Lacquered Screws: Zinc platedColor:Mounting plate VESA, removable: Alu color / black Monitor mount: Alu color Cable management cover: Black Bearing shims and bushes: Black Mounting flange: Alu color Mounting adapter: Alu colorSet:1 mounting plate VESA with 4 screws – M4 × 12, Phillips 1 monitor support 5-axis with cable management cover 1 mounting flange 1 mounting screw DIN 6912 – M8 × 25 1 mounting adapter 2 mounting screws DIN 6912 – M8 × 16 1 hexagon key, AF 3 1 hexagon key, AF 4Delivery Countries:Worldwide

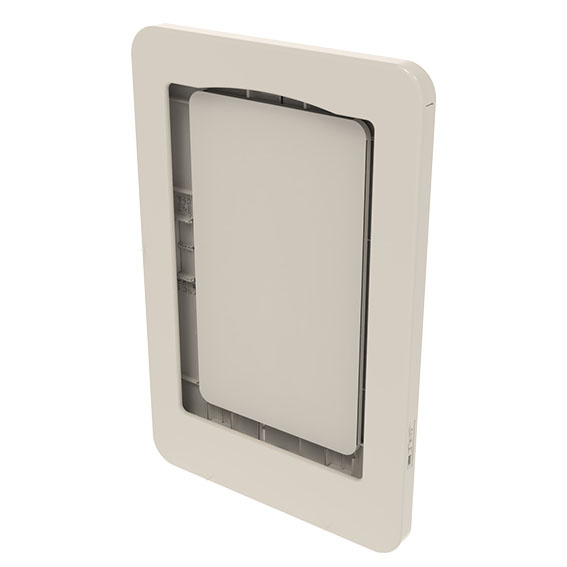

Tablet Mount FRAME
Description:To fix flat screens to aluminum profile structures or magnetic surfaces, VESA MIS-D 75/100 compatibleMaterial:Plastic PCColor:Frontside: White ≈ RAL 9001 Backside: GrayFastening:From the back, using M4 screws or magneticTip:Compatible Magnet for Tablet Mount FRAME see 6THM20 Compatible Monitor Mounting Plate see 061SM751004045 Compatible Monitor Mount see 061SM7510040 Compatible Monitor Mount ZN with Locking Lever see 061SM7510040FS03Delivery Countries:Worldwide
Magnet for Tablet Mount FRAME (Set)
Description:To fix table mounts to magnetic surfacesMaterial:Magnets: Neodym Screws: SteelSurface:Screws: Zinc platedSet:4 magnets Ø 20 mm 4 screws M4x12Tip:Compatible Tablet Mount FRAME se 6THSAM105S4Delivery Countries:Worldwide
