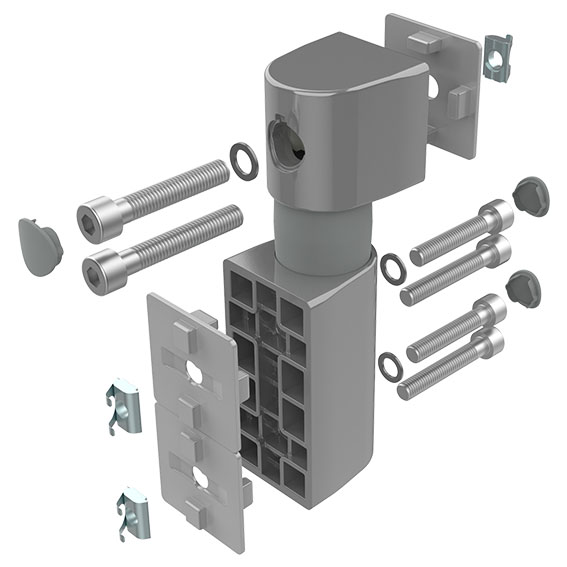

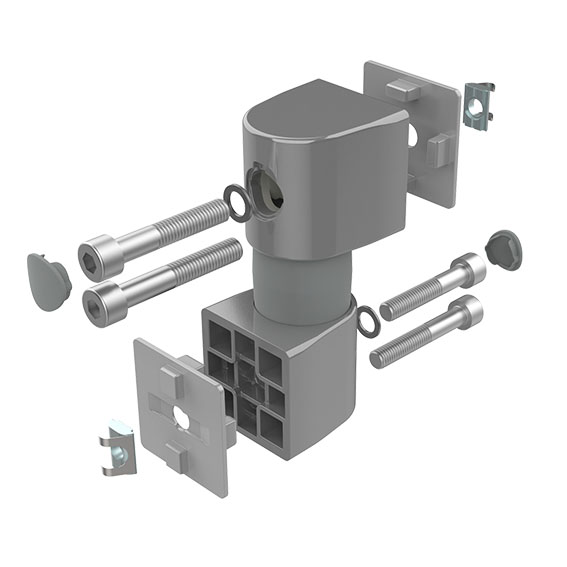

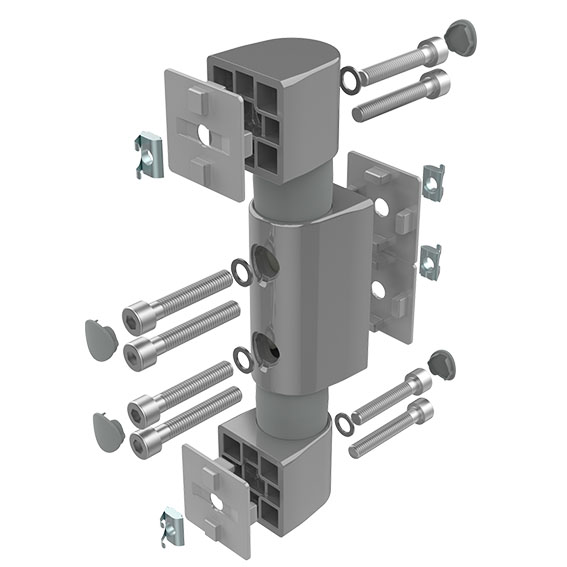

Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 4 cover caps 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 4 washers 8-FSt 4 centering plates 4 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 3 washers 8-FSt 3 centering plates 3 T-slot nuts - slot 10- M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 4 cover caps 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 4 washers 8-FSt 4 centering plates 4 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 3 washers 8-FSt 3 centering plates 3 T-slot nuts - slot 10- M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 4 cover caps 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 4 washers 8-FSt 4 centering plates 4 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 3 cover caps 3 screws DIN 912 - M8 x 45 (for T-slot nut) 3 screws DIN 912 - M8 x 50 (for core hole) 3 washers 8-FSt 3 centering plates 3 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 4 cover caps 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 4 washers 8-FSt 4 centering plates 4 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 3 cover caps 3 screws DIN 912 - M8 x 45 (for T-slot nut) 3 screws DIN 912 - M8 x 50 (for core hole) 3 washers 8-FSt 3 centering plates 3 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated
Color:BlackDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesFastening:From the front, using countersunk screwsMaterial:Plastic PA, glass fiber reinforcedSpecials:ESD electrostatical discharging, other sizes, other colors on request
Color:Red / white / blackDelivery Countries:WorldwideDescription:For fast and reliable safety marking according to ASR A1.3 / DIN EN ISO 7010, self-adhesive; Easy recognition from long distance; Forklift-resistant and slip-proof floor sign with outstanding adhesive strength, suitable for almost all industrial floorsFastening:Self-adhesive surface on the backsideMaterial:Plastic PVC
Color:Blue / white / blackDelivery Countries:WorldwideDescription:For fast and reliable safety marking according to ASR A1.3 / DIN EN ISO 7010, self-adhesive; Easy recognition from long distance; Forklift-resistant and slip-proof floor sign with outstanding adhesive strength, suitable for almost all industrial floorsFastening:Self-adhesive surface on the backsideMaterial:Plastic PVC
Color:Blue / white / blackDelivery Countries:WorldwideDescription:For fast and reliable safety marking according to ASR A1.3 / DIN EN ISO 7010, self-adhesive; Easy recognition from long distance; Forklift-resistant and slip-proof floor sign with outstanding adhesive strength, suitable for almost all industrial floorsFastening:Self-adhesive surface on the backsideMaterial:Plastic PVC
Color:Alu colorDelivery Countries:WorldwideDescription:To fix glass and other panelsMaterial:Zinc die-castSet:1 glass panel clamp, 1 screw M5 x 16, 5 rubber pads for panels 2 - 9 mmSpecials:Other surfaces, other colors on requestSurface:Powder coated
Color:GrayDelivery Countries:WorldwideDescription:To insert panels with 2.0 to 8.0 mm thickness subsequently into assebled structuresMaterial:Plastic PP + TPE, ≈ 78 Shore ATip:Please note: You are ordering in meters!Tip 2:For a complete insert profile a suitable support strip I AL is required.
Color:BlackDelivery Countries:WorldwideDescription:To store and provide small parts; simple assembly by swiveling into the profile slot, optional fixation possibility using 1 or 2 screws M5Material:Plastic PA, glass fiber reinforcedSpecials:Other colors on request

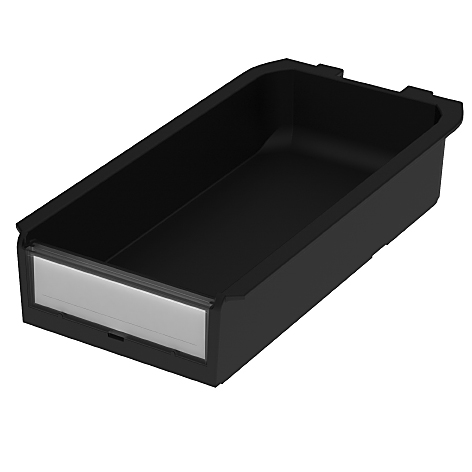

Color:Grab container: Black Label window: Transparent (colorless)Delivery Countries:WorldwideDescription:To store and provide small parts; simple assembly by swiveling into the suspension profile, optional adapter allows for horizontally pivoting fixation; the clearly visible label area enables secure parte identification; stackableMaterial:Grab container standard version: Plastic PA, glass fiber reinforced Grab container ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Label window: Plastic PC Label: Carton 250 g/m²Set:1 grab container, 1 label window, 1 labelSpecials:Other colors on requestTip:Compatible Swivel Adapter for Profile Slot see 061MA2291NS01
Color:Grab tray: Black, yellow, red, blue, green, gray Label window: Transparent (colorless)Delivery Countries:WorldwideDescription:To provide hardware and small parts on sorting area for selective grabbing of smallest components; simple assembly by swiveling into the profile slot; the clearly visible label area enables secure part identificationMaterial:Grab tray standard version: Plastic PA, glass fiber reinforced Grab tray ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Label window: Plastic PC Label: Carton 250 g/m² Bumper: Plastic PU, ≈ 65-70 Shore ASet:1 grab tray, 1 label window, 1 label, 4 bumper, self-adhesiveSpecials:Other colors on request

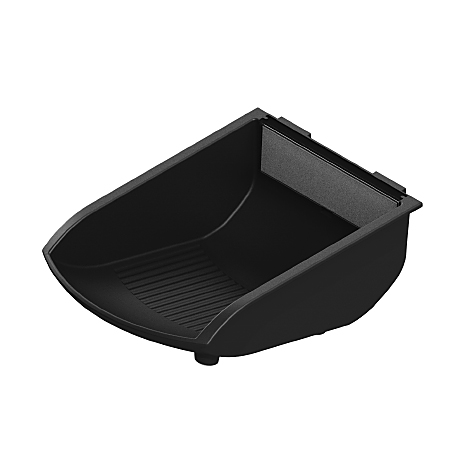

Color:Grab tray: Black, yellow, red, green, gray Label window: Transparent (colorless)Delivery Countries:WorldwideDescription:To provide hardware and small parts on sorting area for selective grabbing of smallest components; simple assembly by swiveling into the suspension profile or grid plate; the clearly visible label area enables secure part identificationMaterial:Standard version: Plastic PA, glass fiber reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedSet:1 grab tray, 1 label window, 1 label, 4 bumper, self-adhesiveSpecials:Other colors on request
Color:Cover caps: BlackDelivery Countries:WorldwideDescription:To electrically connect movable parts to each other as flexible grounding wire, and to create ESD electrically conductive connections between juxtaposed frames as equipotential bonding; large conductor cross-section (16 mm²), current carrying capacity 120 A max.Material:Earth lead: Copper Assembly material: Steel Cover caps: Plastic PA, glass fiber reinforcedSet 1:(Listed in assembly sequence incl. tightening torques): 2 T-slot nuts - slot 6 - M6, 2 threaded pins DIN EN ISO 4029 (DIN 916) - M6 x 22 (M = 10 Nm), 2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M6 (M = 34 Nm), 1 earth lead 200 mm, 2 serrated lock washers DIN 6798 - 6,11, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6 (M = 25 Nm), 2 cover capsSet 2:(Listed in assembly sequence incl. tightening torques): 2 T-slot nuts - slot 8 - M8, 2 threaded pins DIN EN ISO 4029 (DIN 916) - M8 x 30 (M = 10 Nm), 2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M8 (M = 34 Nm), 1 earth lead 300 mm, 2 serrated lock washers DIN 6798 - 8.4, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8 (M = 25 Nm), 2 cover capsSet 3:(Listed in assembly sequence incl. tightening torques): 2 T-slot nuts - slot 8 - M8, 2 threaded pins DIN EN ISO 4029 (DIN 916) - M8 x 30 (M = 10 Nm), 2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M8 (M = 34 Nm), 1 earth lead 200 mm, 2 serrated lock washers DIN 6798 - 8.4, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8 (M = 25 Nm), 2 cover capsSet 4:(Listed in assembly sequence incl. tightening torques): 2 T-slot nuts - slot 10 - M8, 2 threaded pins DIN EN ISO 4029 (DIN 916) - M8 x 30 (M = 10 Nm), 2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M8 (M = 34 Nm), 1 earth lead 200 mm, 2 serrated lock washers DIN 6798 - 8.4, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8 (M = 25 Nm), 2 cover capsSurface:Earth Lead: Tin plated Assembly material: Zinc plated
Delivery Countries:WorldwideDescription:To make an ESD electrostatical discharging connection between panel and aluminum profileMaterial:T-Slot Nut, grub screw, serrated washer: Steel Hexagon nut, washer: BrassSurface:Zinc plated
