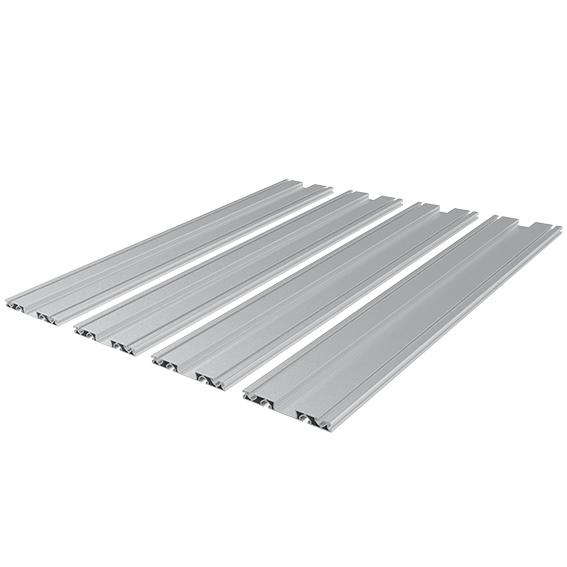

Guiding Rail FIFO (Set)

L (mm): 2400.0 Profile: I

Delivery Countries:WorldwideDescription:For guiding floor dollys on one side in FIFO stations, with a wheel width of up to 40 mm with 2 slots at the top, bottom and sides; to extend two guiding rails, connect them face to face with connecting strip in the slots; sign posts can be mounted in the slot from aboveMaterial:AluminumSurface:AnodizedTip:For cut: To order, please replace "xxxx" in the part number by the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mm Compatible connecting strip see 096060S20 Compatible infeed cap for FIFO monorail rail (set) see 2082CCS02 Compatible monorail angle connector for post see 093WS30145S01 Compatible mounting set for posts support struts see 93WS30145S02 Compatible cover profiles see 092080

€0.00

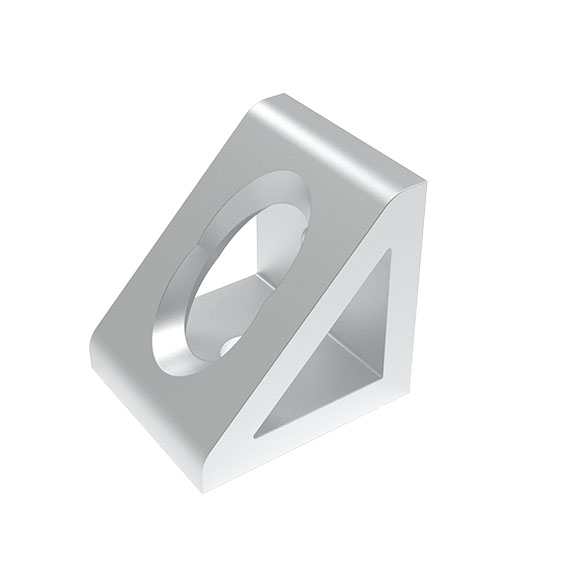

Gusseted Connection Angle AL 2 Hole, 1 Slot Version

A (mm): 25.4 (1") B (mm): 25.4 (1") C (mm): 4.8 (0.19") D (mm): 11.2 (0.44") E (mm): 12.7 (0.50") F (mm): 22.4 (0.88") G (mm): 12.7 (0.50") H (mm): 6.9 (0.27") Grid: 25.4 (1")

Color:Alu colorDelivery Countries:North AmericaDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSurface:Anodized

€0.00

Gusseted Connection Angle AL 4 Hole, 1 Slot Version

Color: Black A (mm): 90.0 B (mm): 90.0 C (mm): 6.0 D (mm): 20.5 E (mm): 20.0 F (mm): 41.0 G (mm): 22.5 H (mm): 45.0 J (mm): 9.0 Grid: 45

Color:Alu color, blackDelivery Countries:North AmericaDescription:To connect two aluminum profiles at right anglesMaterial:AluminumSurface:Anodized

€0.00

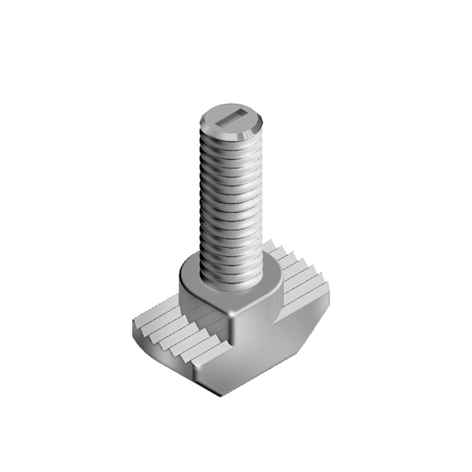

Hammer Head Screw Slot 10

B (mm): 9.7 H (mm): 1.5 h (mm): 5.8 Material: Steel Size M x L (mm): *M8 x 30 Profile: -

Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connectionMaterial:Steel / stainless steel SS316Specials:Turning help: Polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plainTip:Compatible Flange Nut see 340ME154 *Made of hammer nut with glued threaded rod

€0.00

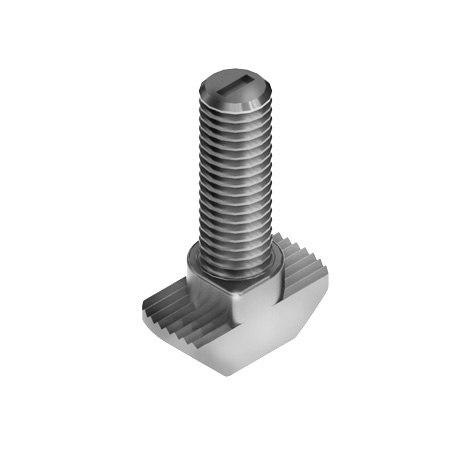

Hammer Head Screw Slot 8

H (mm): 1.5 h (mm): 4.7 Material: Stainless steel Size M x L (mm): *M6 x 40 Profile: B

Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connectionMaterial:Steel / stainless steel SS304Specials:Turning help: Polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plainTip:Compatible Flange Nut see 340ME154 *Made of hammer nut with glued threaded rod

€0.00

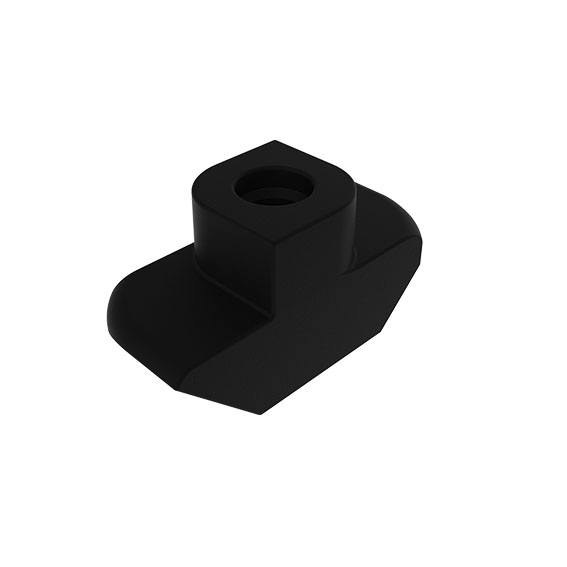

Hammer Nut PA Slot 8

Profile: I

Color:BlackDelivery Countries:WorldwideDescription:To fasten components to profiles; Thread being formed when a thread-cutting screw is turned into the plastic core hole, only suitable for low loadsMaterial:Plastic PA, glass fiber reinforced

€0.00

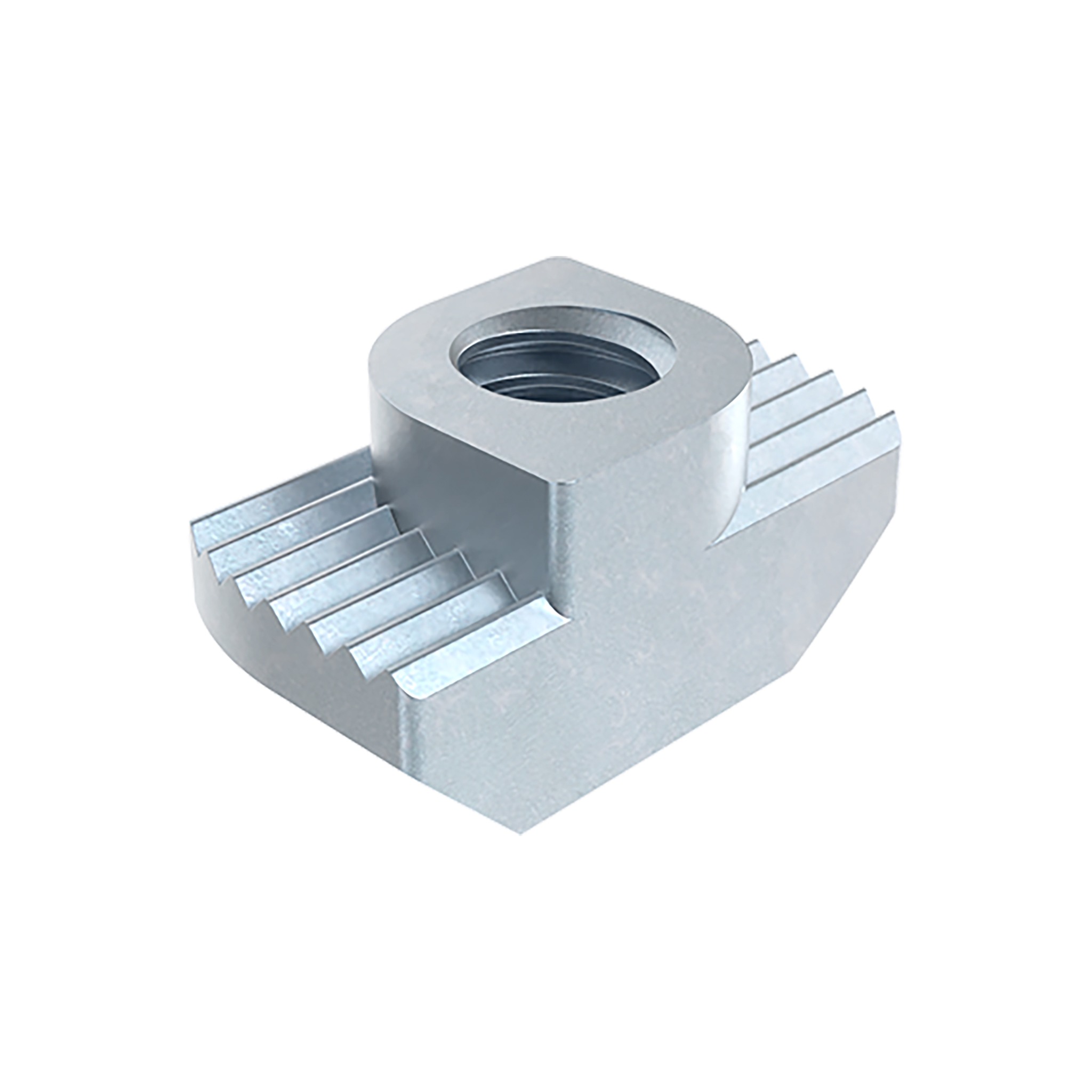

Hammer Nut Slot 10

Version: - H (mm): 3.0 h (mm): 5.8 M: 1/4-20 UNC Material: Steel Profile: B

Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connectionMaterial:Steel / stainless steelSpecials:Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request Surface: Zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plain

€0.00

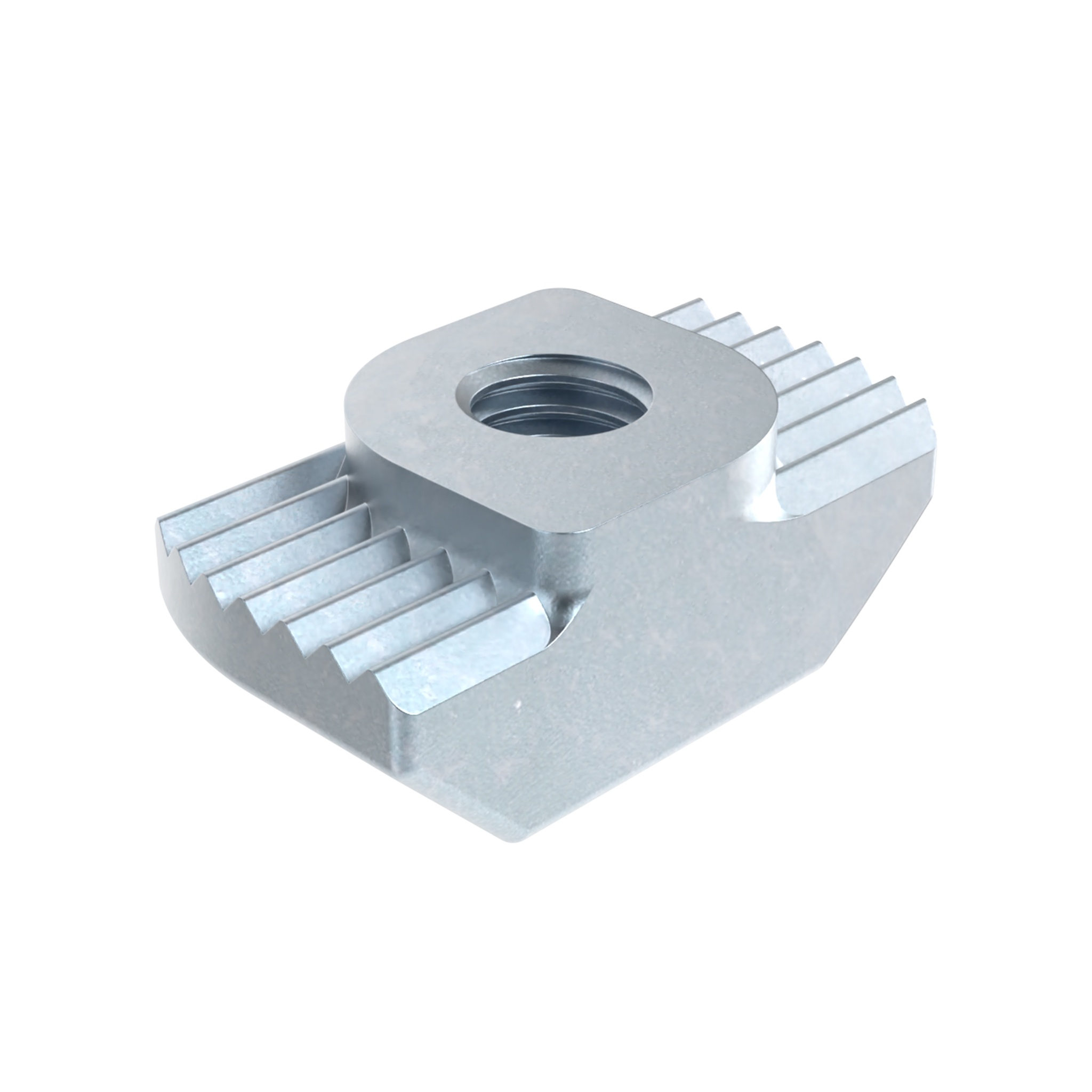

Hammer Nut Slot 10 with Turning Help

H (mm): 3.0 M: M5 Slot N (mm): 10 Profile: B

€0.00

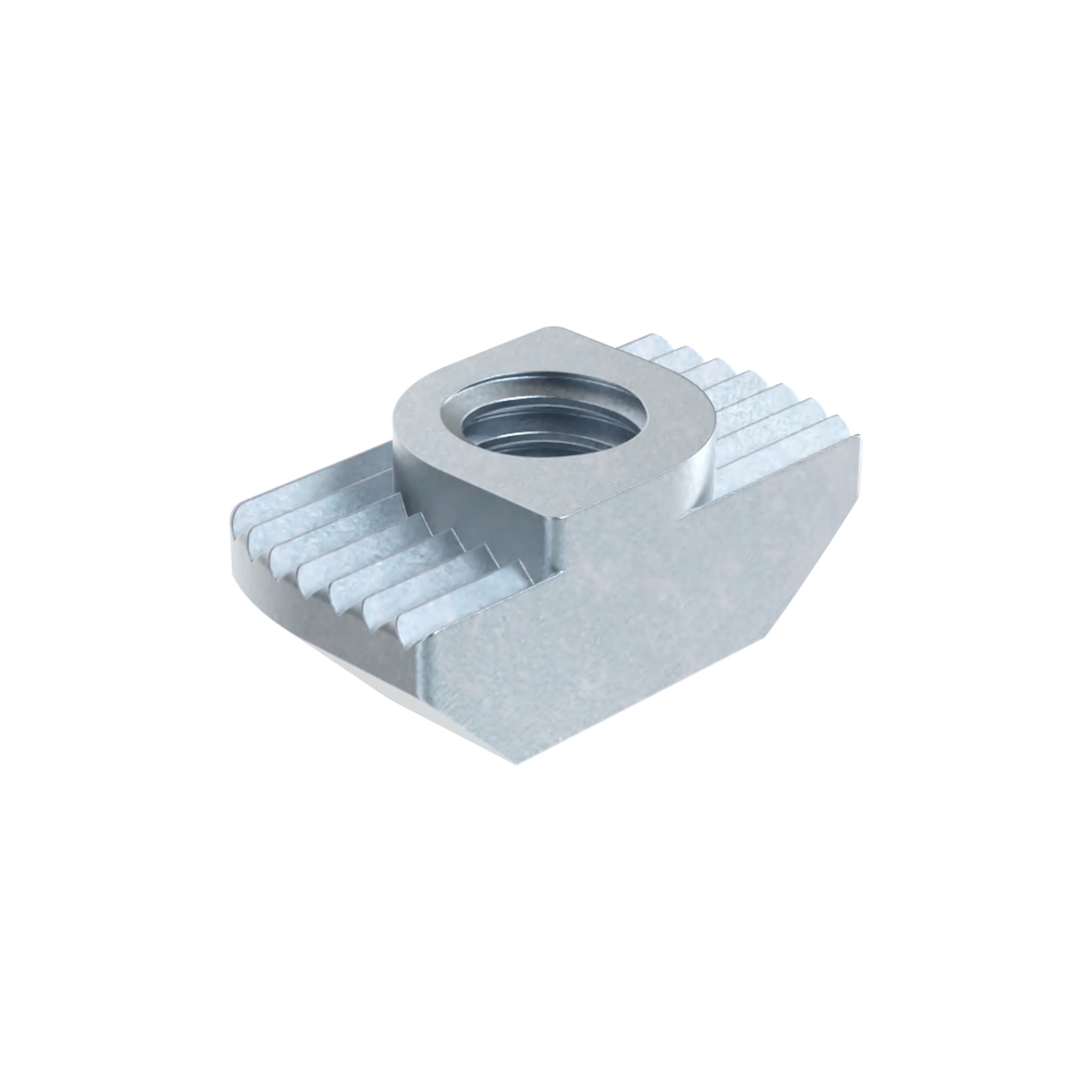

Hammer Nut Slot 6

H (mm): 1.0 M: M4 Material: Steel Profile: B

Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connectionMaterial:Steel / stainless steel SS304Specials:Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plain

€0.00

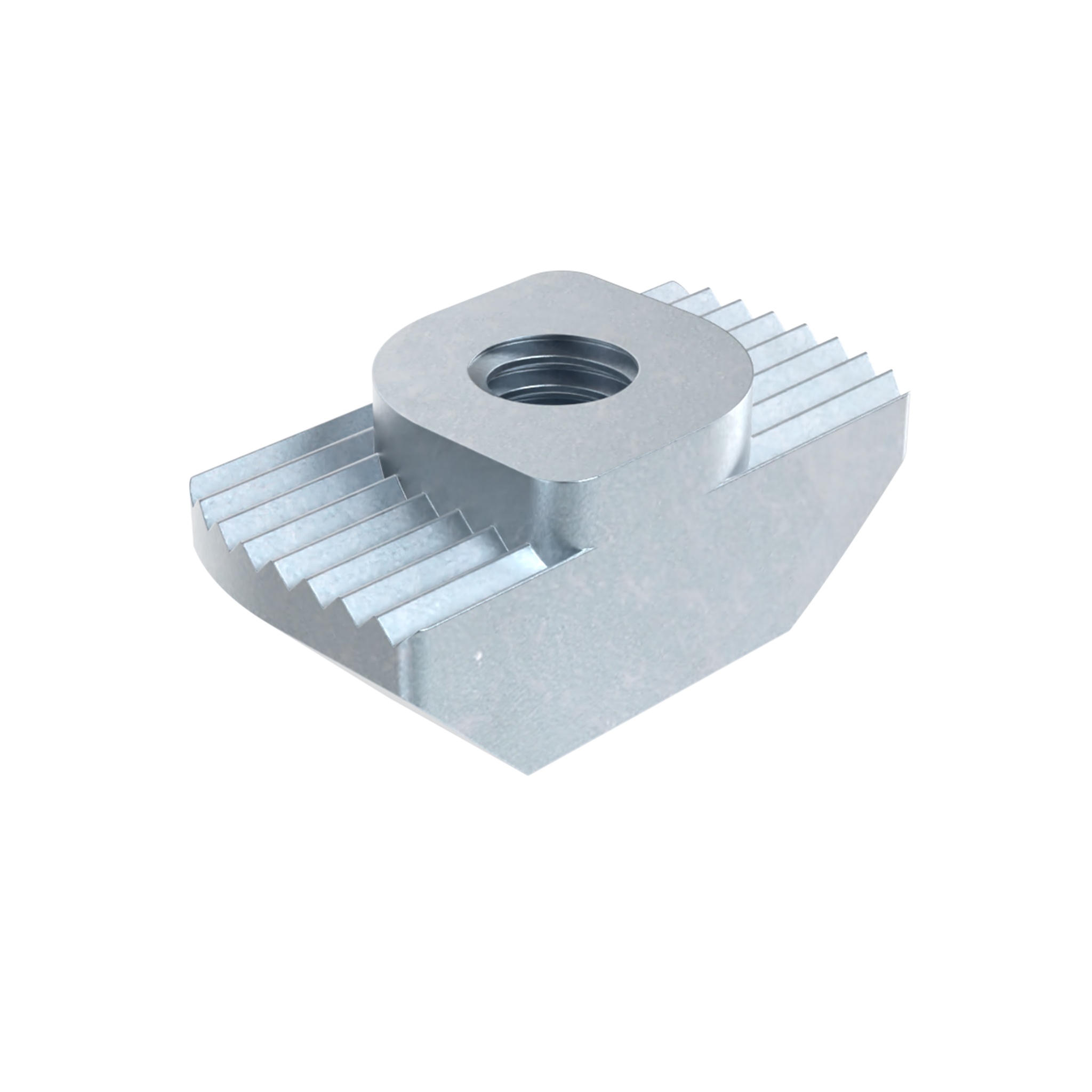

Hammer Nut Slot 8 with Turning Help, Step Height 1.5/3.0 mm

H (mm): 1.5 M: M6 Profile: B

€0.00

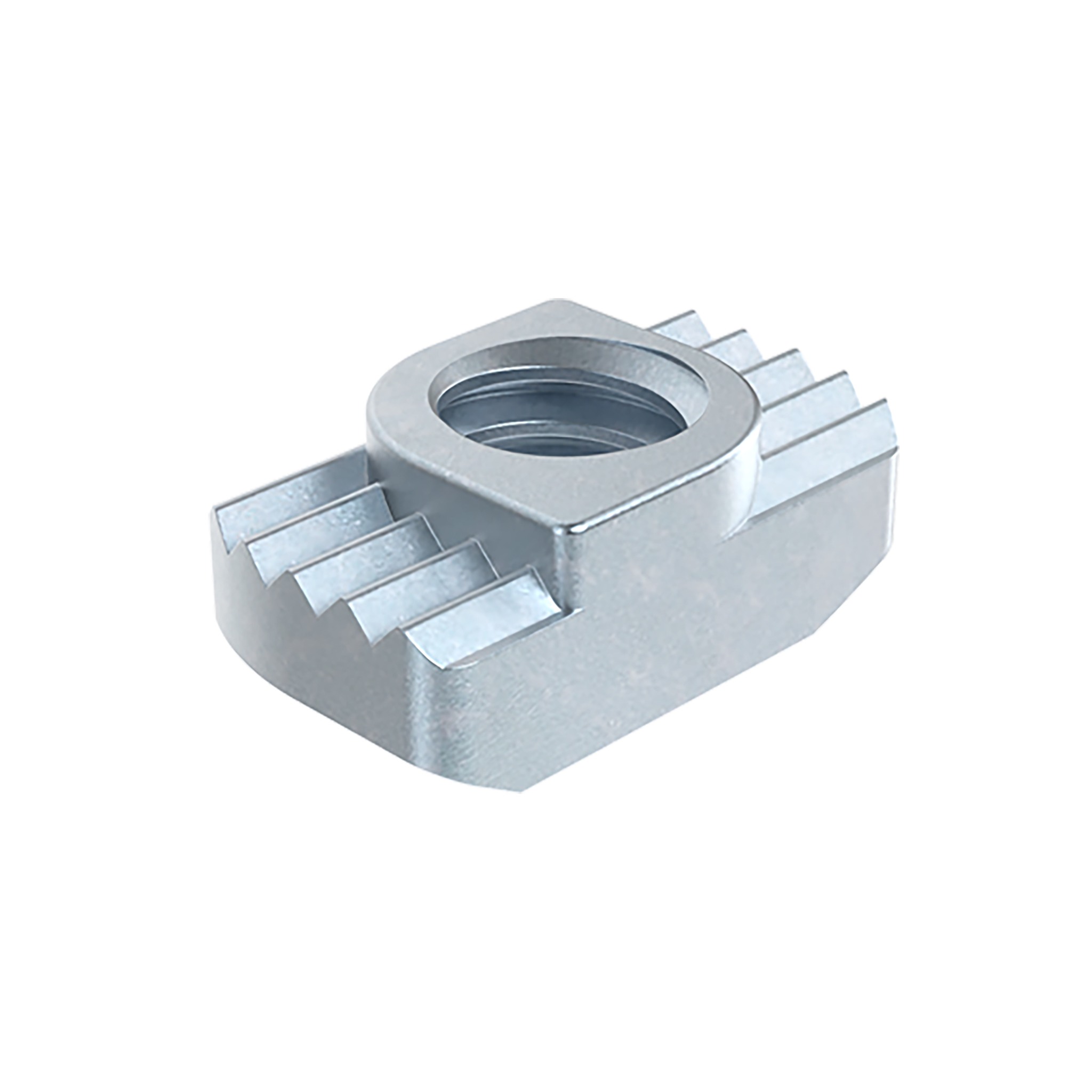

Hammer Nut Slot 8, Step Height 1.0 mm

H (mm): 1.0 M: M6

Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connectionMaterial:SteelSpecials:Turning help: Thread pitch error or polyamide thread locking dot on request Surface: Zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated

€0.00

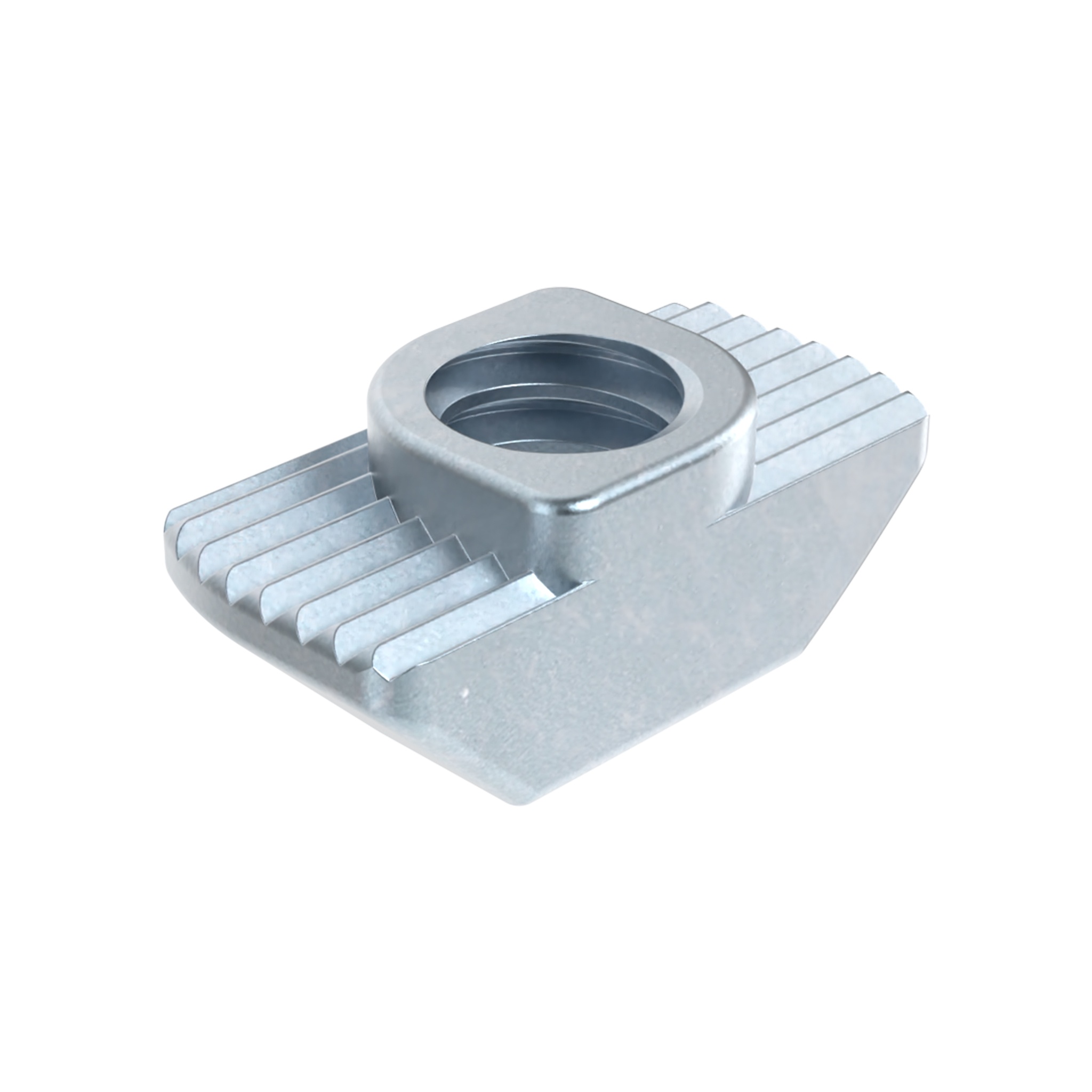

Hammer Nut Slot 8, Step Height 1.5/3.0 mm

H (mm): 1.5 M: 1/4-20 UNC Material: Steel Slot N (mm): - Profile: B

Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connectionMaterial:Steel / stainless steel SS304Specials:Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plain

€0.00

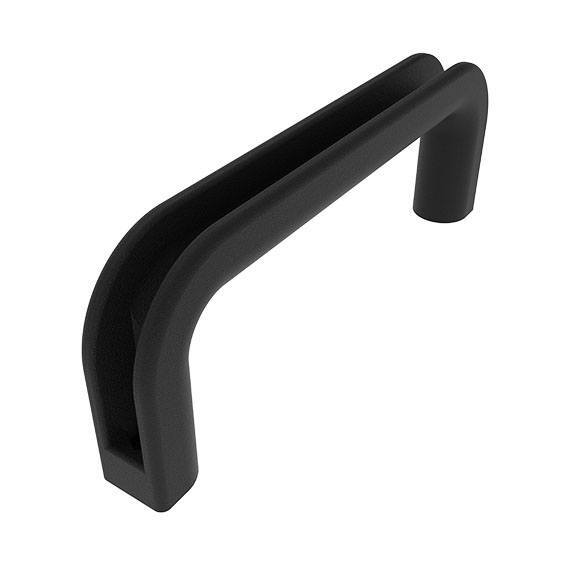

Handle

Version: 160 Color: Black ØD (mm): 8.5 for Screw: M8 A (mm): 160.0 a (mm): 188.0 B (mm): 28.0 H (mm): 60.0 SW: 14.0

Color:Black, yellow, red, blue, grayDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesFastening:From the front with hexagon cap screws or socket head screws, or from the back using M8 hexagon nuts and boltsMaterial:Plastic PA, glass fiber reinforcedSpecials:Other colors on request

€0.00

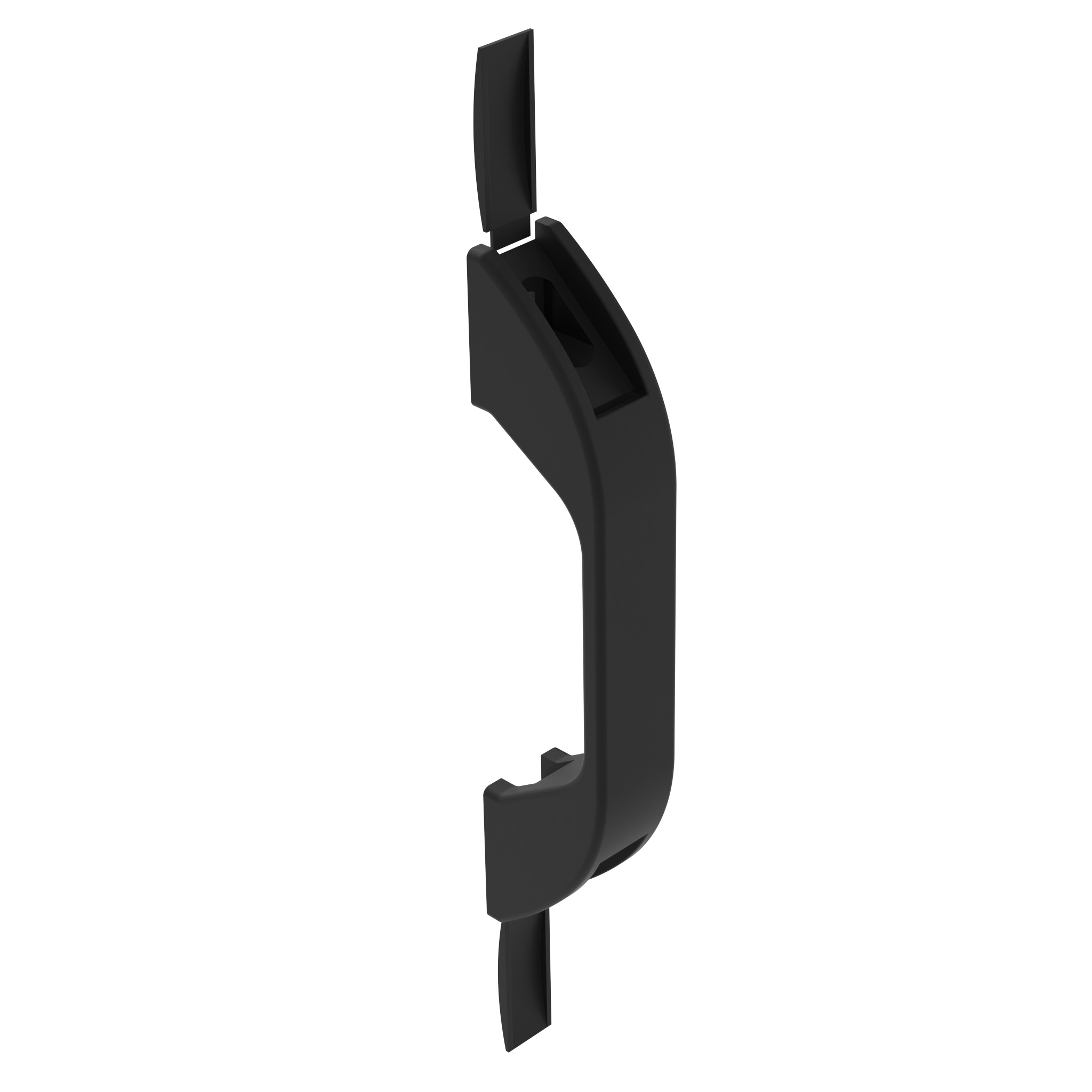

Handle 140

Color:BlackDelivery Countries:North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, BulgariaDescription:To mount on doors, flaps and aluminum profilesFastening:From the front, using socket head screws; from the back using inserted hexagon nuts or hexagon cap screwsMaterial:Plastic PA, glass fiber reinforced

€0.00

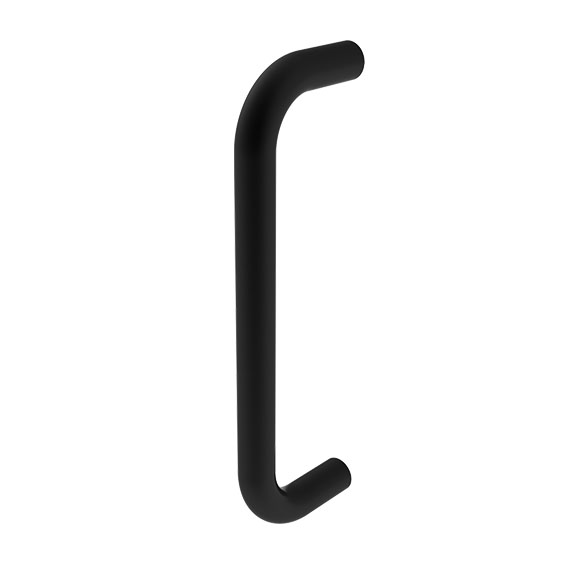

Handle AL 120

Color: Alu color Surface: Anodized Profile: I

Color:Black, alu colourDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesFastening:From the back, using M5 screws; From the front with optional fastening setMaterial:AluminumSurface:Powder coated / anodizedTip:Compatible Fastening Set see 092330

€0.00

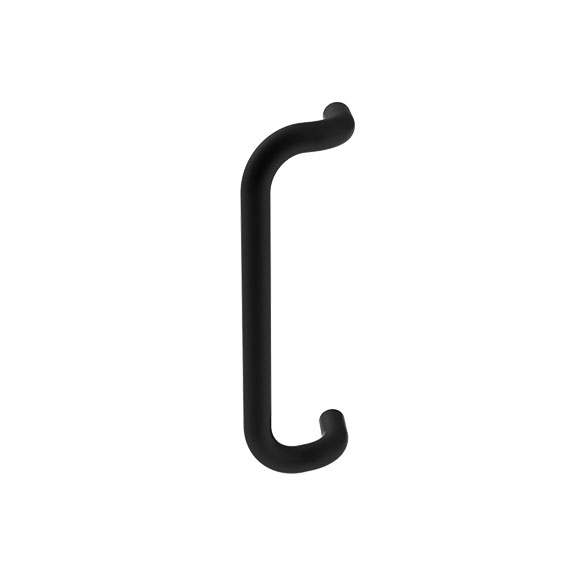

Handle AL 120 bended

Color: Black Surface: Powder coated Profile: I

€0.00

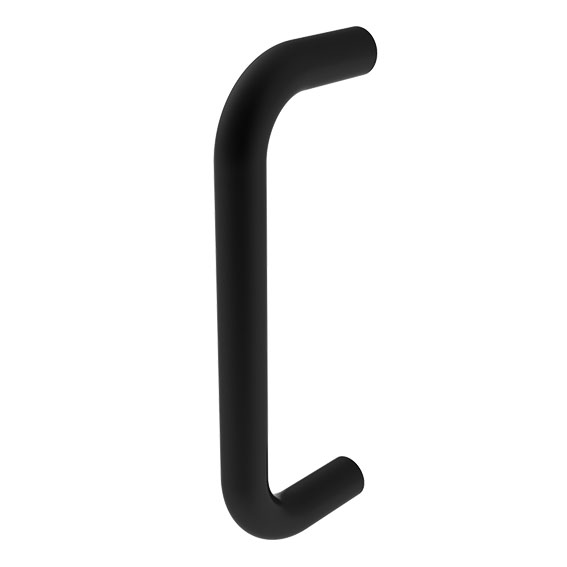

Handle AL 200

Color: Black Surface: Powder coated Profile: I

Color:Black, alu colourDelivery Countries:WorldwideDescription:To mount on doors, flaps and aluminum profilesFastening:From the back, using M8 screws; From the front with optional fastening setMaterial:AluminumSurface:Powder coated / anodizedTip:Compatible Fastening Set see 092331

€0.00

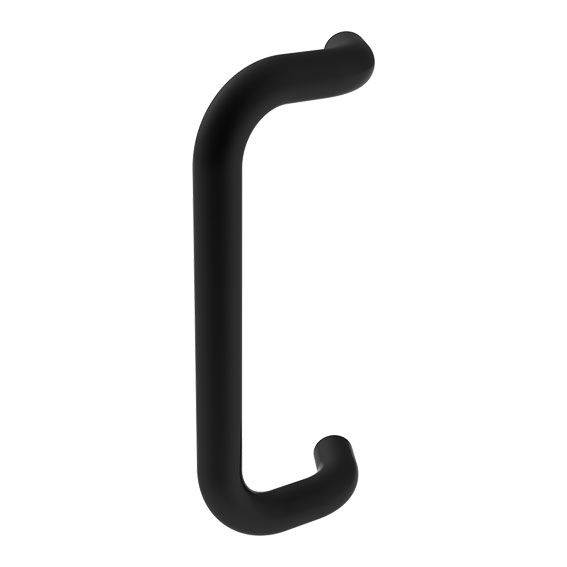

Handle AL 200 bended

Color: Alu color Surface: Anodized Profile: I

€0.00

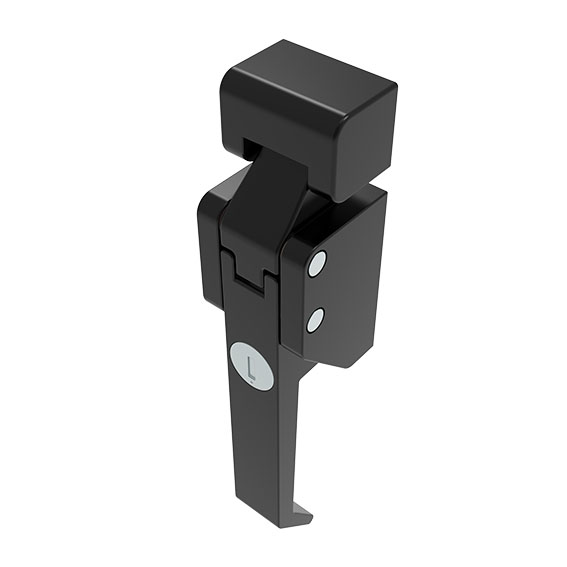

Handle Over-Center Draw Latch

Color: Chrome Hole: 10 - 32 UNC Insert type: Key locking (Keyed FH751) Material: Zinc die-cast Surface: Chrome plated

Color:Handle: Black / chrome Latch: Black / chrome Housing: Black / chrome Catch: Black / chromeDelivery Countries:North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, BulgariaDescription:For easy, secure and compressive latching and locking of doors and flaps; Wide range of inserts, cams and accessoriesMaterial:Handle: Zinc die-cast / stainless steel SS316 Latch: Zinc die-cast / stainless steel SS316 Housing: Zinc die-cast / stainless steel SS316 Return spring: Spring steel SS9260 Catch: Zinc die-cast / stainless steel SS316 Pins: Stainless steel Connector: Zinc die-cast / stainless steel SS316Surface:Handle: Powder coated / chrome plated / plain Latch: Powder coated / chrome plated / plain Housing: Powder coated / chrome plated / plain Catch: Powder coated / chrome plated / plain Connector: Zinc plated / plain

€0.00

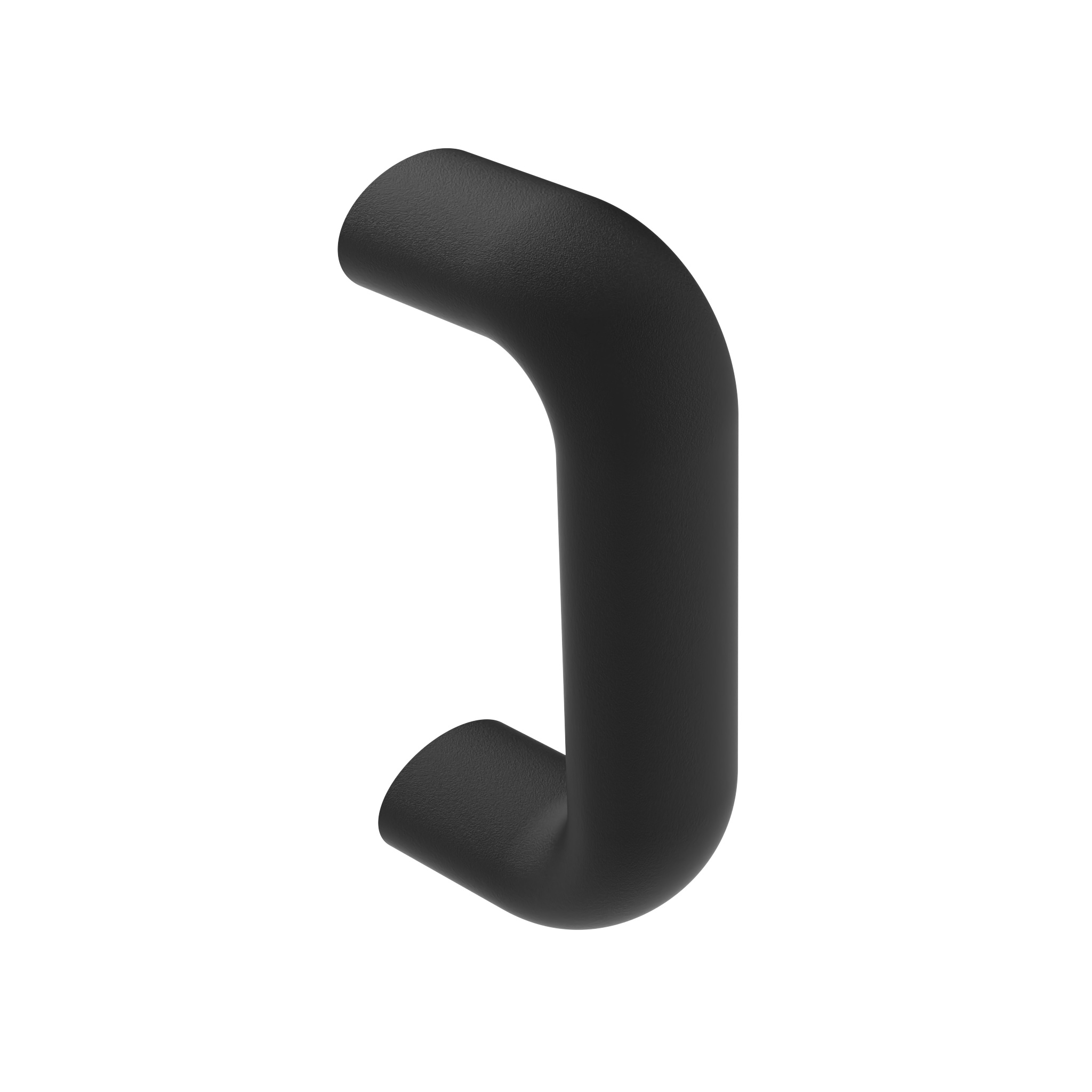

Handle PA Oval

for Screw: M8 A (mm): 120.0 B (mm): 28.0 H (mm): 60.0 h (mm): 20.0 l (mm): 16.0

Color:BlackDelivery Countries:North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, BulgariaDescription:To mount on doors, flaps and aluminum profilesFastening:From the back, using M6 or M8 screwsMaterial:Plastic PA, glass fiber reinforced

€0.00

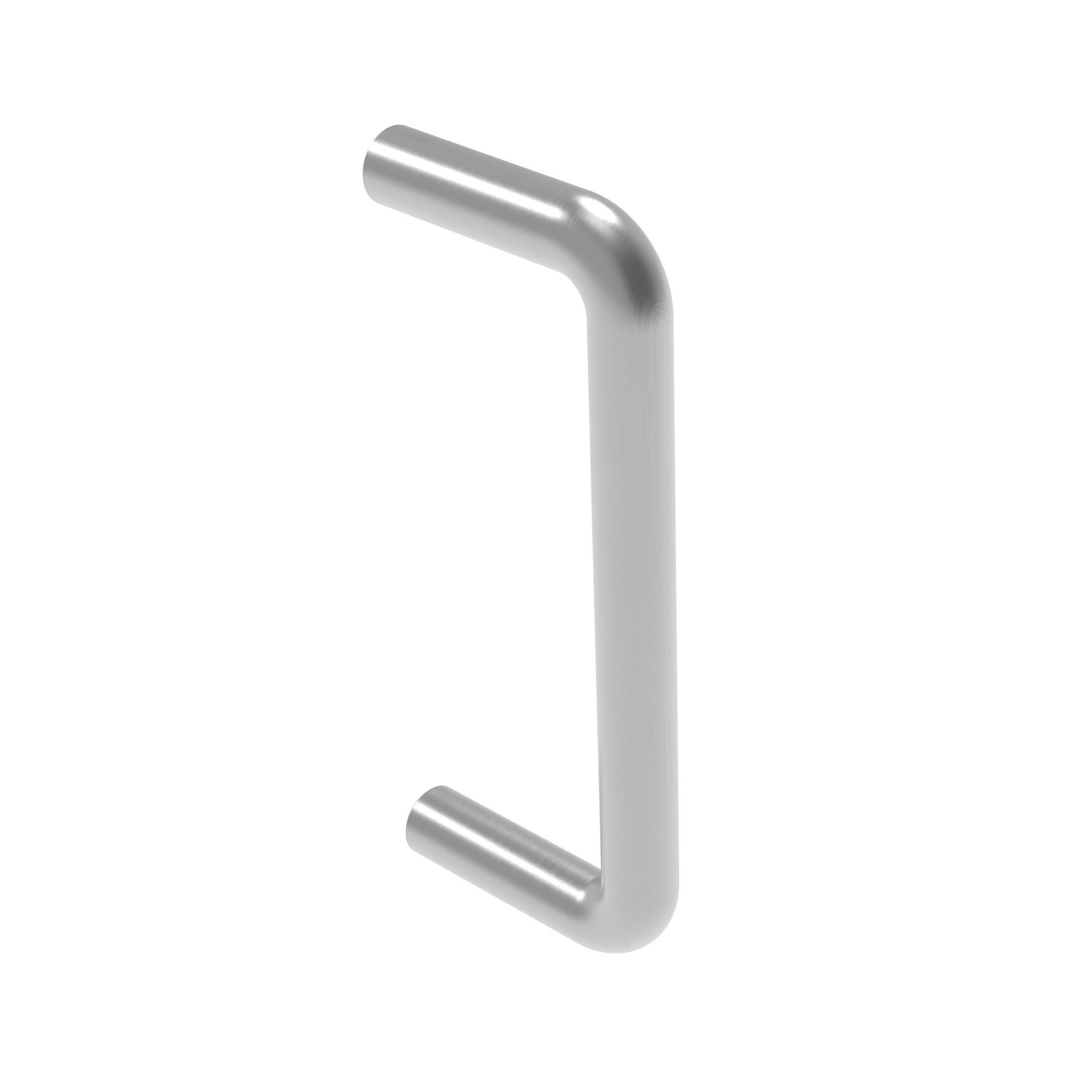

Handle SS

H (mm): 40.0 L (mm): 135.0

Delivery Countries:North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, BulgariaDescription:To mount on doors, flaps and aluminum profilesFastening:From the back, using M5 screwsMaterial:Stainless steel SS304

€0.00

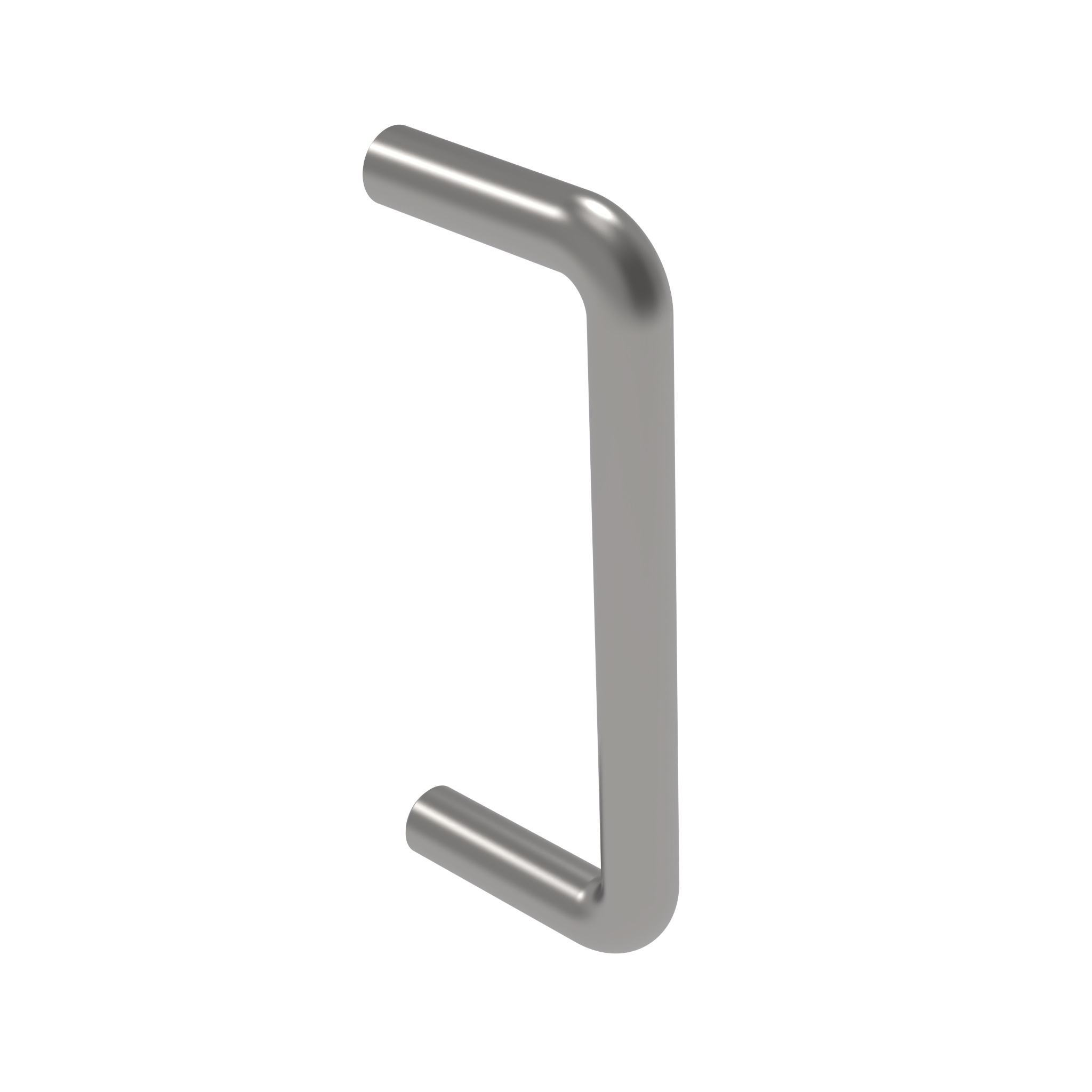

Handle ST

H (mm): 40.0 L (mm): 135.0

Color:ChromeDelivery Countries:North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, BulgariaDescription:To mount on doors, flaps and aluminum profilesFastening:From the back, using M5 screwsMaterial:SteelSurface:Chrome plated

€0.00

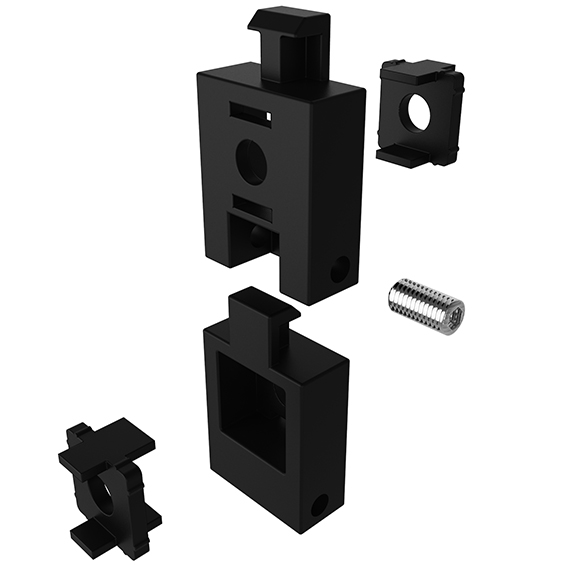

Hanger 6-8 (Set)

Slot N (mm): 6 / 8

Color:BlackDelivery Countries:WorldwideDescription:For an extra sturdy fastening of panels to fencing postsMaterial:Zinc die-castSurface:Powder coated

€0.00

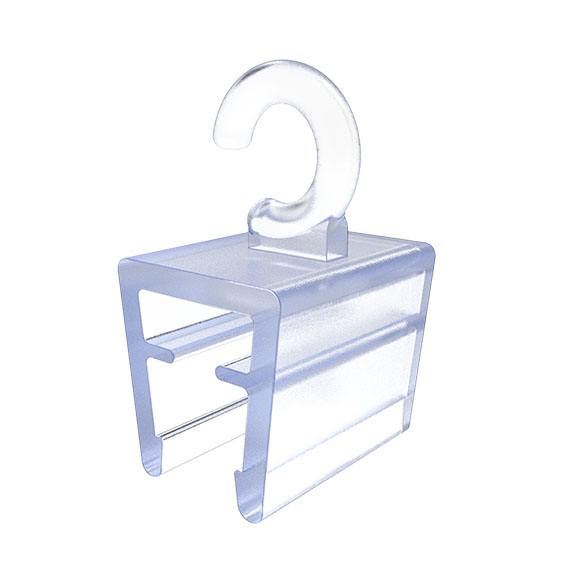

Hanging Hook

Color:Transparent (colorless)Delivery Countries:WorldwideDescription:Fast and easy hanging of message frames, Easy swap of message frames due to open hooksMaterial:Plastic PCTip:Compatible Swivel Loop see 02042SE Compatible S-hook see 02042SH Compatible Knotted Chain see 02042KC Compatible Message Frame DIN A4 - 8.3" x 11.7" see 02041A415 Compatible Message Frame DIN A3 - 11.7" x 16.5" see 02041A315

€0.00
