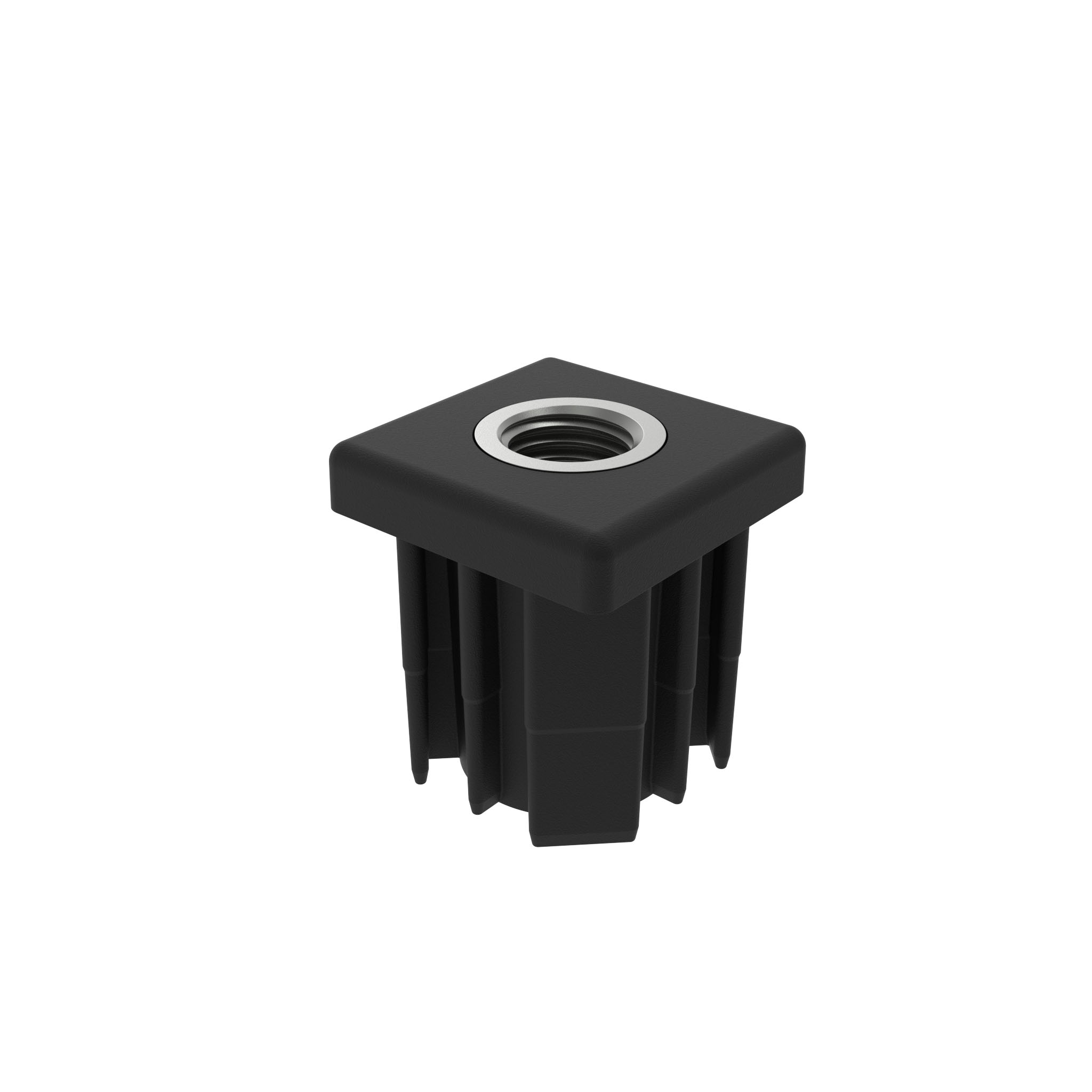

Threaded Bush for Square Tubes 40 x 40

Product information "Threaded Bush for Square Tubes 40 x 40"

Color:
Black

Delivery Countries:
Worldwide

Description:
To fit leveling feet to square, non-threaded tubes

Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Model:	Plastic PA, with brass threaded insert
Pack Quantity:	10 pieces
Customs Tariff Number Export:	39269097
Weight (g):	76.0
(ECLASS 6.0):	23111190
(ECLASS 7.0):	23111190
(ECLASS 8.0):	23111190
(ECLASS 9.0):	23111190
(ECLASS 10.0):	23111190
(ECLASS 11.0):	23111190
(ECLASS 12.0):	23111190
(ECLASS 13.0):	23111190
ERP Number:	104966
Zolltarifnummer:	39269097900

Variants

Part #	Version	Fmax (N)	B (mm)	b (mm)	L (mm)	M	S (mm)	Square Tube (mm)
098V401508	40 x 40, R5	7840	40	37.5	43	-	35	40 x 40 x 1.5
098V401510	40 x 40, R5	7840	40	37.5	43	M10	35	40 x 40 x 1.5
098V401512	40 x 40, R5	7840	40	37.5	43	M12	35	40 x 40 x 1.5
098V401514	40 x 40, R5	7840	40	37.5	43	M14	35	40 x 40 x 1.5
098V401516	40 x 40, R5	7840	40	37.5	43	M16	35	40 x 40 x 1.5
098V401520	40 x 40, R5	7840	40	37.5	43	M20	35	40 x 40 x 1.5
098V402008	40 x 40, R5	9800	40	36.5	43	-	35	40 x 40 x 2.0
098V402010	40 x 40, R5	9800	40	36.5	43	M10	35	40 x 40 x 2.0
098V402012	40 x 40, R5	9800	40	36.5	43	M12	35	40 x 40 x 2.0
098V402014	40 x 40, R5	9800	40	36.5	43	M14	35	40 x 40 x 2.0
098V402016	40 x 40, R5	9800	40	36.5	43	M16	35	40 x 40 x 2.0
098V402020	40 x 40, R5	9800	40	36.5	43	M20	35	40 x 40 x 2.0
098V402508	40 x 40, R5	9800	40	35.5	43	-	35	40 x 40 x 2.5
098V402510	40 x 40, R5	9800	40	35.5	43	M10	35	40 x 40 x 2.5
098V402512	40 x 40, R5	9800	40	35.5	43	M12	35	40 x 40 x 2.5
098V402516	40 x 40, R5	9800	40	35.5	43	M16	35	40 x 40 x 2.5
098V402520	40 x 40, R5	9800	40	35.5	43	M20	35	40 x 40 x 2.5
098V403008	40 x 40, R5	9800	40	34.5	43	-	35	40 x 40 x 3.0
098V403010	40 x 40, R5	9800	40	34.5	43	M10	35	40 x 40 x 3.0
098V403012	40 x 40, R5	9800	40	34.5	43	M12	35	40 x 40 x 3.0
098V403014	40 x 40, R5	9800	40	34.5	43	M14	35	40 x 40 x 3.0
098V403016	40 x 40, R5	9800	40	34.5	43	M16	35	40 x 40 x 3.0
098V403020	40 x 40, R5	9800	40	34.5	43	M20	35	40 x 40 x 3.0
098V404008	40 x 40, R5	9800	40	32.5	43	-	35	40 x 40 x 4.0
098V404010	40 x 40, R5	9800	40	32.5	43	M10	35	40 x 40 x 4.0
098V404012	40 x 40, R5	9800	40	32.5	43	M12	35	40 x 40 x 4.0
098V404014	40 x 40, R5	9800	40	32.5	43	M14	35	40 x 40 x 4.0
098V404016	40 x 40, R5	9800	40	32.5	43	M16	35	40 x 40 x 4.0
098V404020	40 x 40, R5	9800	40	32.5	43	M20	35	40 x 40 x 4.0
