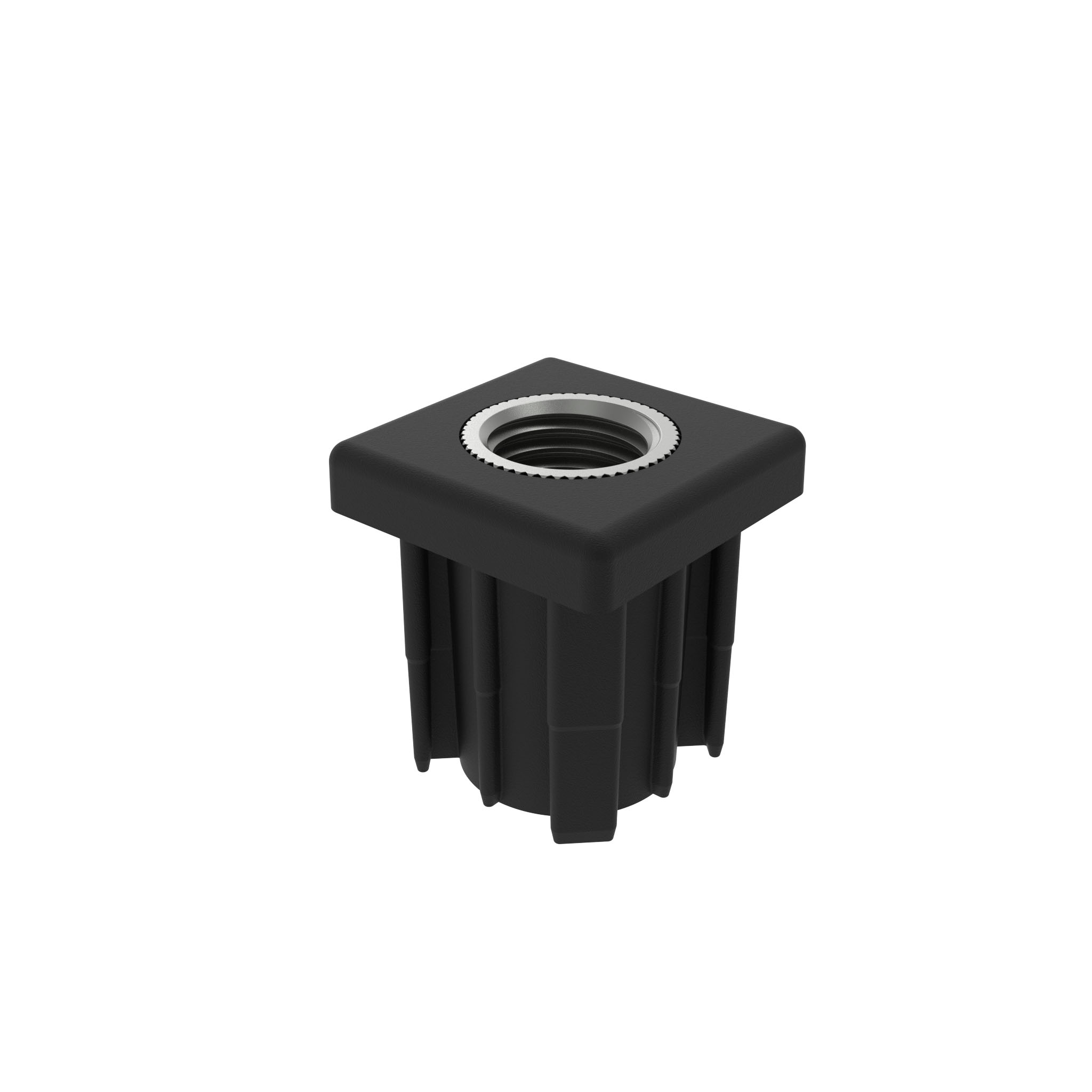

Threaded Bush for Square Tubes 40 x 40

Product information "Threaded Bush for Square Tubes 40 x 40"

Color:
Black

Delivery Countries:
Worldwide

Description:
To fit leveling feet to square, non-threaded tubes

Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass

Specials:
ESD electrostatical discharging, other sizes, other colors on request

(ECLASS 6.0):	23111190
(ECLASS 7.0):	23111190
(ECLASS 8.0):	23111190
(ECLASS 9.0):	23111190
(ECLASS 10.0):	23111190
(ECLASS 11.0):	23111190
(ECLASS 12.0):	23111190
(ECLASS 13.0):	23111190
Customs Tariff Number Export:	39269097
Model:	Plastic PA, with brass threaded insert
Pack Quantity:	10 pieces
Weight (g):	72.0
Zolltarifnummer:	39269097900
pA Number:	104998

Variants

Product ID	S (mm)	B (mm)	Version	L (mm)	M	b (mm)	Square Tube (mm)	Fmax (N)
098V401508	35	40	40 x 40, R5	43		37.5	40 x 40 x 1.5	7840
098V401510	35	40	40 x 40, R5	43	M10	37.5	40 x 40 x 1.5	7840
098V401512	35	40	40 x 40, R5	43	M12	37.5	40 x 40 x 1.5	7840
098V401514	35	40	40 x 40, R5	43	M14	37.5	40 x 40 x 1.5	7840
098V401516	35	40	40 x 40, R5	43	M16	37.5	40 x 40 x 1.5	7840
098V401520	35	40	40 x 40, R5	43	M20	37.5	40 x 40 x 1.5	7840
098V402008	35	40	40 x 40, R5	43		36.5	40 x 40 x 2.0	9800
098V402010	35	40	40 x 40, R5	43	M10	36.5	40 x 40 x 2.0	9800
098V402012	35	40	40 x 40, R5	43	M12	36.5	40 x 40 x 2.0	9800
098V402014	35	40	40 x 40, R5	43	M14	36.5	40 x 40 x 2.0	9800
098V402016	35	40	40 x 40, R5	43	M16	36.5	40 x 40 x 2.0	9800
098V402020	35	40	40 x 40, R5	43	M20	36.5	40 x 40 x 2.0	9800
098V402508	35	40	40 x 40, R5	43		35.5	40 x 40 x 2.5	9800
098V402510	35	40	40 x 40, R5	43	M10	35.5	40 x 40 x 2.5	9800
098V402512	35	40	40 x 40, R5	43	M12	35.5	40 x 40 x 2.5	9800
098V402516	35	40	40 x 40, R5	43	M16	35.5	40 x 40 x 2.5	9800
098V402520	35	40	40 x 40, R5	43	M20	35.5	40 x 40 x 2.5	9800
098V403008	35	40	40 x 40, R5	43		34.5	40 x 40 x 3.0	9800
098V403010	35	40	40 x 40, R5	43	M10	34.5	40 x 40 x 3.0	9800
098V403012	35	40	40 x 40, R5	43	M12	34.5	40 x 40 x 3.0	9800
098V403014	35	40	40 x 40, R5	43	M14	34.5	40 x 40 x 3.0	9800
098V403016	35	40	40 x 40, R5	43	M16	34.5	40 x 40 x 3.0	9800
098V403020	35	40	40 x 40, R5	43	M20	34.5	40 x 40 x 3.0	9800
098V404008	35	40	40 x 40, R5	43		32.5	40 x 40 x 4.0	9800
098V404010	35	40	40 x 40, R5	43	M10	32.5	40 x 40 x 4.0	9800
098V404012	35	40	40 x 40, R5	43	M12	32.5	40 x 40 x 4.0	9800
098V404014	35	40	40 x 40, R5	43	M14	32.5	40 x 40 x 4.0	9800
098V404016	35	40	40 x 40, R5	43	M16	32.5	40 x 40 x 4.0	9800
098V404020	35	40	40 x 40, R5	43	M20	32.5	40 x 40 x 4.0	9800
