Threaded Bush for Square Tubes 50 x 50

Product information "Threaded Bush for Square Tubes 50 x 50"

Color:
Black

Delivery Countries:
Worldwide

Description:

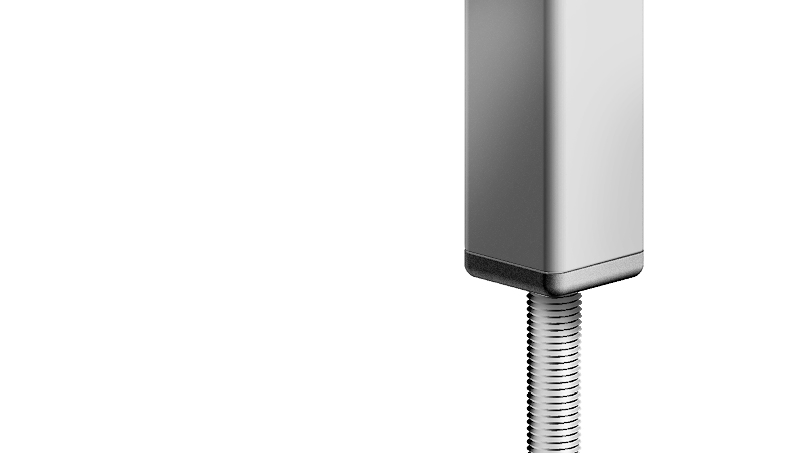

To fit leveling feet to square, non-threaded tubes

Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Pack Quantity:	10 pieces
Model:	Plastic PA, with brass threaded insert
Weight (g):	104.0
ERP Number:	105003

Global keywords / tags:

Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering

Variants

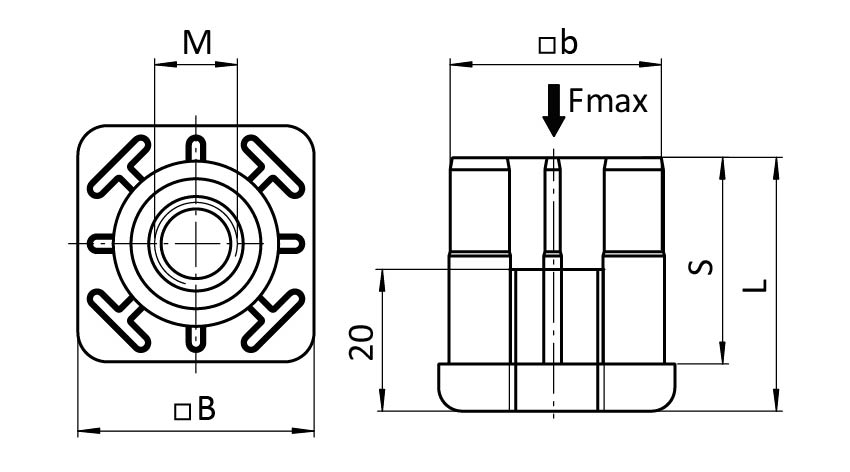

Part #	Fmax (N)	Version	B (mm)	L (mm)	M	S (mm)	b (mm)	Square Tube (mm)
098V501510	7840	50 x 50, R5	50	55	M10	44	47.5	50 x 50 x 1.5
098V501512	7840	50 x 50, R5	50	55	M12	44	47.5	50 x 50 x 1.5
098V501514	7840	50 x 50, R5	50	55	M14	44	47.5	50 x 50 x 1.5
098V501516	7840	50 x 50, R5	50	55	M16	44	47.5	50 x 50 x 1.5
098V501520	7840	50 x 50, R5	50	55	M20	44	47.5	50 x 50 x 1.5
098V502008	11770	50 x 50, R5	50	55	M8	44	46.5	50 x 50 x 2.0
098V502010	11770	50 x 50, R5	50	55	M10	44	46.5	50 x 50 x 2.0
098V502012	11770	50 x 50, R5	50	55	M12	44	46.5	50 x 50 x 2.0
098V502014	11770	50 x 50, R5	50	55	M14	44	46.5	50 x 50 x 2.0
098V502016	11770	50 x 50, R5	50	55	M16	44	46.5	50 x 50 x 2.0
098V502020	11770	50 x 50, R5	50	55	M20	44	46.5	50 x 50 x 2.0
098V502510	11770	50 x 50, R5	50	55	M10	44	45.5	50 x 50 x 2.5
098V502512	11770	50 x 50, R5	50	55	M12	44	45.5	50 x 50 x 2.5
098V502514	11770	50 x 50, R5	50	55	M14	44	45.5	50 x 50 x 2.5
098V502516	11770	50 x 50, R5	50	55	M16	44	45.5	50 x 50 x 2.5
098V502520	11770	50 x 50, R5	50	55	M20	44	45.5	50 x 50 x 2.5
098V503010	11770	50 x 50, R5	50	55	M10	44	44.5	50 x 50 x 3.0
098V503012	11770	50 x 50, R5	50	55	M12	44	44.5	50 x 50 x 3.0
098V503014	11770	50 x 50, R5	50	55	M14	44	44.5	50 x 50 x 3.0
098V503016	11770	50 x 50, R5	50	55	M16	44	44.5	50 x 50 x 3.0
098V503020	11770	50 x 50, R5	50	55	M20	44	44.5	50 x 50 x 3.0
098V504010	11770	50 x 50, R5	50	55	M10	44	42.5	50 x 50 x 4.0
098V504012	11770	50 x 50, R5	50	55	M12	44	42.5	50 x 50 x 4.0
098V504014	11770	50 x 50, R5	50	55	M14	44	42.5	50 x 50 x 4.0
098V504016	11770	50 x 50, R5	50	55	M16	44	42.5	50 x 50 x 4.0
098V504020	11770	50 x 50, R5	50	55	M20	44	42.5	50 x 50 x 4.0
