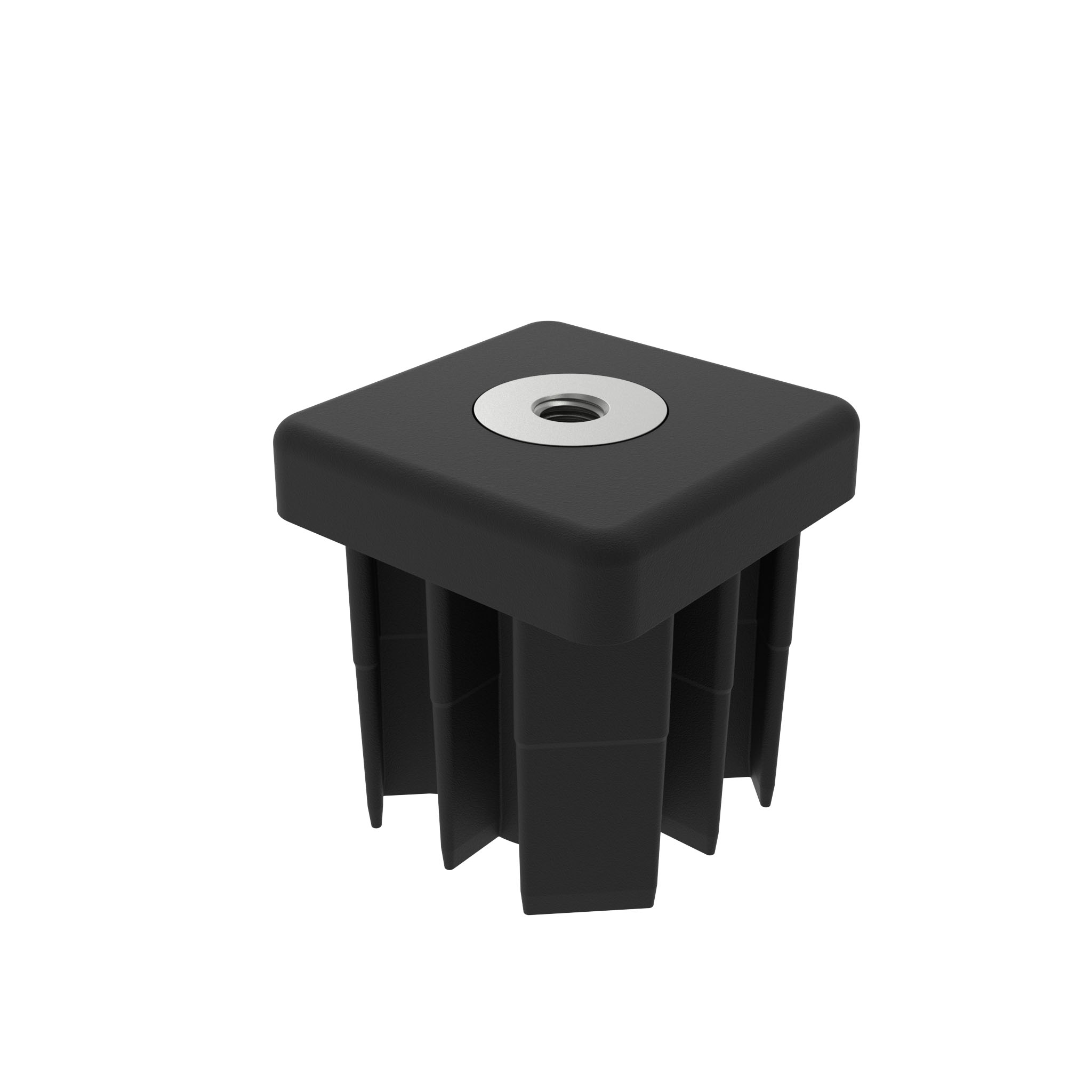

Threaded Bush for Square Tubes 50 x 50

Product information "Threaded Bush for Square Tubes 50 x 50"

Color:
Black

Delivery Countries:
Worldwide

Description:
To fit leveling feet to square, non-threaded tubes

Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass

Specials:
ESD electrostatical discharging, other sizes, other colors on request

(ECLASS 6.0):	23111190
(ECLASS 7.0):	23111190
(ECLASS 8.0):	23111190
(ECLASS 9.0):	23111190
(ECLASS 10.0):	23111190
(ECLASS 11.0):	23111190
(ECLASS 12.0):	23111190
(ECLASS 13.0):	23111190
Customs Tariff Number Export:	39269097
Model:	Plastic PA, with brass threaded insert
Pack Quantity:	10 pieces
Weight (g):	113.0
Zolltarifnummer:	39269097900
pA Number:	105007

Variants

Product ID	L (mm)	B (mm)	Version	S (mm)	M	Square Tube (mm)	b (mm)	Fmax (N)
098V501510	55	50	50 x 50, R5	44	M10	50 x 50 x 1.5	47.5	7840
098V501512	55	50	50 x 50, R5	44	M12	50 x 50 x 1.5	47.5	7840
098V501516	55	50	50 x 50, R5	44	M16	50 x 50 x 1.5	47.5	7840
098V501520	55	50	50 x 50, R5	44	M20	50 x 50 x 1.5	47.5	7840
098V502008	55	50	50 x 50, R5	44		50 x 50 x 2.0	46.5	11770
098V502010	55	50	50 x 50, R5	44	M10	50 x 50 x 2.0	46.5	11770
098V502012	55	50	50 x 50, R5	44	M12	50 x 50 x 2.0	46.5	11770
098V502014	55	50	50 x 50, R5	44	M14	50 x 50 x 2.0	46.5	11770
098V502016	55	50	50 x 50, R5	44	M16	50 x 50 x 2.0	46.5	11770
098V502020	55	50	50 x 50, R5	44	M20	50 x 50 x 2.0	46.5	11770
098V502510	55	50	50 x 50, R5	44	M10	50 x 50 x 2.5	45.5	11770
098V502512	55	50	50 x 50, R5	44	M12	50 x 50 x 2.5	45.5	11770
098V502514	55	50	50 x 50, R5	44	M14	50 x 50 x 2.5	45.5	11770
098V502516	55	50	50 x 50, R5	44	M16	50 x 50 x 2.5	45.5	11770
098V502520	55	50	50 x 50, R5	44	M20	50 x 50 x 2.5	45.5	11770
098V503010	55	50	50 x 50, R5	44	M10	50 x 50 x 3.0	44.5	11770
098V503012	55	50	50 x 50, R5	44	M12	50 x 50 x 3.0	44.5	11770
098V503014	55	50	50 x 50, R5	44	M14	50 x 50 x 3.0	44.5	11770
098V503016	55	50	50 x 50, R5	44	M16	50 x 50 x 3.0	44.5	11770
098V503020	55	50	50 x 50, R5	44	M20	50 x 50 x 3.0	44.5	11770
098V504010	55	50	50 x 50, R5	44	M10	50 x 50 x 4.0	42.5	11770
098V504012	55	50	50 x 50, R5	44	M12	50 x 50 x 4.0	42.5	11770
098V504016	55	50	50 x 50, R5	44	M16	50 x 50 x 4.0	42.5	11770
098V504020	55	50	50 x 50, R5	44	M20	50 x 50 x 4.0	42.5	11770
