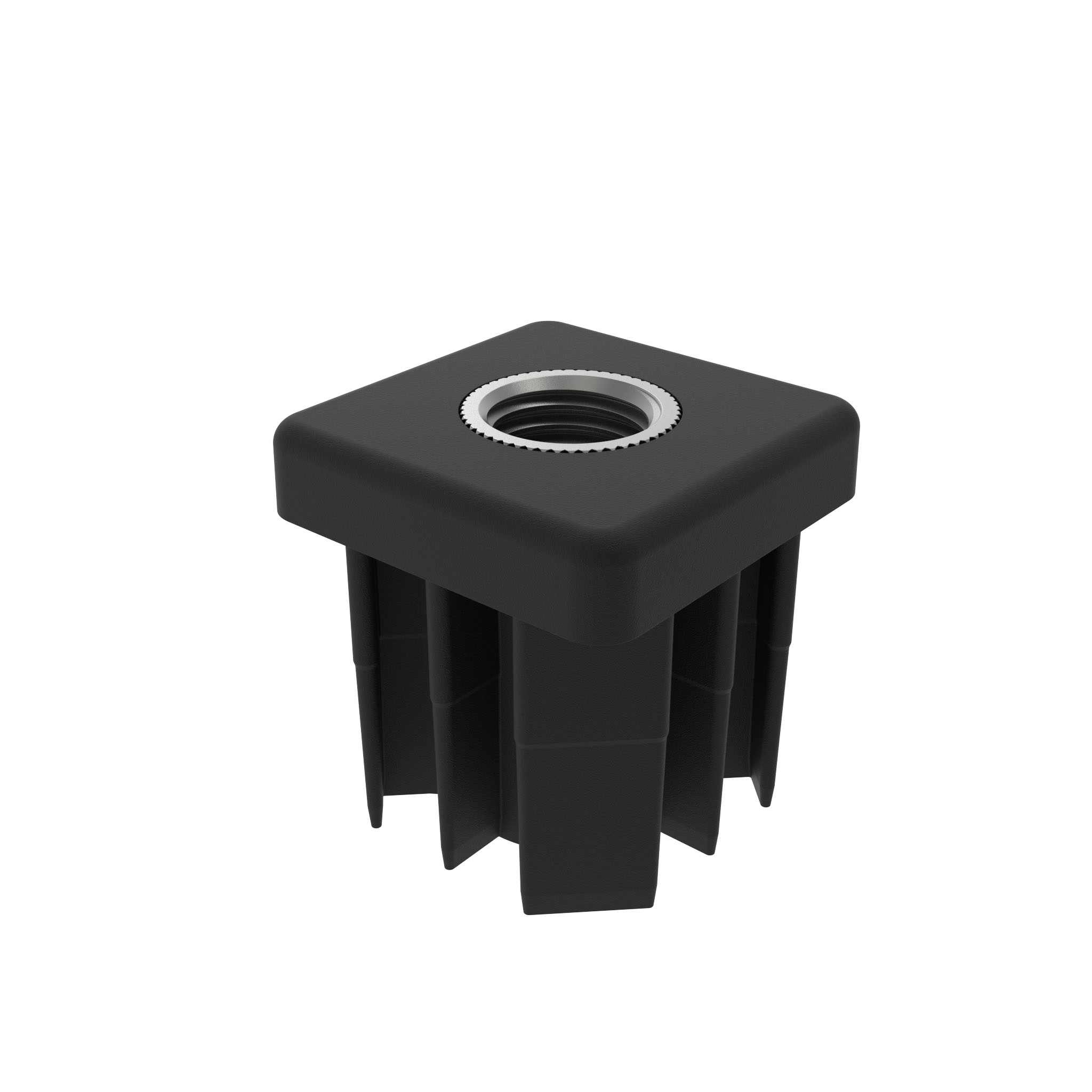

Threaded Bush for Square Tubes 50 x 50
Product number:
098V502020
Product information "Threaded Bush for Square Tubes 50 x 50"
Color:
Black
Delivery Countries:
Worldwide
Description:
To fit leveling feet to square, non-threaded tubes
Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass
Specials:
ESD electrostatical discharging, other sizes, other colors on request
Zolltarifnummer:
39269097900
Black
Delivery Countries:
Worldwide
Description:
To fit leveling feet to square, non-threaded tubes
Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass
Specials:
ESD electrostatical discharging, other sizes, other colors on request
Zolltarifnummer:
39269097900
(ECLASS 6.0): | 23111190 |
---|---|
(ECLASS 7.0): | 23111190 |
(ECLASS 8.0): | 23111190 |
(ECLASS 9.0): | 23111190 |
(ECLASS 10.0): | 23111190 |
(ECLASS 11.0): | 23111190 |
(ECLASS 12.0): | 23111190 |
(ECLASS 13.0): | 23111190 |
Model: | Plastic PA, with brass threaded insert |
Pack Quantity: | 10 pieces |
Weight (g): | 101.0 |
Variants
Product ID | L (mm) | B (mm) | Version | S (mm) | M | Square Tube (mm) | b (mm) | Fmax (N) |
---|---|---|---|---|---|---|---|---|
098V501510 | 55 | 50 | 50 x 50, R5 | 44 | M10 | 50 x 50 x 1.5 | 47.5 | 7840 |
098V501512 | 55 | 50 | 50 x 50, R5 | 44 | M12 | 50 x 50 x 1.5 | 47.5 | 7840 |
098V501516 | 55 | 50 | 50 x 50, R5 | 44 | M16 | 50 x 50 x 1.5 | 47.5 | 7840 |
098V501520 | 55 | 50 | 50 x 50, R5 | 44 | M20 | 50 x 50 x 1.5 | 47.5 | 7840 |
098V502008 | 55 | 50 | 50 x 50, R5 | 44 | 50 x 50 x 2.0 | 46.5 | 11770 | |
098V502010 | 55 | 50 | 50 x 50, R5 | 44 | M10 | 50 x 50 x 2.0 | 46.5 | 11770 |
098V502012 | 55 | 50 | 50 x 50, R5 | 44 | M12 | 50 x 50 x 2.0 | 46.5 | 11770 |
098V502014 | 55 | 50 | 50 x 50, R5 | 44 | M14 | 50 x 50 x 2.0 | 46.5 | 11770 |
098V502016 | 55 | 50 | 50 x 50, R5 | 44 | M16 | 50 x 50 x 2.0 | 46.5 | 11770 |
098V502020 | 55 | 50 | 50 x 50, R5 | 44 | M20 | 50 x 50 x 2.0 | 46.5 | 11770 |
098V502510 | 55 | 50 | 50 x 50, R5 | 44 | M10 | 50 x 50 x 2.5 | 45.5 | 11770 |
098V502512 | 55 | 50 | 50 x 50, R5 | 44 | M12 | 50 x 50 x 2.5 | 45.5 | 11770 |
098V502514 | 55 | 50 | 50 x 50, R5 | 44 | M14 | 50 x 50 x 2.5 | 45.5 | 11770 |
098V502516 | 55 | 50 | 50 x 50, R5 | 44 | M16 | 50 x 50 x 2.5 | 45.5 | 11770 |
098V502520 | 55 | 50 | 50 x 50, R5 | 44 | M20 | 50 x 50 x 2.5 | 45.5 | 11770 |
098V503010 | 55 | 50 | 50 x 50, R5 | 44 | M10 | 50 x 50 x 3.0 | 44.5 | 11770 |
098V503012 | 55 | 50 | 50 x 50, R5 | 44 | M12 | 50 x 50 x 3.0 | 44.5 | 11770 |
098V503014 | 55 | 50 | 50 x 50, R5 | 44 | M14 | 50 x 50 x 3.0 | 44.5 | 11770 |
098V503016 | 55 | 50 | 50 x 50, R5 | 44 | M16 | 50 x 50 x 3.0 | 44.5 | 11770 |
098V503020 | 55 | 50 | 50 x 50, R5 | 44 | M20 | 50 x 50 x 3.0 | 44.5 | 11770 |
098V504010 | 55 | 50 | 50 x 50, R5 | 44 | M10 | 50 x 50 x 4.0 | 42.5 | 11770 |
098V504012 | 55 | 50 | 50 x 50, R5 | 44 | M12 | 50 x 50 x 4.0 | 42.5 | 11770 |
098V504016 | 55 | 50 | 50 x 50, R5 | 44 | M16 | 50 x 50 x 4.0 | 42.5 | 11770 |
098V504020 | 55 | 50 | 50 x 50, R5 | 44 | M20 | 50 x 50 x 4.0 | 42.5 | 11770 |
