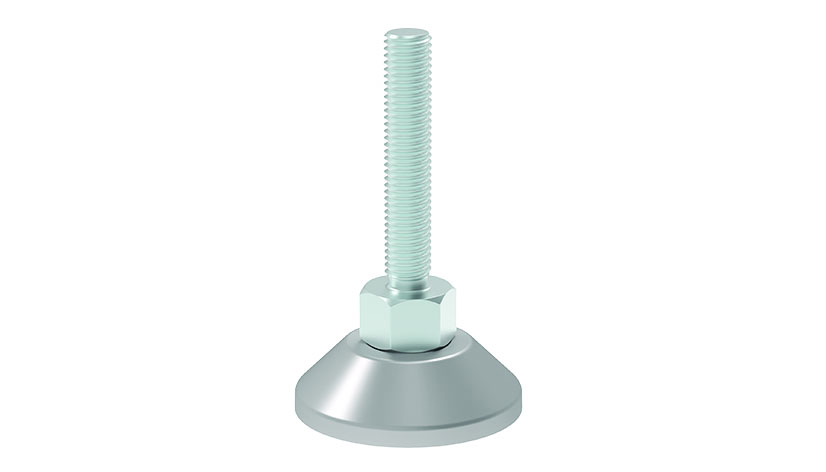

Trapezoid Base for Pivot Feet, Gray

Product information "Trapezoid Base for Pivot Feet, Gray"

Color:
White aluminum ≈ RAL 9006

Delivery Countries:
Worldwide

Description:
A leveling foot for strong positioning on slightly uneven floors

Material:
Zinc die-cast

Specials:
Other sizes, glued anti-slip plate on request;
As factory assembled leveling foot on request

Surface:
Powder coated

Tip:
Compatible Threaded Rod see 098AM12066M,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-Slip Plate 098AG050
Customs Tariff Number Export: 79070000
Model: Zinc die-cast
Pack Quantity: 10 pieces
Weight (g): 201.3
Zolltarifnummer: 79070000900
pA Number: 150129

Variants

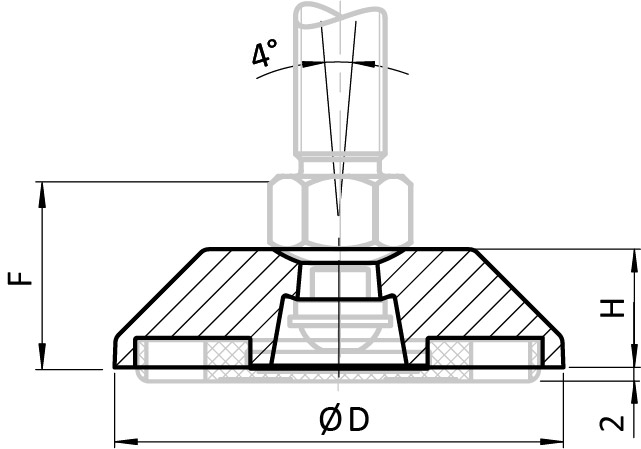

Product ID F (mm) Base Fmax (N) D (mm) H (mm)
098AI060ZA 31.0 60 24500 59 18
098AI080ZA 33.0 80 29400 76 20
