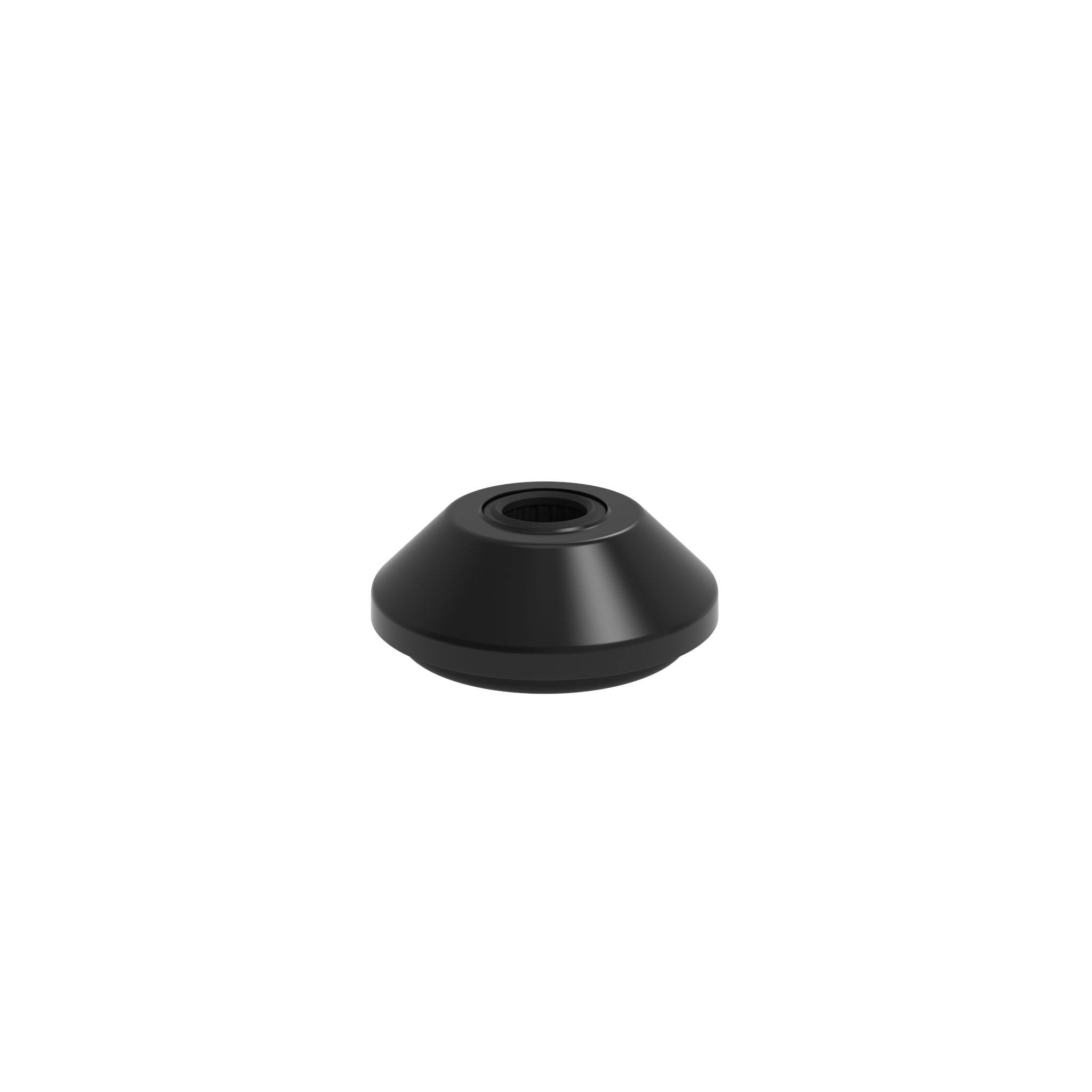

Trapezoid Base for Swivel Feet Ball Joint 15
Product number:
098DI060ZSG
Product information "Trapezoid Base for Swivel Feet Ball Joint 15"
Color:
Black
Delivery Countries:
Worldwide
Description:
A swiveling leveling foot for strong positioning on uneven floors
Material:
Zinc die-cast
Specials:
Other surfaces, other sizes, other colors, screwed or glued anti-slip plate on request;
As factory assembled leveling foot on request
Surface:
Powder coated
Tip:
Compatible Threaded Rod see 098DM08025M et sq.,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-slip Plate see 098DG030 f.,
Compatible Floor Mounting see 098BI060ZS
Zolltarifnummer:
79070000900
Black
Delivery Countries:
Worldwide
Description:
A swiveling leveling foot for strong positioning on uneven floors
Material:
Zinc die-cast
Specials:
Other surfaces, other sizes, other colors, screwed or glued anti-slip plate on request;
As factory assembled leveling foot on request
Surface:
Powder coated
Tip:
Compatible Threaded Rod see 098DM08025M et sq.,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-slip Plate see 098DG030 f.,
Compatible Floor Mounting see 098BI060ZS
Zolltarifnummer:
79070000900
Model: | Zinc die-cast |
---|---|
Pack Quantity: | 10 pieces |
Pack Quantity (1): | 10 |
Weight (g): | 110.0 |
Variants
Product ID | F3 (mm) | F2 (mm) | Version | F1 (mm) | Base | Fmax (N) | D (mm) | H (mm) |
---|---|---|---|---|---|---|---|---|
098DI060ZS | 33.5 | 32.5 | without anti-slip plate | 29.5 | 60 | 24500 | 59 | 18 |
098DI060ZSG | 33.5 | 32.5 | with anti-slip plate | 29.5 | 60 | 24500 | 59 | 18 |
098DI080ZS | 33.5 | 32.5 | without anti-slip plate | 29.5 | 80 | 29400 | 76 | 20 |
098DI080ZSG | 33.5 | 32.5 | with anti-slip plate | 29.5 | 80 | 29400 | 76 | 20 |
