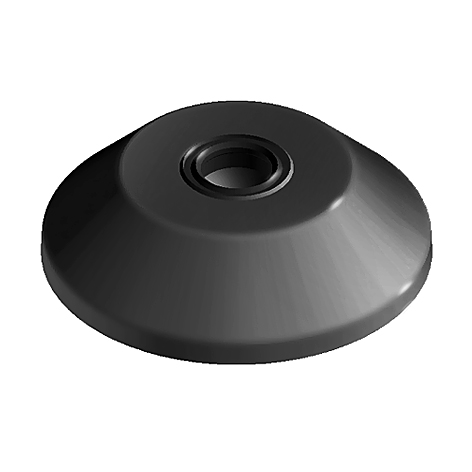

Trapezoid Base for Swivel Feet Ball Joint 15

Product information "Trapezoid Base for Swivel Feet Ball Joint 15"

Color:
Black

Delivery Countries:
Worldwide

Description:

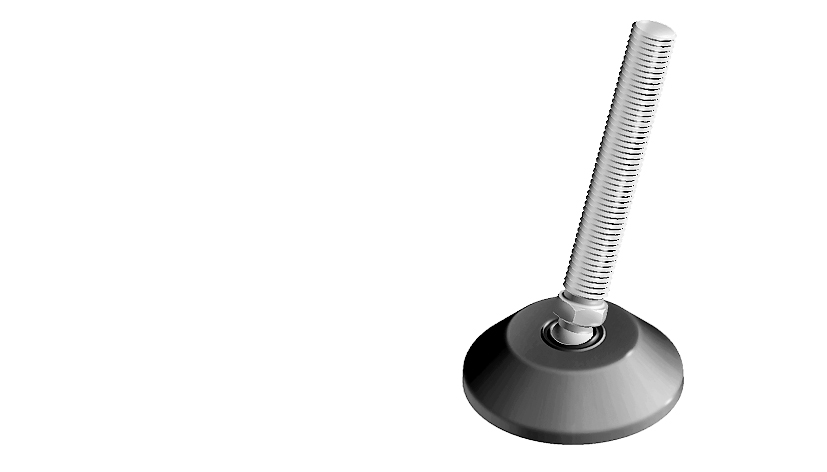

A swiveling leveling foot for strong positioning on uneven floors

Material:
Zinc die-cast

Specials:
Other surfaces, other sizes, other colors, screwed or glued anti-slip plate on request;
As factory assembled leveling foot on request

Surface:
Powder coated

Tip:
Compatible Threaded Rod see 098DM08025M et sq.,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-slip Plate see 098DG030 f.,
Compatible Floor Mounting see 098BI060ZS
Customs Tariff Number Export: 79070000
Model: Zinc die-cast
Pack Quantity: 10 pieces
Pack Quantity (1): 1
Weight (g): 109.0
Zolltarifnummer: 79070000900
pA Number: 104066

Variants

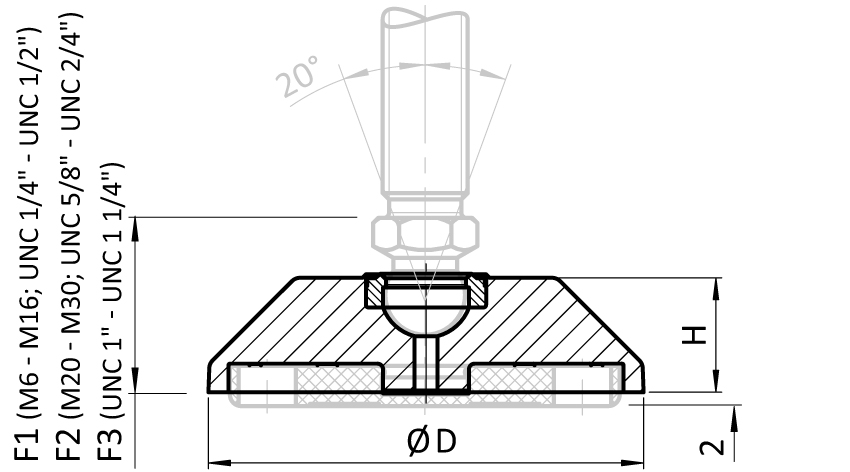

Product ID F3 (mm) F2 (mm) Version F1 (mm) Base Fmax (N) D (mm) H (mm)
098DI060ZS 33.5 32.5 without anti-slip plate 29.5 60 24500 59 18
098DI060ZSG 33.5 32.5 with anti-slip plate 29.5 60 24500 59 18

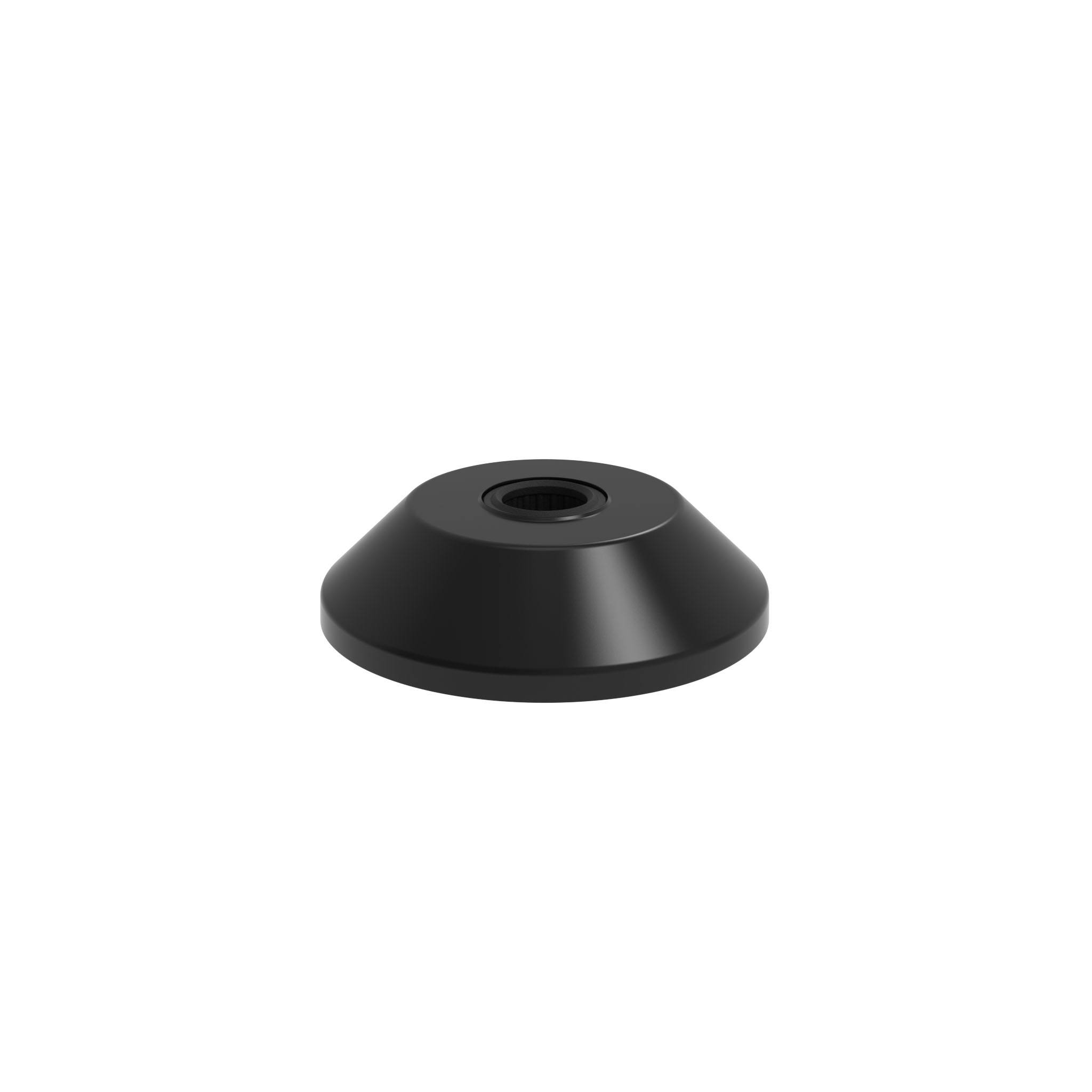

098DI080ZS 33.5 32.5 without anti-slip plate 29.5 80 29400 76 20
098DI080ZSG 33.5 32.5 with anti-slip plate 29.5 80 29400 76 20
