Flowsort® Diverters

Rethinking intralogistics

Flowsort's product portfolio consists of standardized sorting modules. With just three different modules, many different applications can be covered - with one basic system. All Flowsort sorting modules are harmonized with all other intralogistics systems and technologies. They are easy to install, both in terms of hardware and software connection.

Thanks to the modular design, the sorting capacity and layout can be adapted to current requirements at any time. This high degree of scalability offers a completely new level of flexibility. Retrofitting existing intralogistics systems is also easy with Flowsort. And all this in a fresh and modern design!

ENRICH YOUR WORKING LIFE!

Flowsort sorting systems - modular, simple, scalable

modular - innovative standard modules for maximum flexibility
simple + fast - simple integration into conveyor systems saves planning and installation time
scalable - low initial investment and scalability at any time
reliable - fast quotation preparation and reliable price confirmation
high quality - developed and manufactured in the Netherlands

Challenge us!

Do you have any questions about intralogistics or the Flowsort sorting modules?

Then get in touch with us. We will be happy to help you and find your individual solution together;

Modularity

The standardized Flowsort sorting modules can be combined as required and can be integrated into driven and non-driven conveyor systems with a width of 400 to 1050 mm.

Automatische Sortiersysteme

Scalability

The sorting systems can be easily expanded at any time. Users can start with a precisely fitting and not oversized sorting system.

Simple planning

Planning intralogistics systems with Flowsort sorting modules is much easier and faster than with conventional sorting systems thanks to standardization and modularization.

Plug & Play

Flowsort sorting modules can be installed in all conveyor systems, such as roller conveyors and belt conveyors, and integrate seamlessly into the overall system. The modules are connected directly to the PLC of the existing intralogistics systems via the Function Blocks software supplied.

Retrofit

With Flowsort sorting modules, automatic sorting systems can be easily retrofitted to existing conveyor systems.

Flowsort - The advantages

Great time saving

Thanks to standardization, the planning effort is significantly lower than with individually designed and integrated sorting systems. Installation and software connection also require a minimum of time.

High solution flexibility

All product outfeeds can be infinitely adjusted from -90° to + 90°. Numerous requirements can be covered with just one system and all layout wishes can be realized.

Simple system integration

The Flowsort sorting modules are supplied with software function blocks. With these software function blocks, connection to all common PLC systems is possible without any problems and can be implemented quickly.

Any size

Flowsort grows with you: Thanks to its modularity and high scalability, even small sorting systems can be built quickly and professionally. The system can be expanded at any time as required. Users are ideally equipped for growth.

100% reliable quotation preparation

The standardization of the modules enables a simple, clear and transparent quotation calculation - within a short time.

With Flowsort in their portfolio, intralogistics system integrators and conveyor system manufacturers offer their customers an innovative technology - highly efficient sorting systems. Modular, simple, scalable.

Users benefit from this

Low initial investment

Thanks to the modular design, users only need to invest in the system size they currently need. This ensures a high level of investment security, as the sorting system can be adapted to the growing business volume at any time by simply adding further sorting modules. Less capital tied up instead of oversized sorting systems!

Wide range of applications

An intralogistics system equipped with Flowsort sorting modules can transport various types of sorted goods - containers, cartons, envelopes, etc. weighing between 50 grams and 35 kilograms.

Space saving

Flowsort sorting systems require far less floor space compared to other sorting systems or intralogistics systems - an enormous advantage given rising rents and space costs. Space efficiency is particularly relevant for end users who are increasingly relocating their warehouse and distribution centers to urbanized areas.

Energy efficiency

Thanks to operation with 24V motors, the energy consumption of the Flowsort sorting modules is very low. This enables electricity savings and benefits the environment;

High availability

The Flowsort sorting modules - designed and manufactured in the Netherlands - are very robust and ensure reliable operation of the automatic sorting system;

No downtime

If necessary, spare parts can be replaced from above in a few simple steps without removing the entire module;

Occupational safety

The motors' low operating voltage of just 24V protects employees - a contribution to occupational safety.

Flowsort sorting modules: 3 types of standard modules - maximum flexibility

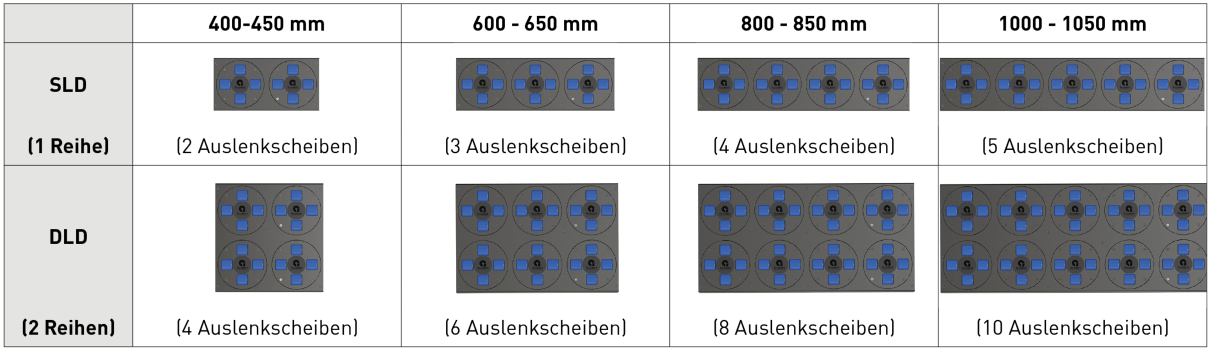

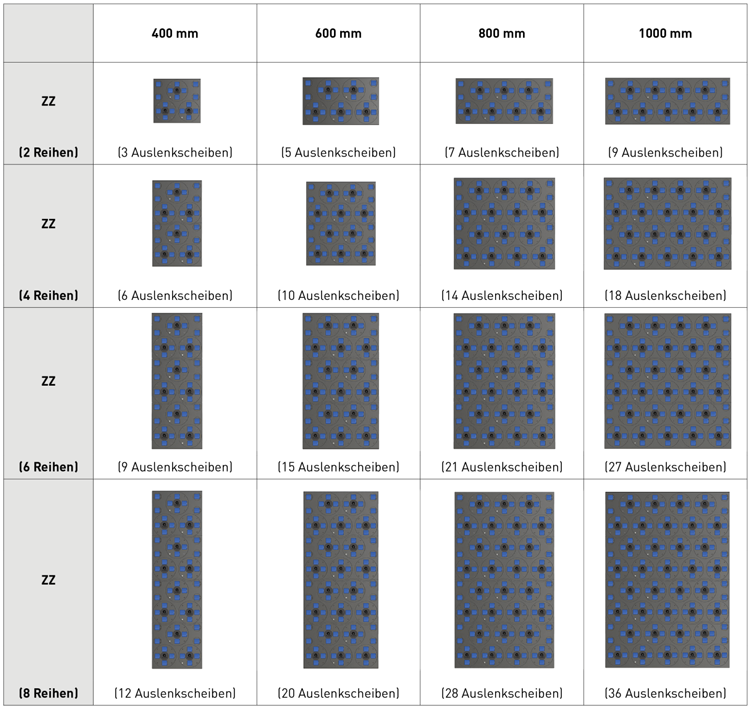

SLD / DLD / ZZ Diverter: Flowsort sorting modules can be integrated into driven and non-driven conveyor systems with a width of 400 to 1050 mm. All types are available in 400mm / 600mm / 800mm / 1000mm widths. The width can be adjusted by 50mm if required.

All modules can be combined with each other via Plug & Play.

SLD Diverter

DLD Diverter

ZZ Diverter

Flowsort Sortiermodule

Would you like more information about the Flowsort sorting systems?

Then download the technical data sheet here

Download now

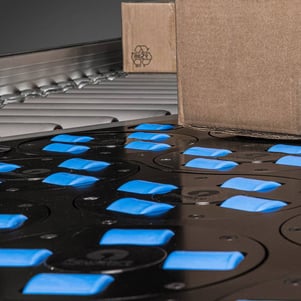

The included software function blocks enable the sorting modules to be easily connected to all common PLCs. Blue plastic rollers ensure feed and optimum grip when sorting boxes, parcels and envelopes weighing between 50 grams and 35 kilograms.

Four rollers are arranged in a turntable that can rotate between -90° and +90° within 0.3 seconds. This enables sorting capacities of up to 6,000 PPH to be achieved. Each row can be controlled separately.

They are driven by energy-efficient 24V motors - a contribution to reducing the consumption of resources.

Flowsort sorting modules are designed to be low-maintenance to ensure maximum availability. For maintenance work, the turntable can be removed from above in a few simple steps.

Flowsort in Action

ISITEC INTERNATIONAL HQ

Why did you choose Flowsort?

We were looking for a modular sorting solution with an easy-to-set-up infrastructure that could process goods up to 30 kg and 800 mm wide at a throughput of over 3600 pph. We chose Flowsort because the modular structure is ready for integration and offers interesting possibilities - at a reasonable budget.

What do you like best about the Flowsort sorting systems?

The plug & play nature of the Flowsort modules, both during installation and maintenance. The intelligent, economical design with good possibilities. And because Flowsort works with control cards that we already use for other applications.

ALTIALL INC.

All-rounder. Literally.
It looks as if the Flowsort sorting modules fit into the picking system as perfectly as pieces of a puzzle.

FLEXITECHS APS

Flowsort partner Flexitechs ApS has integrated the DLD modules into a sorting system that sorts by barcode.

The Flowsort Diverters are modular and flexible in terms of integration - into any common conveyor system.
Intralogistics systems with Flowsort modules can be reconfigured and adapted with minimal effort.
Perfect for system integration partners to respond to the needs and requirements of their customers.

Flowsort – A Modular Revolution In Intralogistics

Flowsort is one of the "Top 10 Warehouse Automation Solutions Providers", according to Logistics Tech Outlook Europe.

In the cover story, Till Zupancic and Eric Willems explain the idea, the technology and the benefits of Flowsort - and why FATH and Flowsort are a good combination.

A recent case study illustrates the story: read how Dutch system integrator TBWB integrated the Flowsort system at trans-o-flex - the German specialist for pan-European logistics solutions for high-value and sensitive goods.

flowsort-cover-story

Download STEP file example for DLD Diverter

Are you interested in further step files? Then send us a message using the form.

Download the step file here
