Automatic Connector Steel

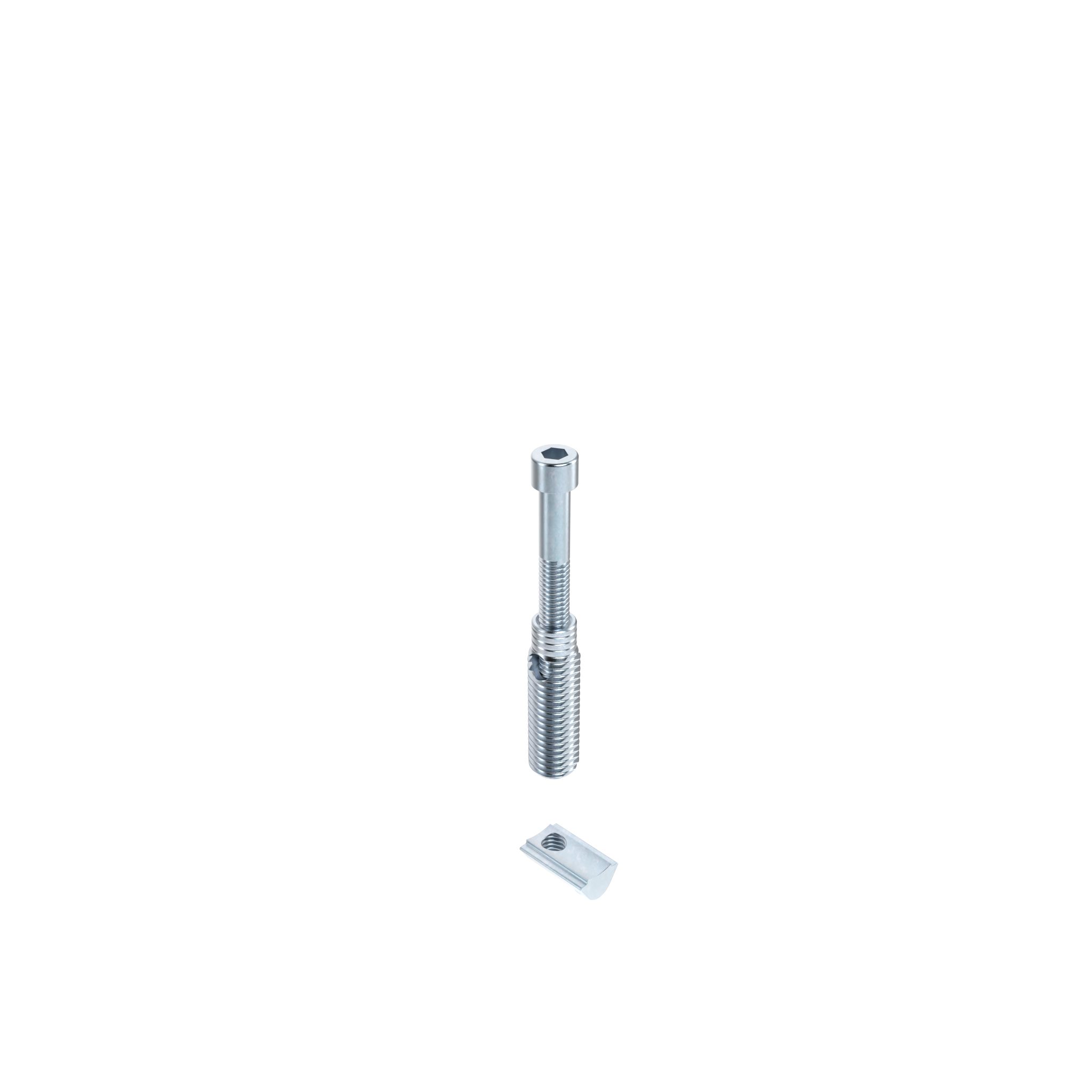

Product information "Automatic Connector Steel"

Delivery Countries:
Worldwide

Description:
To connect two aluminum profiles fast and solid, assembly without machining; self-cutting thread

Material:
Steel

Surface:
Zinc plated

Tip:
* Compatible Cover Cap see 099GA081K

Tip 2:
** Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nut

(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
Customs Tariff Number Export:	73181900
Model:	Steel
Pack Quantity:	10 / 100 pieces
Pack Quantity (1):	100
Pack Quantity (Stück):	100
Weight (g):	8.0
Zolltarifnummer:	73181900900
pA Number:	128815

Variants

Product ID	Version	L (mm)	Profile	SW 2	Screw	D (mm)	SW 1	Slot N (mm)	Profile Width
099G051	With assembly set, incl. screw and T-slot nut **	24.0	I	4	M4 x 30	7.0	3	5	20
099G061	With assembly set, incl. screw and T-slot nut **	27.0	I	5	M5 x 35	10.0	4	6	30
099G081	With assembly set, incl. screw and T-slot nut **	31.0	I	6	M6 x 40	12.0	5	8	40
099G084	With assembly set, incl. screw and T-slot nut **	24.0	B	5	M5 x 30	10.7	4	8	30
099G086	With assembly set, incl. screw and T-slot nut **	35.0			M6 x 45	14.4	5	8	45
099G102	With assembly set, incl. screw and T-slot nut **	35.0	B	6	M6 x 45	12.0	5	10	40, 45
099G103	With assembly set, incl. screw and T-slot nut **	35.0	B	6	M6 x 45	13.0	5	10	45
099G121	With assembly set, incl. screw and T-slot nut **	47.0	I	8	M8 x 60	18.0	6	12	60
099GS051		24.0	I	4		7.0		5	20
099GS061		27.0	I	5		10.0		6	30
099GS081		31.0	I	6		12.0		8	40
099GS084		24.0	B	5		10.7		8	30
099GS086		35.0		6		14.4		8	45
099GS102		35.0	B	6		12.0		10	40, 45
099GS103		35.0	B	6		13.0		10	45
099GS121		47.0	I	8		18.0		12	60
