Automatic Connector Steel

Description:
To connect two aluminum profiles fast and solid, assembly without machining; self-cutting thread

Material:
Steel

Surface:
Zinc plated

Tip:

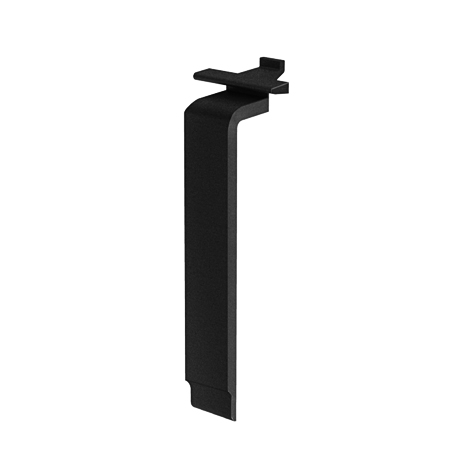

*Compatible Cover Cap see 099GA081K

Tip 2:
** Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nut
*** Automatic connector with assembly set incl. screw and T-slot nut short

Delivery Countries:
Worldwide

Pack Quantity:	100 pieces
Model:	Steel
Weight (g):	13.0
ERP Number:	105323

Variants

Part #	D (mm)	Version	Profile	L (mm)	Slot N (mm)	Modular Dimension (mm)	Profile Width	SW 1	SW 2	Tip	Screw	Pack Quantity
099GS051	7.0	Cutting sleeve	I	24.0	5	20	20	-	4	-	-	100 pieces
099GS061	10.0	Cutting sleeve	I	27.0	6	30	30	-	5	-	-	100 pieces
099GS084	10.7	Cutting sleeve	B	24.0	8	30	30	-	5	-	-	100 pieces

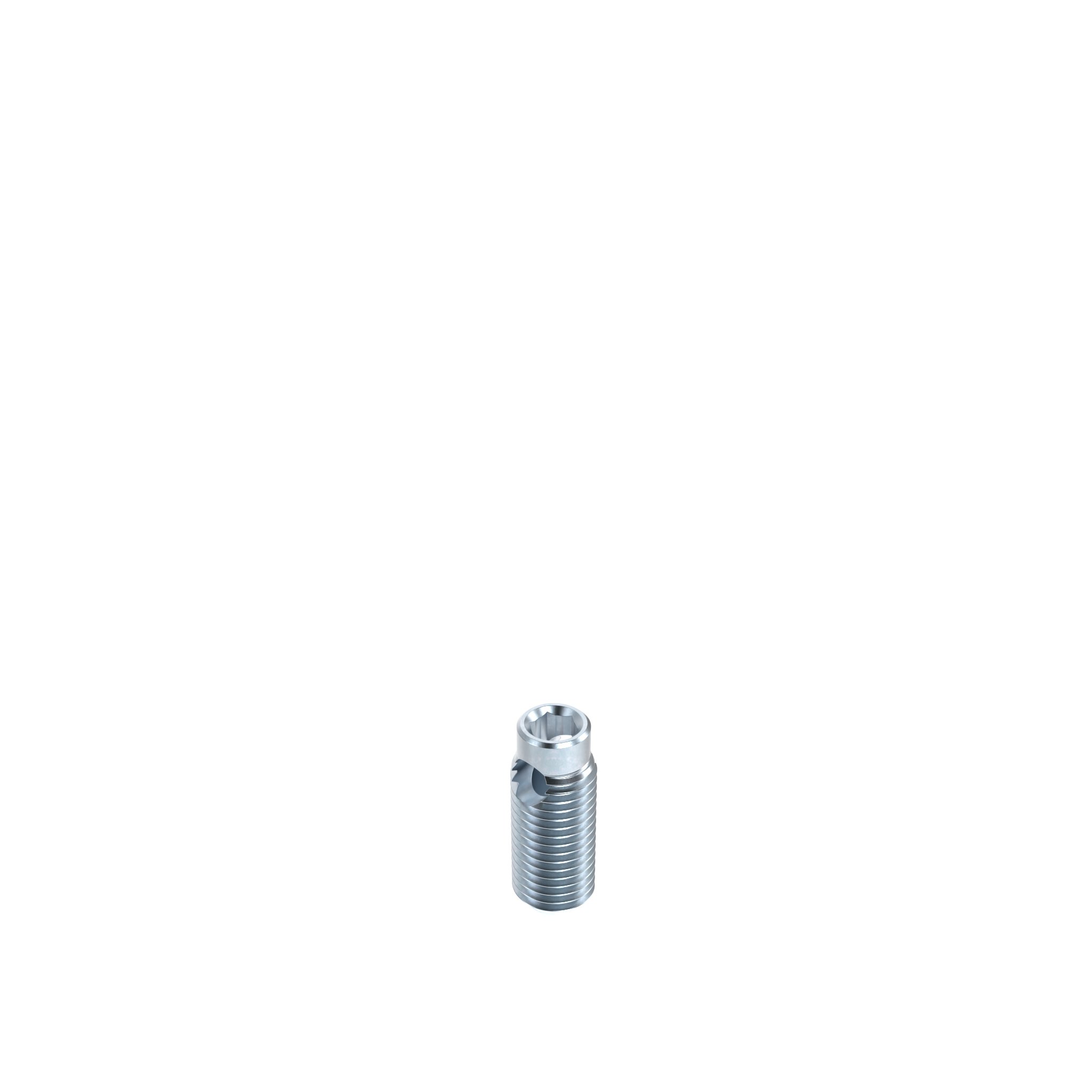

099GS081	12.0	Cutting sleeve	I	31.0	8	40	40	-	6	*	-	100 pieces
099GS086	14.4	Cutting sleeve	-	35.0	8	-	45	-	6	-	-	100 pieces
099GS102	12.0	Cutting sleeve	B	35.0	10	40L, 45	40, 45	-	6	-	-	100 pieces
099GS103	13.0	Cutting sleeve	B	35.0	10	45L	45	-	6	-	-	100 pieces
099GS121	18.0	Cutting sleeve	I	47.0	12	60	60	-	8	-	-	10 pieces
099G051	7.0	With assembly set, incl. screw and T-slot nut	I	24.0	5	20	20	3	4	-	M4 x 30	100 pieces
099G061	10.0	With assembly set, incl. screw and T-slot nut	I	27.0	6	30	30	4	5	-	M5 x 35	100 pieces
099G084	10.7	With assembly set, incl. screw and T-slot nut	B	24.0	8	30	30	4	5	**	M5 x 30	100 pieces
099G081	12.0	With assembly set, incl. screw and T-slot nut	I	31.0	8	40	40	5	6	*	M6 x 40	100 pieces
099G086	14.4	With assembly set, incl. screw and T-slot nut	-	35.0	8	-	45	5	-	-	M6 x 45	100 pieces
099G102	12.0	With assembly set, incl. screw and T-slot nut	B	35.0	10	40L, 45	40, 45	5	6	**	M6 x 45	100 pieces
099G103	13.0	With assembly set, incl. screw and T-slot nut	B	35.0	10	45L	45	5	6	**	M6 x 45	100 pieces
099G121	18.0	With assembly set, incl. screw and T-slot nut	I	47.0	12	60	60	6	8	-	M8 x 60	10 pieces
099G081S10 New	12.0	With assembly set, incl. screw and T-slot nut	I	31.0	8	-	40	5	6	***	M6 x 40	100 pieces

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 73181900900
Customs Tariff Number Export: 73181900

Certificates

Profile Type	Profile Type I
Slot Size	Slot size 8
Modular Dimension	Modular Dimension 40
Profile Form	T-slot Profiles
Application Area	Industrial Work Stations
