Automatic Connector Steel

Product information "Automatic Connector Steel"

Delivery Countries:
Worldwide

Description:

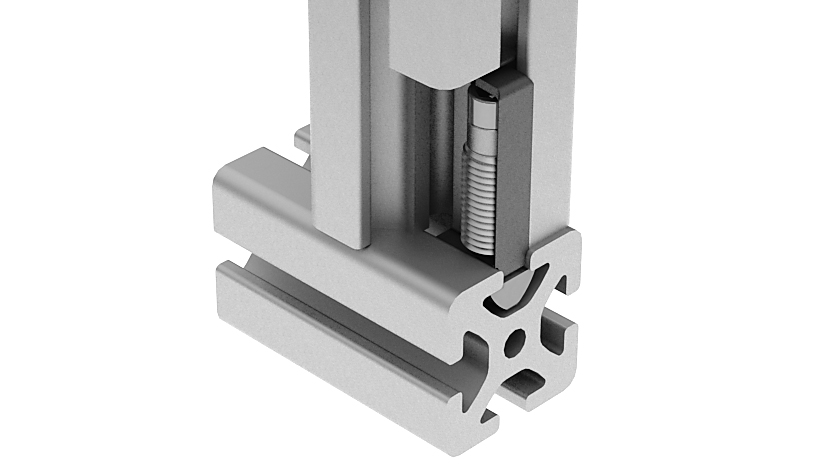

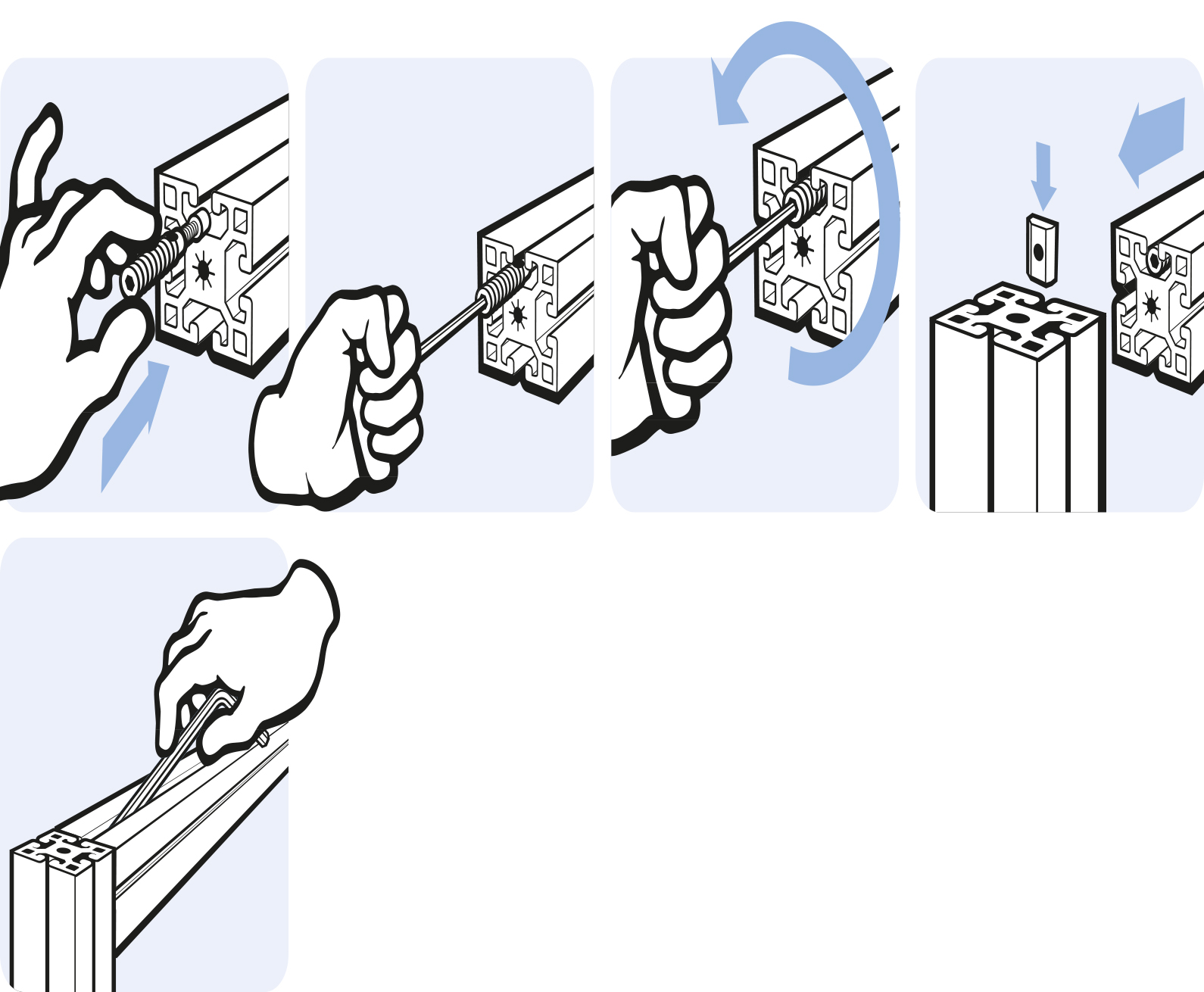

To connect two aluminum profiles fast and solid, assembly without machining; self-cutting thread

Material:
Steel

Surface:
Zinc plated

Tip:
*Compatible Cover Cap see 099GA081K

Tip 2:

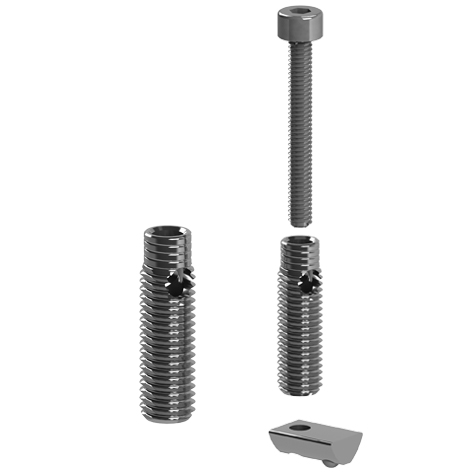

** Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nut
*** Automatic connector with assembly set incl. screw and T-slot nut short

Model:	Steel
Pack Quantity:	V_100 pieces Stück
Customs Tariff Number Export:	73181900
Weight (g):	30.9
ERP Number:	201884
GTIN-EAN:	4066061098673
Zolltarifnummer:	73181900900

Variants

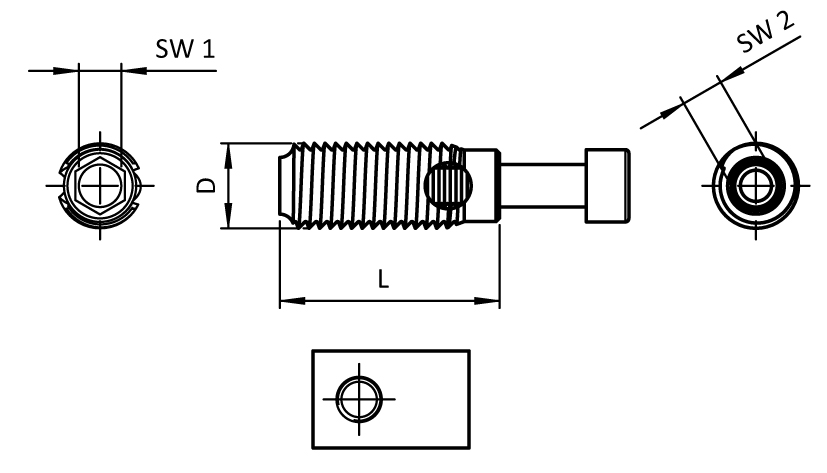

Part #	Version	D (mm)	L (mm)	Screw	Slot N (mm)	SW 1	SW 2	Profile	Profile Width
099G051	With assembly set, incl. screw and T-slot nut **	7.0	24.0	M4 x 30	5	3	4	I	20
099G061	With assembly set, incl. screw and T-slot nut **	10.0	27.0	M5 x 35	6	4	5	I	30
099G081	With assembly set, incl. screw and T-slot nut **	12.0	31.0	M6 x 40	8	5	6	I	40
099G081S10	With assembly set, incl. screw and T-slot nut **	12.0	31.0	M6 x 40	8	5	6	I	40
099G084	With assembly set, incl. screw and T-slot nut **	10.7	24.0	M5 x 30	8	4	5	B	30
099G086	With assembly set, incl. screw and T-slot nut **	14.4	35.0	M6 x 45	8	5	-	-	45
099G102	With assembly set, incl. screw and T-slot nut **	12.0	35.0	M6 x 45	10	5	6	B	40, 45
099G103	With assembly set, incl. screw and T-slot nut **	13.0	35.0	M6 x 45	10	5	6	B	45
099G121	With assembly set, incl. screw and T-slot nut **	18.0	47.0	M8 x 60	12	6	8	I	60
099GS051	Cutting sleeve	7.0	24.0	-	5	-	4	I	20
099GS061	Cutting sleeve	10.0	27.0	-	6	-	5	I	30
099GS081	Cutting sleeve	12.0	31.0	-	8	-	6	I	40
099GS084	Cutting sleeve	10.7	24.0	-	8	-	5	B	30
099GS086	Cutting sleeve	14.4	35.0	-	8	-	6	-	45
099GS102	Cutting sleeve	12.0	35.0	-	10	-	6	B	40, 45
099GS103	Cutting sleeve	13.0	35.0	-	10	-	6	B	45
099GS121	Cutting sleeve	18.0	47.0	-	12	-	8	I	60
