Automatic Connector Steel

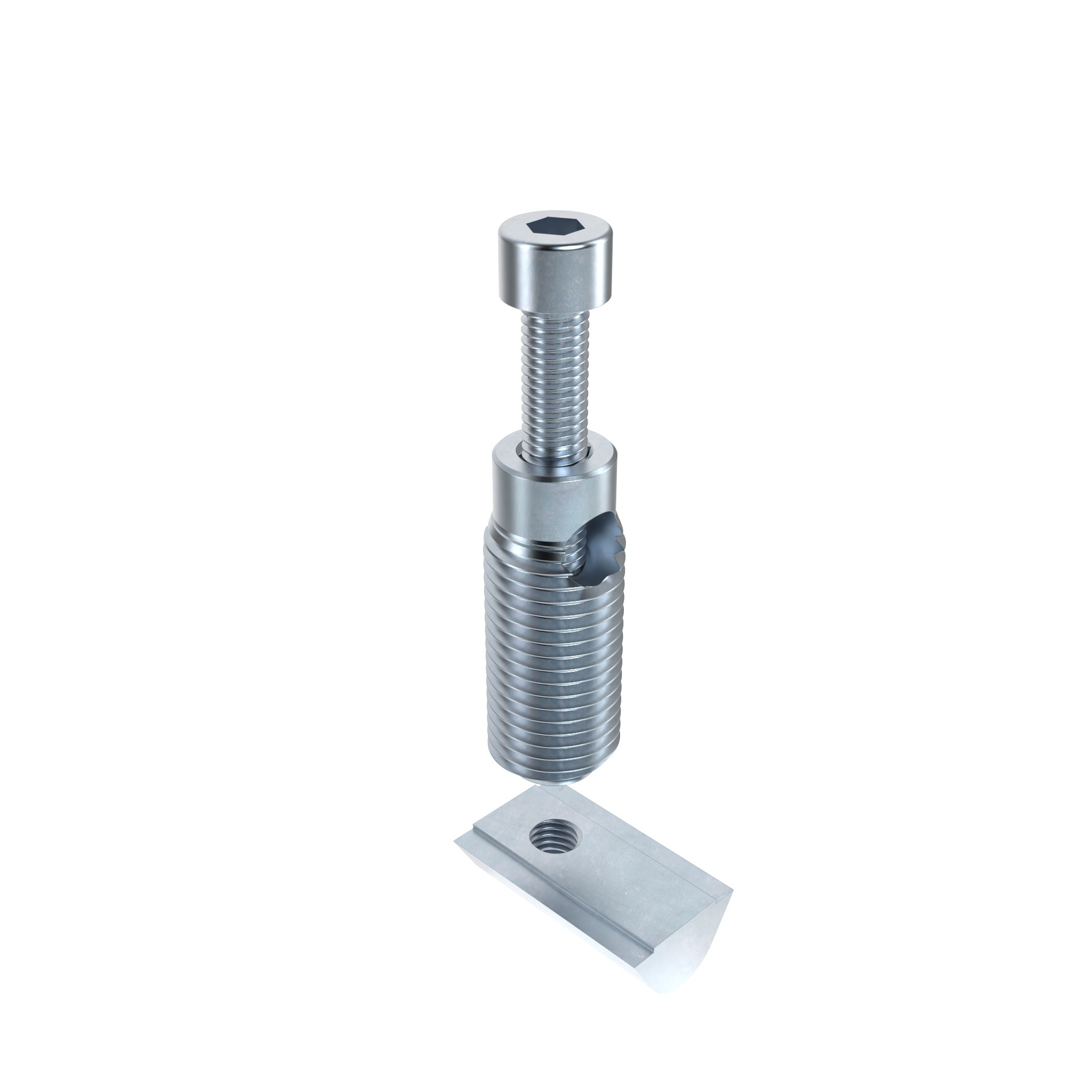

Product information "Automatic Connector Steel"

Delivery Countries:
Worldwide

Description:
To connect two aluminum profiles fast and solid, assembly without machining; self-cutting thread

Material:
Steel

Surface:
Zinc plated

Tip:
*Compatible Cover Cap see 099GA081K

Tip 2:
** Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nut

Model:	Steel
Pack Quantity:	10 pieces
Customs Tariff Number Export:	73181900
Weight (g):	150.0
(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
ERP Number:	136027
Zolltarifnummer:	73181900900

Variants

Part #	Version	D (mm)	L (mm)	Screw	Slot N (mm)	SW 1	SW 2	Profile	Profile Width	Pack Quantity
099G051	With assembly set, incl. screw and T-slot nut**	7.0	24.0	M4 x 30	5	3	4	I	20	100 pieces
099G061	With assembly set, incl. screw and T-slot nut**	10.0	27.0	M5 x 35	6	4	5	I	30	100 pieces
099G081	With assembly set, incl. screw and T-slot nut**	12.0	31.0	M6 x 40	8	5	6	I	40	100 pieces
099G084	With assembly set, incl. screw and T-slot nut**	10.7	24.0	M5 x 30	8	4	5	B	30	100 pieces
099G086	With assembly set, incl. screw and T-slot nut**	14.4	35.0	M6 x 45	8	5	-	-	45	100 pieces
099G102	With assembly set, incl. screw and T-slot nut**	12.0	35.0	M6 x 45	10	5	6	B	40, 45	100 pieces
099G103	With assembly set, incl. screw and T-slot nut**	13.0	35.0	M6 x 45	10	5	6	B	45	100 pieces
099G121	With assembly set, incl. screw and T-slot nut**	18.0	47.0	M8 x 60	12	6	8	I	60	10 pieces
099GS051	-	7.0	24.0	-	5	-	4	I	20	100 pieces
099GS061	-	10.0	27.0	-	6	-	5	I	30	100 pieces
099GS081	-	12.0	31.0	-	8	-	6	I	40	100 pieces
099GS084	-	10.7	24.0	-	8	-	5	B	30	100 pieces
099GS086	-	14.4	35.0	-	8	-	6	-	45	100 pieces
099GS102	-	12.0	35.0	-	10	-	6	B	40, 45	100 pieces
099GS103	-	13.0	35.0	-	10	-	6	B	45	100 pieces
099GS121	-	18.0	47.0	-	12	-	8	I	60	10 pieces
