Components Work Station

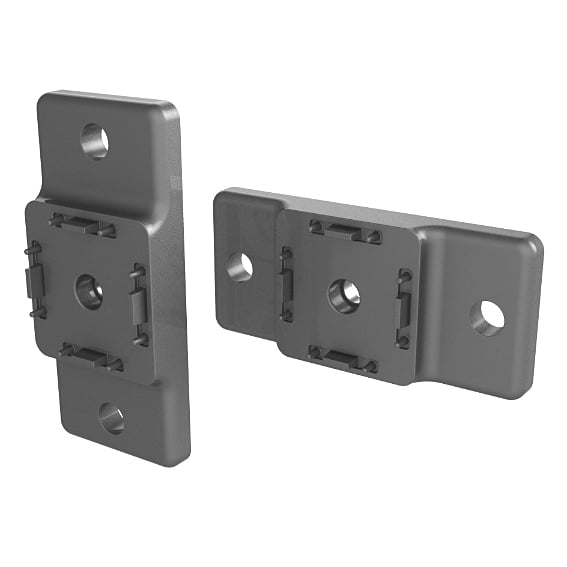

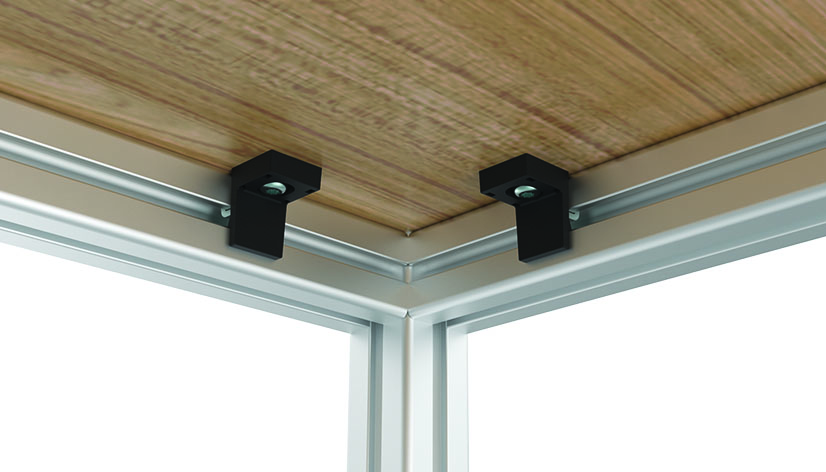

Color:Alu colorDelivery Countries:WorldwideDescription:To connect a monitor mount or an aluminum profile at right angles, as well to tee connect two aluminum profiles; accessible mounting holes allow to adjust the position laterMaterial:Adapter plate: Die cast aluminum Pressed nut: SteelSurface:Adapter plate: Powder coated Pressed nut: Zinc platedTip:Compatible Monitor Mount see 061SM7510040

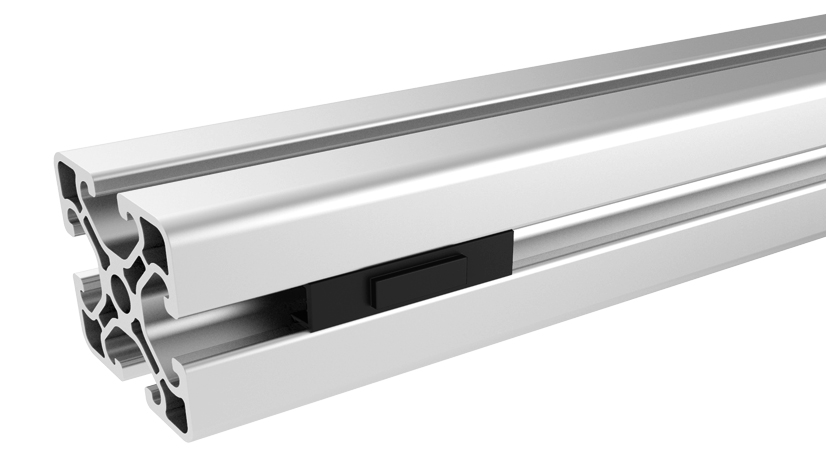

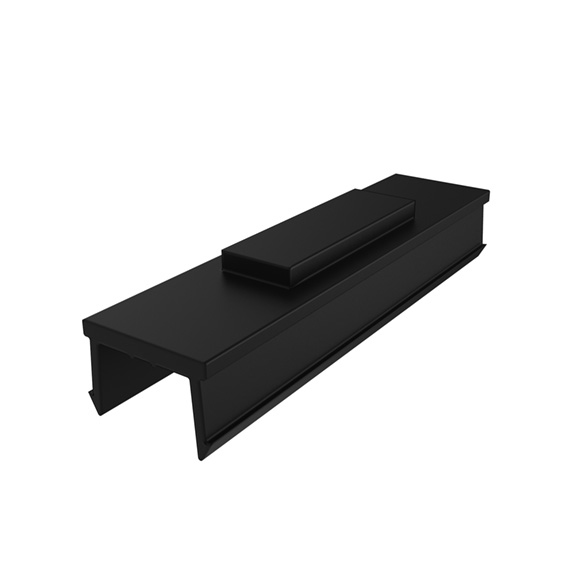

Color:BlackDelivery Countries:WorldwideDescription:For attaching magnetic signs, labels, office supplies etc. in slot 10Material:Plastic PPSpecials:Other colors on request

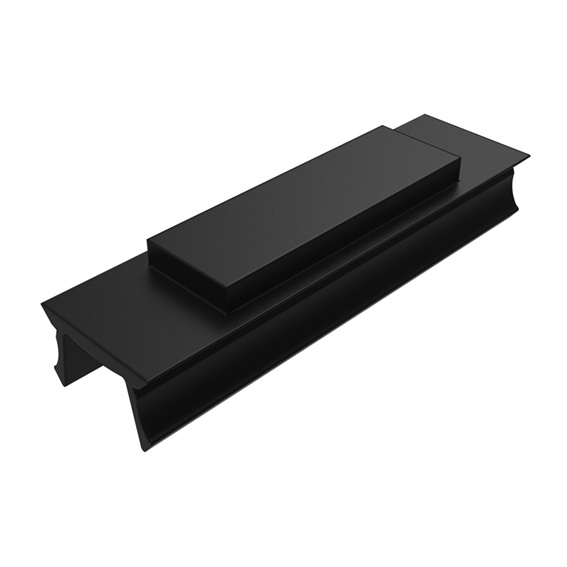

Color:BlackDelivery Countries:WorldwideDescription:For attaching magnetic signs, labels, office supplies etc. in slot 8 Material:Plastic PPSpecials:Other colors on request

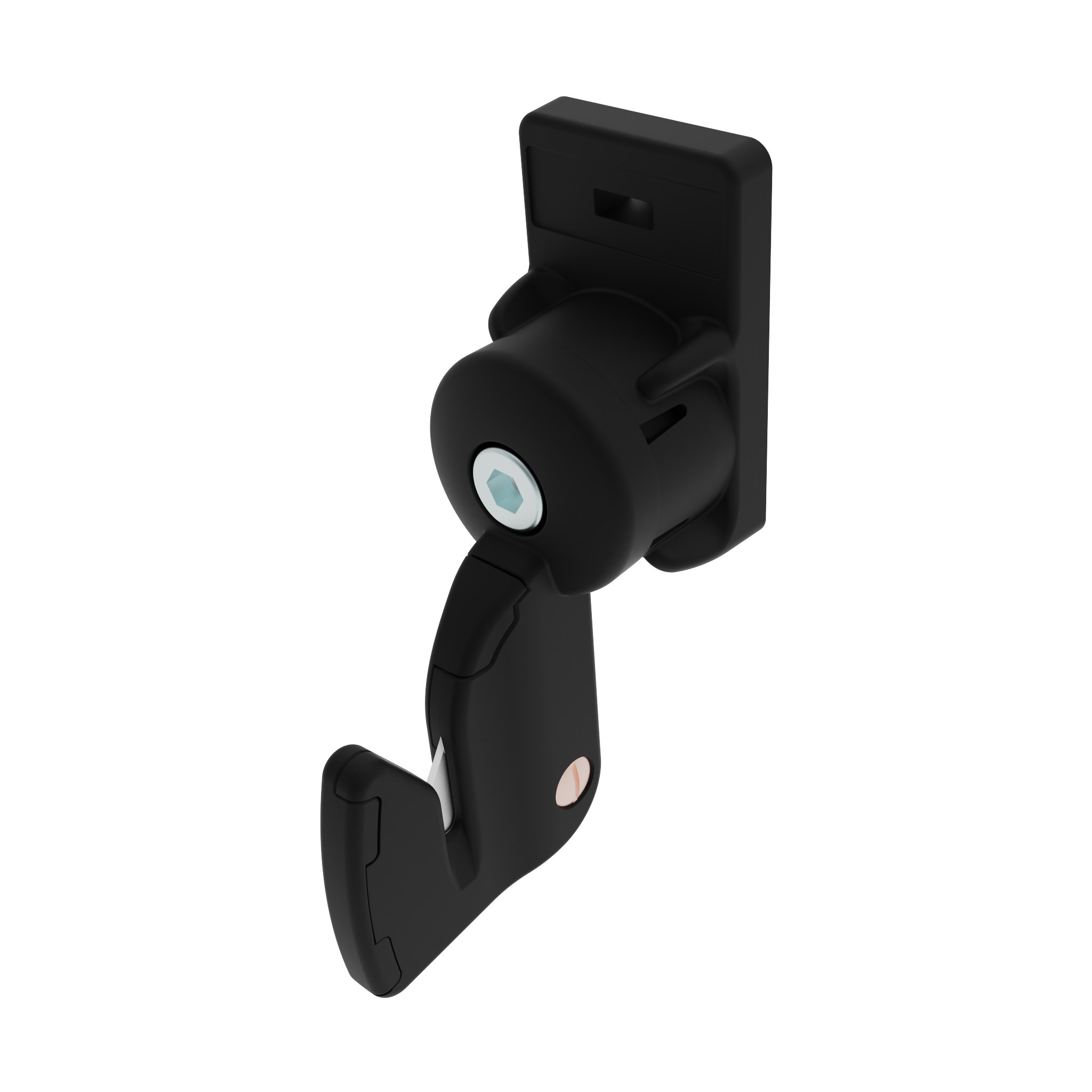

Color:Bag cutter: Black, gray Centering piece: BlackDelivery Countries:WorldwideDescription:Ready to use bag cutter, changeable blade, 360° turnable, for aluminum profiles To organize work stationsMaterial:Bag cutter standard version: Plastic PA, glass ball reinforced Bag cutter ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Trapezoidal blade: Carbon steel Spring: Spring steel SS313 Countersunk screw: Brass Sleeve nut: Brass Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedSpecials:Other colors on requestSurface:Counter sunk screw: Nickel plated Sleeve nut: Nickel plated Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TM8D283F91ESDS01Tip 2:Compatible Trapezoidal Blade for Bag Cutter FX see 061TF91S01

Color:Holder: Black Bag cutter: BlackDelivery Countries:WorldwideDescription:Ready to use bag cutter, changeable blade, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Holder ESD electrostatical discharging version: Plastic PA, carbon fibre reinforced Bag cutter ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Trapezoidal blade: Carbon steel Spring: Spring steel SS313 Countersunk screw: Brass Sleeve nut: Brass Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NF91S01 For round tubes D28 / D30 see 6TM8D283F91ESDS01

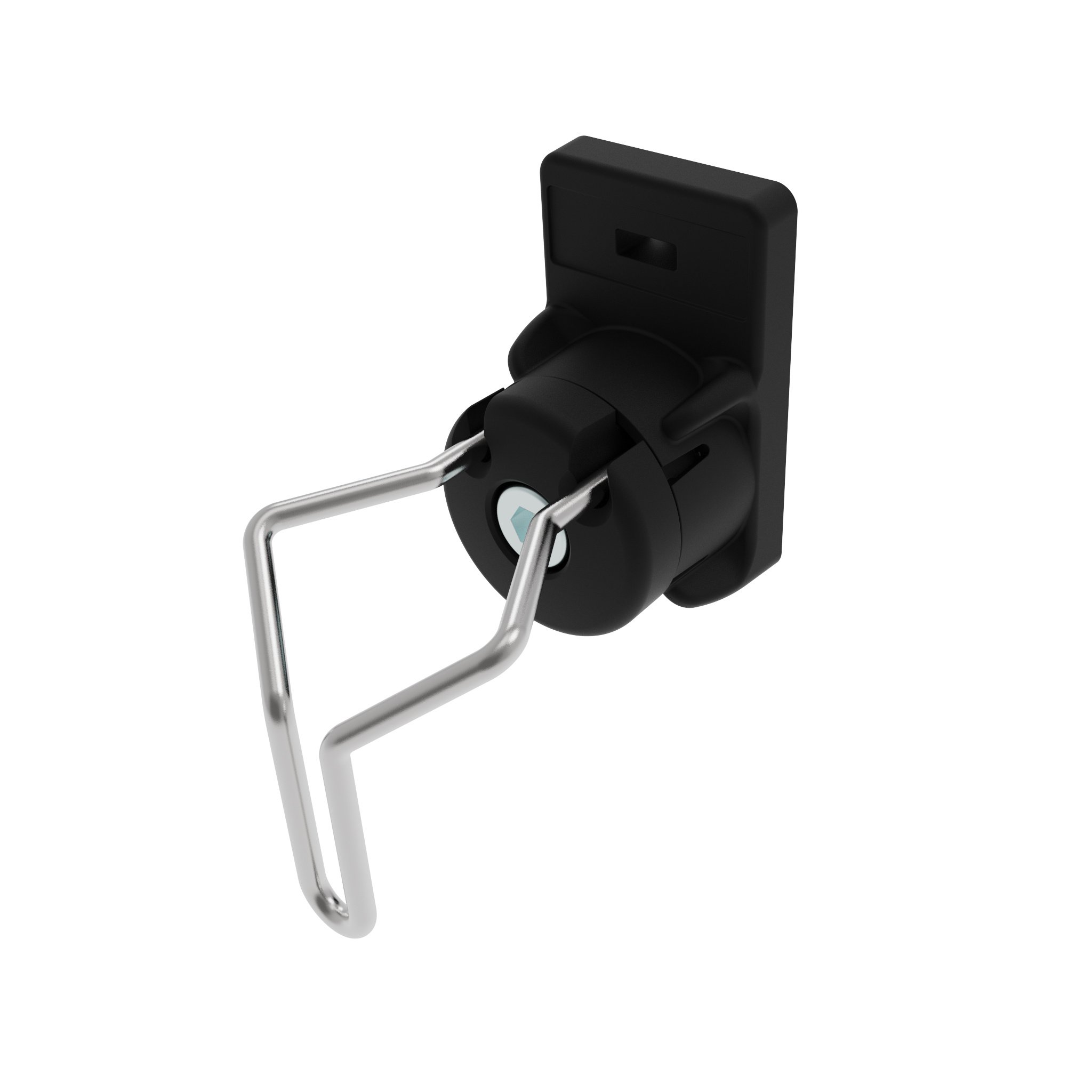

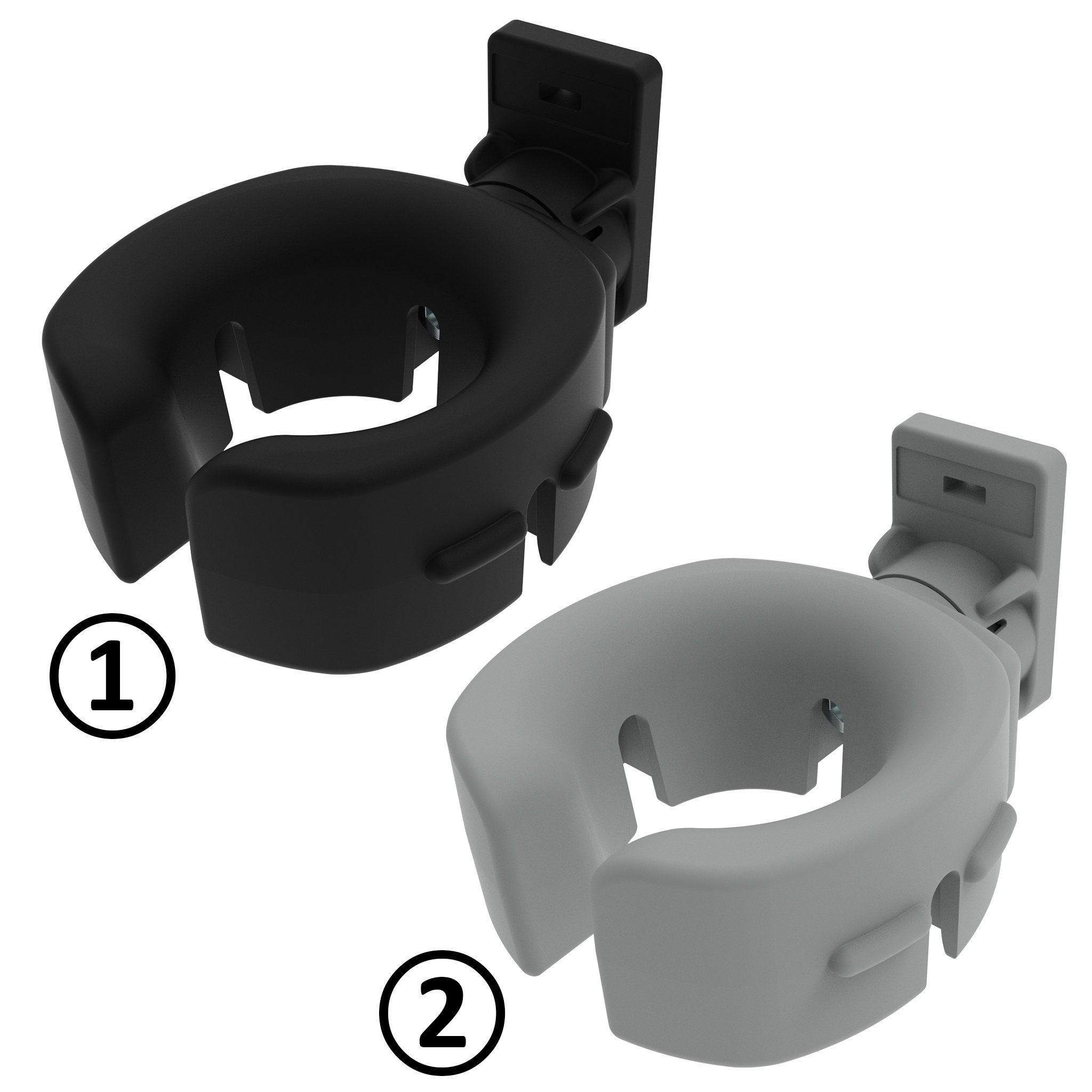

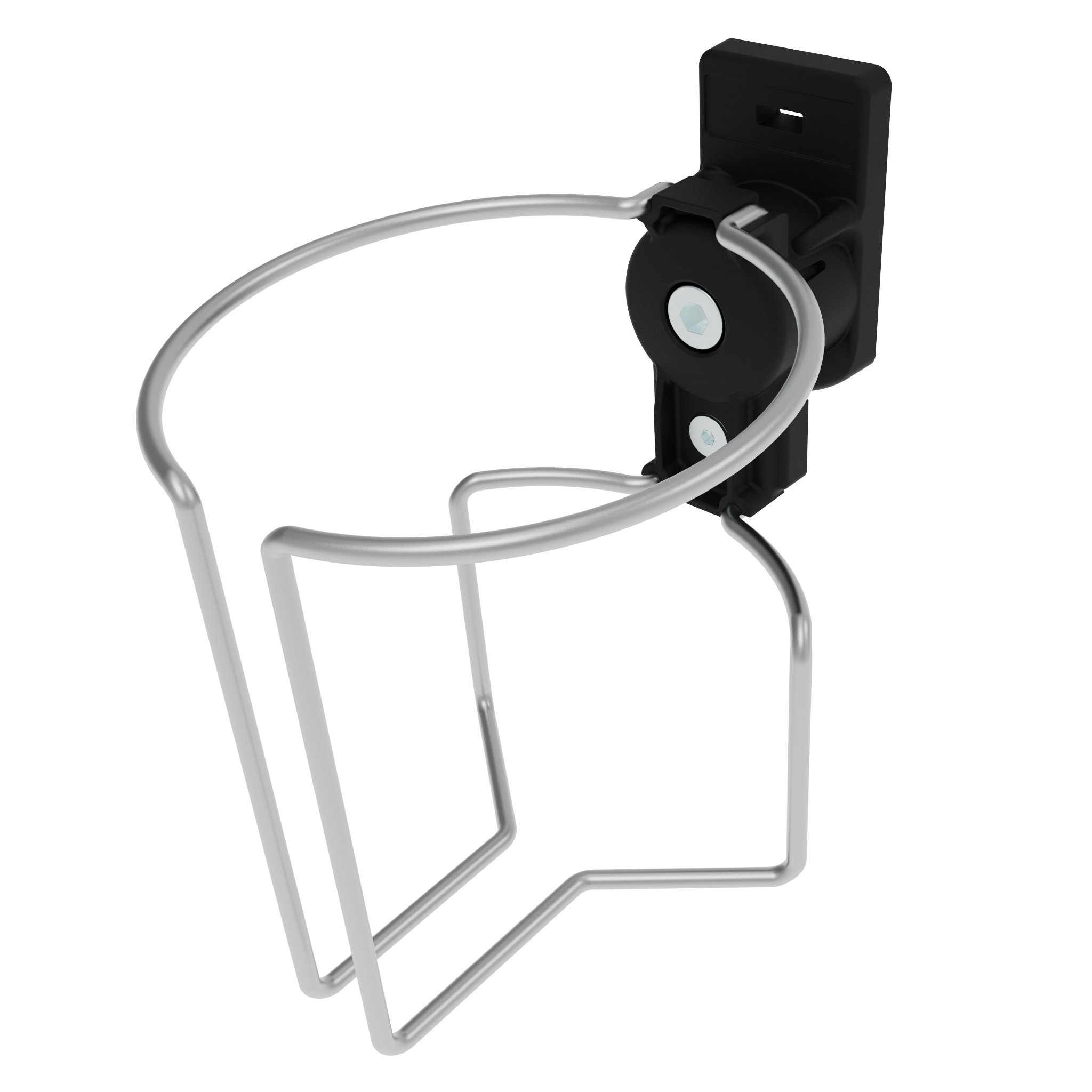

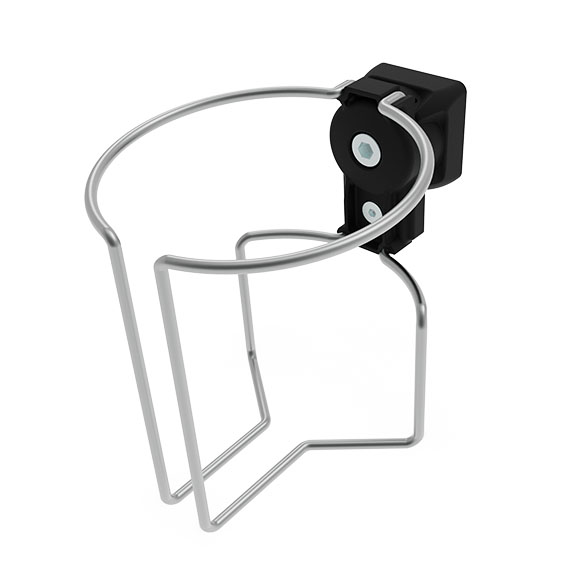

Color:Holder: Black, gray Centering piece: BlackDelivery Countries:WorldwideDescription:Ready to use bottle holder, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Holder standard version: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedSpecials:Other colors on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TM8D283D100S01

Color:Rear mounting holder: Black Front locking holder: BlackDelivery Countries:WorldwideDescription:Ready to use bottle holder, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder: Plastic PA, carbon fibre reinforced Front locking holder: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840ND100S01 For round tubes D28 / D30 see 6TM8D283D100S01

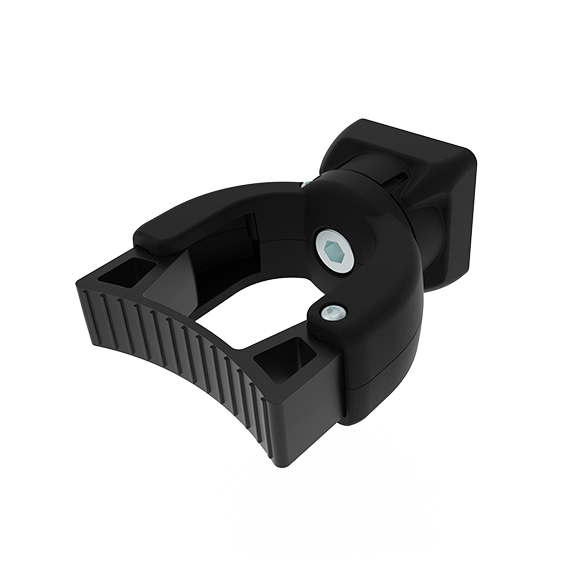

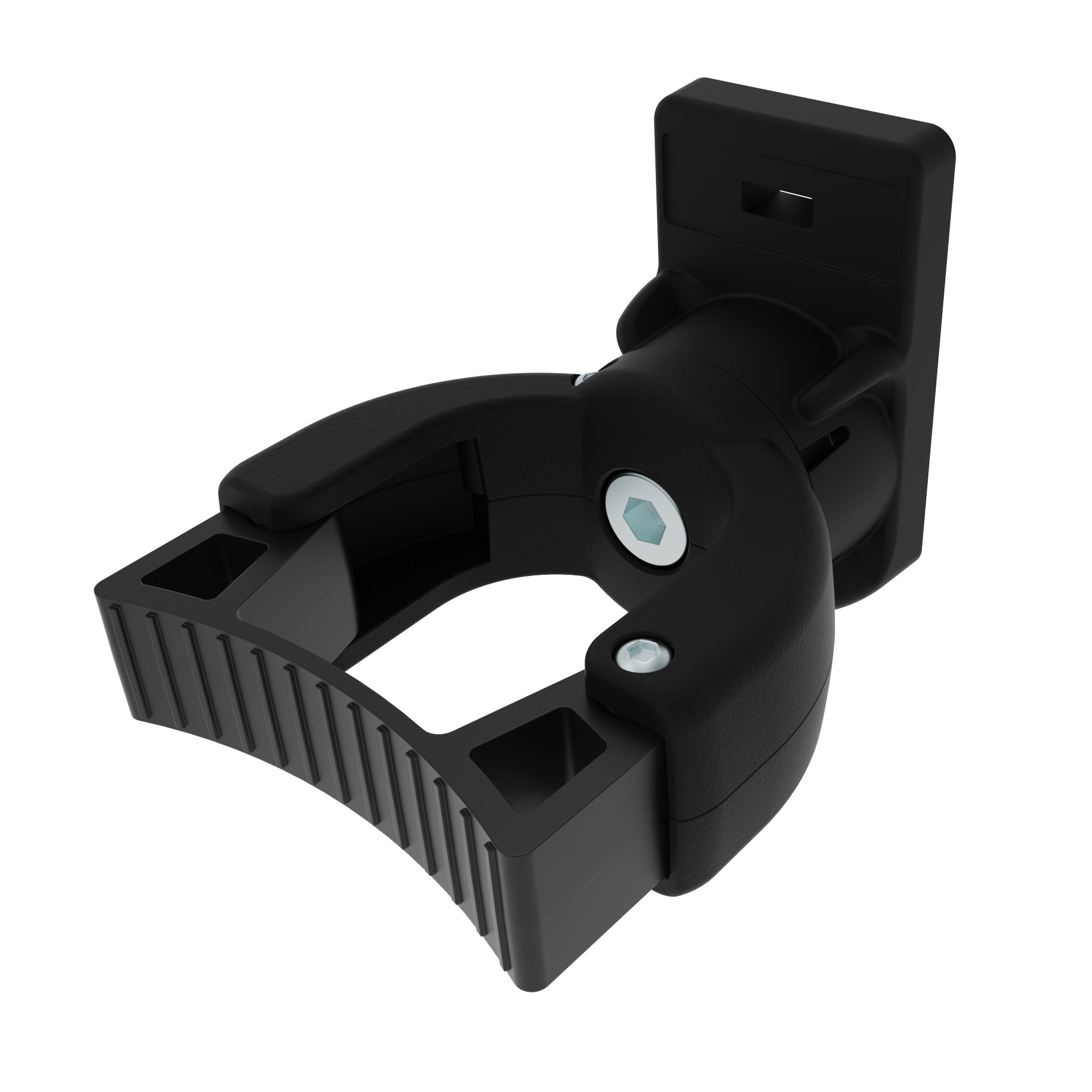

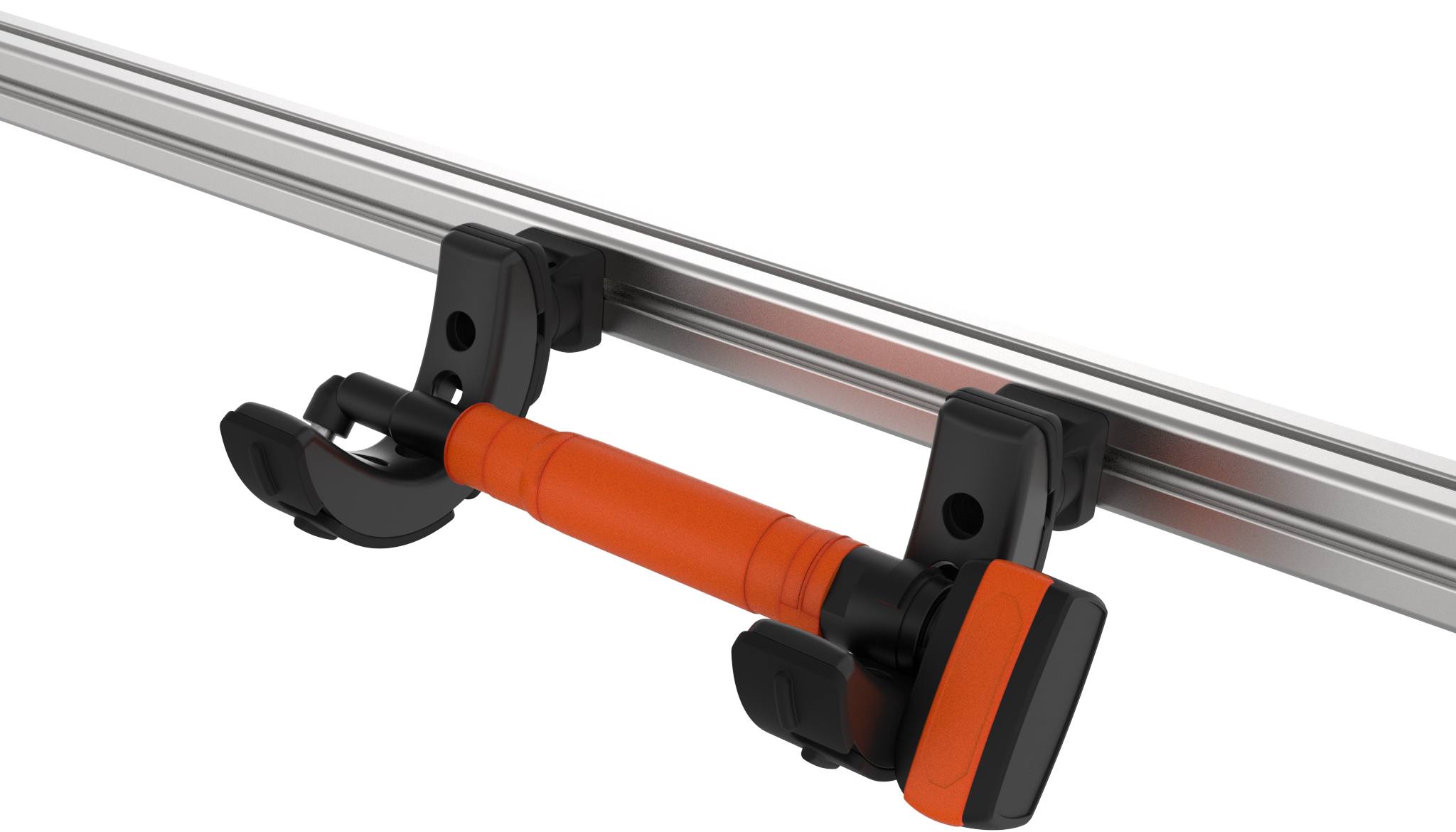

Color:Holder: Black Retaining strap: Black Centering piece: BlackDelivery Countries:WorldwideDescription:Ready to use broom holder to hang up tools with Ø 20 up to 30 mm diameter, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Broom holder: Plastic PA, glass ball reinforced Retaining strap FLEX: Plastic TPE Bushings: Steel Screws for retaining strap: Steel Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedSpecials:Other colors on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TM8D283X2030S01

Color:Holder: Black Broom holder: Black Retaining strap: BlackDelivery Countries:WorldwideDescription:Ready to use broom holder to hang up tools with Ø 20 up to 30 mm diameter, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Holder: Plastic PA, carbon fibre reinforced Broom holder: Plastic PA, glass ball reinforced Retaining strap FLEX: Plastic TPE Bushings: Steel Screws for retaining strap: Steel Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NX2030S01 For round tubes D28 / D30 see 6TM8D283X2030S01

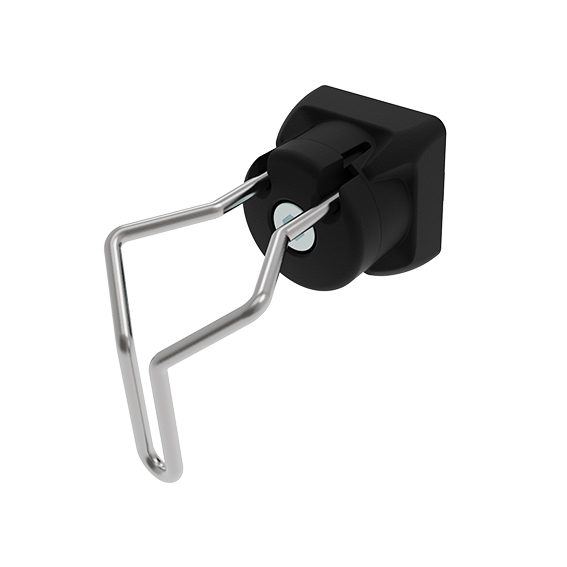

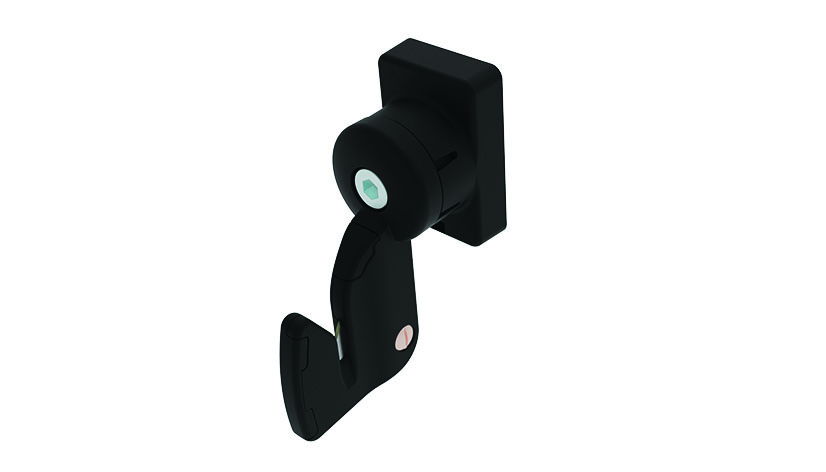

Color:Holder: Black, gray Centering piece: BlackDelivery Countries:WorldwideDescription:Ready to use cloth clip, 360° turnable, for aluminum profiles; To organize workstatioMaterial:Holder standard version: Plastic PA, glass ball reinforced Holder ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedSpecials:Other colors on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TH2D283G5050EDS1-

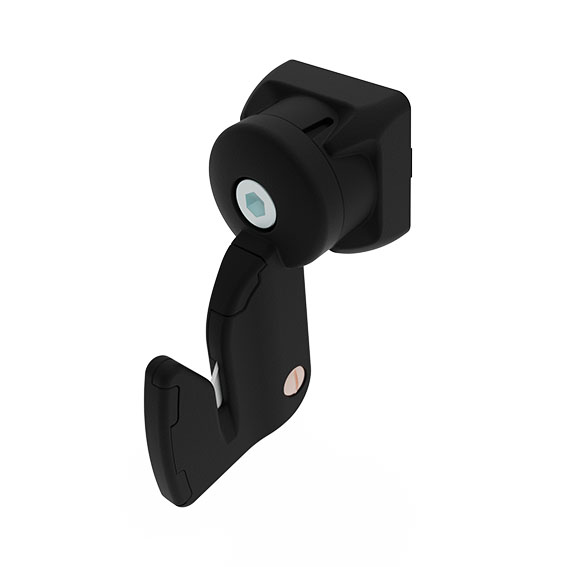

Color:Rear mounting holder: Black Front locking holder: BlackDelivery Countries:WorldwideDescription:Ready to use cloth clip, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fibre reinforced Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TH240NG5050S01 For round tubes D28 / D30 see 6TH2D283G5050EDS1-

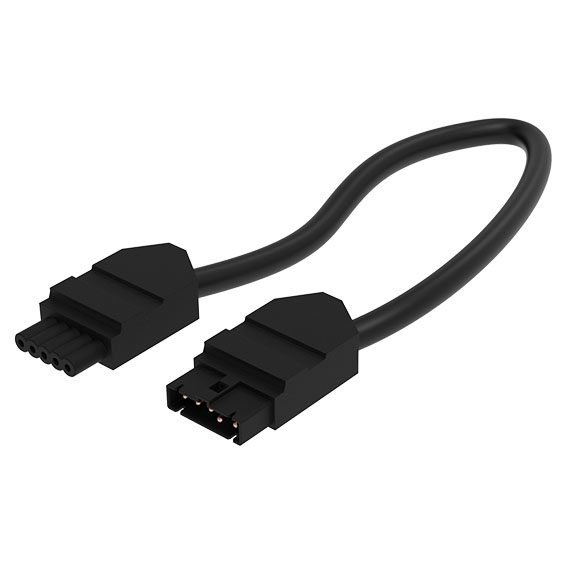

Color:BlackDelivery Countries:WorldwideDescription:5 wire cable to connect LED lamps with remote dimmer and power strips Module F LineMaterial:Cable insulation: Plastic PVC Plugs: Plastic PATip:Compatible Power Strip see 6SBEU24DU.370 Compatible LED Lamp see 6SL0040I953Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

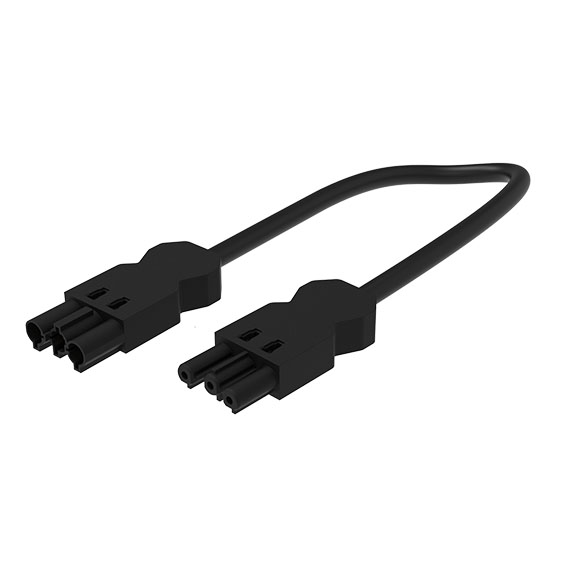

Color:BlackDelivery Countries:WorldwideDescription:3 wire cable to connect LED lamps and power strips Module F LineMaterial:Cable insulation: Plastic PVC Plugs: Plastic PATip:Compatible Power Strip see 6SBEU14UI.370 Compatible LED Lamp see 6SL1040DI.953Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

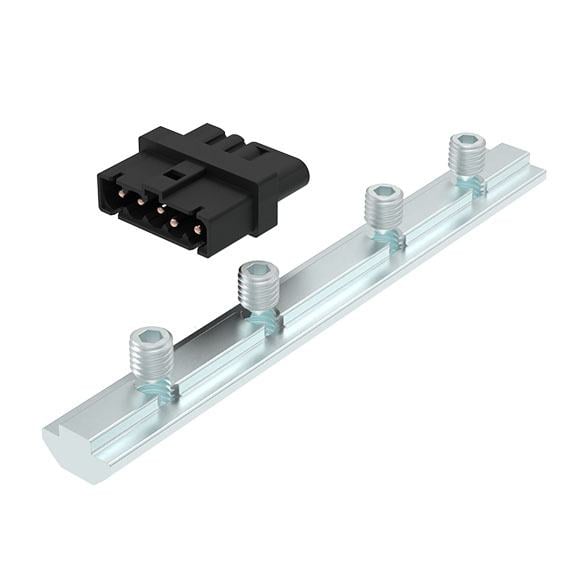

Color:Connection coupling: BlackDelivery Countries:WorldwideDescription:5 pole coupling piece to directly connect LED lamps and power strips Module F LineMaterial:Connection coupling: Plastic PA Connector T-slot nut: SteelSet:1 connection coupling 1 connector T-slot nut 4 grub screws M8 x 10 mmSurface:Connector T-slot nut: Zinc-platedTip:Compatible Power Strip see 6SBEU24DI.370 Compatible LED Lamp see 6SL0040RI.476Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 watts

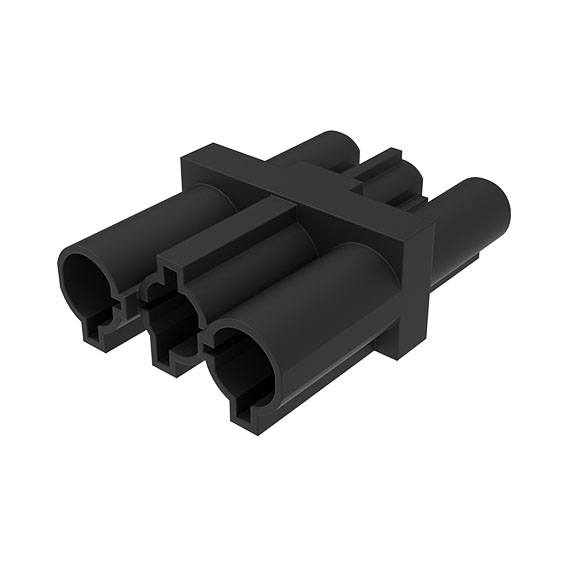

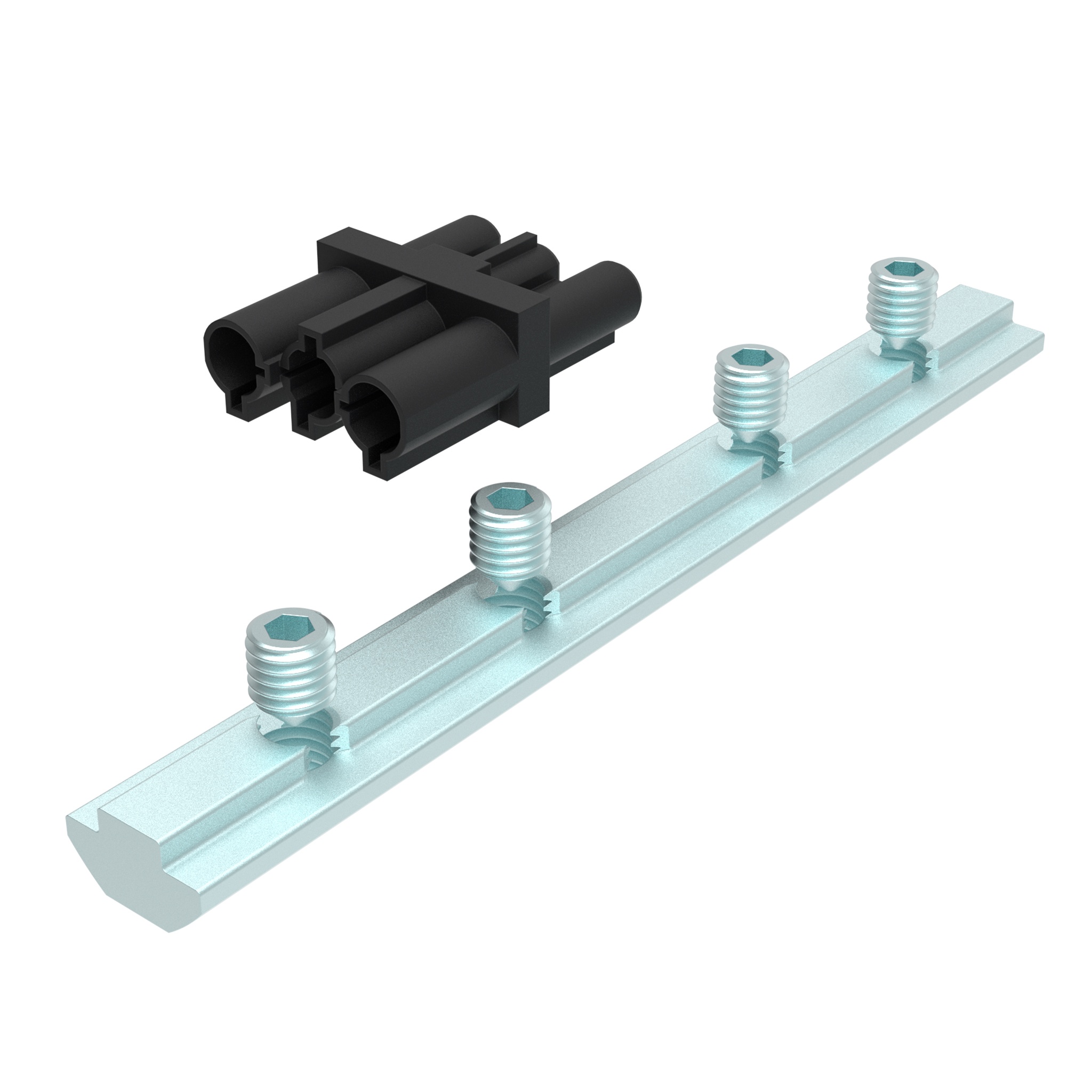

Color:Connection coupling: BlackDelivery Countries:WorldwideDescription:3 pole coupling piece to directly connect LED lamps and power strips Module F LineMaterial:Connection coupling: Plastic PA Connector T-slot nut: SteelSet:1 connection coupling 1 connector T-slot nut 4 grub screws M8 x 10 mmSurface:Connector T-slot nut: Zinc-platedTip:Compatible Power Strip see 6SBEU04I.264 Compatible LED Lamp see 6SL1040DI.476Tip 2:Please note: Usage of connection coupling only in combination with connector T-slot nut permitted Max. chaining of 6 modules, 8 m or 3500 watts for Module F Line

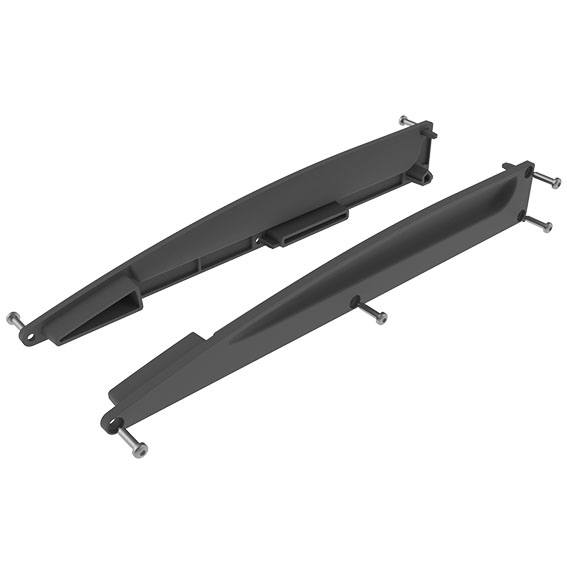

Color:Cover Caps: GrayDelivery Countries:WorldwideDescription:Screw-on cover cap for the end of the aluminum profileMaterial:Cover caps: Plastic PA, glass ball reinforced Screws: SteelSet:1 cover cap left, 1 cover cap right, 8 tapping screws DIN 7981 form C - 3.9 x 16Specials:Other colors on requestSurface:Screws: Zinc plated

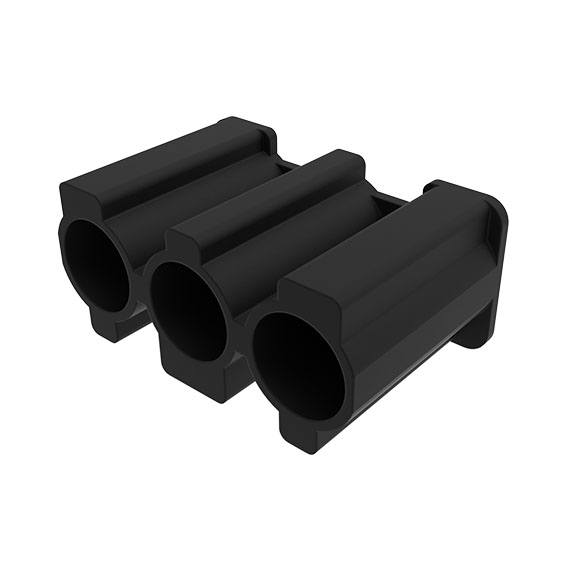

Color:BlackDelivery Countries:WorldwideDescription:Cover cap to cover three pole sockets of LED lamps and power strips Module F LineMaterial:Plastic PATip:Compatible Power Strip see 6SBEU24I.370 Compatible LED Lamp see 6SL1040DI.953

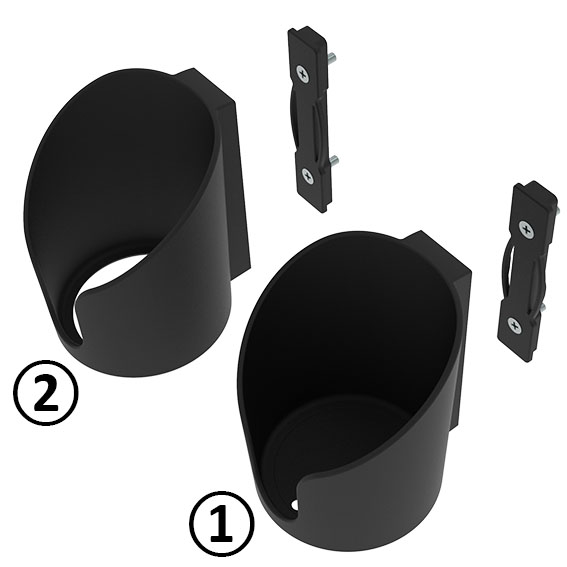

Color:Black, redDelivery Countries:WorldwideDescription:To securely put down a bottle, can or cup, or to park a tool (e.g. a drill)Material:Plastic PA, glass fiber reinforcedSpecials:Other colors on request

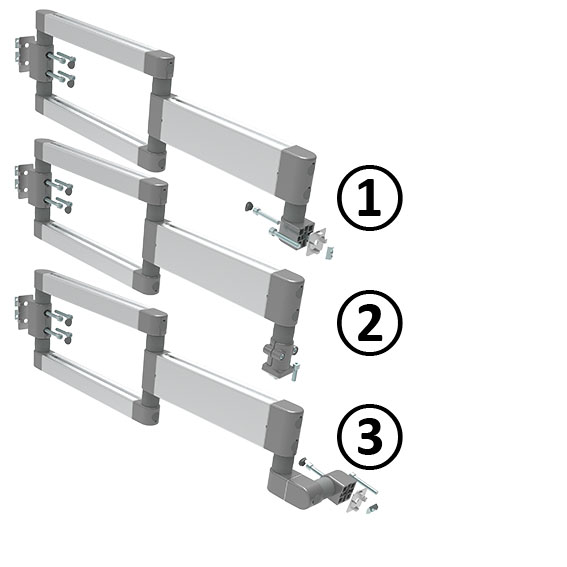

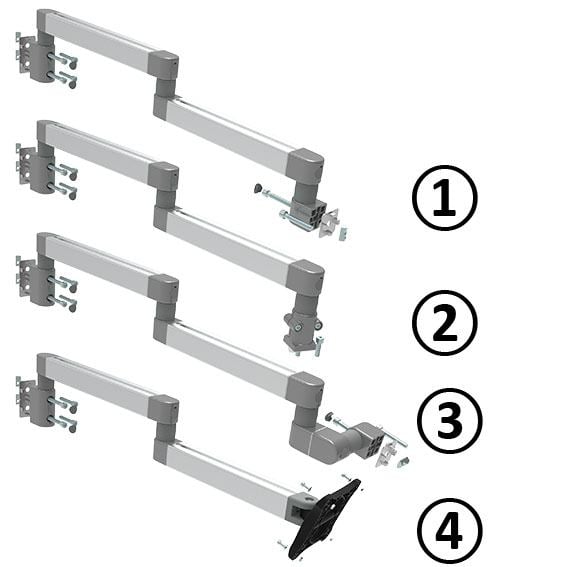

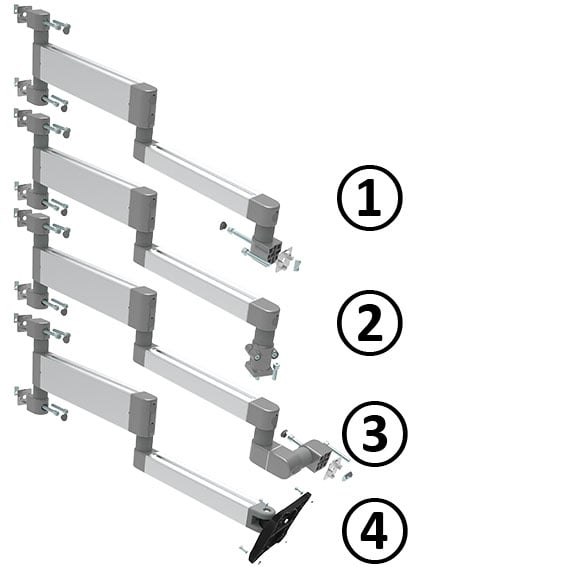

Color:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu color Monitor mount: BlackDelivery Countries:WorldwideDescription:Stable double pivot arm with a reach of approximately 695 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: Steel Monitor mount: Plastic PA, glas fiber reinforcedSet 1:1 double system arm I40H 695 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 double system arm I40H 695 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 double system arm I40H 695 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 4:1 double system arm I40H 695 with monitor mount 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8 1 assembly set for monitor: 4 cylinder head screws M4 x 12, 4 washersSurface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc plated

Color:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu color Monitor mount: BlackDelivery Countries:WorldwideDescription:Stable double pivot arm with a reach of approximately 695 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: Steel Monitor mount: Plastic PA, glas fiber reinforcedSet 1:1 double system arm I40L 695 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 double system arm I40L 695 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 double system arm I40L 695 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 4:1 double system arm I40L 695 with monitor mount 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8 1 assembly set for monitor: 4 cylinder head screws M4 x 12, 4 washersSurface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc plated

Color:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorDelivery Countries:WorldwideDescription:Stable double pivot arm with a reach of approximately 695 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet 1:1 double system arm I80H 695 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 double system arm I80H 695 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 double system arm I40H 695 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Surface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc plated

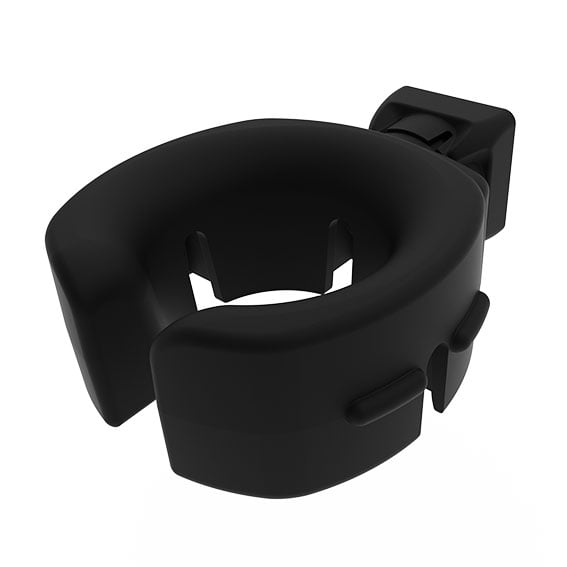

Color:Holder: Black, gray Centering piece: BlackDelivery Countries:WorldwideDescription:Ready to use tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedSpecials:Other colors on requestSurface:Screw: Zinc plated Nut: Zinc plated

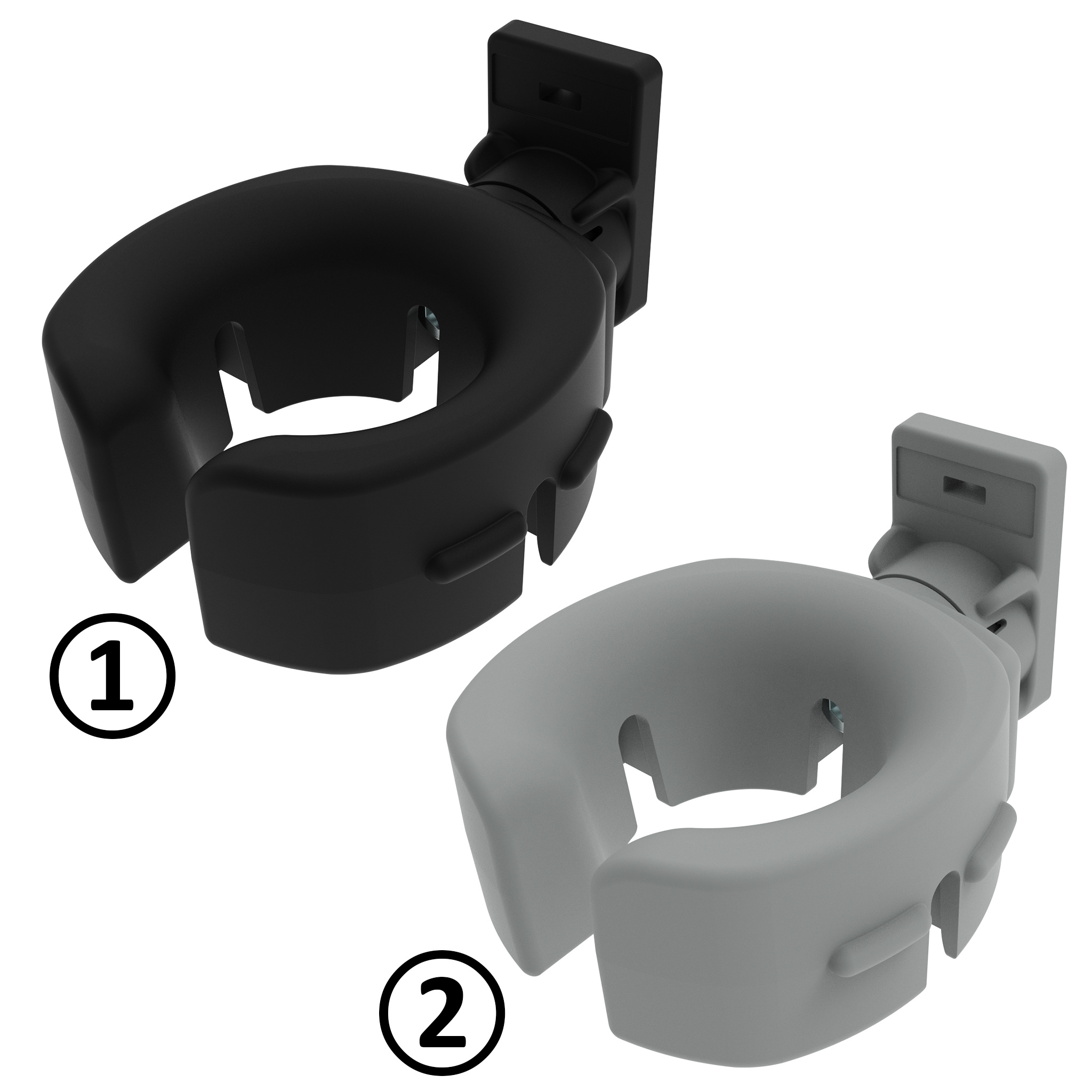

Color:Rear mounting holder: Black, gray Front locking adapter: Black, gray Drill / driver holder: Black, grayDelivery Countries:WorldwideDescription:Ready to use tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder black version: Plastic PA, carbon fibre reinforced Rear mounting holder gray version: Plastic PA, glass fibre reinforced Front locking adapter: Plastic PA, glass ball reinforced Drill / driver holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NL12591S01 For round tubes D28 / D30 see 6TM8D283L12591S01

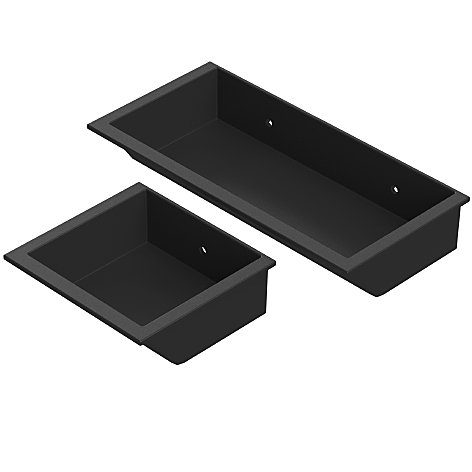

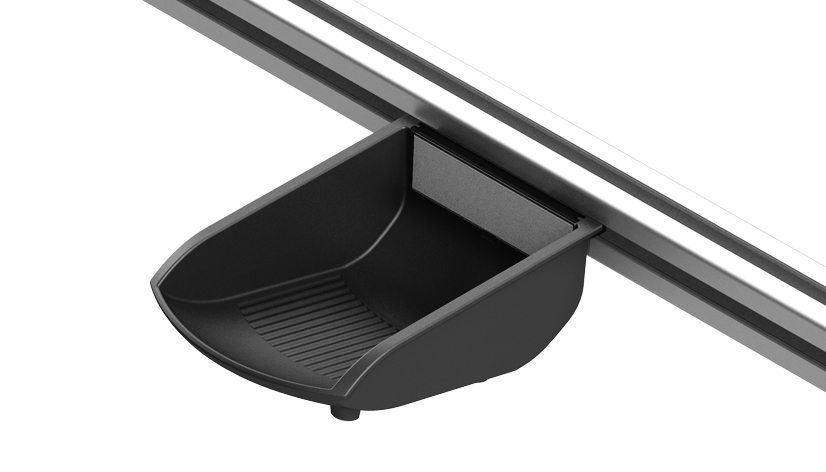

Color:BlackDelivery Countries:WorldwideDescription:To store and provide small parts; simple assembly by swiveling into the profile slot, optional fixation possibility using 1 or 2 screws M5Material:Plastic PA, glass fiber reinforcedSpecials:Other colors on request
